XZ-95 Series Limit Switch
Compact metal-housing limit switch with multiple actuator options for industrial machinery
The XZ-95 Series is a compact enclosed limit-switch family with zinc-alloy housing and multiple actuator heads for position and travel detection. Published series data includes IP65 protection and industrial electrical ratings; confirm the exact ordered suffix against the current controlled drawing and datasheet.
Published values support series selection. Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled XURUI documents.
Compare XZ-95 models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

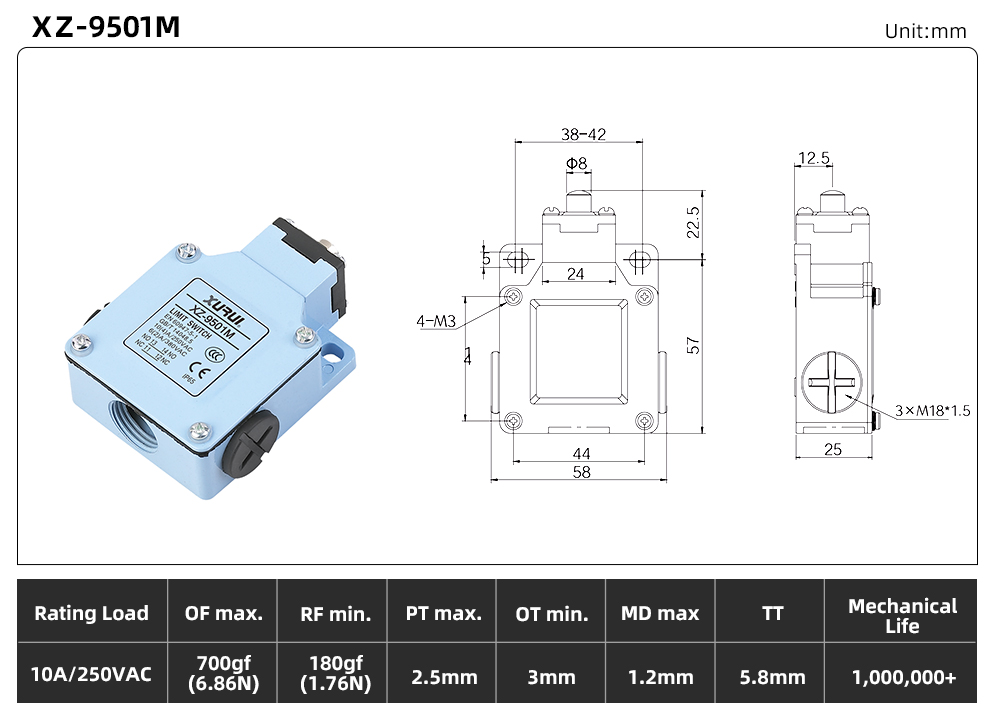

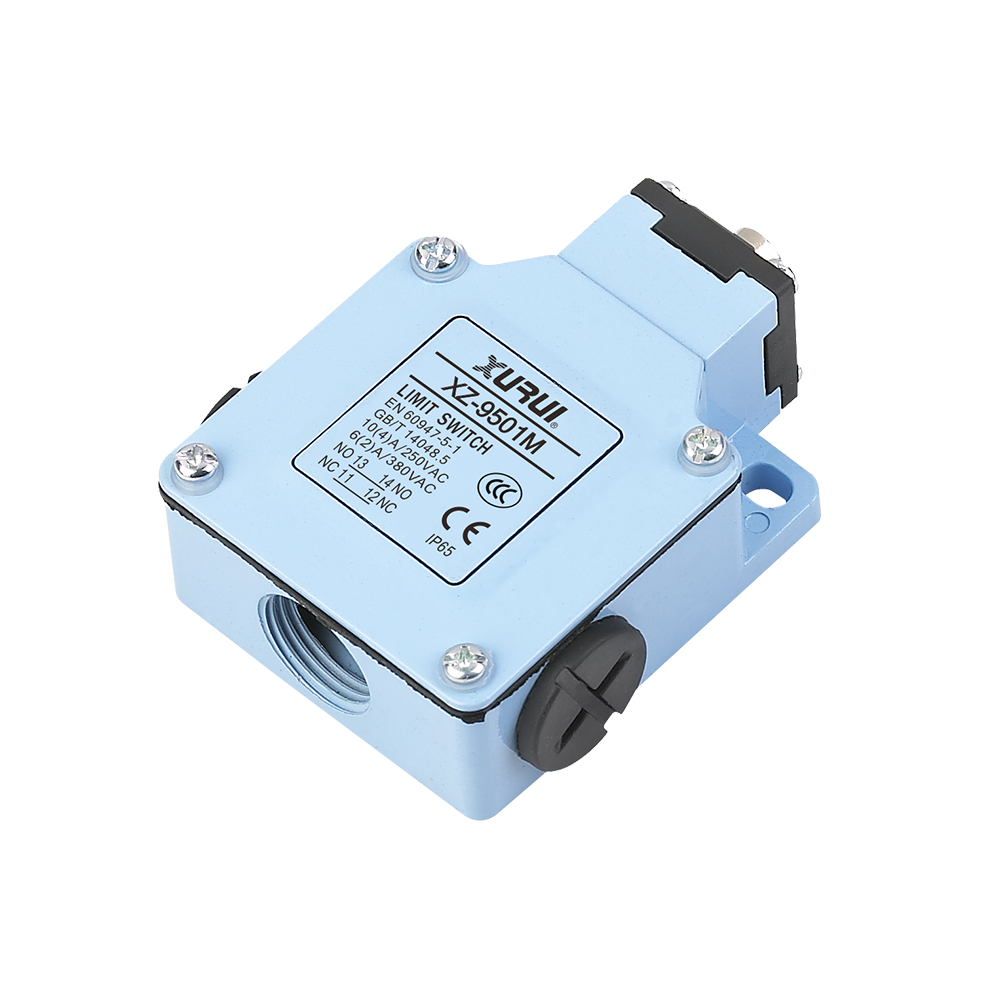

XZ-9501M
Product image and selection drawing are available for comparison.

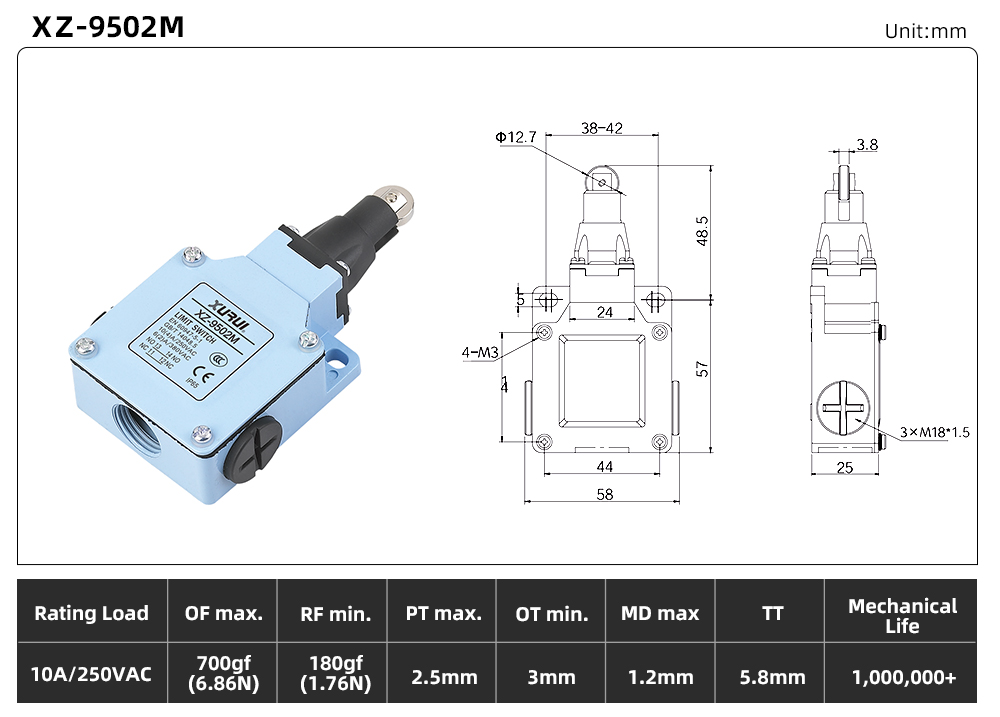

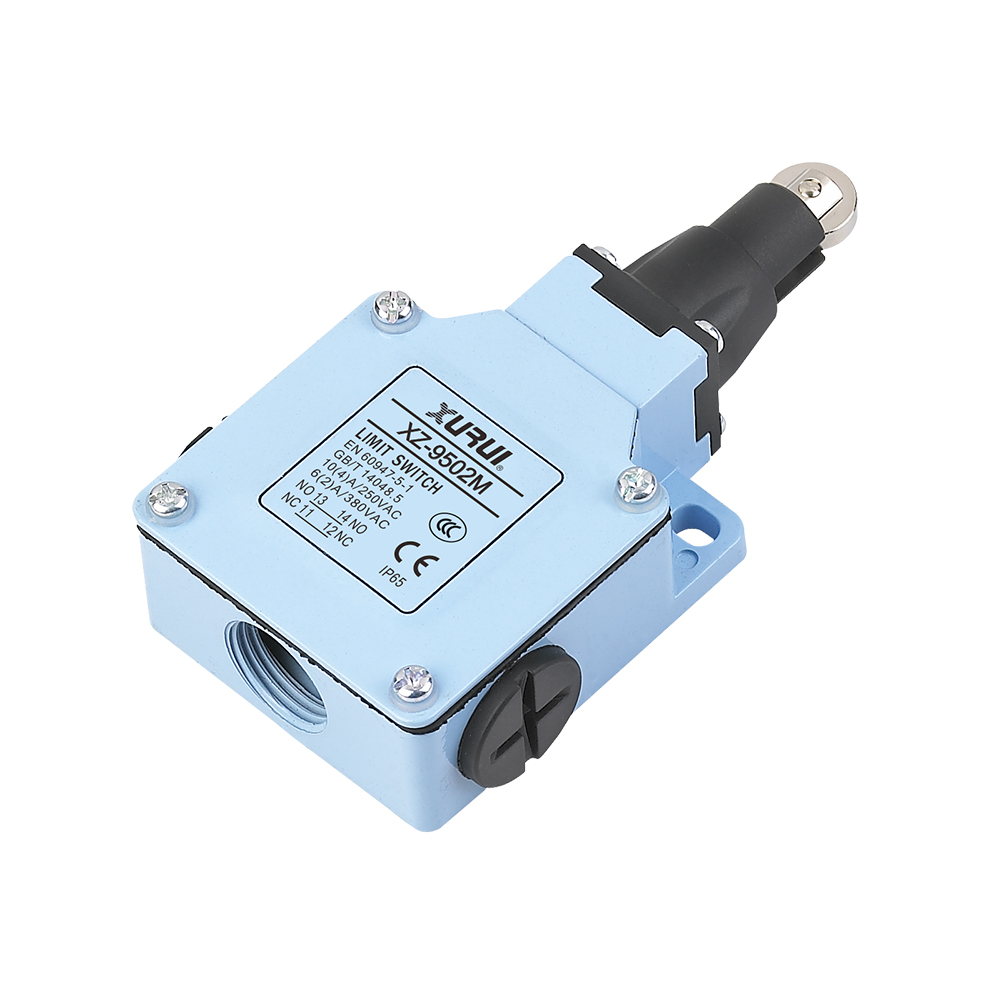

XZ-9502M
Product image and selection drawing are available for comparison.

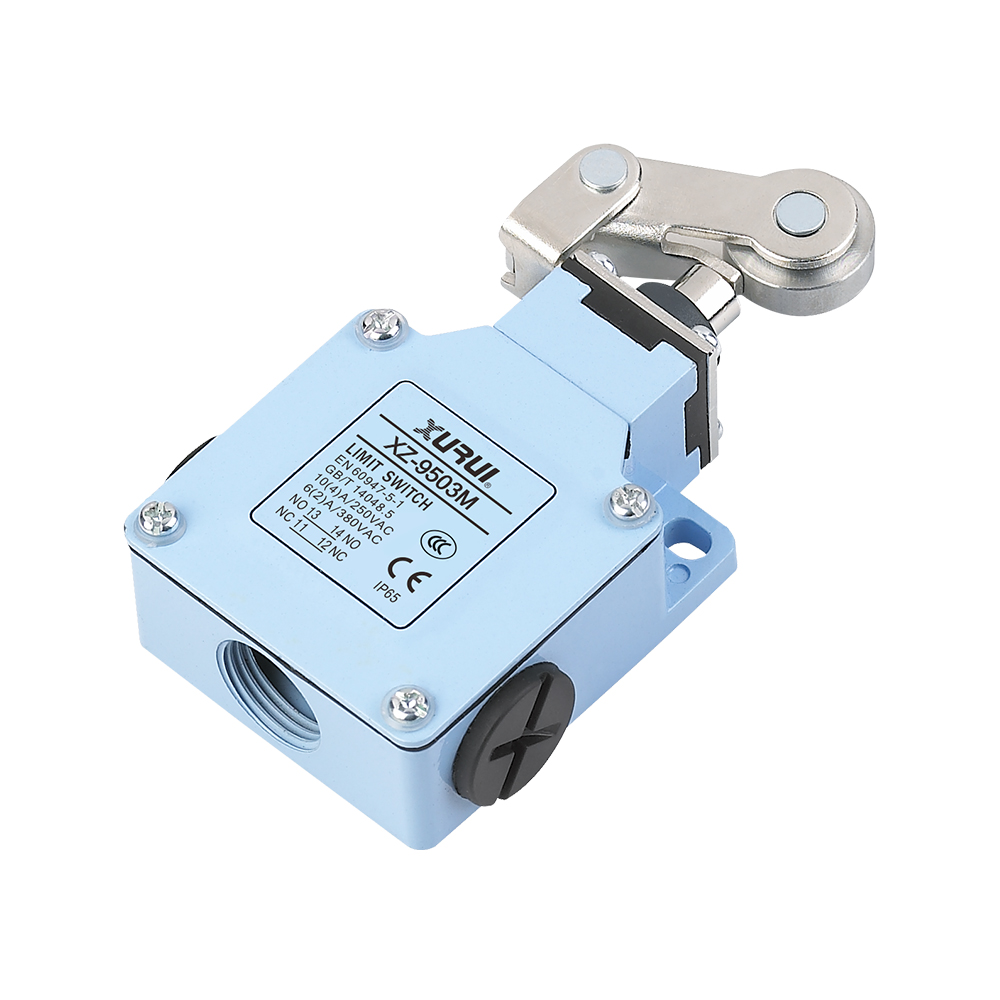

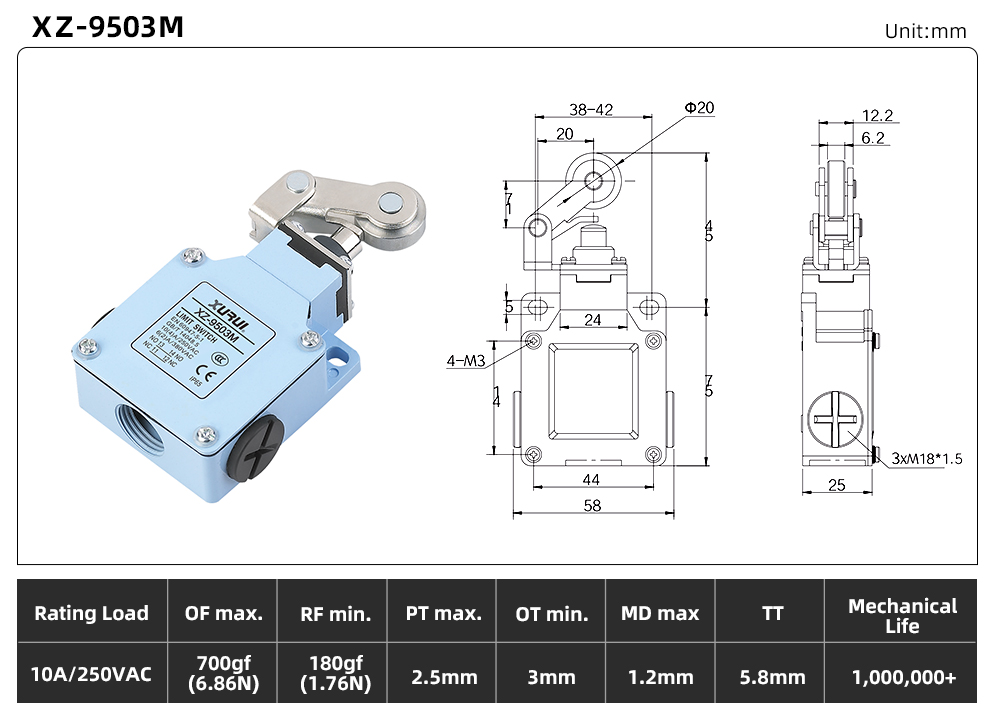

XZ-9503M
Product image and selection drawing are available for comparison.

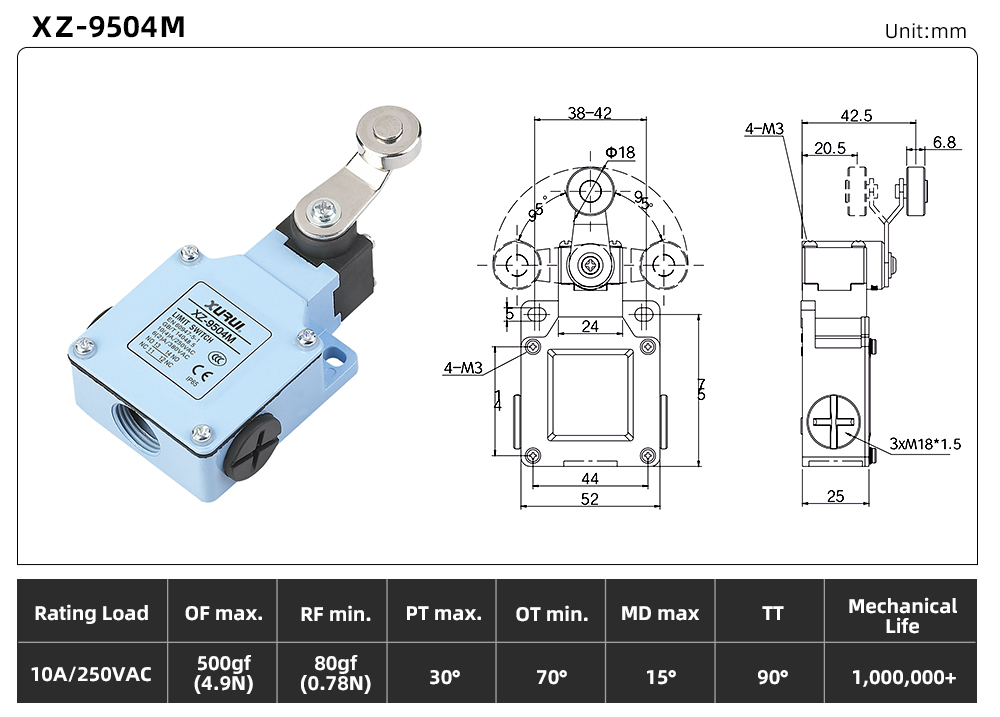

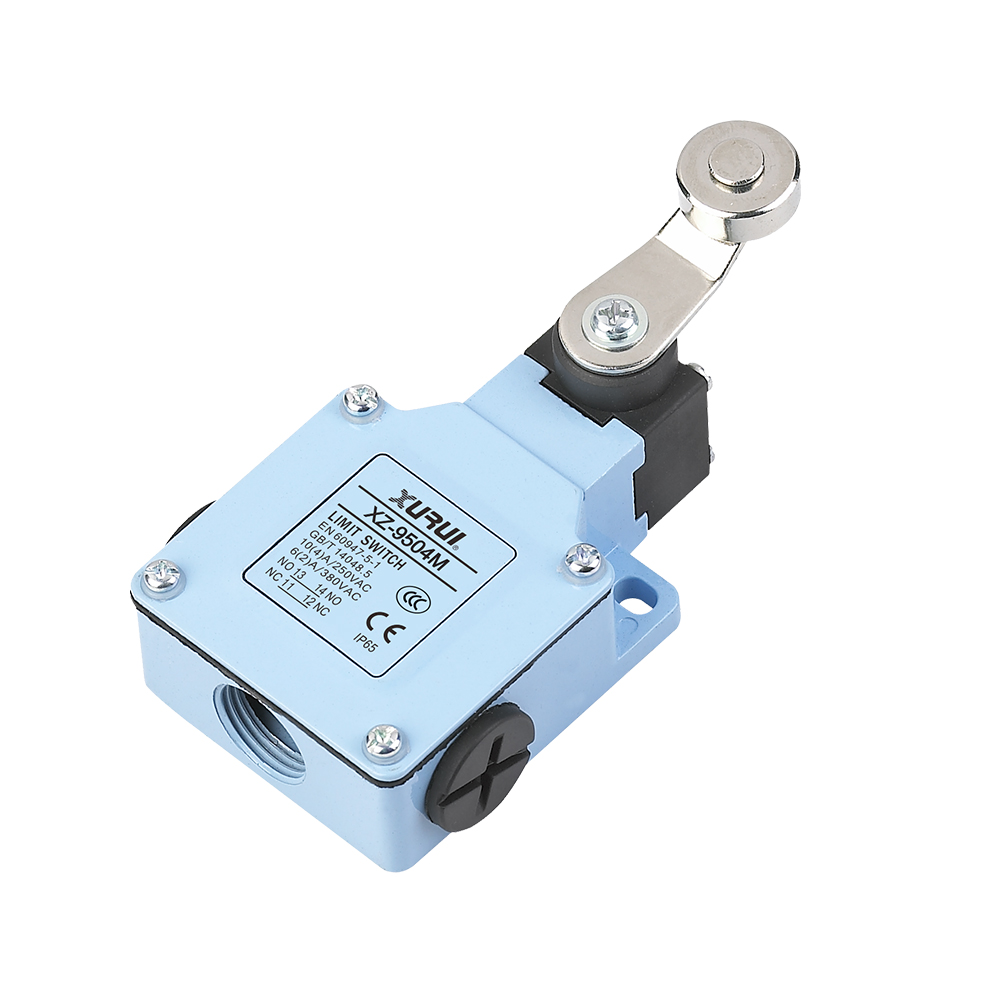

XZ-9504M
Product image and selection drawing are available for comparison.

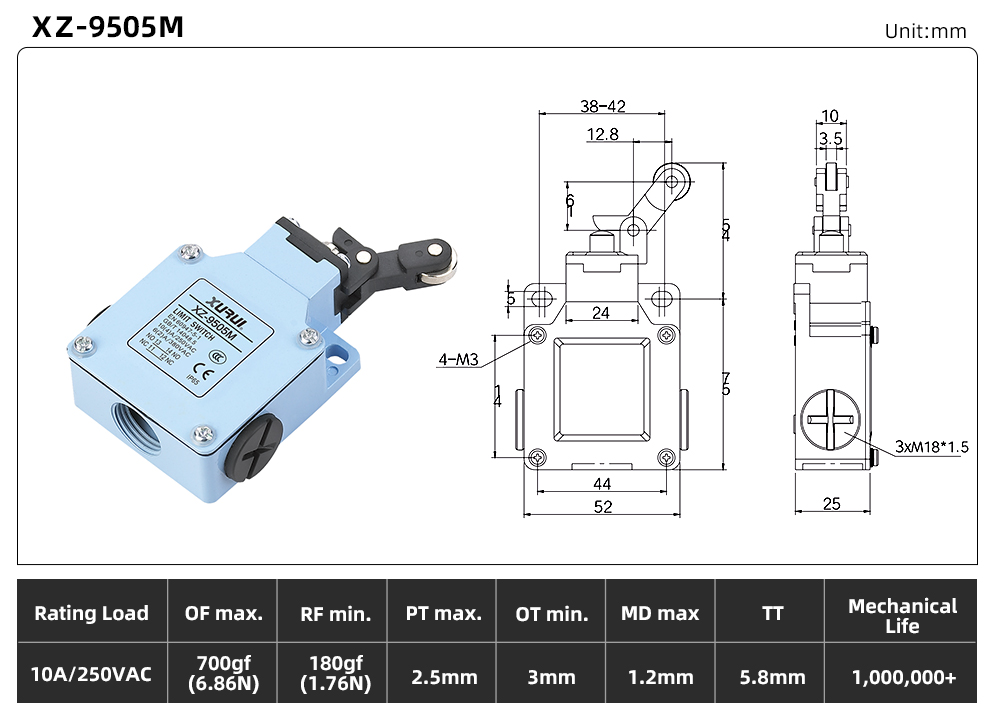

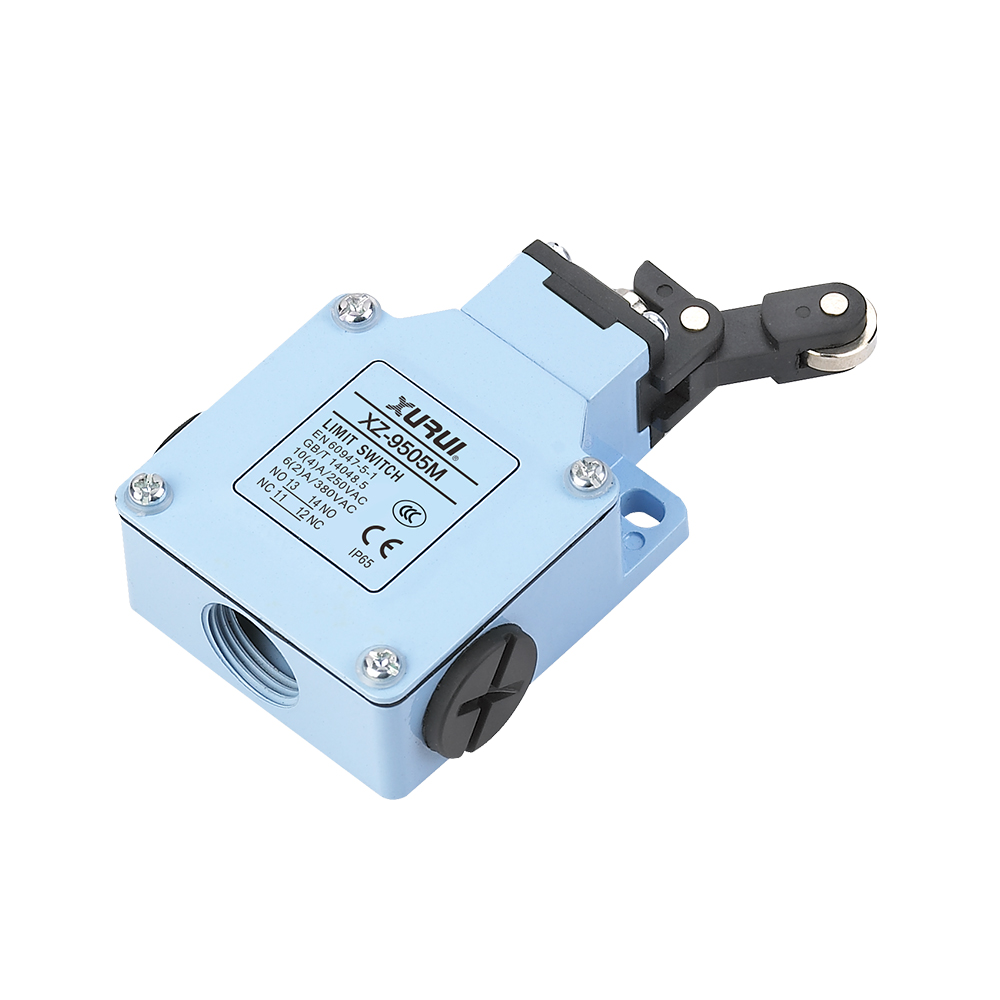

XZ-9505M
Product image and selection drawing are available for comparison.

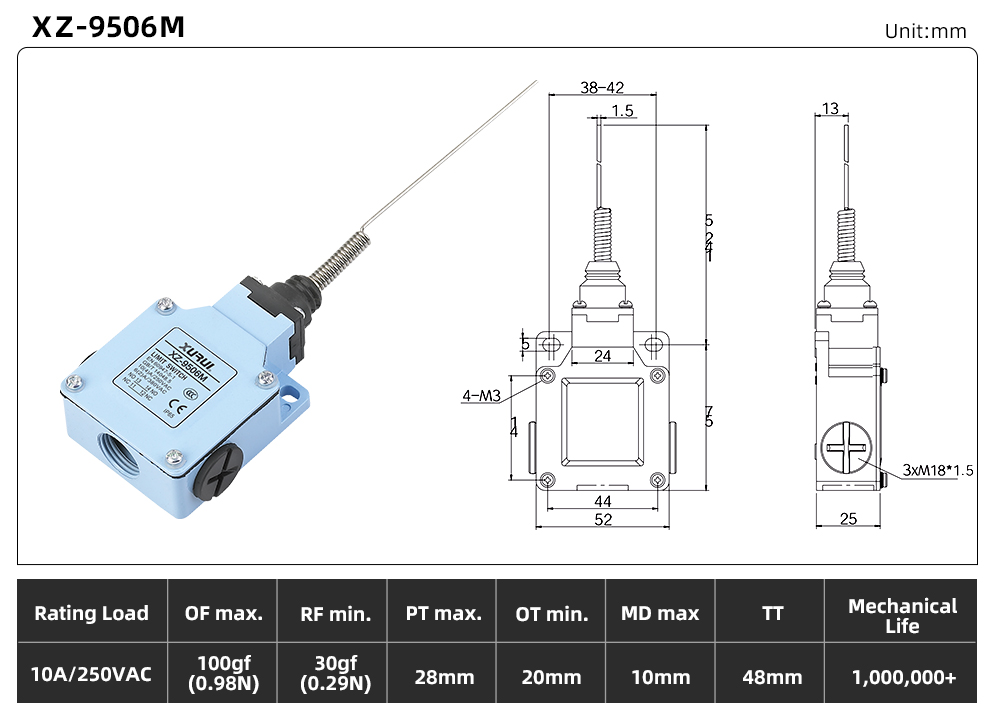

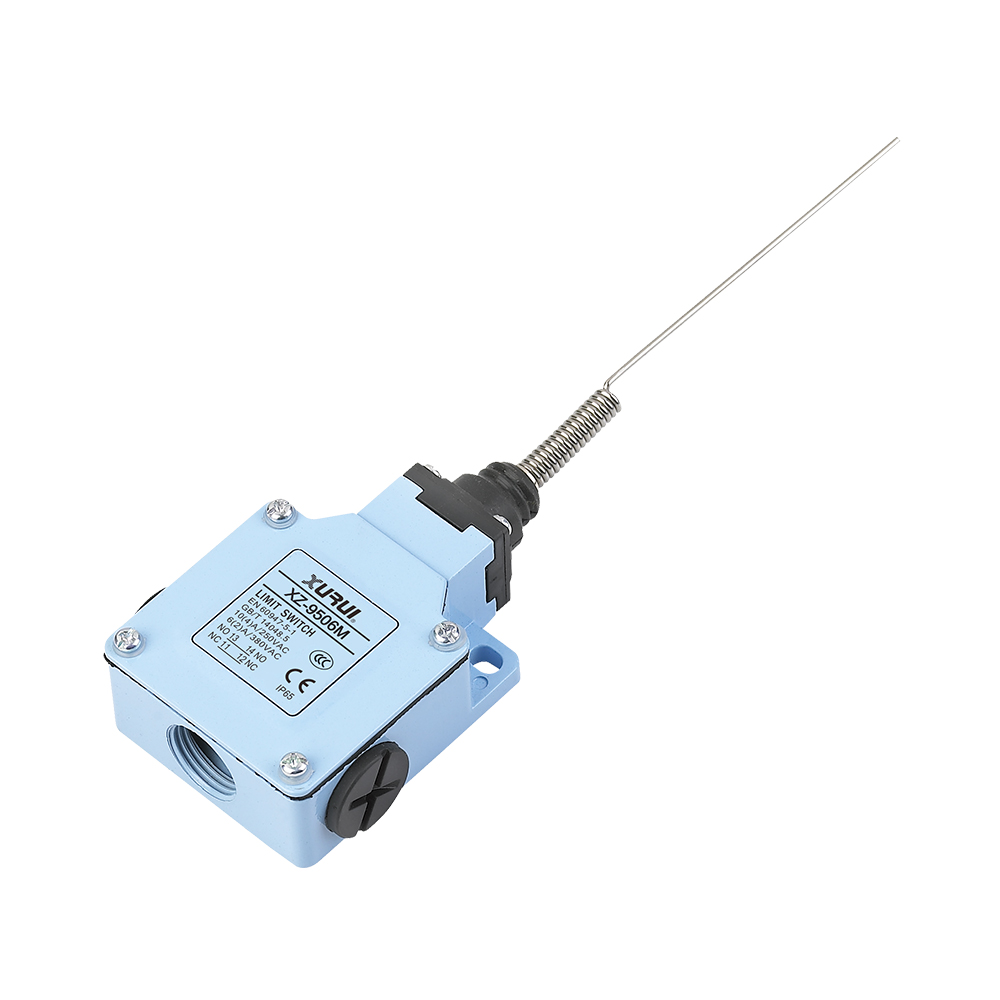

XZ-9506M
Product image and selection drawing are available for comparison.

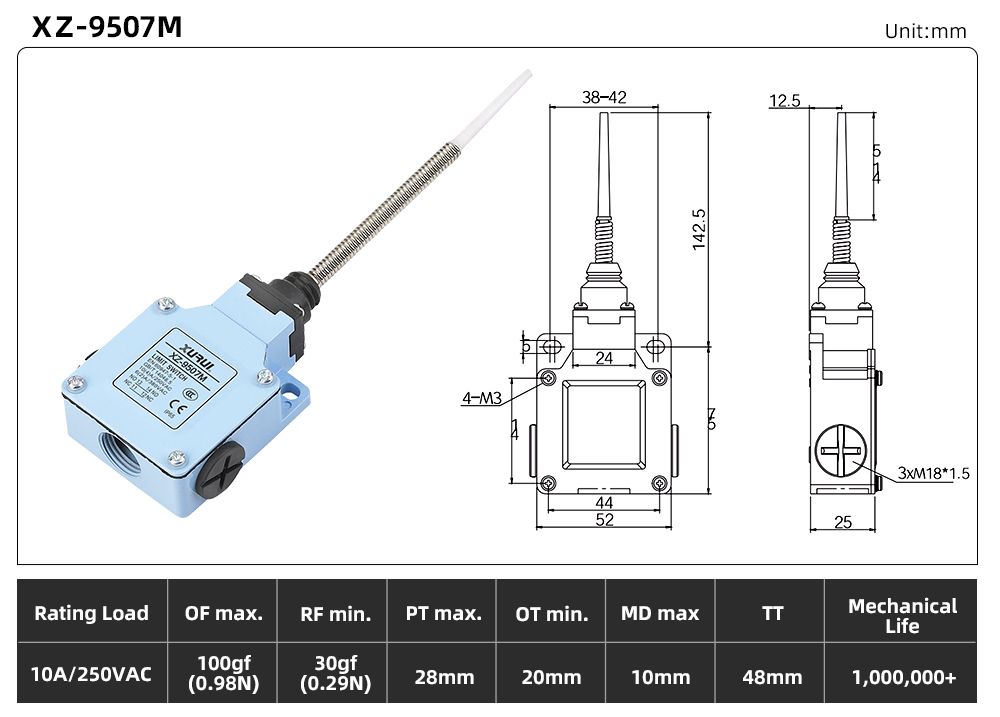

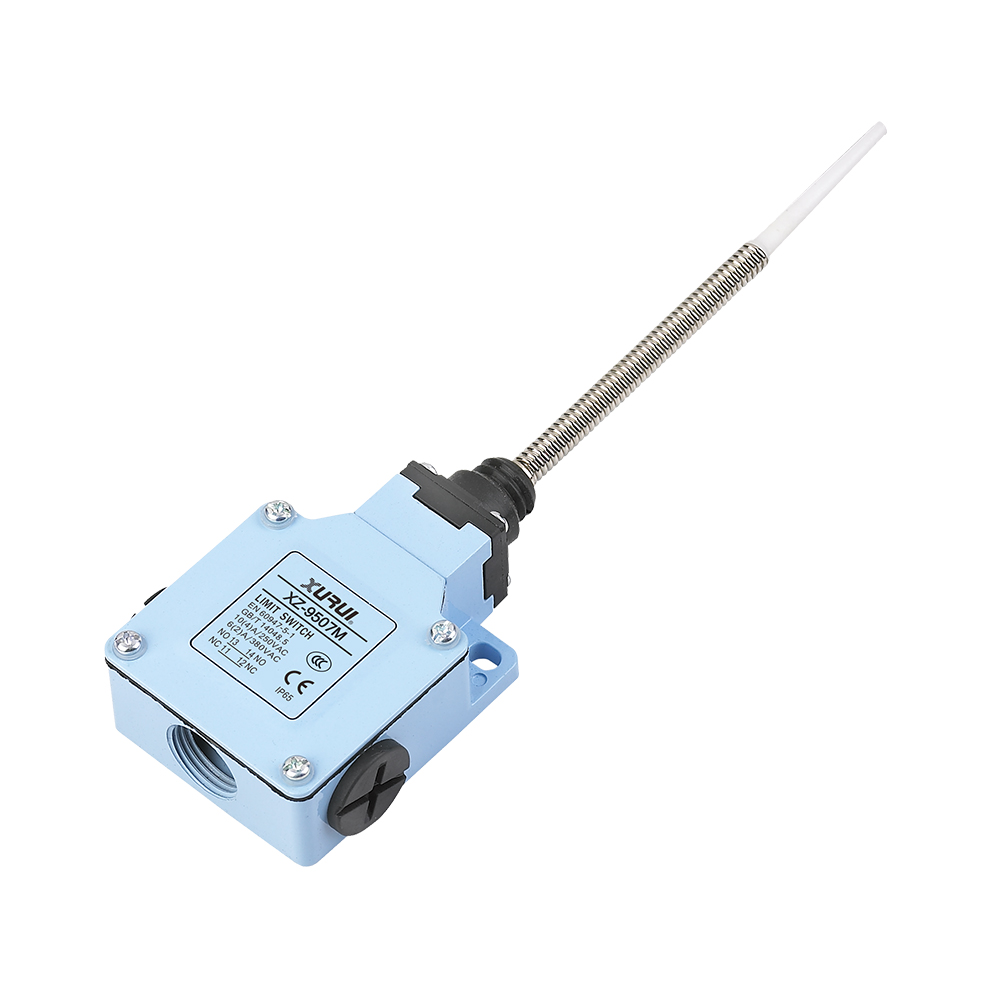

XZ-9507M
Product image and selection drawing are available for comparison.

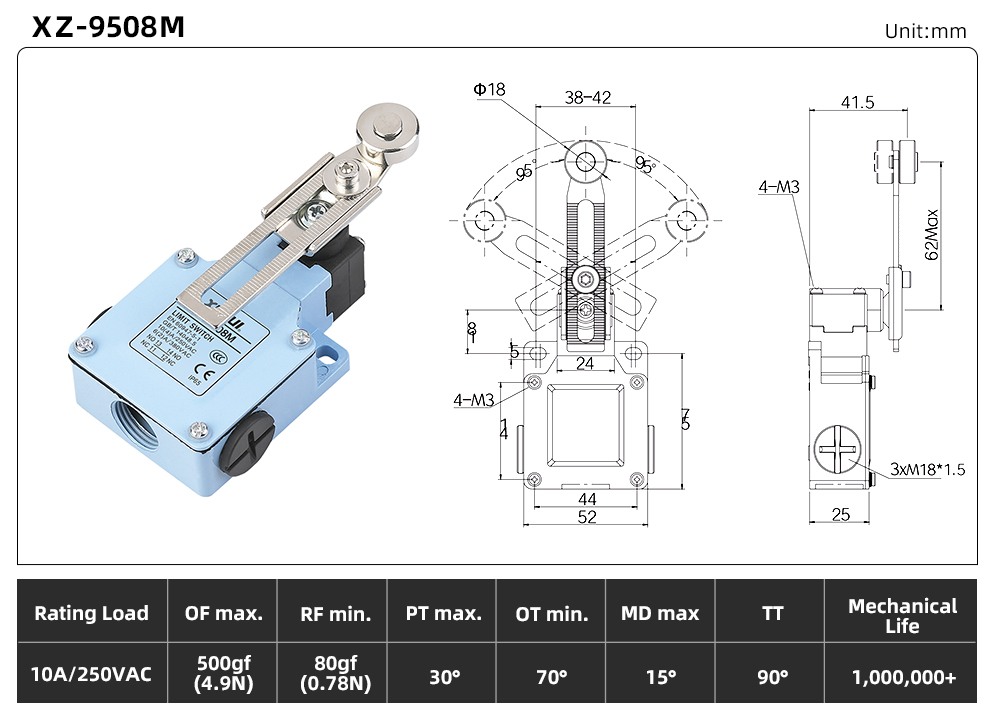

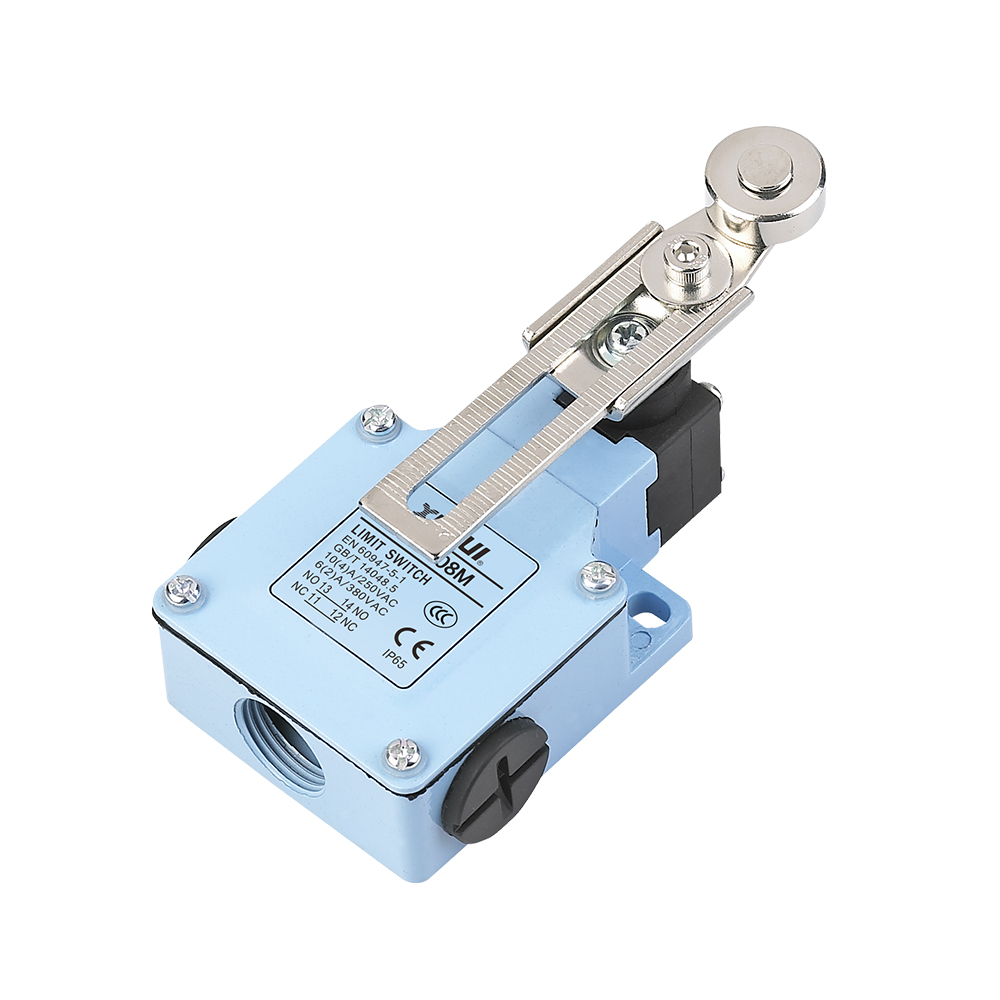

XZ-9508M
Product image and selection drawing are available for comparison.

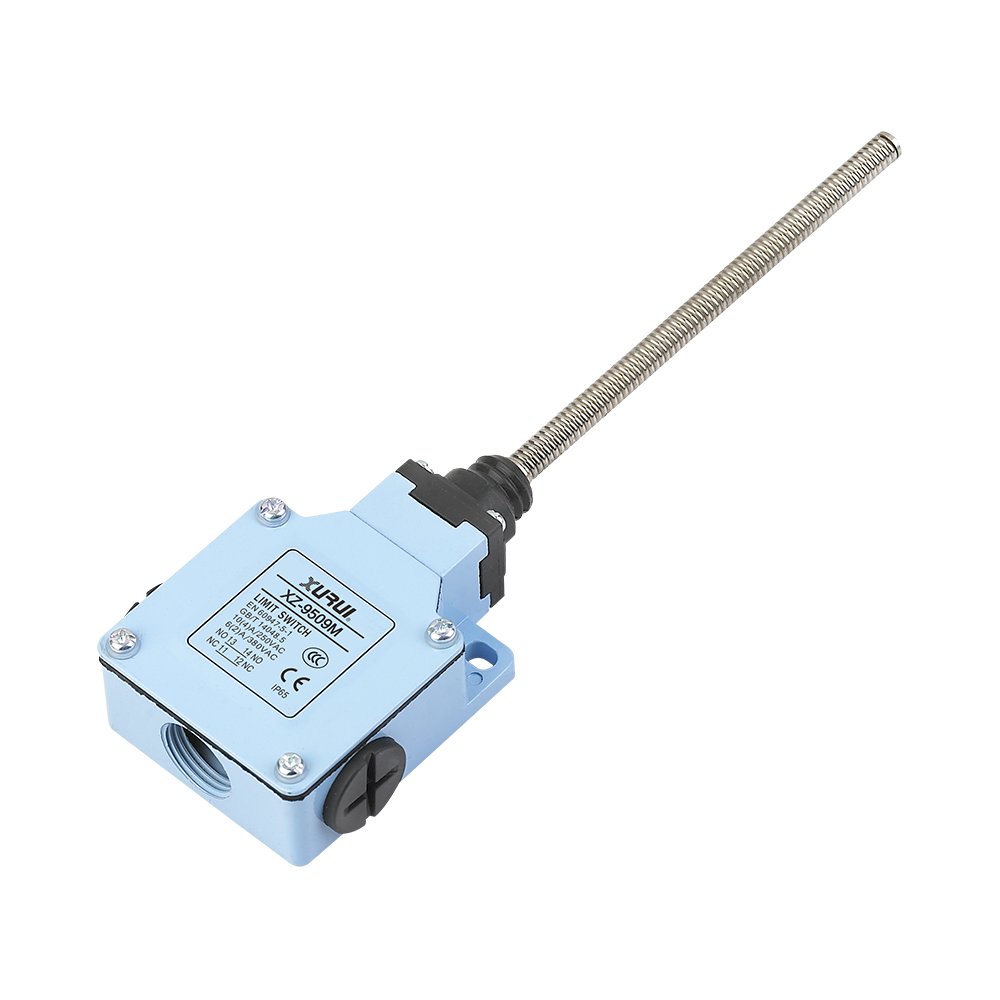

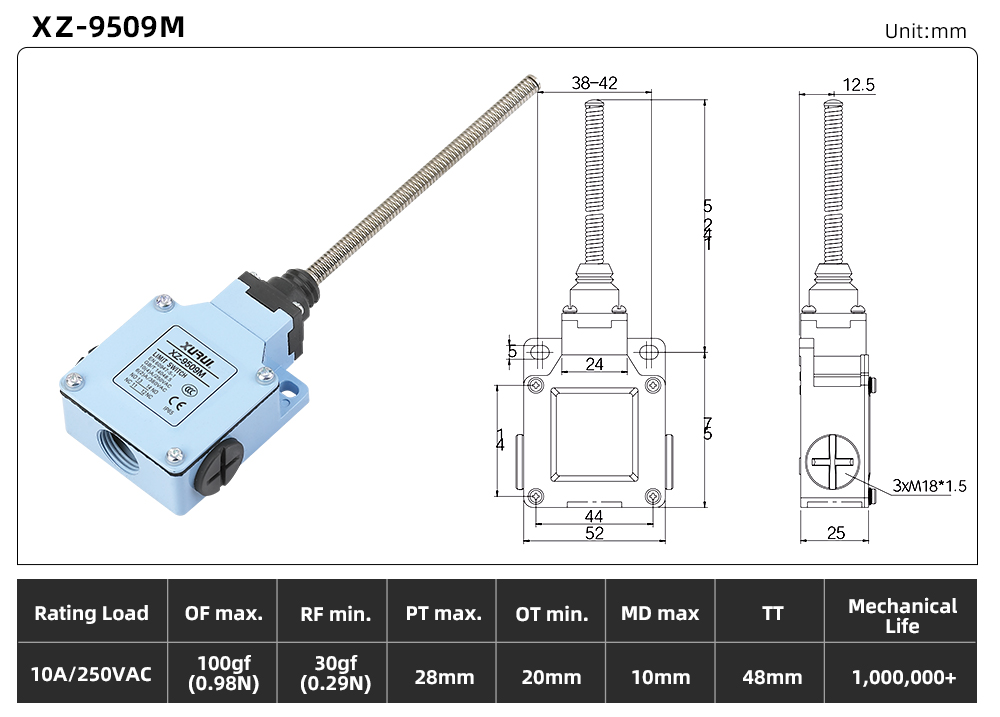

XZ-9509M
Product image and selection drawing are available for comparison.

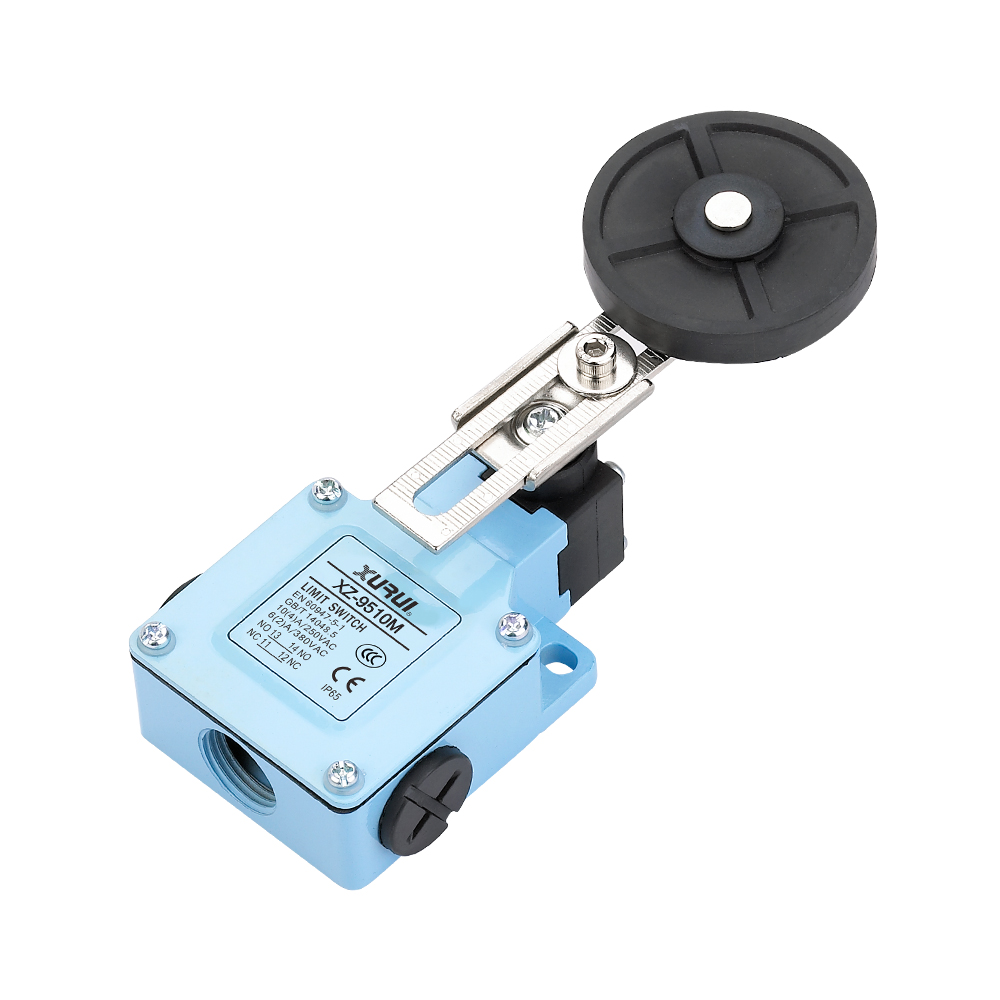

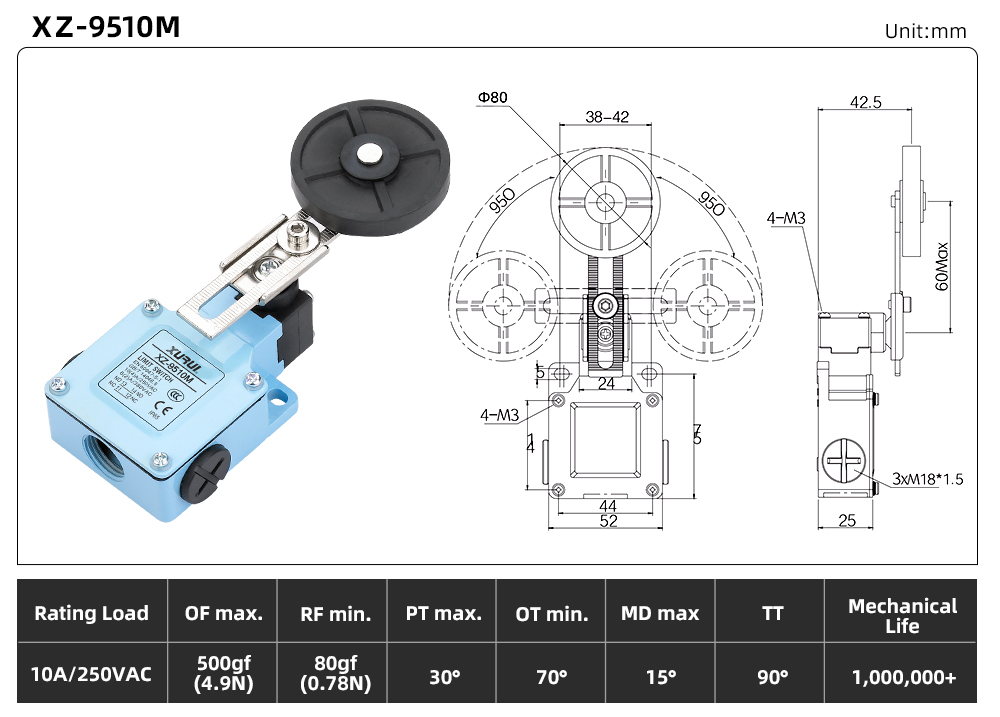

XZ-9510M
Product image and selection drawing are available for comparison.
Published XZ-95 series data for technical shortlisting
| Decision field | Published information / required input | Verification status |
|---|---|---|
| Housing | Zinc-alloy enclosed housing | Published / series-level |
| Rated load | 10(4)A/250VAC; 6(2)A/380VAC | Published / series-level |
| Operating speed | 5mm–50cm/s | Published / series-level |
| Operating frequency | Mechanical: 120 operations/min; electrical: 30 operations/min | Published / series-level |
| Insulation resistance | ≥100MΩ at 500VDC | Published / series-level |
| Initial contact resistance | ≤25mΩ | Published / series-level |
| Electrical life | ≥100,000 operations | Published / series-level |
| Mechanical life | ≥1,000,000 operations | Published / series-level |
| Protection degree | IP65 | Published / series-level |
| Operating environment | -20°C to +60°C; relative humidity below 85% | Published / series-level |
| Withstand voltage (non-connection wire) | 1000VAC | Published / series-level |
| Withstand voltage (every terminal) | 1500VAC | Published / series-level |
| Vibration (misoperation) | 10–55Hz; amplitude 1.5mm | Published / series-level |
| Vibration (durability) | 1000m/s² | Published / series-level |
| Impact (misoperation) | 300m/s² | Published / series-level |
| Impact (durability) | 1000m/s² | Published / series-level |
| Exact actuator and head orientation | Plunger, roller, lever, rod, target direction and head orientation | Exact suffix review required |
| Travel, force and dimensions | Pretravel, overtravel, operating force, mounting holes and cable entry | Exact suffix review required |
| Contact form and wiring | Contact logic, terminal arrangement and connection method | Exact suffix review required |
| Approval scope | Certificate or declaration must cover the exact model, rating and target market | Exact suffix review required |
Source and engineering control: XURUI published XZ-95 series information migrated from the previous product page and reviewed on 11 August 2026. The latest model-specific datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XZ-95 Series code
Match the plunger, roller, lever or rod to motion direction and target speed.
Confirm pretravel, overtravel and return mechanics; do not use the switch as a hard stop.
Verify housing, sealing, cable entry, mounting holes and installation orientation.
Confirm contact logic, load, switching frequency and model-specific certification.
Where this series can be evaluated
Compact automation equipment
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Packaging mechanisms
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Access and position detection
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
OEM machinery
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Verify the complete model before design release
Define the function
Describe the target motion or load, control logic and failure consequence.
Confirm the environment
Specify temperature, moisture, dust, vibration, enclosure and installation orientation.
Match the exact code
Confirm actuator, terminal, contact, input/output, housing and approval suffixes.
Approve a sample
Test fit, switching behavior and thermal or mechanical margin before volume release.
Downloads and evidence for XZ-95 Series
XZ-95 Limit Switch Catalog
Download the current XZ-95 Limit Switch Catalog for model selection, technical specifications and ordering information.
Complete Industrial Switch Catalog
Full XURUI industrial switch portfolio catalog. Use the smaller XZ-95 catalog above when reviewing this series only.
Request exact certificate scope
Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.
XZ-95 models, ratings and dimensions FAQ
Which XZ-95 actuator models are listed?
The current series page lists XZ-9501M through XZ-9510M with product images and available dimensional drawings.
What are the published XZ-95 rated load and protection values?
Published series information lists 10(4)A at 250VAC, 6(2)A at 380VAC and IP65 protection. Confirm these values against the controlled document for the exact ordered suffix.
How should I select an XZ-95 actuator?
Match the operating direction, target movement, actuator geometry, travel, mounting interface and environmental conditions before confirming the full model code.
Where can I find XZ-95 dimensions?
Use the dimensions and specifications action on each model card to inspect the available drawing, then request the latest controlled drawing before design release.
Can XZ-95 replace another enclosed limit switch?
Compare mounting, actuator geometry, travel, contact logic, electrical load, protection and certificate scope rather than relying on appearance alone.
