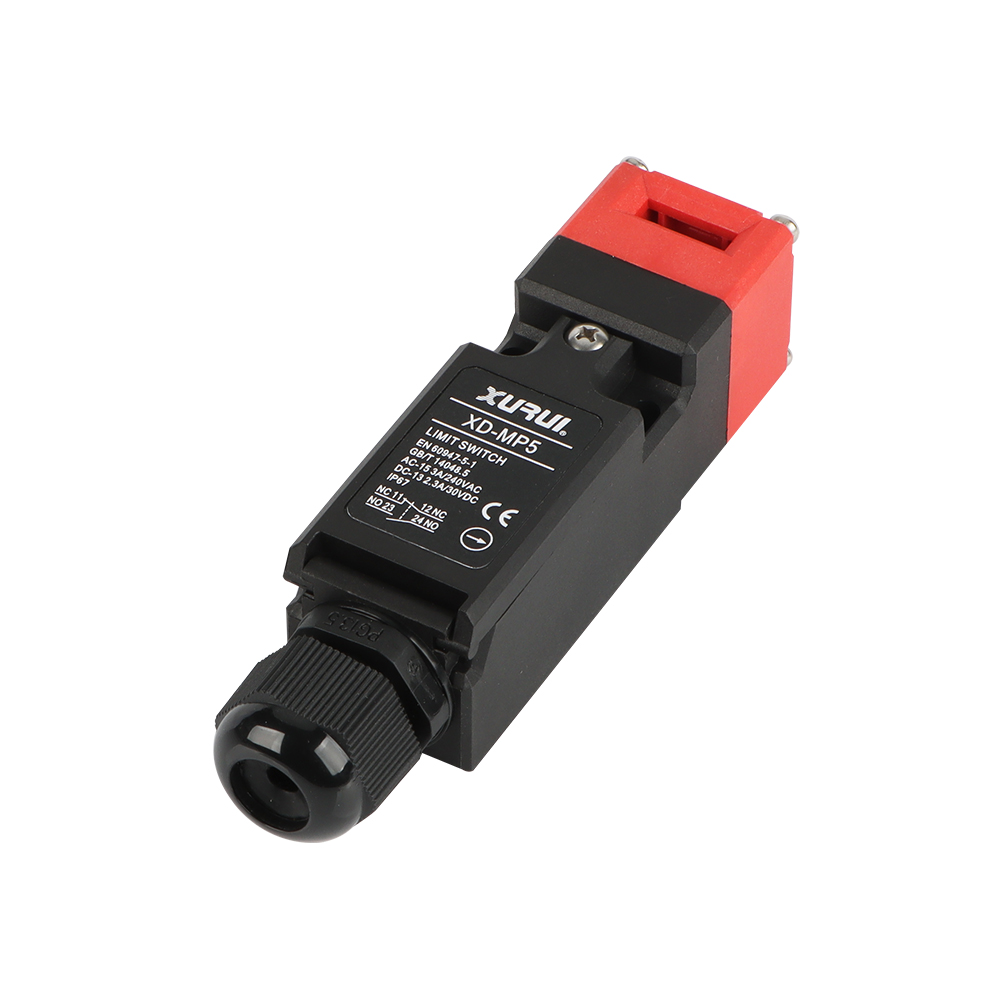

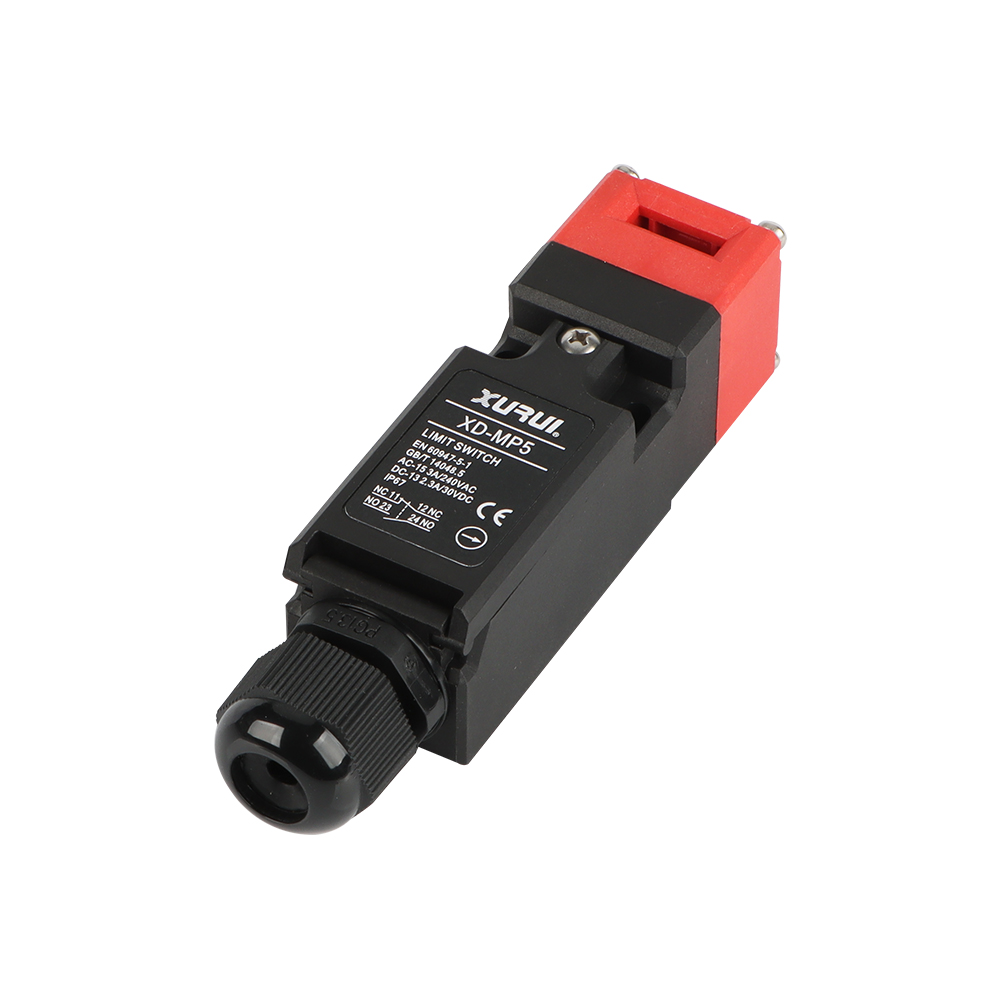

XD-MP5 Series Safety Door Switch
Mechanical guard-door monitoring with direct-opening NC contacts
The XD-MP5 Series is a mechanical safety interlock for guard-door monitoring. Gold-plated contacts support standard and low-current loads, while four published contact configurations and 11 actuator-key types simplify installation.
Confirm the exact ordered code, dimensions, electrical ratings and approval scope against the current controlled documents.

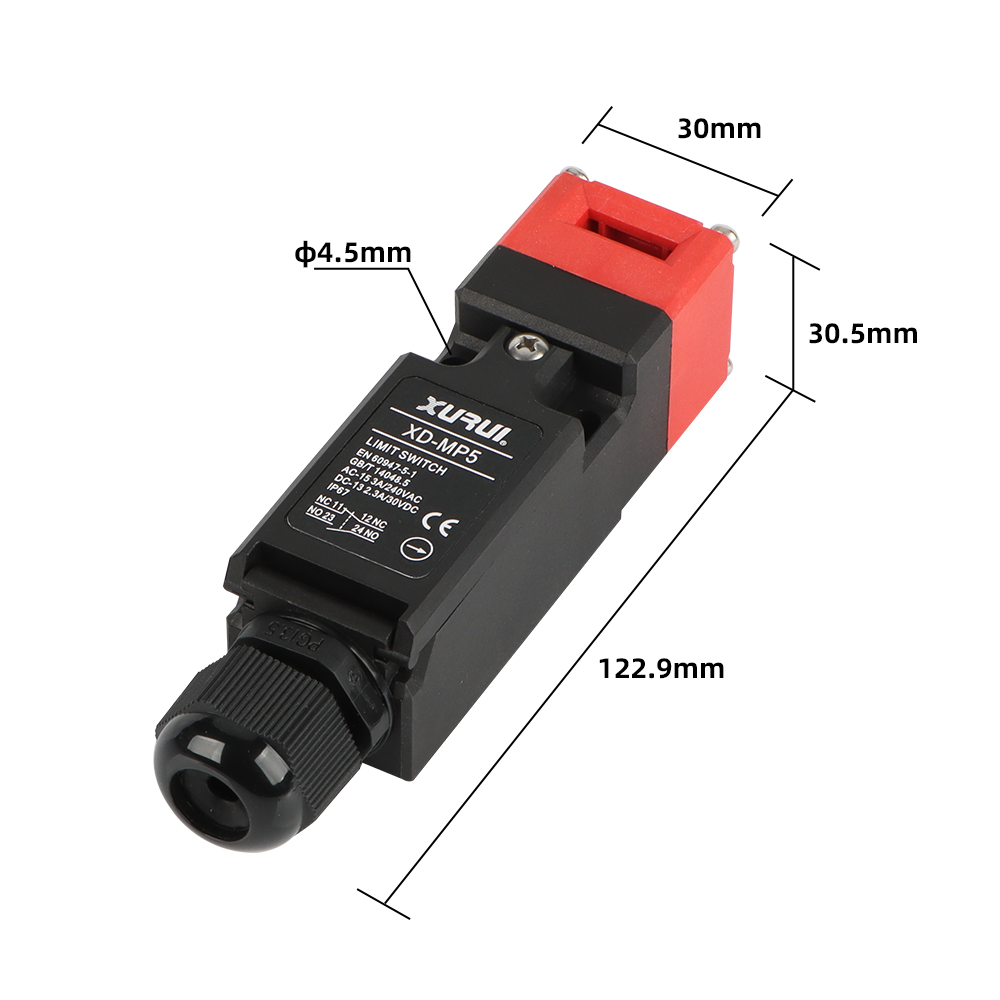

XD-MP5 Series Technical Data & Configuration
Review published technical values, ordering options, actuator keys and product references in one place.
| Specification | Published series value |
|---|---|
| Function | Mechanical safety interlock without electromagnetic guard locking |
| Contact types | 1NC/1NO; 2NC; 2NC/1NO; 3NC |
| NC operation | Direct-opening safety contacts |
| Contact material | Gold-plated contacts |
| Key insertion directions | 5 directions |
| Mounting | Screw mounting |
| Cable entry | PG13.5 cable gland, factory installed |
| Compatible actuator keys | X-K1 through X-K8 families; 11 types |
| System use | Guard-door monitoring; coordinate with the target safety relay or safety PLC |
Available contact types
| Code | Contact combination |
|---|---|
| Standard | 1NC / 1NO |
| C2 | 2NC |
| C3 | 2NC / 1NO |
| C4 | 3NC |
XD-MP5 provides mechanical position monitoring. It does not provide electromagnetic guard locking; select the exact contact code and actuator key for the safety circuit.
