XGH Series Reed Switch
Compact magnetic sensing with configurable sensitivity and electrical ratings
The XGH Series is a magnetically operated reed-switch family for proximity and state detection. Public category information lists model-dependent switching voltage up to 220VDC or 100VDC, up to 4A switching or carry current, customizable sensitivity ranges and fast operate/release times.
Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.
Compare XGH models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

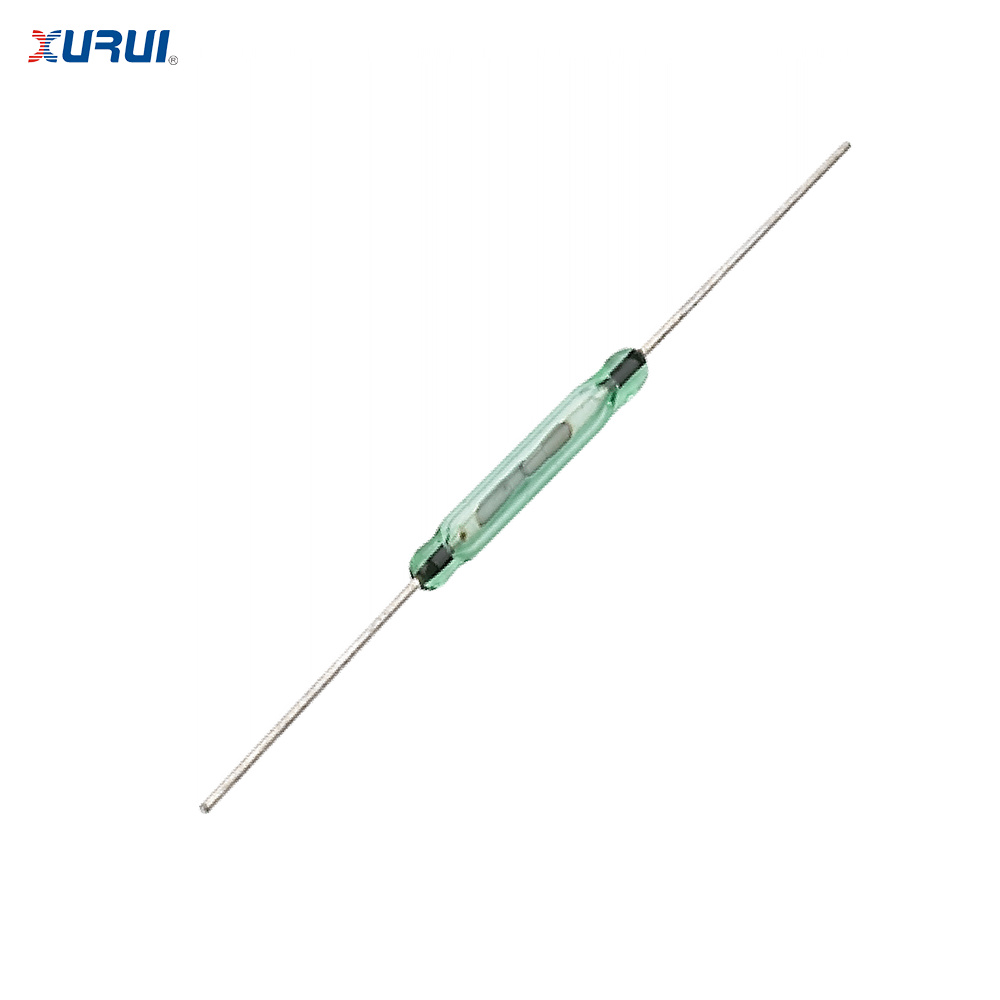

XGH-1-2
Product image and selection drawing are available for comparison.

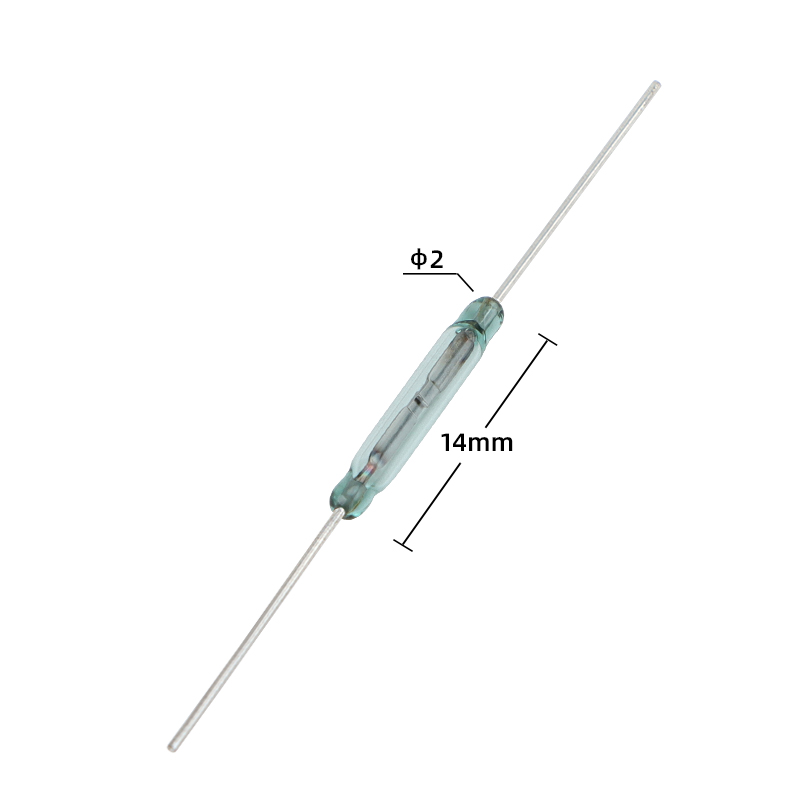

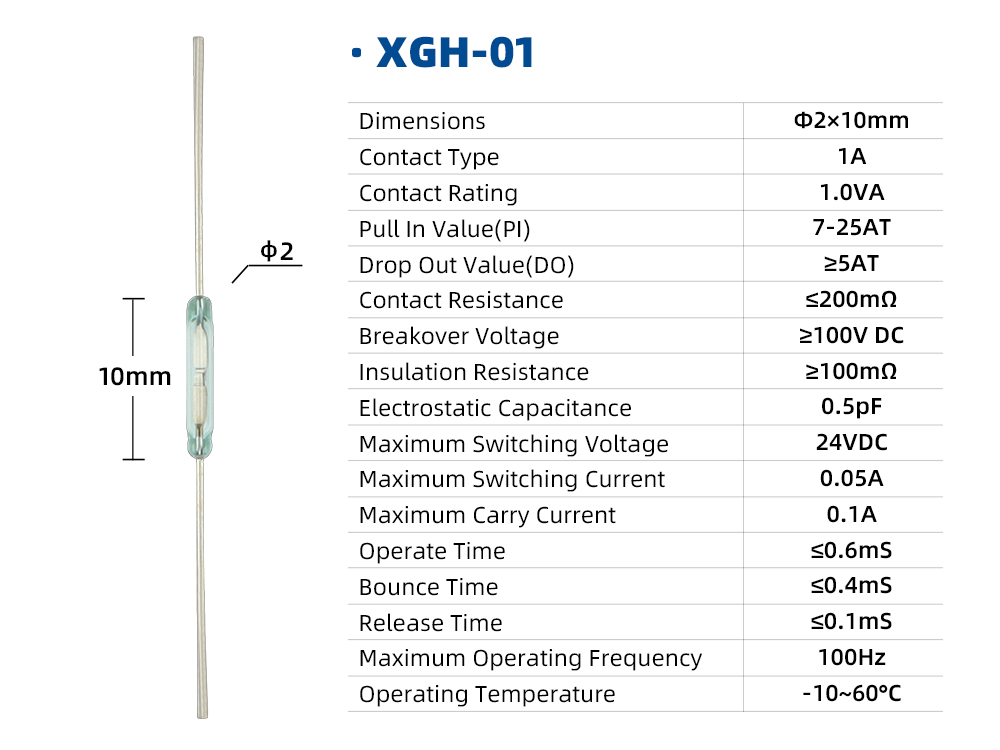

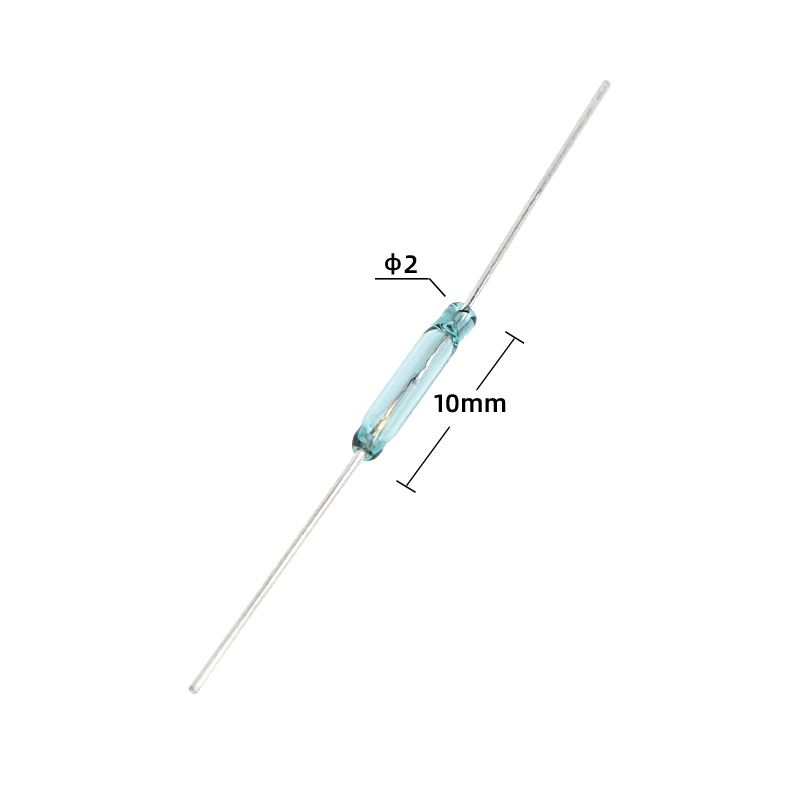

XGH-01
Product image and selection drawing are available for comparison.

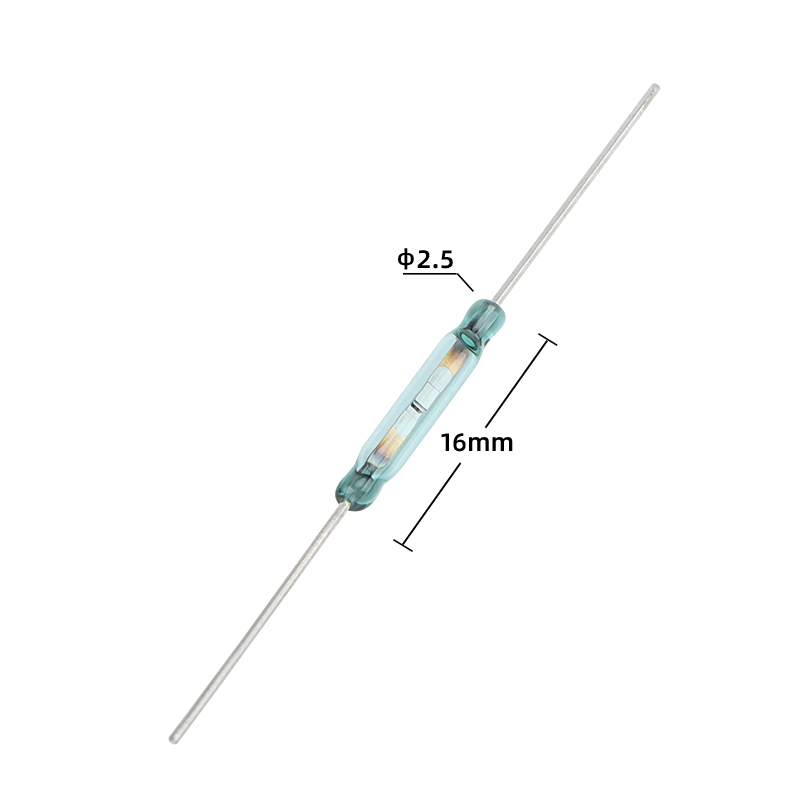

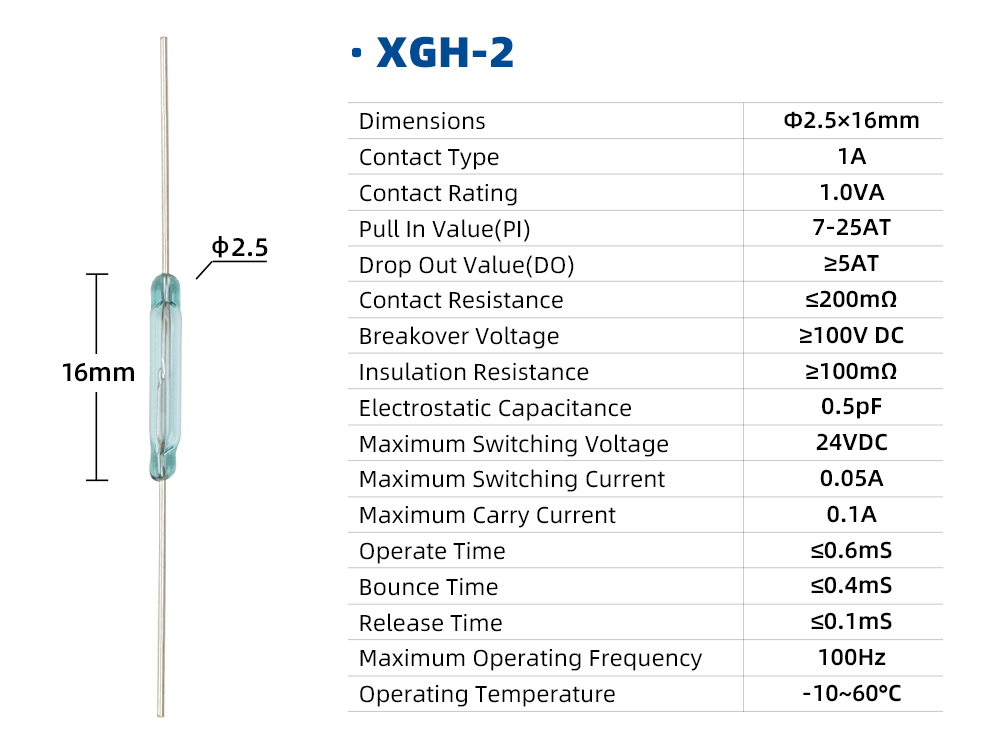

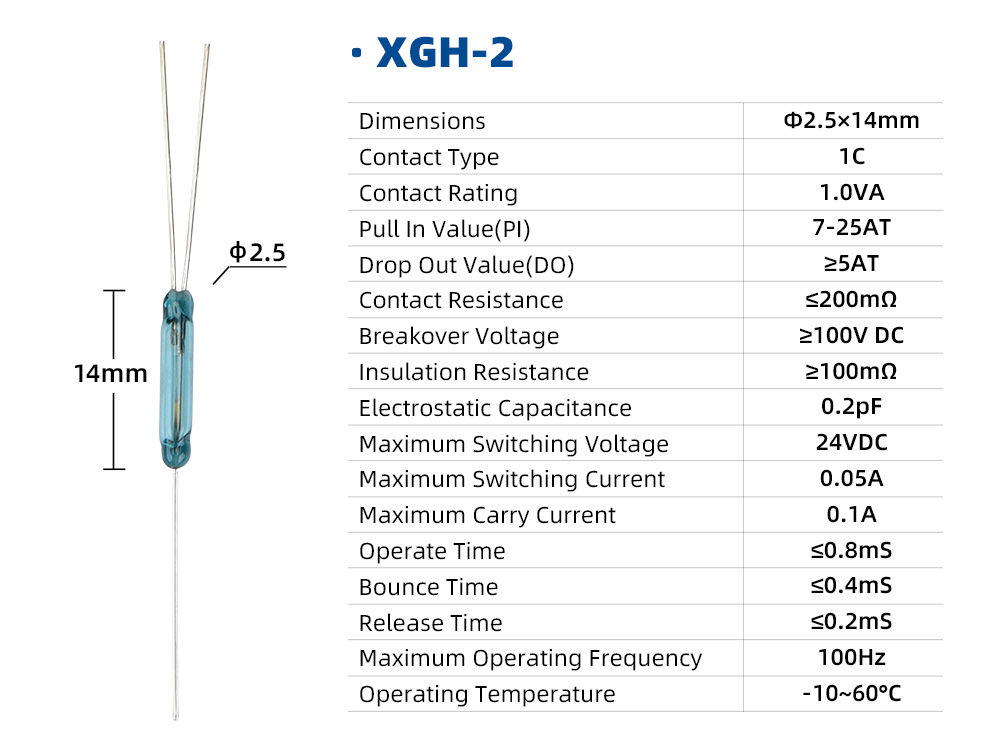

XGH-2
Product image and selection drawing are available for comparison.

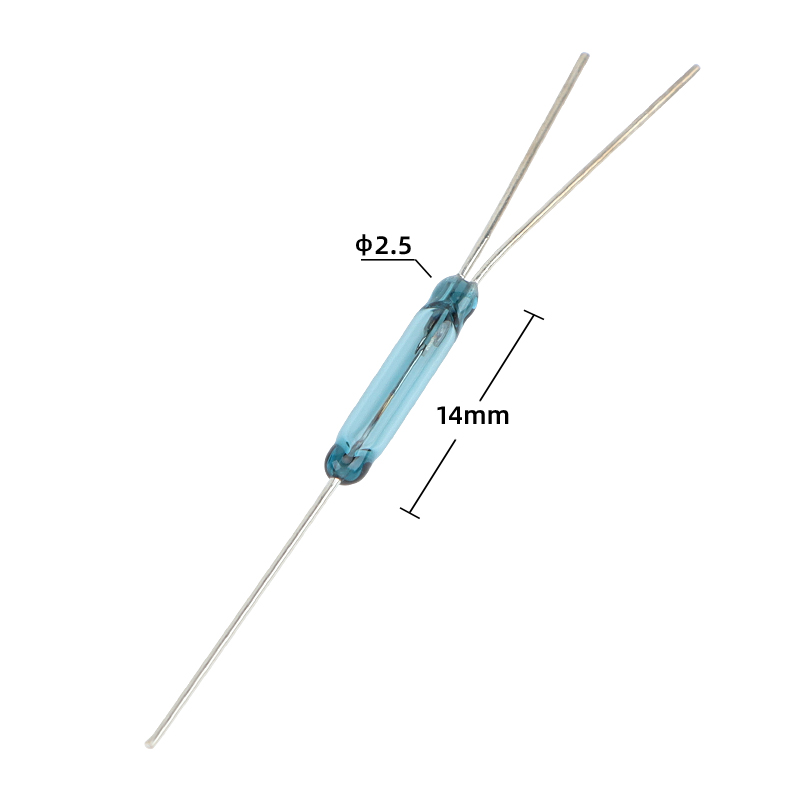

XGH-2Z
Product image and selection drawing are available for comparison.

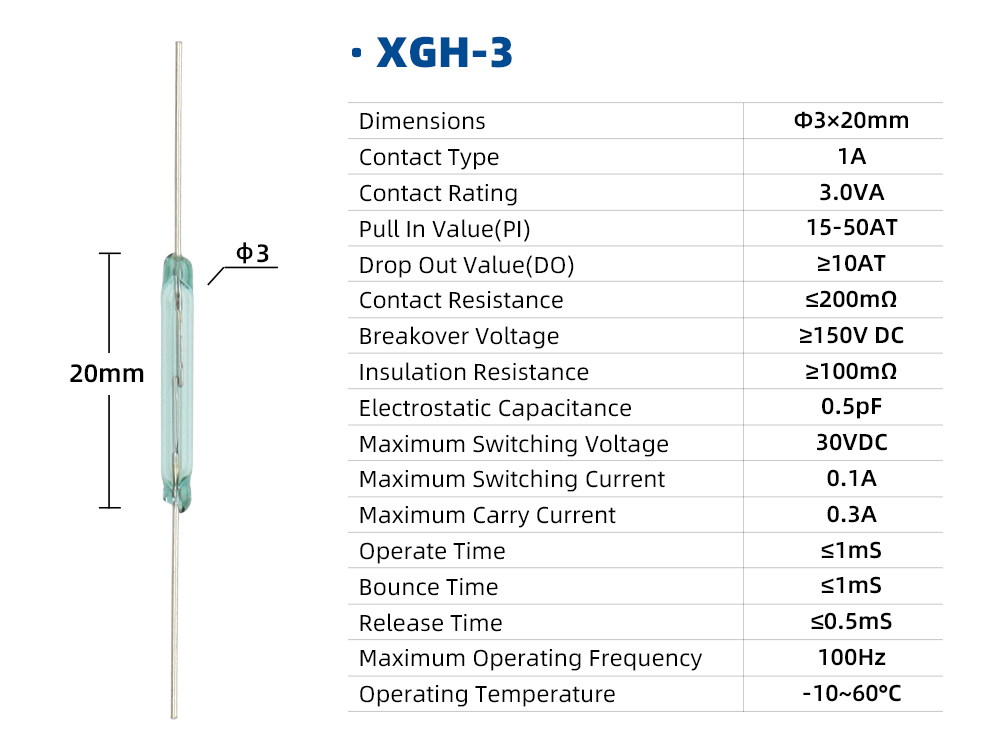

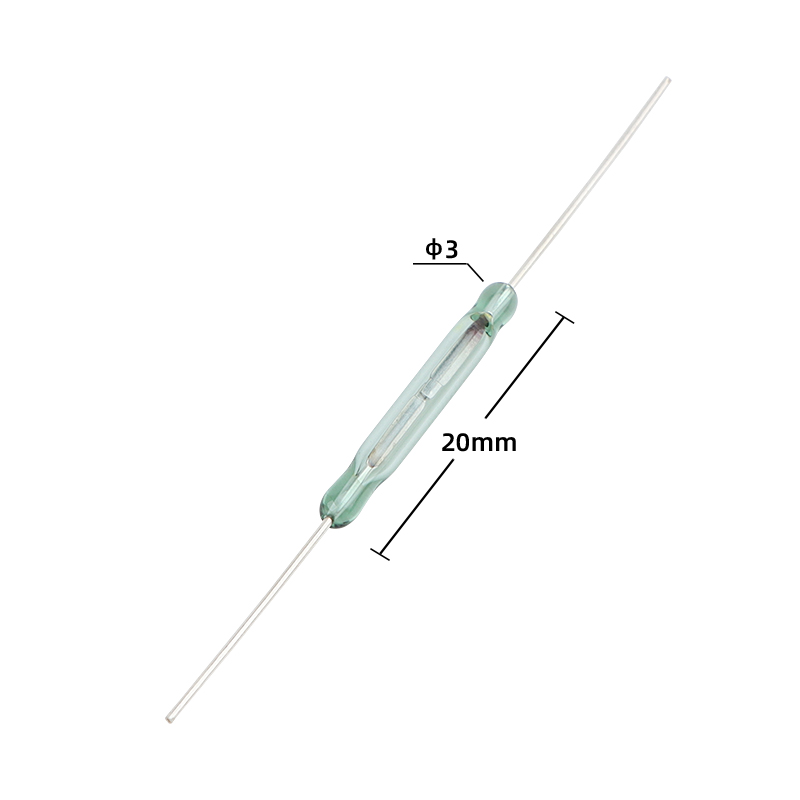

XGH-3
Product image and selection drawing are available for comparison.

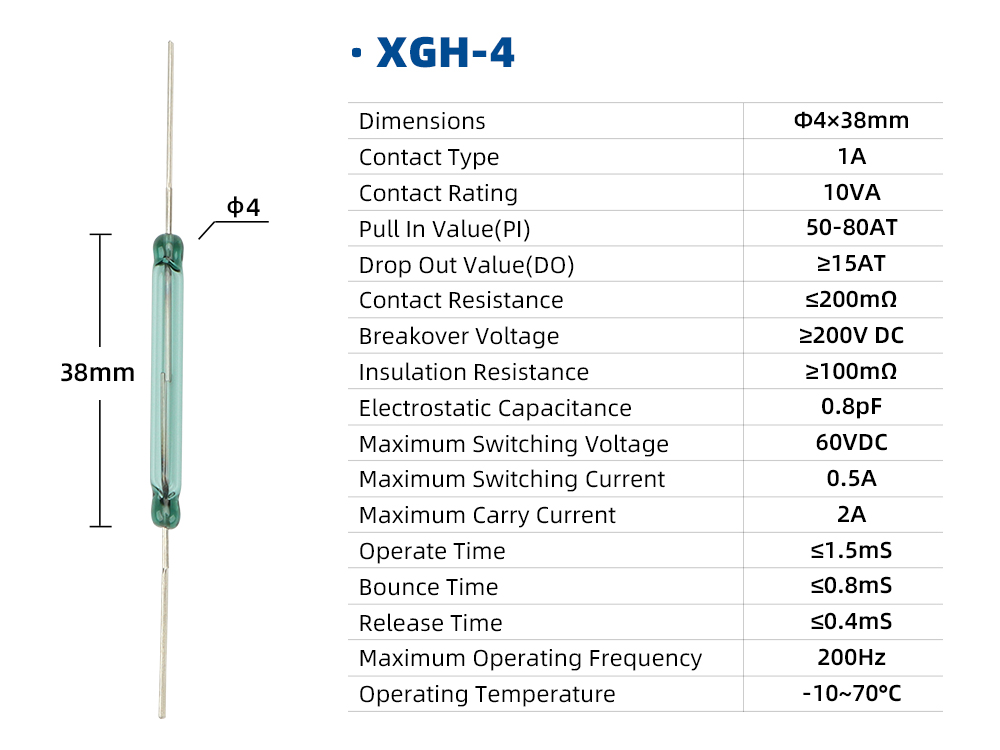

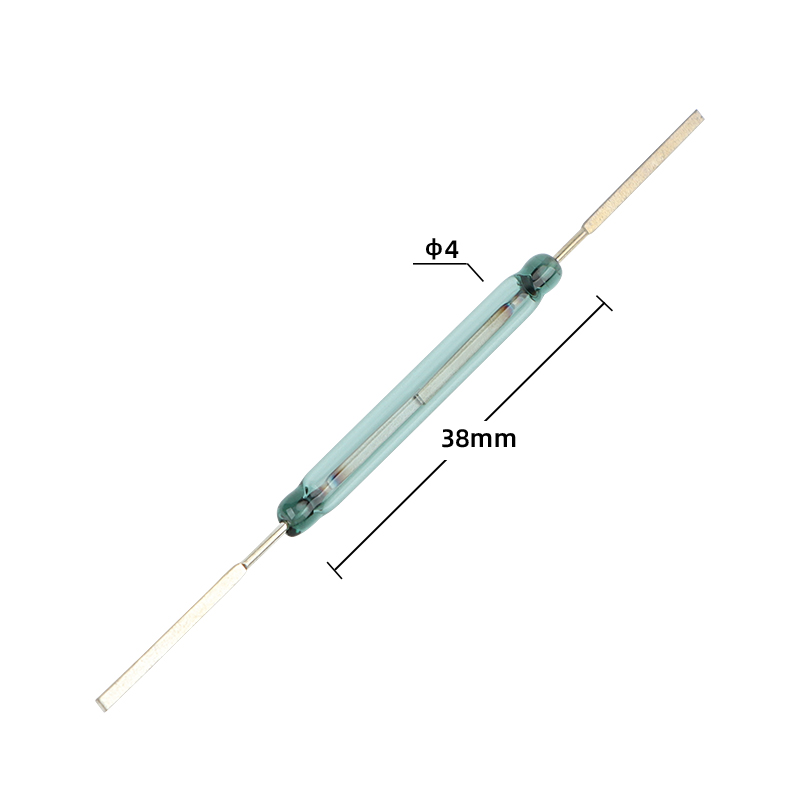

XGH-4
Product image and selection drawing are available for comparison.

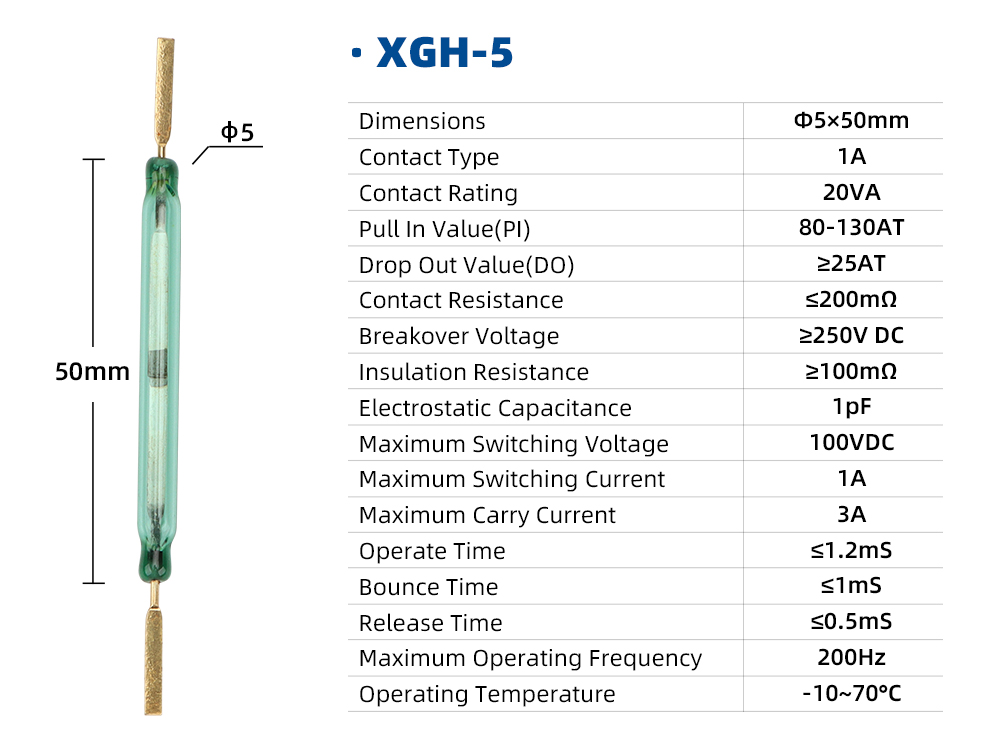

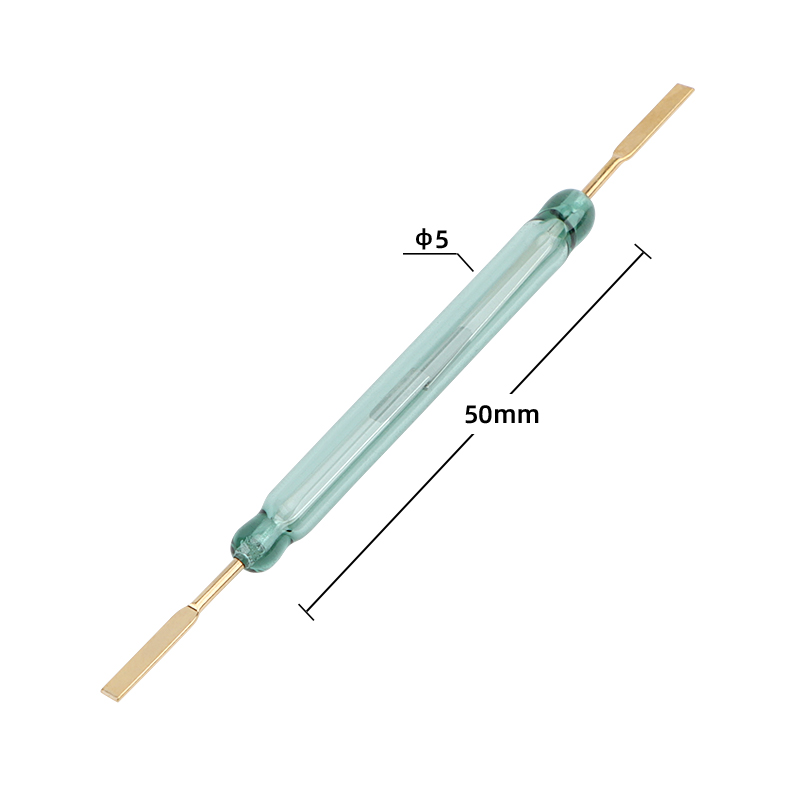

XGH-5
Product image and selection drawing are available for comparison.

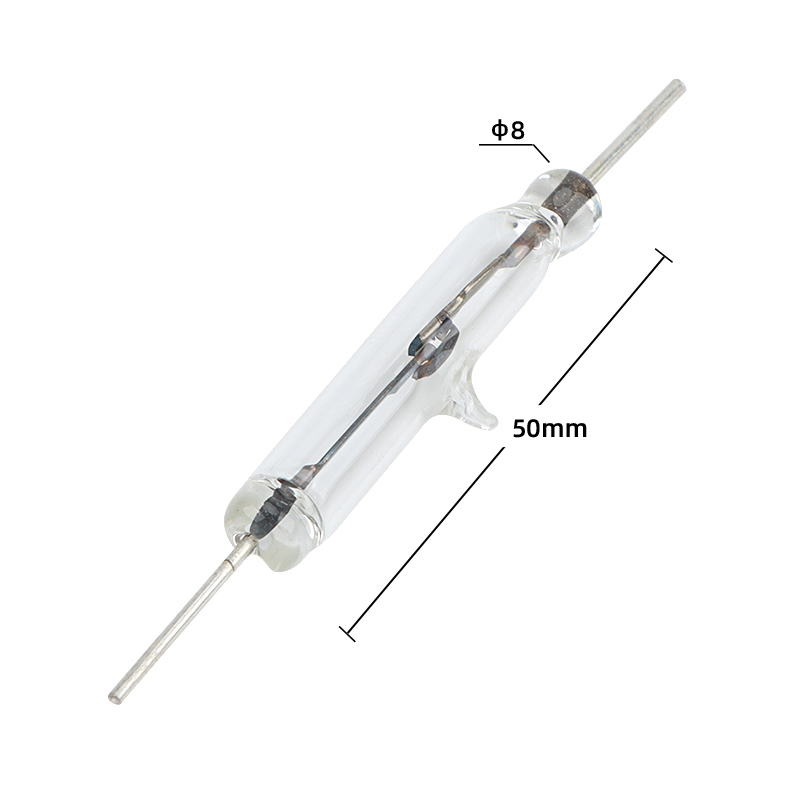

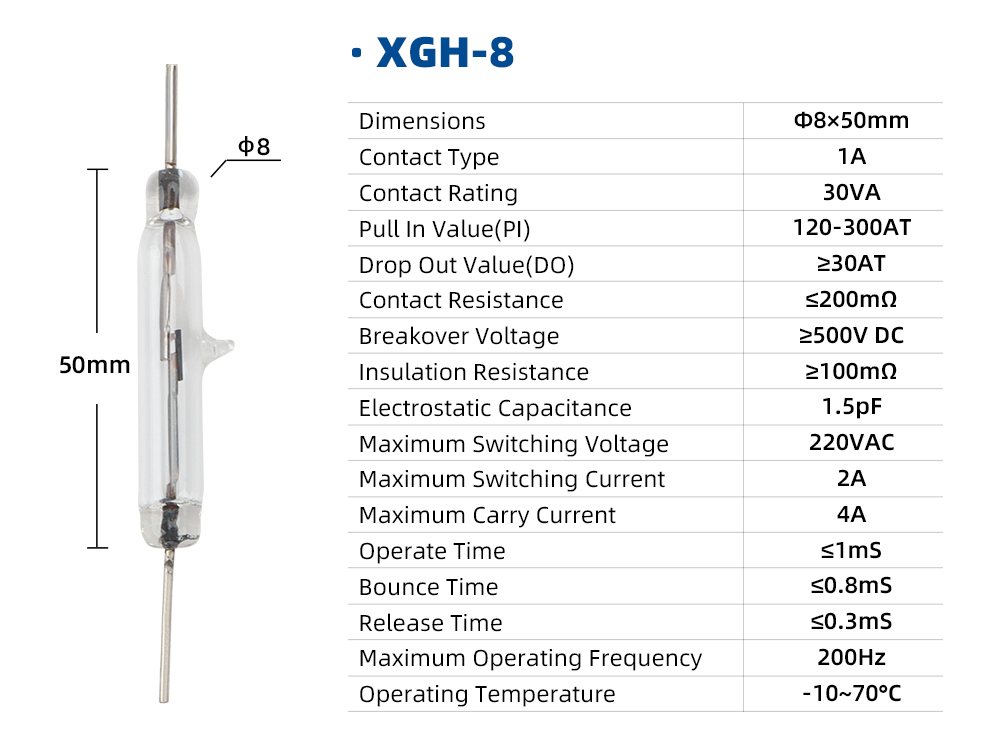

XGH-8
Product image and selection drawing are available for comparison.

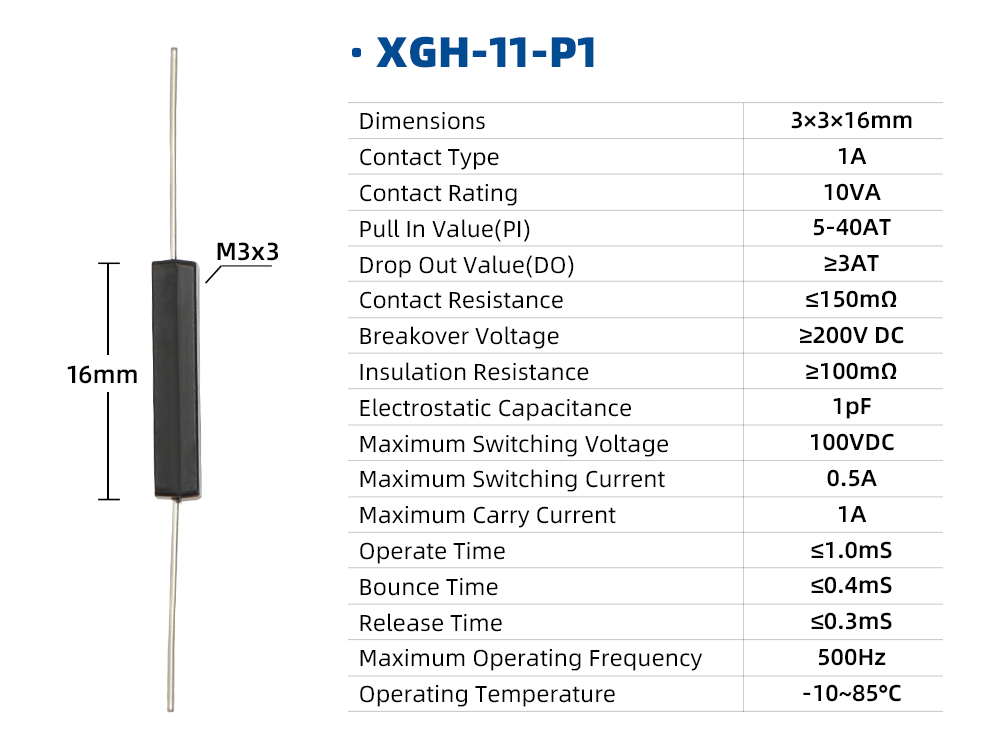

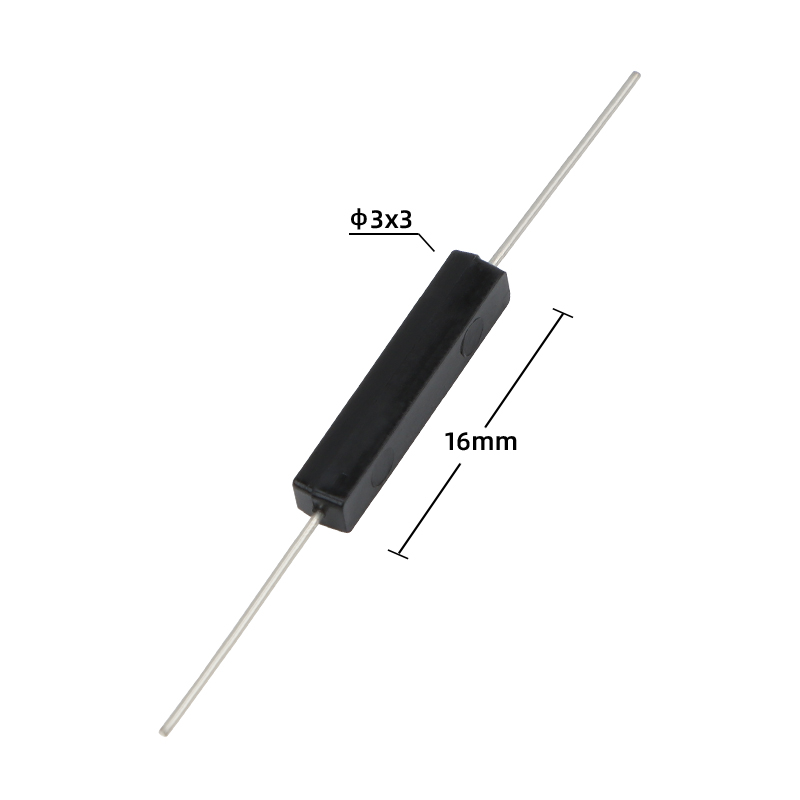

XGH-11-P1
Product image and selection drawing are available for comparison.

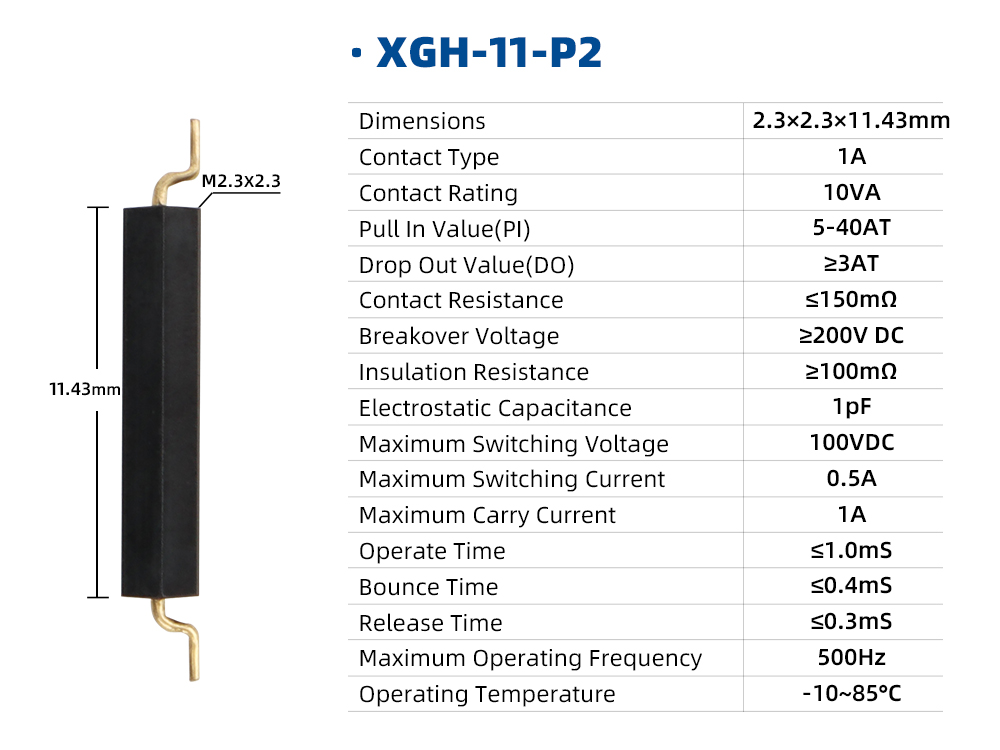

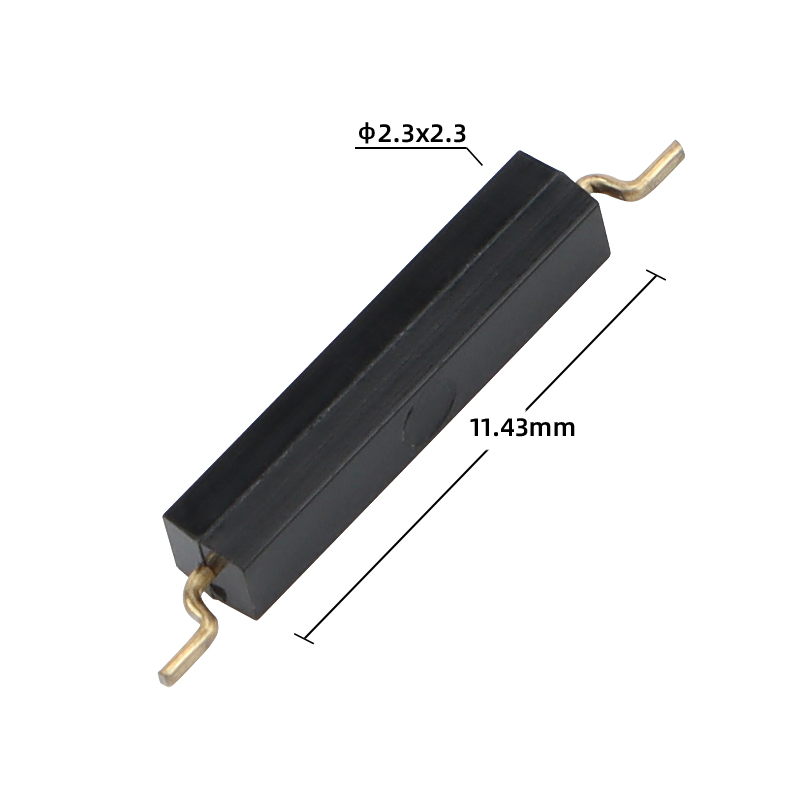

XGH-11-P2
Product image and selection drawing are available for comparison.
Published XGH series data for technical shortlisting
| Decision field | Current information / required input | Status |
|---|---|---|
| Sensitivity | Custom AT ranges available | Published / series-level |
| Contact resistance | ≤200mΩ listed | Published / series-level |
| Operating temperature | -10°C to +85°C listed | Published / series-level |
| Response | Operate ≤1.5ms; release ≤0.5ms listed | Published / series-level |
| Sensitivity band | Operate / release AT range | Exact suffix review required |
| Magnet system | Magnet type, gap, alignment and hysteresis | Exact suffix review required |
| Electrical duty | Voltage, current, power and contact protection | Exact suffix review required |
| Assembly method | Lead forming, encapsulation and mechanical stress | Exact suffix review required |
Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XGH Series code
Specify operate and release AT range with the actual magnet and gap.
Confirm signal voltage/current, switching power and contact protection.
Verify glass size, lead formation, mounting stress and encapsulation.
Confirm temperature, vibration, shock and required service life.
Where this series can be evaluated
Position and proximity detection
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Security and access systems
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Automation cylinders and mechanisms
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Equipment state monitoring
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Verify the complete model before design release
Define the function
Describe the target motion or load, control logic and failure consequence.
Confirm the environment
Specify temperature, moisture, dust, vibration, enclosure and installation orientation.
Match the exact code
Confirm actuator, terminal, contact, input/output, housing and approval suffixes.
Approve a sample
Test fit, switching behavior and thermal or mechanical margin before volume release.
Downloads and evidence for XGH Series
Complete Industrial Switch Catalog
Public PDF from the current XURUI website. The file can be large; use the RFQ form to request a model-specific package.
Product page reference
Use the product page together with the latest controlled document for the exact ordered code.
Request exact certificate scope
Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.
XGH Series FAQ
Can pull-in sensitivity be customized?
The public category information lists custom sensitivity ranges such as 10–30AT and 60–100AT for OEM projects.
Is XGH suitable for high current?
Ratings vary by model. Confirm switching voltage, switching current, carry current and load type.
What magnet should be used?
Magnet strength, gap, orientation and hysteresis must be tested in the final mechanism.
