XSSVR-W1 / W2 Phase Angle Control AC Solid State Voltage Regulator
External-potentiometer phase-angle regulation for industrial heating and power control
XSSVR-W1 / W2 Phase Angle Control AC Solid State Voltage Regulator is part of XURUI’s public solid-state relay and voltage-regulator portfolio. The page is structured around control signal, output/load type, current, mounting, thermal design and protection. Exact ratings must be confirmed against the current model datasheet and heat-sink calculation.
Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.
Compare XSSVR-W1 / W2 Phase Angle Control AC Solid State Voltage Regulator models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

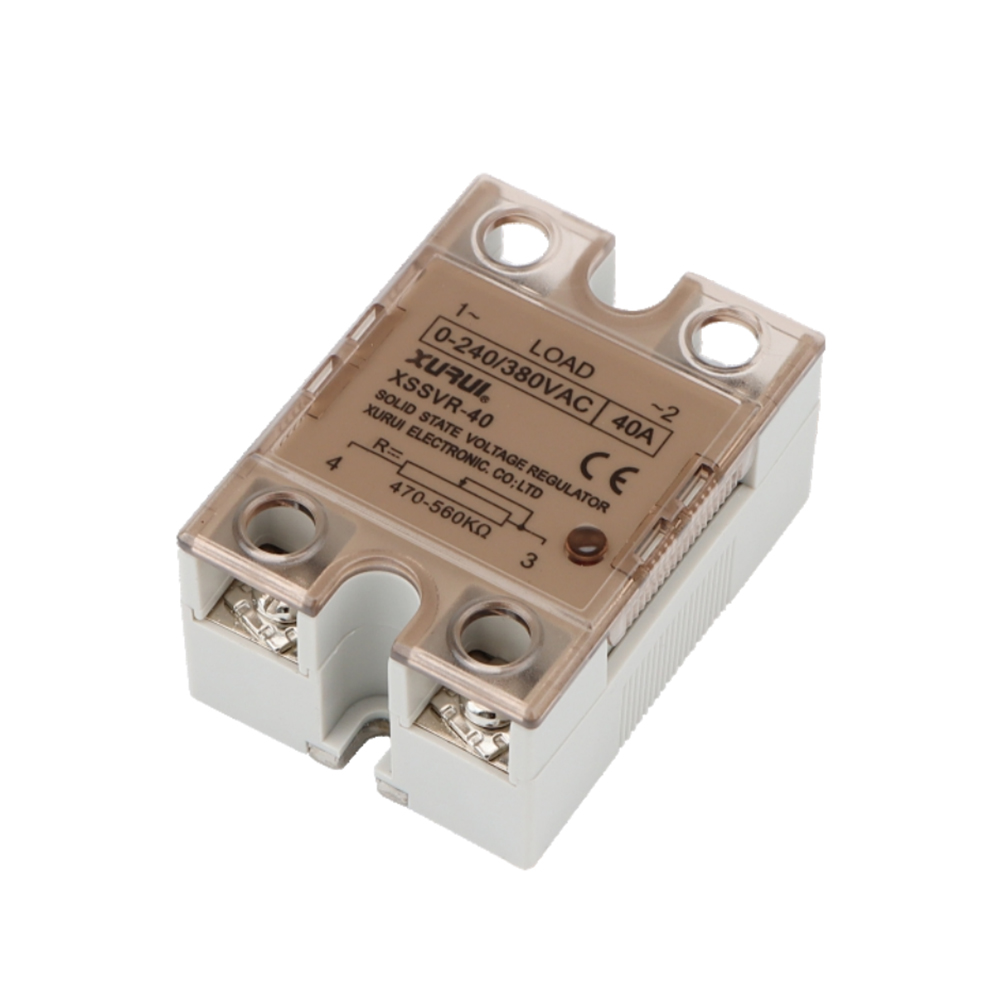

XSSVR-W1
Product image is available; request the exact controlled drawing before release.

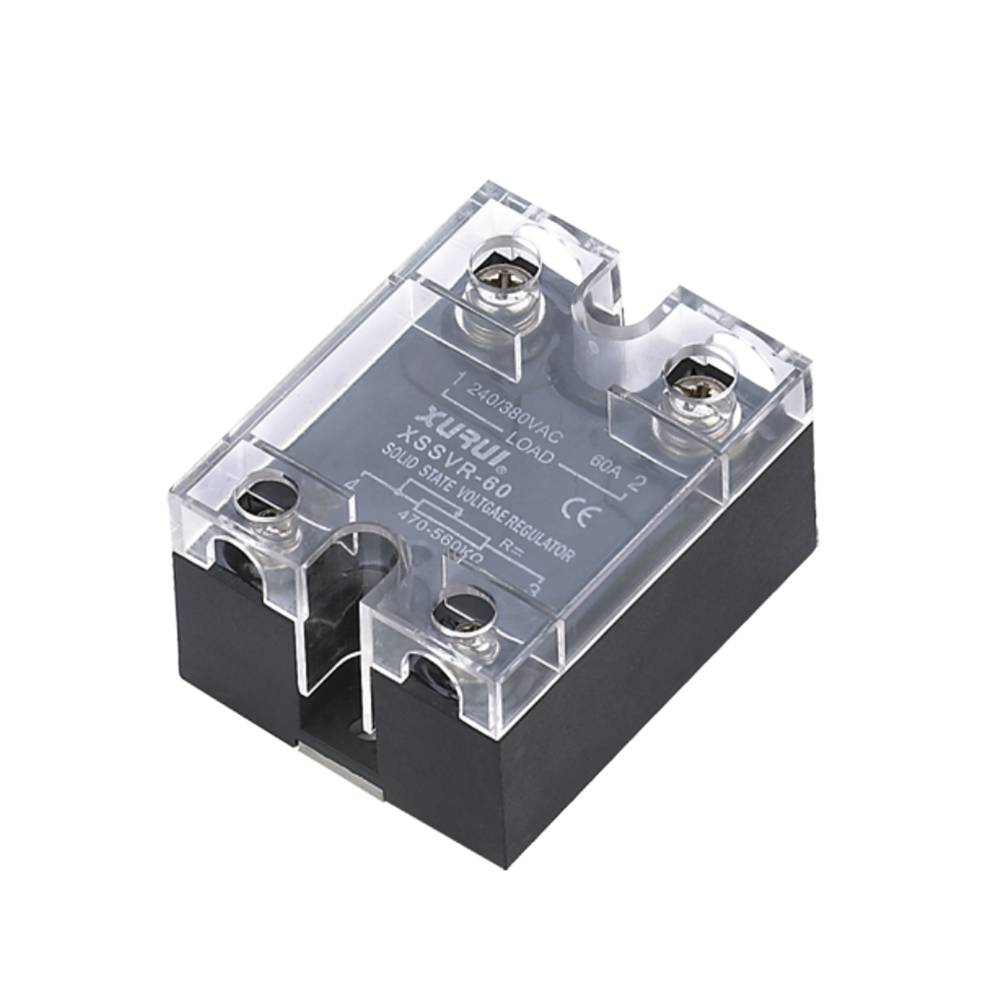

XSSVR-W2
Product image is available; request the exact controlled drawing before release.
Selection sheets
These images present selection data without converting unconfirmed labels into model codes.

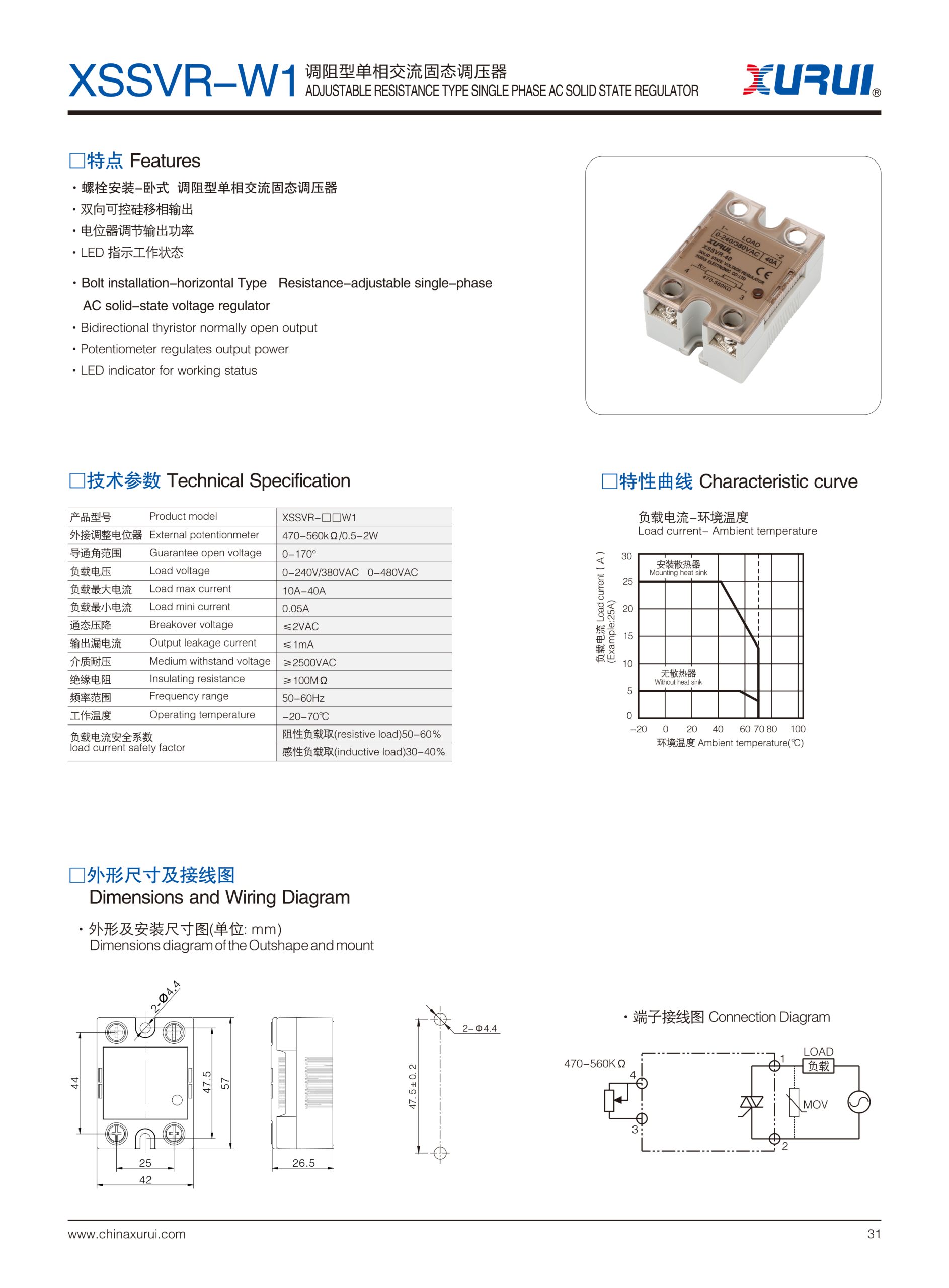

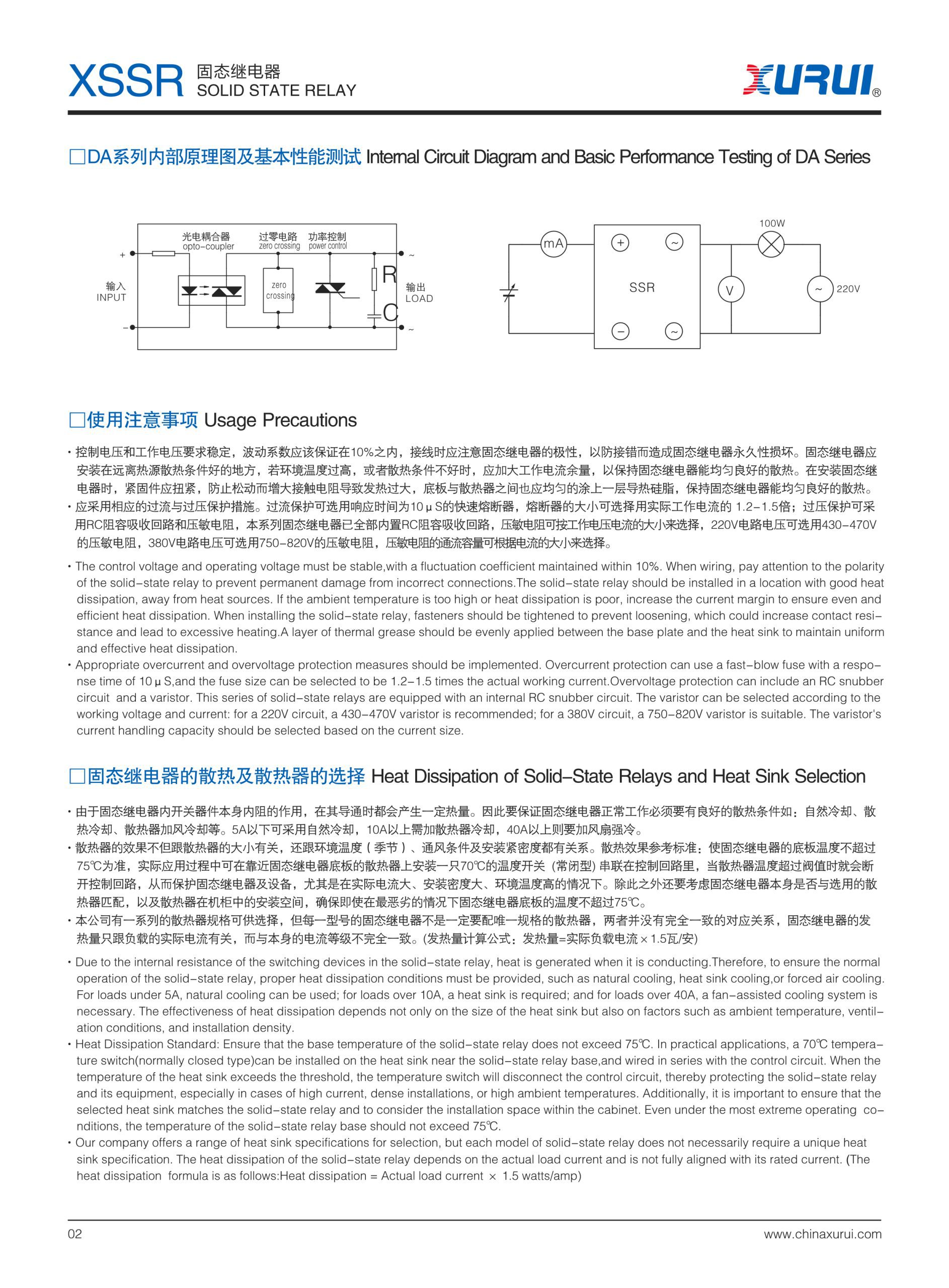

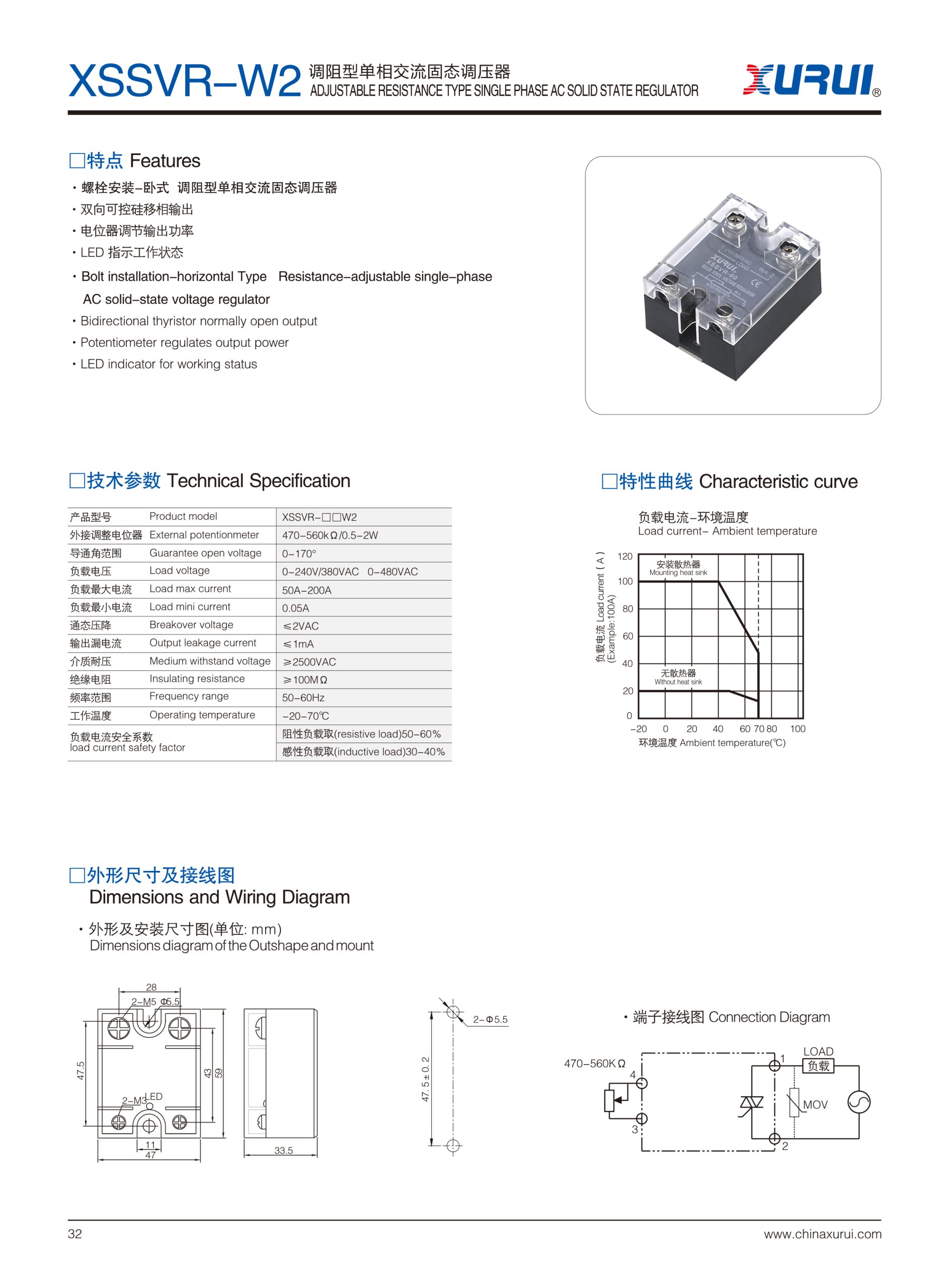

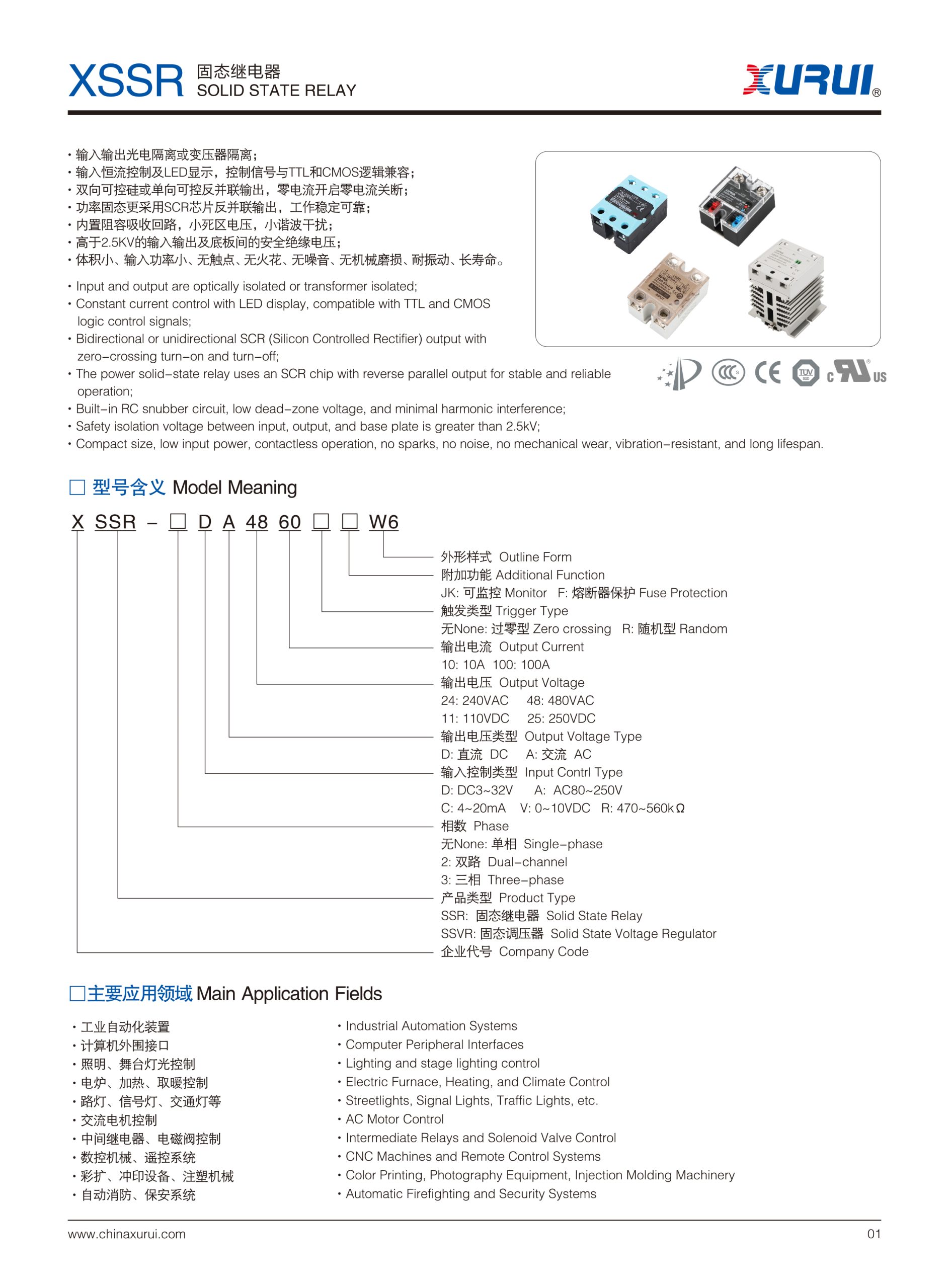

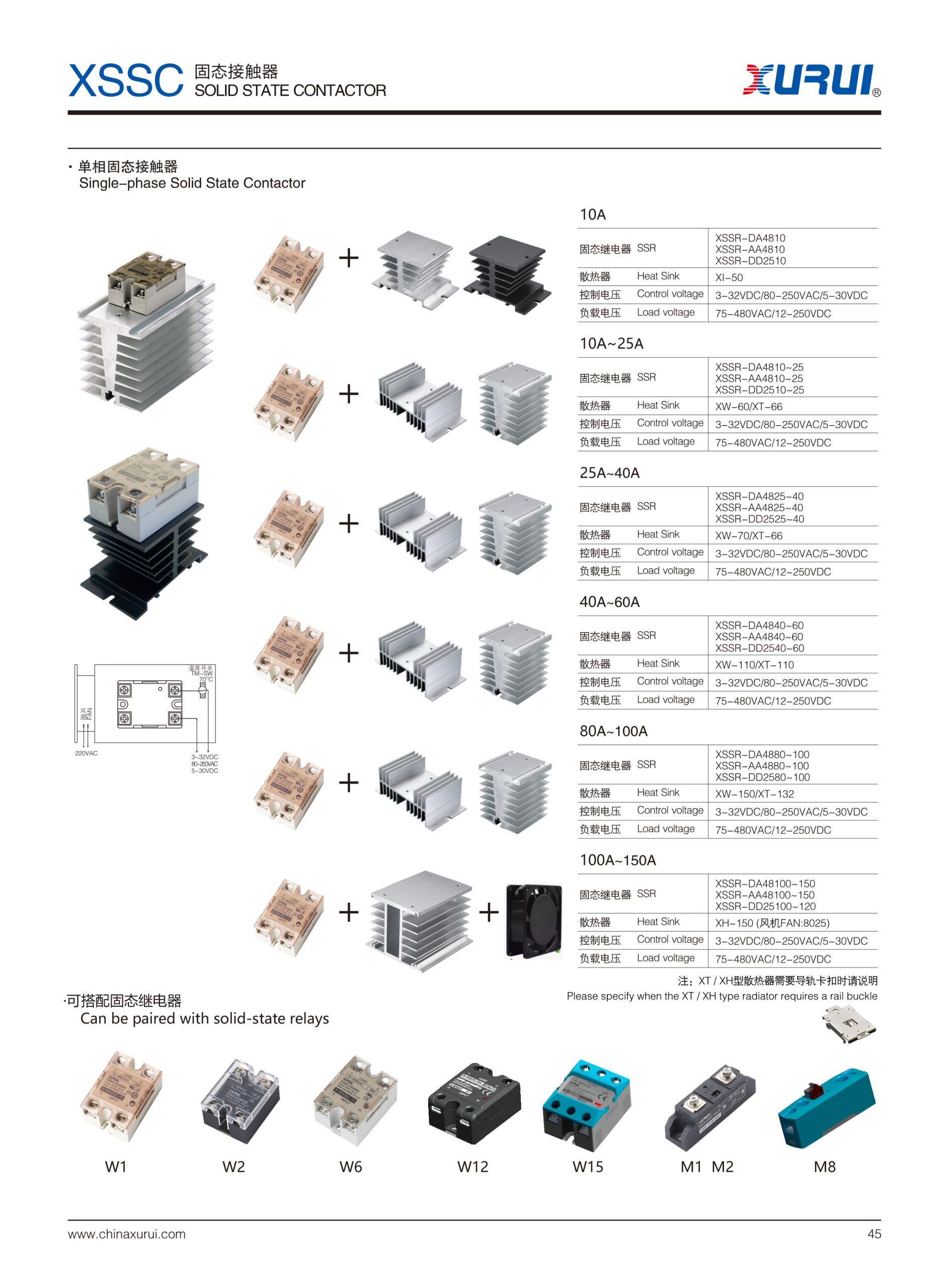

Published XSSVR-W1 / W2 Phase Angle Control AC Solid State Voltage Regulator series data for technical shortlisting
| Decision field | Current information / required input | Status |
|---|---|---|
| External potentiometer | 470–560 kΩ | Published / series-level |
| Phase-angle range | 0–170° | Published / series-level |
| Load voltage | 0–240 / 380 / 480VAC depending on model | Published / series-level |
| Current range | W1: 10–40A; W2: 50–200A | Published / series-level |
| Dielectric strength | ≥2500VAC | Published / series-level |
| Ambient temperature | -20°C to +70°C | Published / series-level |
| Input code | Control voltage/current and trigger method | Exact suffix review required |
| Output code | Load voltage, phase and zero-cross / random switching | Exact suffix review required |
| Thermal design | Heat sink, interface, airflow and derating | Exact suffix review required |
| Protection design | Fuse, snubber, varistor and fault strategy | Exact suffix review required |
Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XSSVR-W1 / W2 code
Confirm DC, AC, analog or phase-angle input range and control logic.
Define AC/DC load voltage, resistive or inductive load and switching method.
Size from real RMS current, inrush, duty cycle and ambient temperature.
Select heat sink, ventilation, overvoltage/overcurrent protection and mounting.
