XV-10 Waterproof Micro Switch
Water-resistant compact micro switch for equipment exposed to moisture and dust
The XV-10 Series is a waterproof micro switch family for compact equipment where sealing, actuator travel, cable or terminal construction and electrical load must be verified together.
Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.
Compare XV-10 Waterproof models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

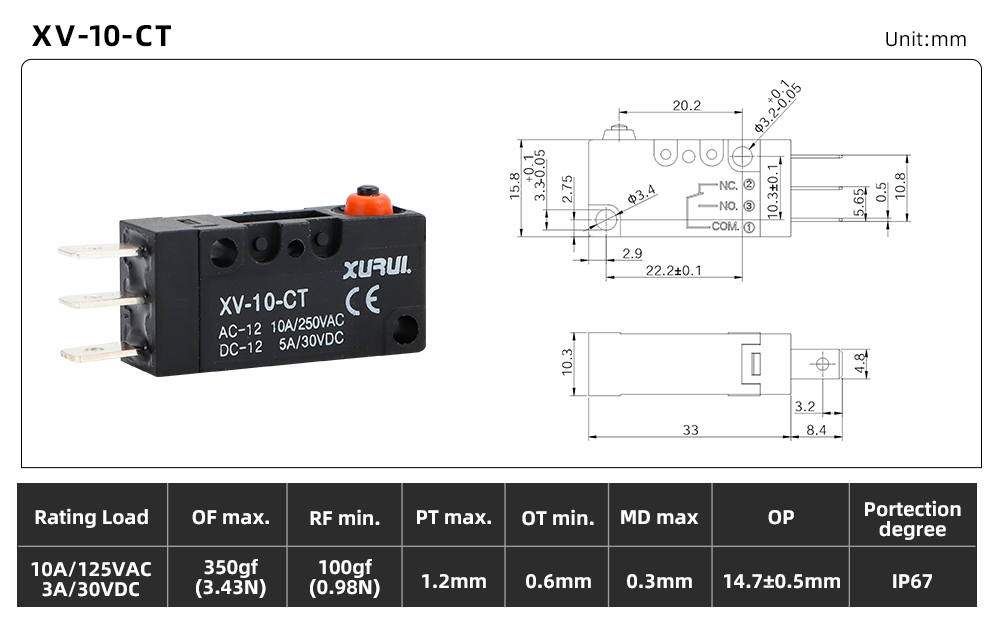

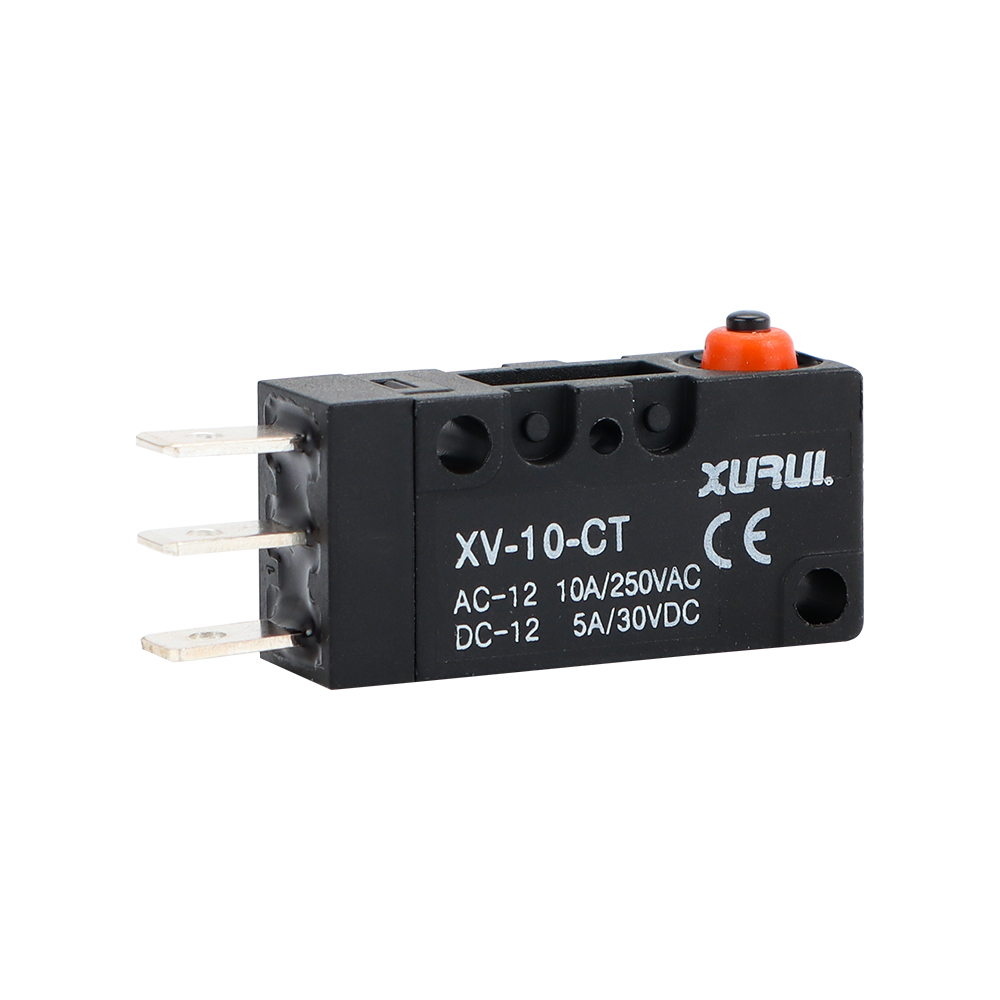

XV-10-CT
Product image and selection drawing are available for comparison.

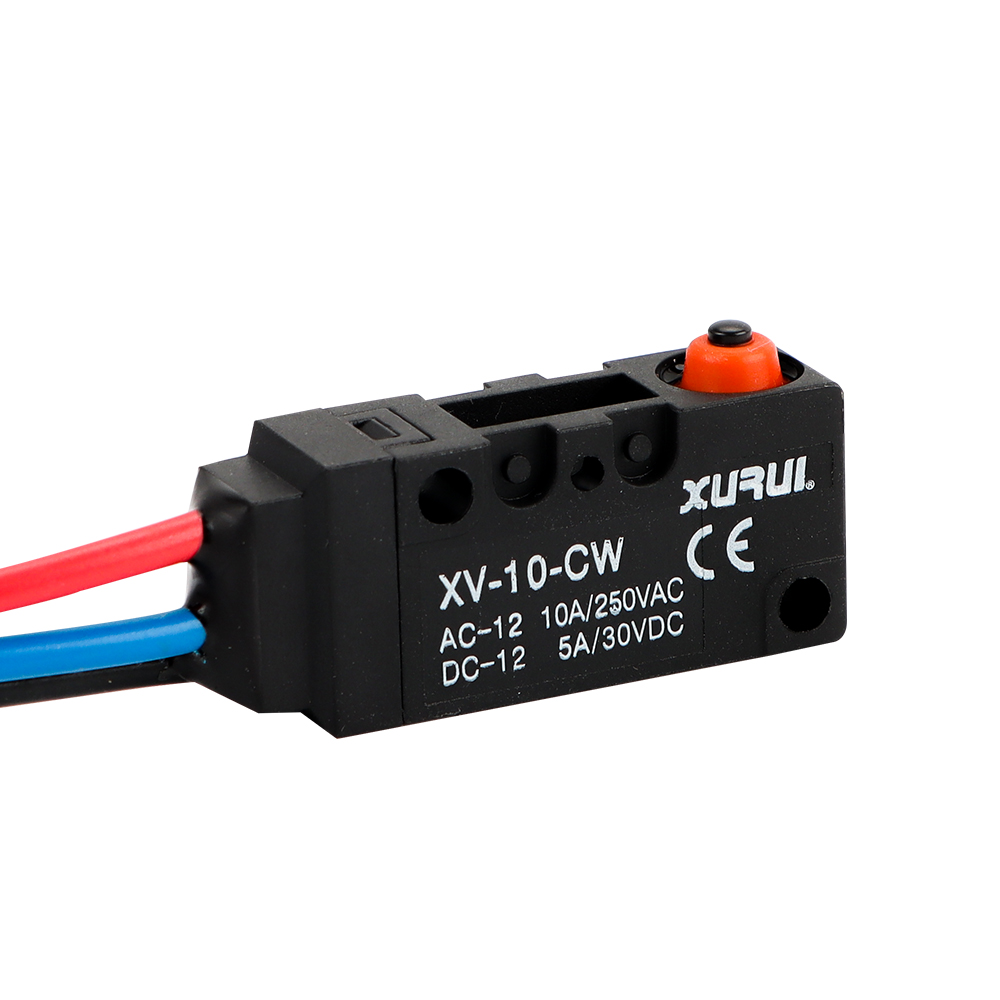

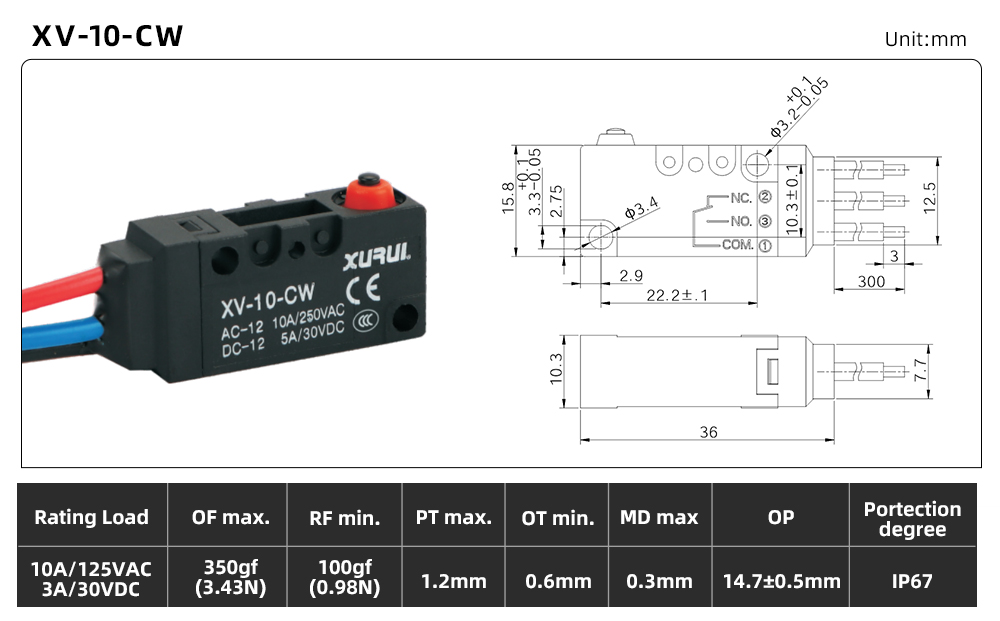

XV-10-CW
Product image and selection drawing are available for comparison.

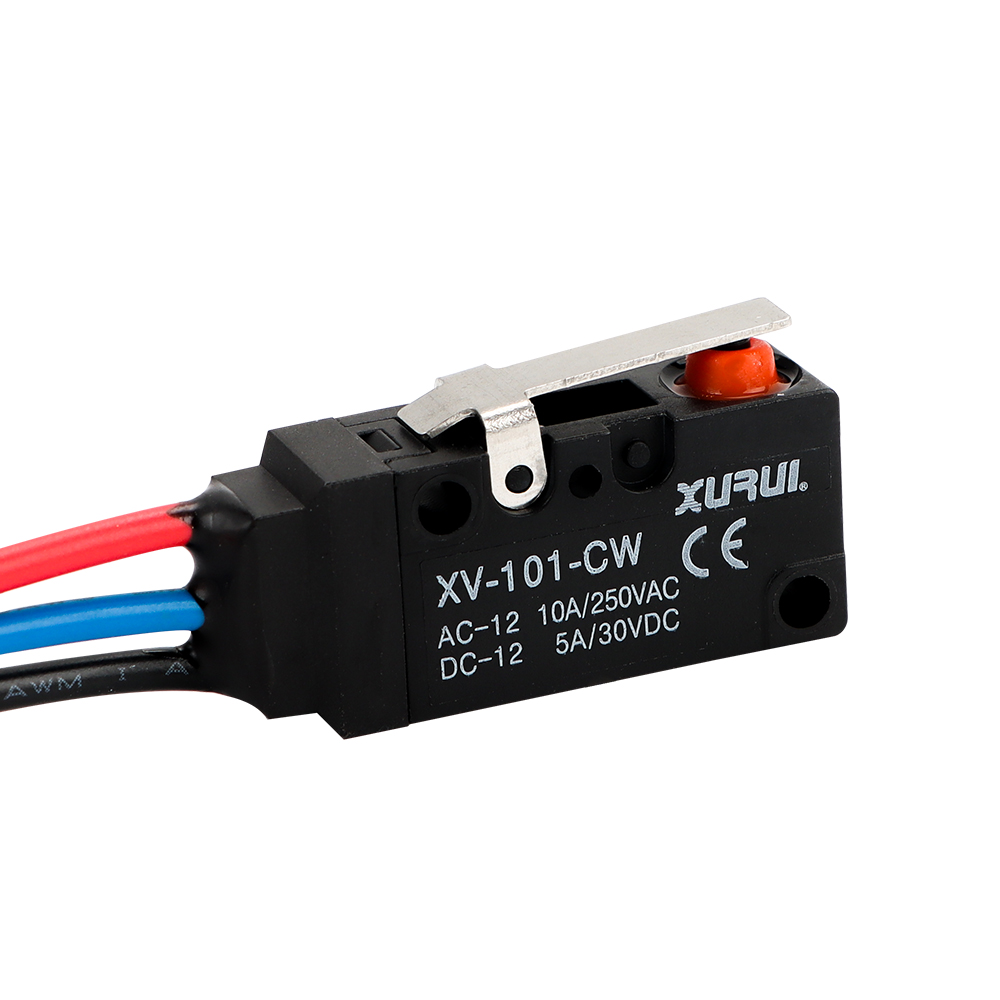

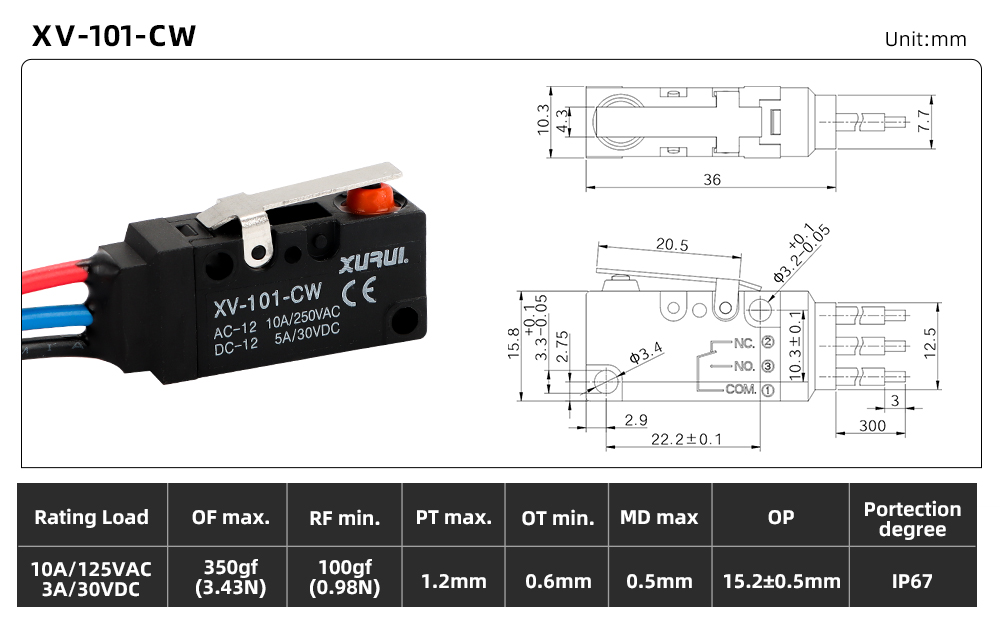

XV-101-CW
Product image and selection drawing are available for comparison.

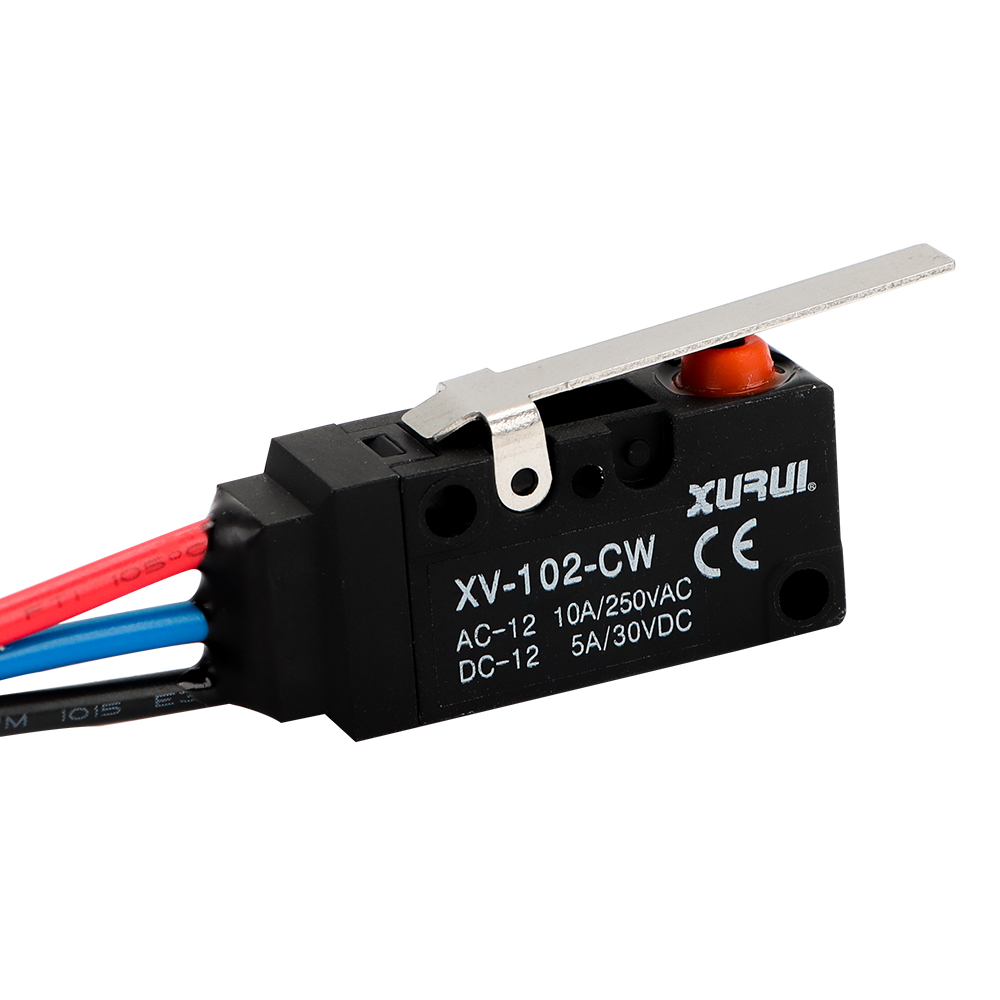

XV-102-CW
Product image and selection drawing are available for comparison.

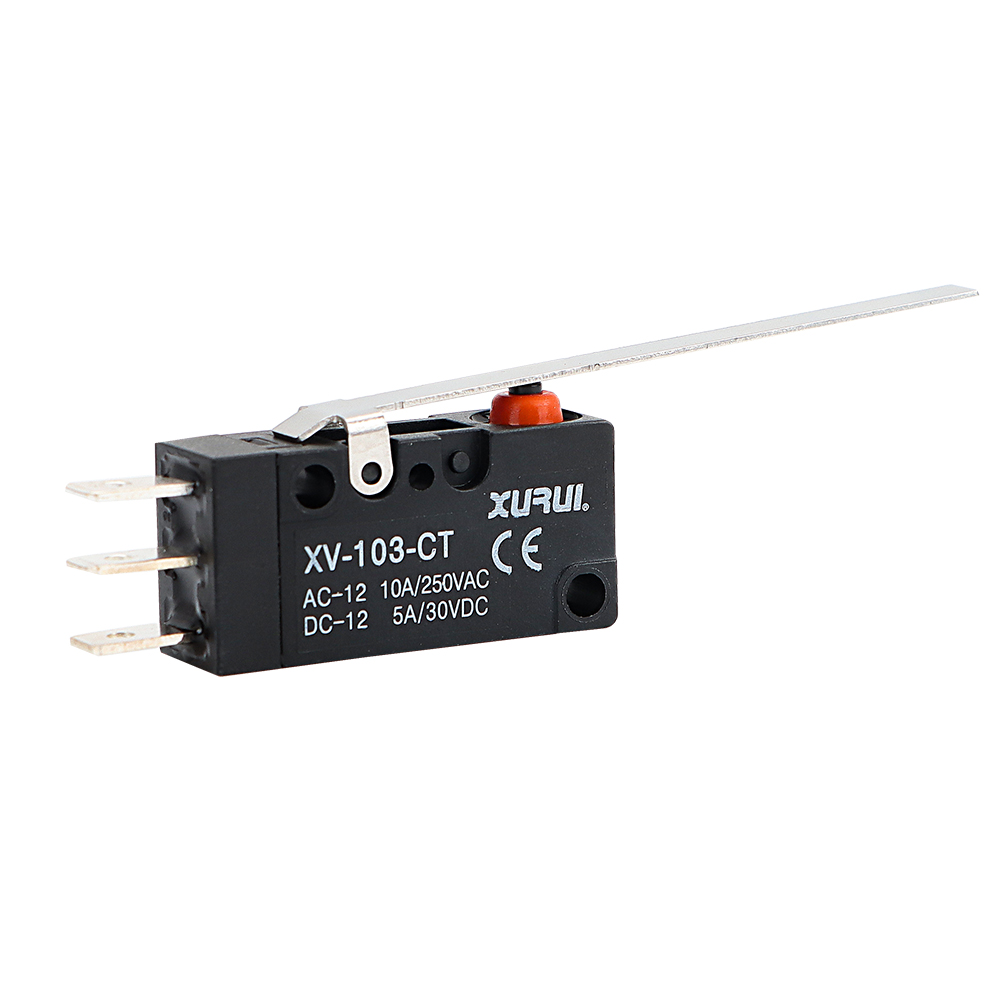

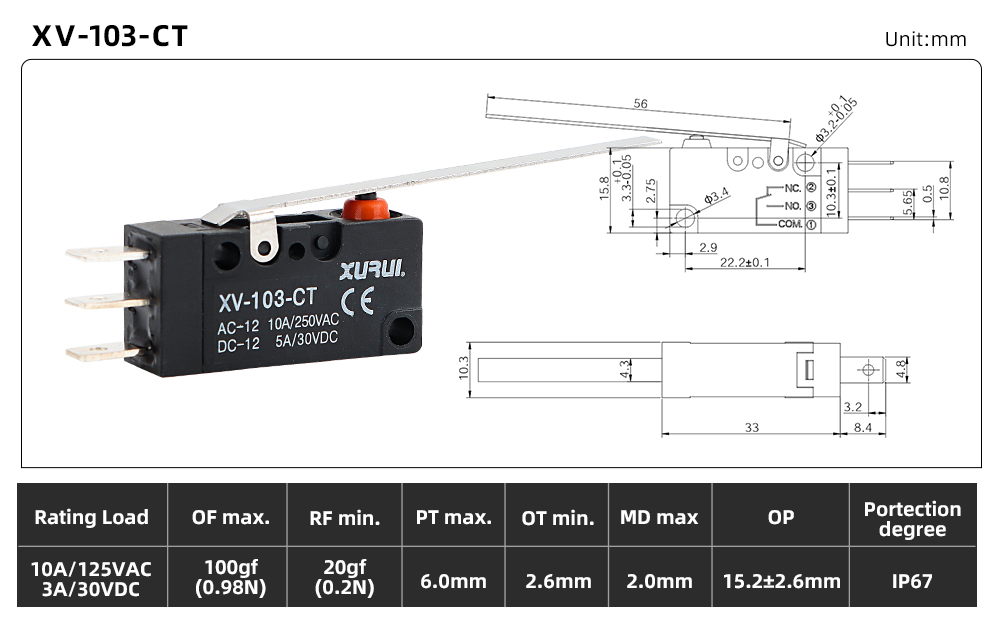

XV-103-CT
Product image and selection drawing are available for comparison.

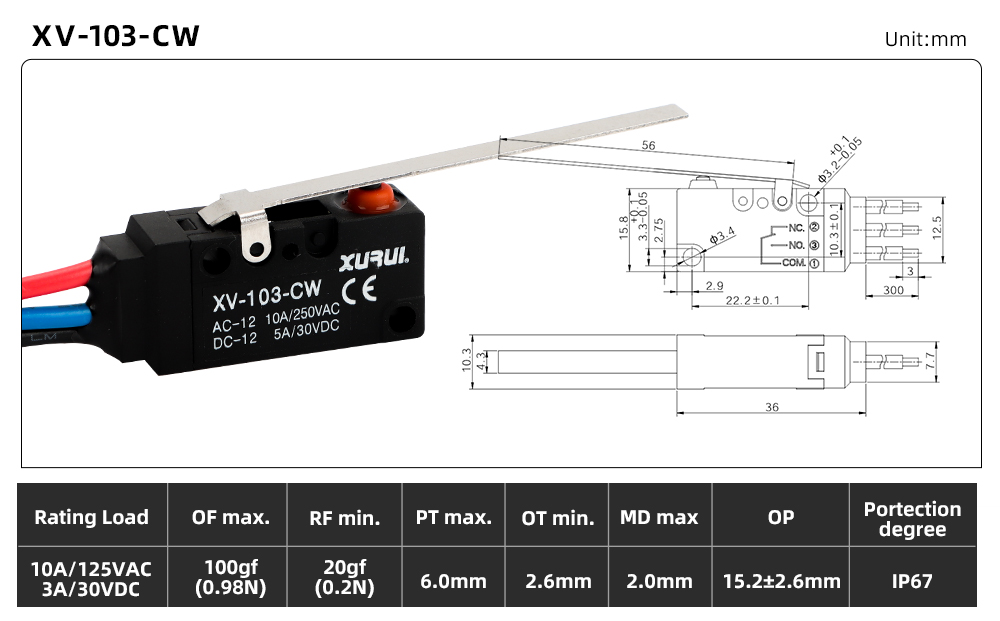

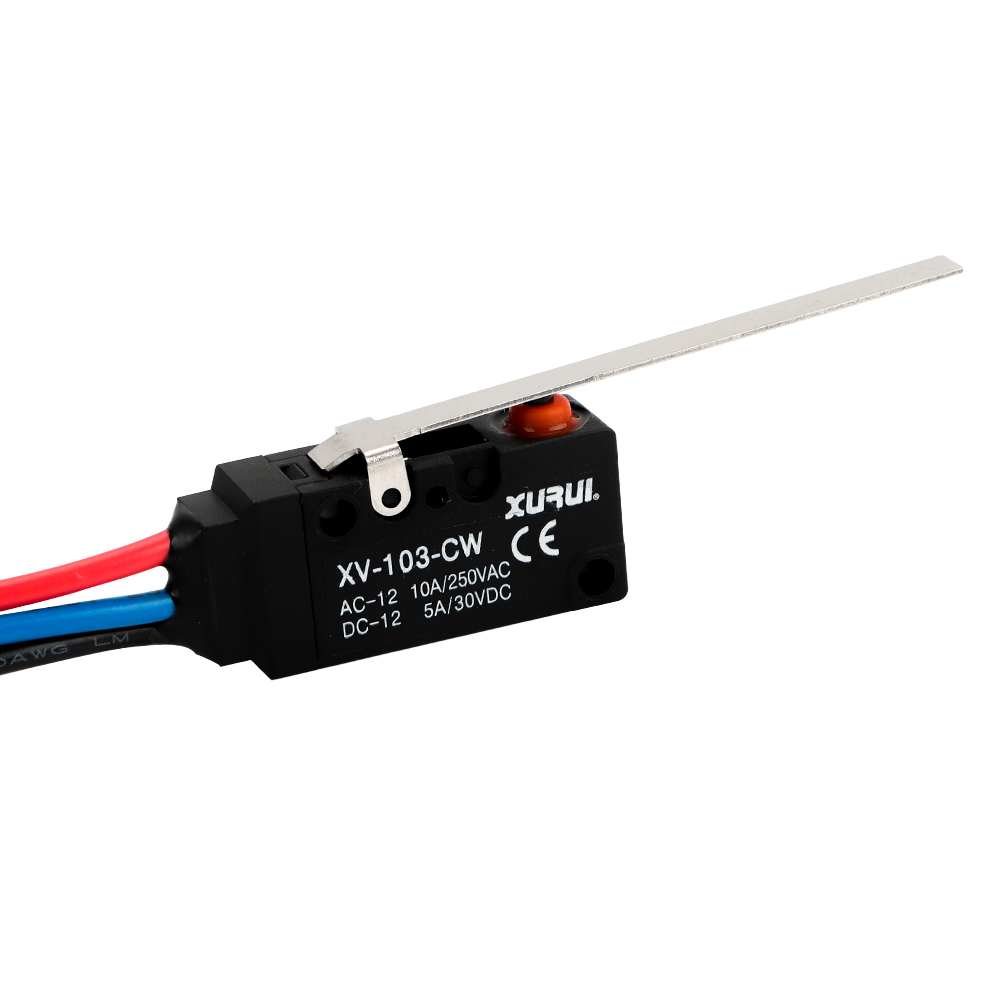

XV-103-CW
Product image and selection drawing are available for comparison.

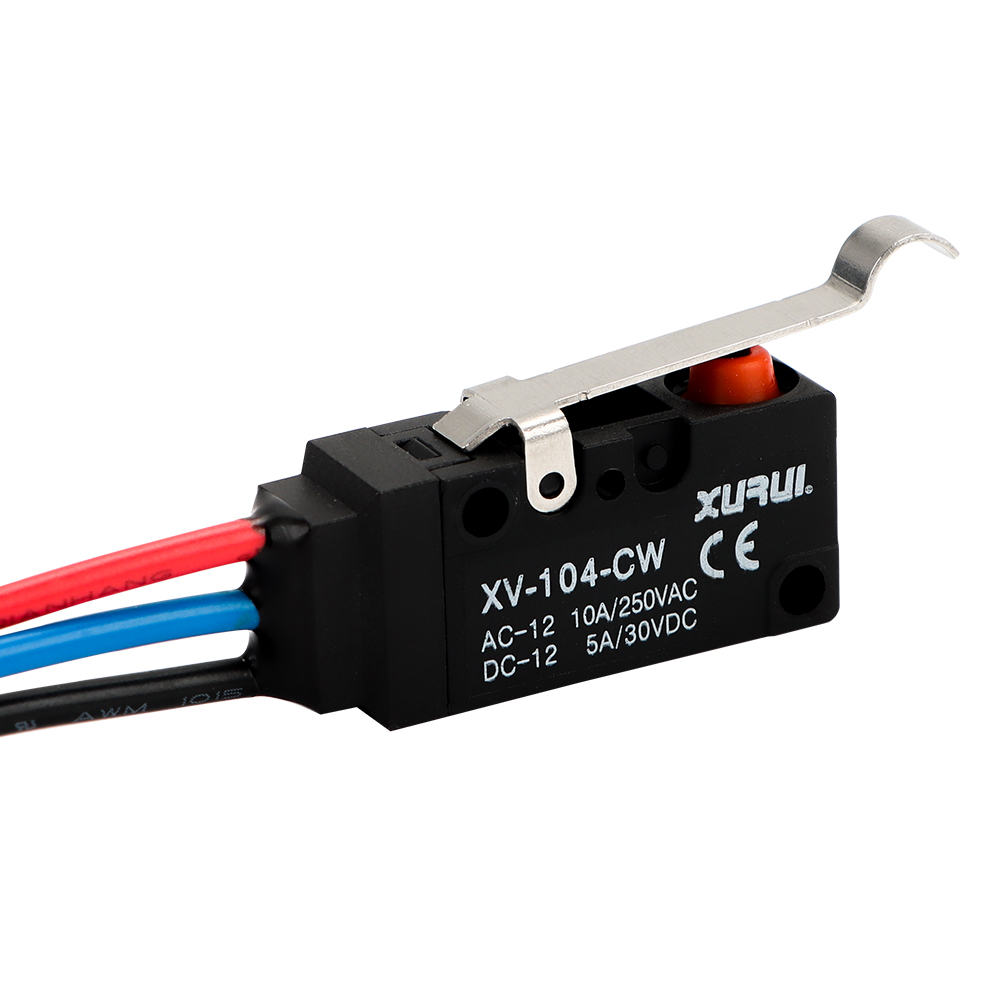

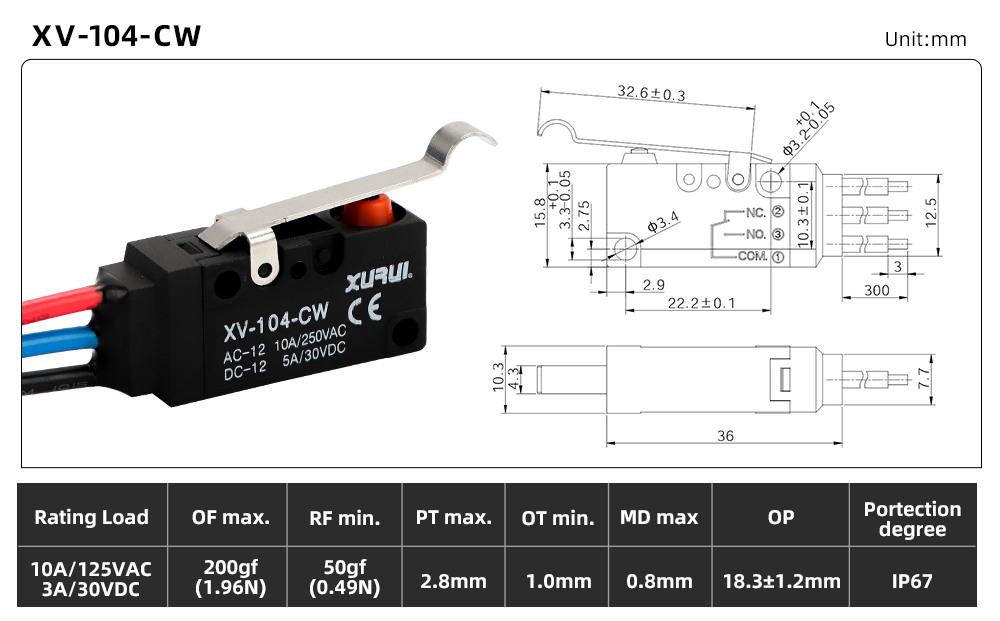

XV-104-CW
Product image and selection drawing are available for comparison.

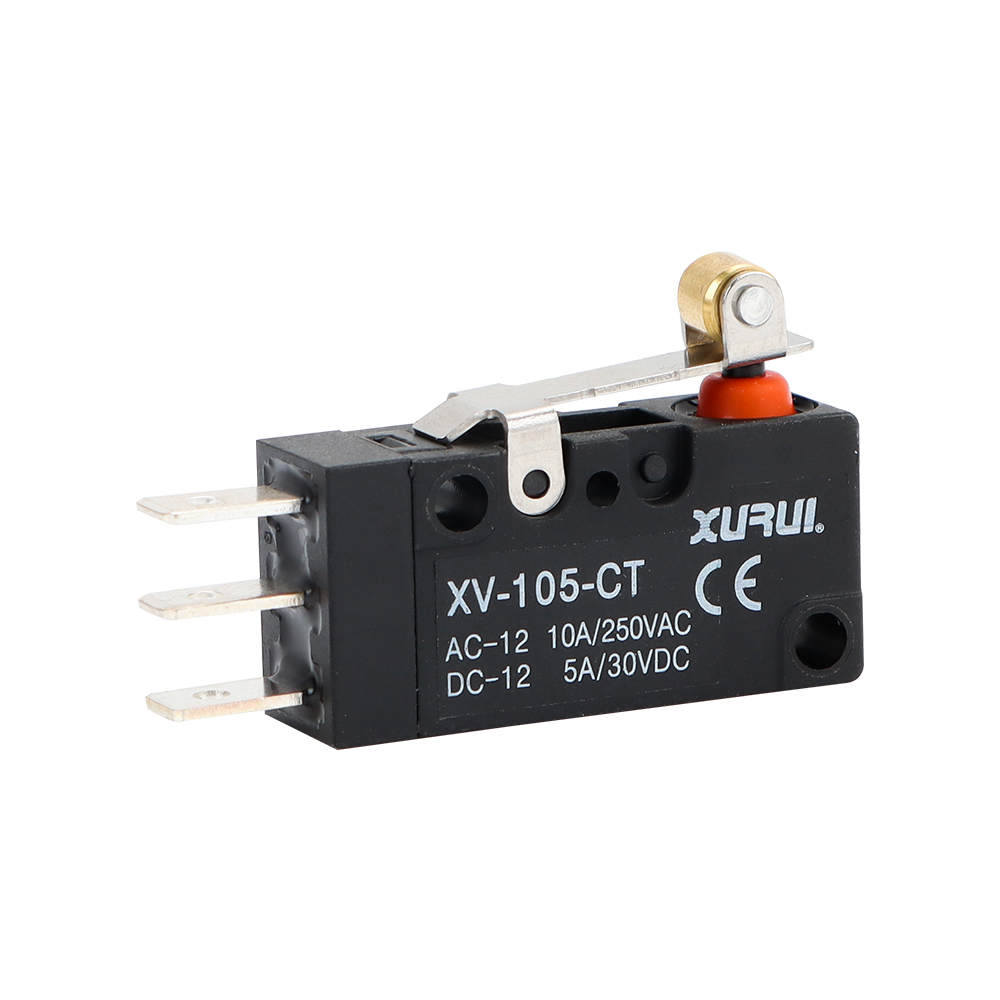

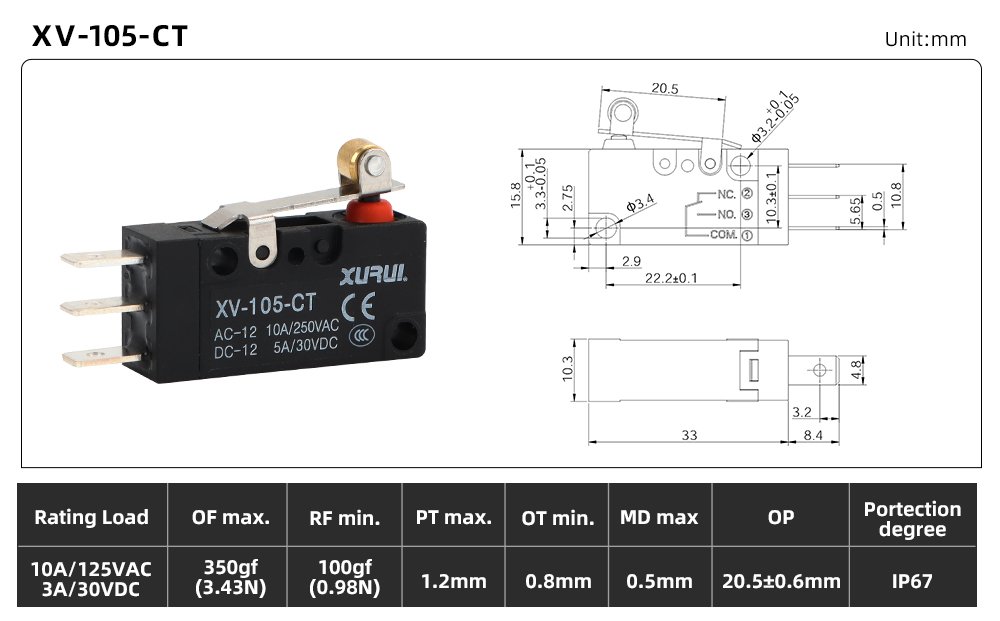

XV-105-CT
Product image and selection drawing are available for comparison.

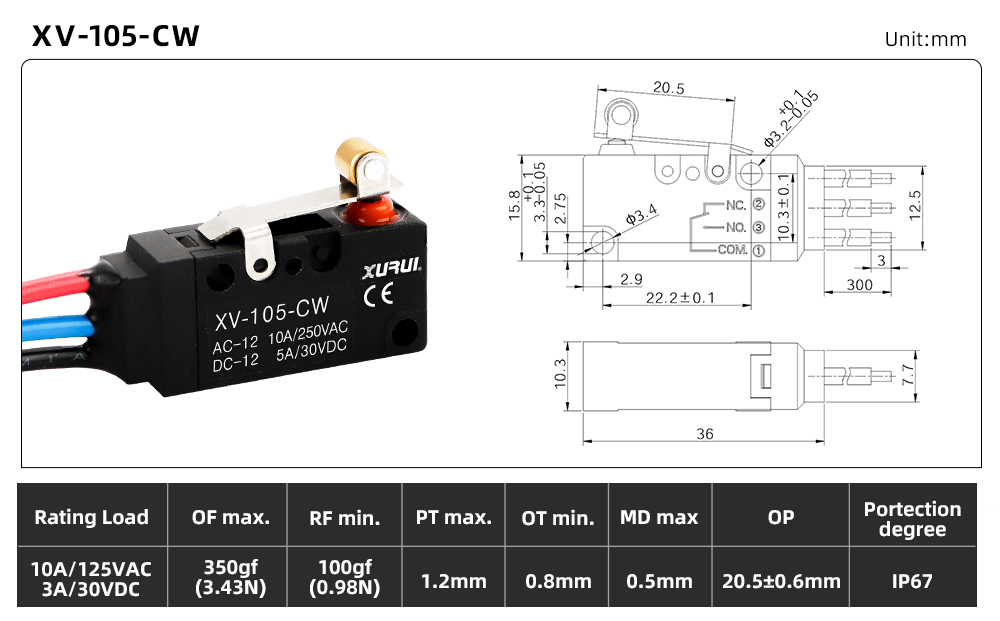

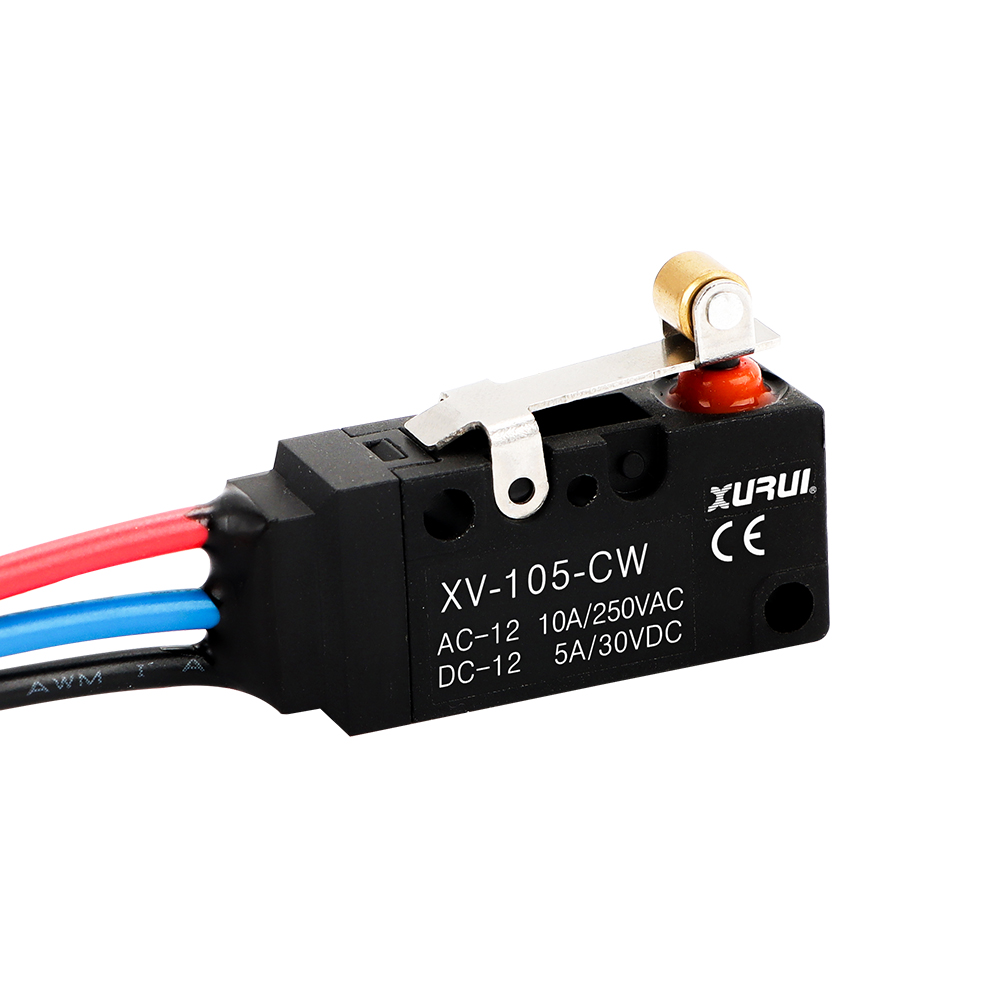

XV-105-CW
Product image and selection drawing are available for comparison.
Published XV-10 Waterproof series data for technical shortlisting
| Decision field | Current information / required input | Status |
|---|---|---|
| Protection | Waterproof series; verify exact IP rating | Published / series-level |
| Format | Compact snap-action construction | Published / series-level |
| Actuator | Model-dependent lever or plunger | Published / series-level |
| Approval | Verify exact model certificate scope | Published / series-level |
| Exact model suffix | Actuator, terminal, force and contact construction | Exact suffix review required |
| Load verification | AC/DC load, inrush and switching frequency | Exact suffix review required |
| Mechanical interface | Mounting, target motion, pretravel and overtravel | Exact suffix review required |
| Approval scope | Certificate must cover exact model and rating | Exact suffix review required |
Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XV-10 Series code
Select plunger, lever or roller geometry from target motion and overtravel.
Confirm AC/DC load type, inrush current, switching frequency and contact material.
Verify operating force, pretravel, overtravel and differential movement.
Match terminal format, insulation, protection and exact certificate scope.
Where this series can be evaluated
Wet-area appliances
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Automotive mechanisms
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Outdoor equipment
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Industrial sensing and control
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Verify the complete model before design release
Define the function
Describe the target motion or load, control logic and failure consequence.
Confirm the environment
Specify temperature, moisture, dust, vibration, enclosure and installation orientation.
Match the exact code
Confirm actuator, terminal, contact, input/output, housing and approval suffixes.
Approve a sample
Test fit, switching behavior and thermal or mechanical margin before volume release.
Downloads and evidence for XV-10 Series
XV-10 Waterproof Micro Switch Catalog
Download the current XV-10 Waterproof Micro Switch Catalog for model selection, technical specifications and ordering information.
Complete Industrial Switch Catalog
Public PDF from the current XURUI website. The file can be large; use the RFQ form to request a model-specific package.
Product page reference
Use the product page together with the latest controlled document for the exact ordered code.
Request exact certificate scope
Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.
XV-10 Series FAQ
Is XV-10 suitable for outdoor use?
Suitability depends on the exact sealing configuration, cable exit, temperature, UV exposure and installation orientation.
What information is needed for selection?
Send the load, target motion, exposure condition, mounting space and required certification.
Can the cable be customized?
Cable length, connector and OEM requirements can be reviewed for qualified order quantities.
