XV-15 Series Micro Switch (16A)
High-current micro switch family for appliances and industrial equipment
The XV-15 16A Series is positioned for higher-current appliance and equipment switching where actuator style, terminal format, contact rating and approval scope must be matched to the final design.
Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.
Compare XV-15 models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.
XV-15 16A Model Specifications Comparison
Swipe or scroll horizontally to compare all specifications.
| Model | Actuator Type | Operating Force OF Max. | Release Force RF Min. | Pretravel PT Max. | Overtravel OT Min. | Differential Movement MD Max. | Operating Position OP |
|---|---|---|---|---|---|---|---|

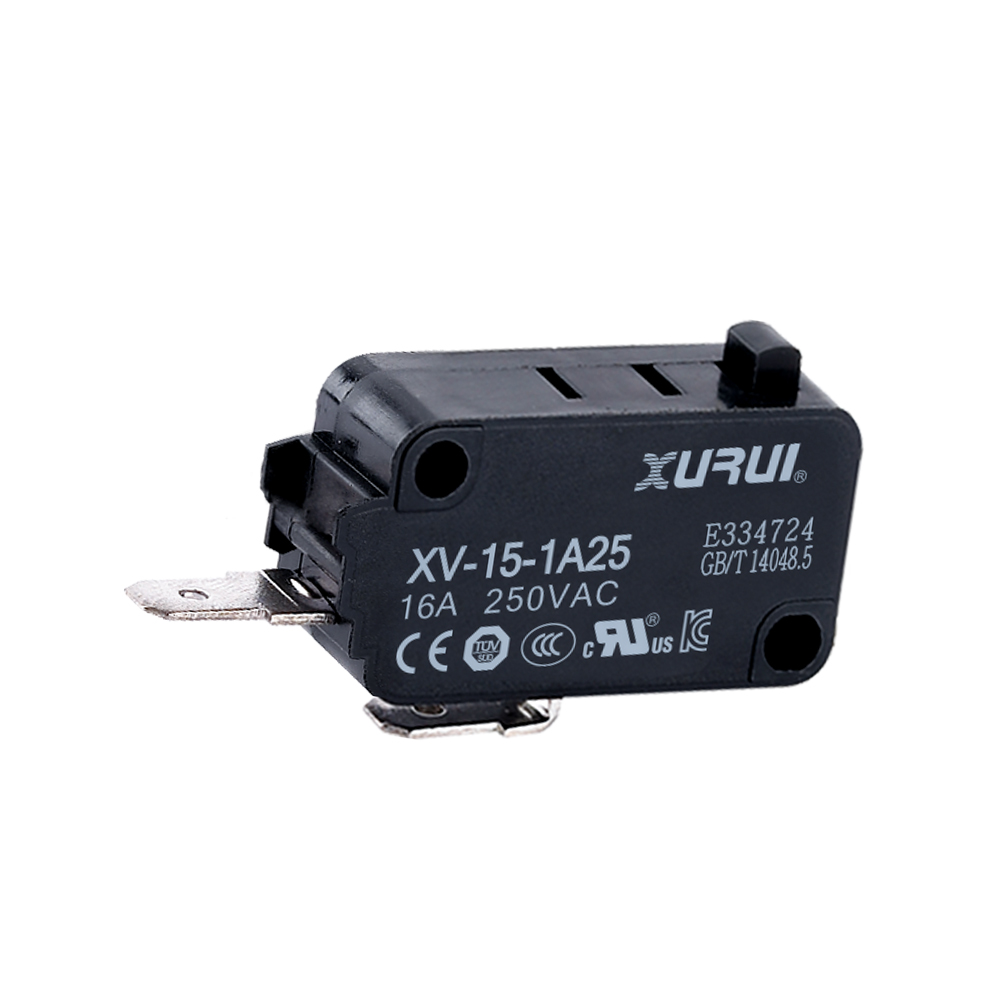

| XV-15-1A25-3 | Pin Plunger, NO | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 14.7 ± 0.5 mm |
| XV-15-1B25-3 | Pin Plunger, NC | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 14.7 ± 0.5 mm |
| XV-15-1C25-3 | Pin Plunger, Changeover | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 14.7 ± 0.5 mm |

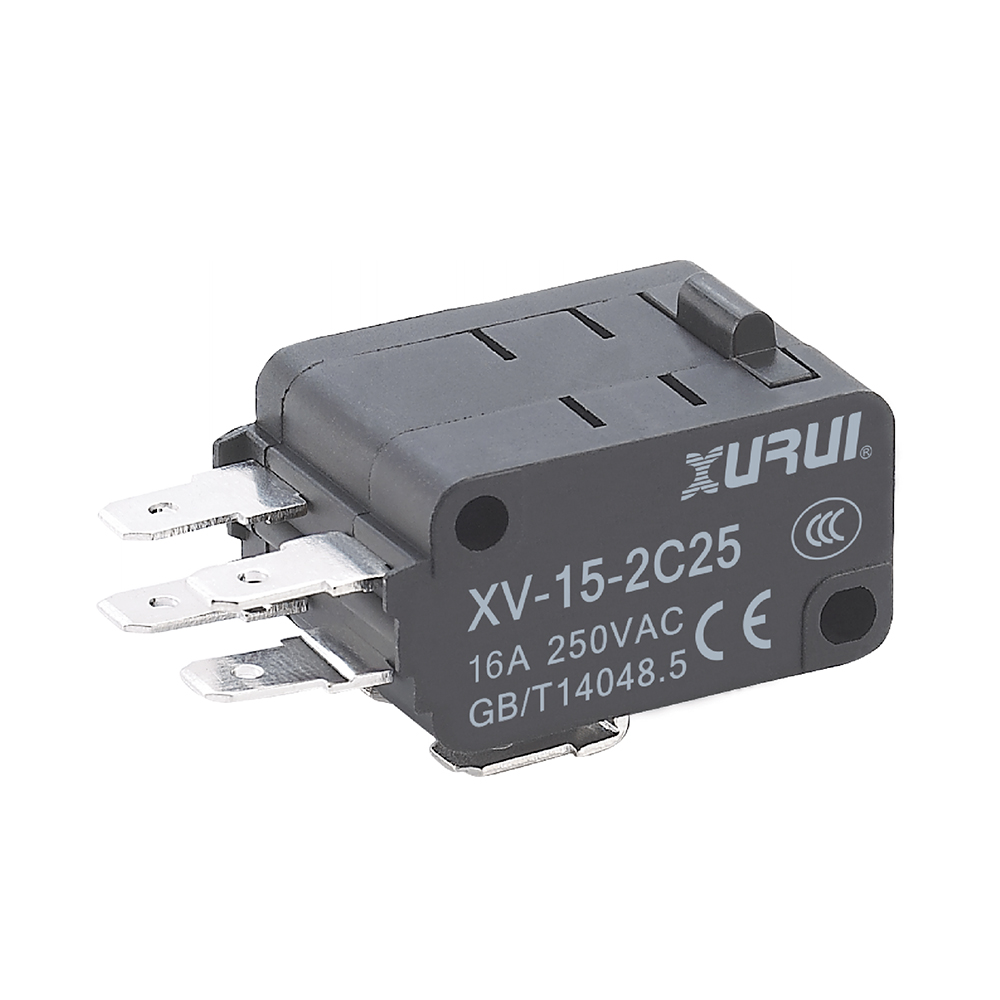

| XV-15-2C25 | Combined Pin Plunger | 400 gf (3.92 N) | 80 gf (0.78 N) | 1.2 mm | 0.6 mm | 0.5 mm | 14.7 ± 0.4 mm |
| XV-151-1C25-3 | Short Hinge Lever | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.5 mm | 15.2 ± 0.5 mm |

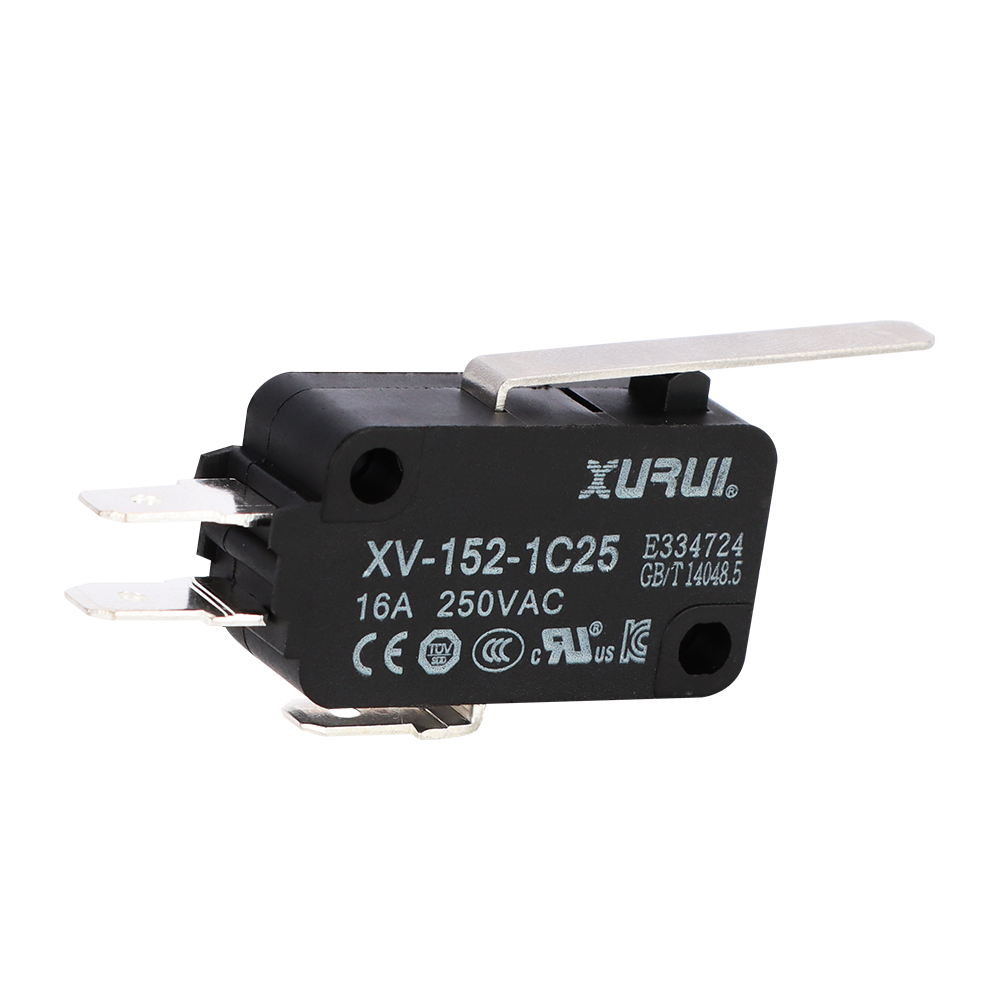

| XV-152-1C25-3 | Hinge Lever | 125 gf (1.23 N) | 14 gf (0.14 N) | 2.8 mm | 1.0 mm | 0.8 mm | 15.2 ± 1.2 mm |

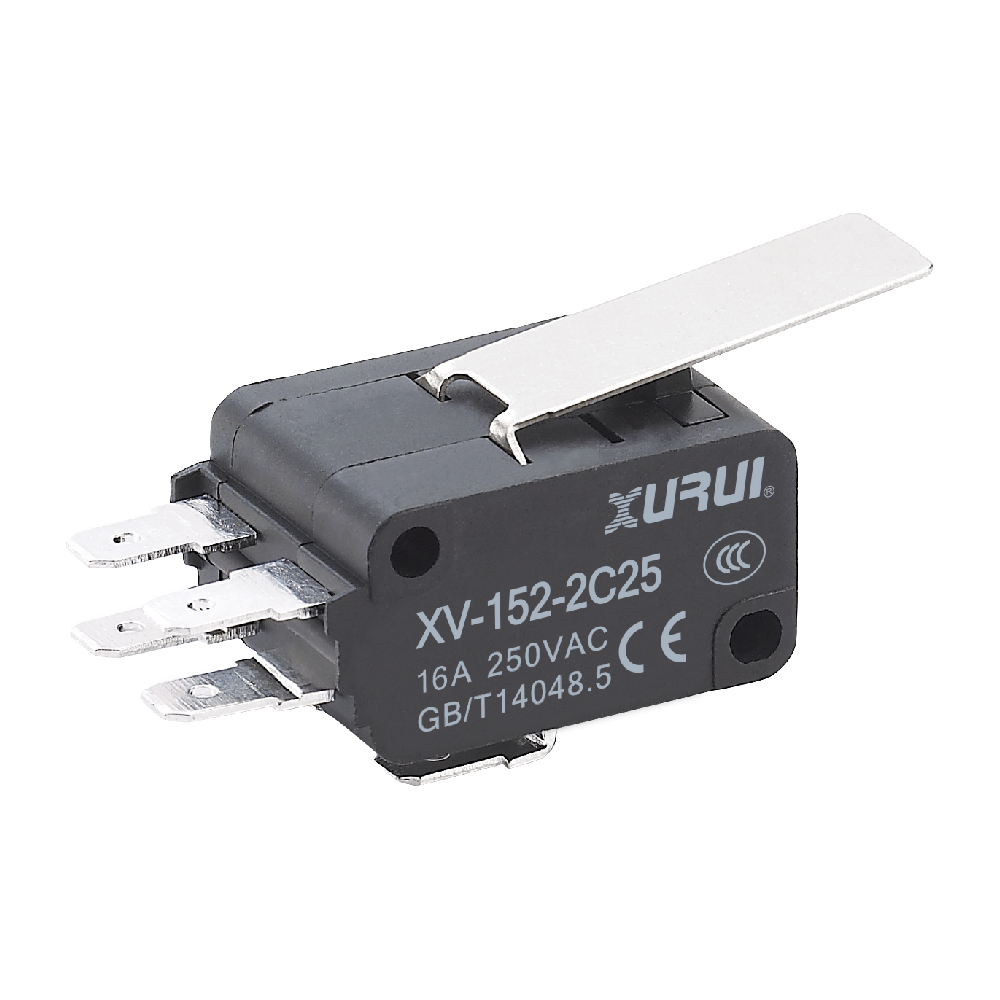

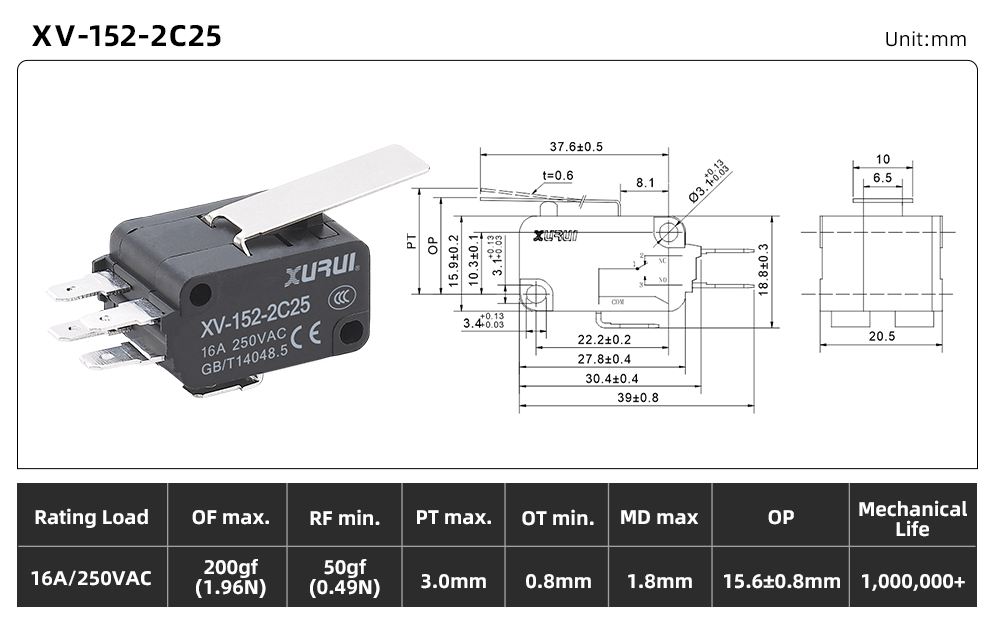

| XV-152-2C25 | Combined Hinge Lever | 200 gf (1.96 N) | 50 gf (0.49 N) | 3.0 mm | 0.8 mm | 1.8 mm | 15.6 ± 0.8 mm |

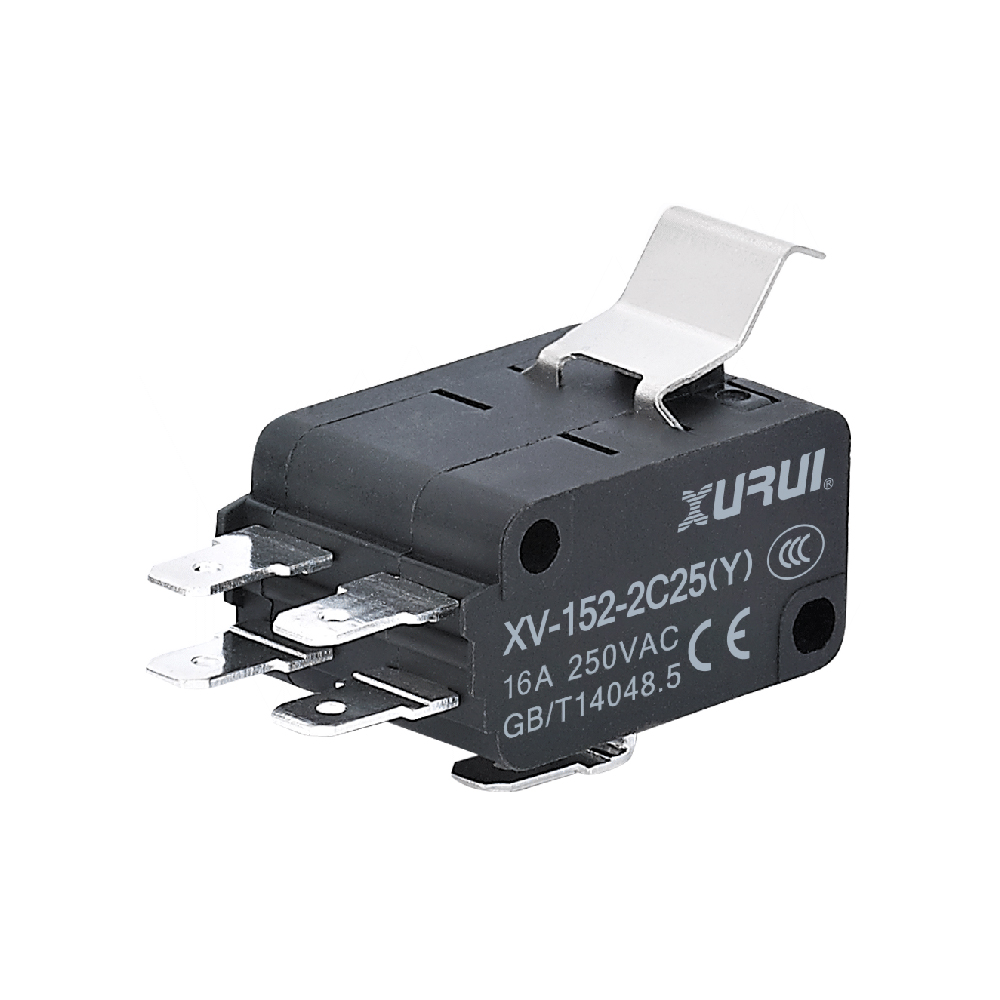

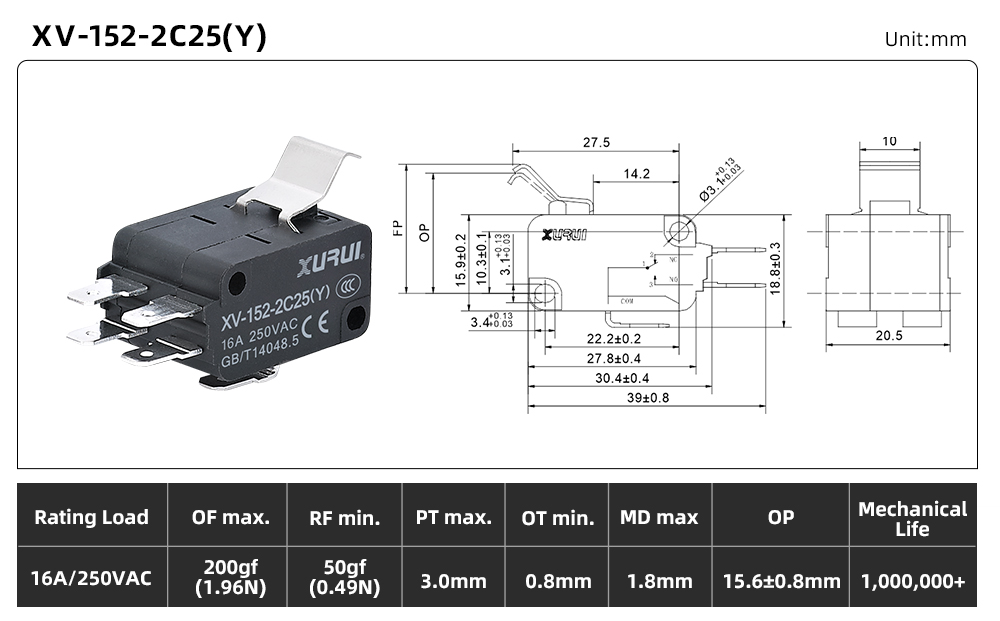

| XV-152-2C25(Y) | Combined Hinge Lever, Y Variant | 200 gf (1.96 N) | 50 gf (0.49 N) | 3.0 mm | 0.8 mm | 1.8 mm | 15.6 ± 0.8 mm |
| XV-153-1C25-3 | Long Hinge Lever | 70 gf (0.69 N) | 6 gf (0.06 N) | 6.0 mm | 2.6 mm | 2.0 mm | 15.2 ± 2.6 mm |
| XV-154-1C25-3 | Simulated Roller Lever | 125 gf (1.23 N) | 14 gf (0.14 N) | 2.8 mm | 1.0 mm | 0.8 mm | 18.3 ± 1.2 mm |
| XV-155-1C25-3 | Short Hinge Roller Lever | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.8 mm | 0.5 mm | 20.5 ± 0.6 mm |

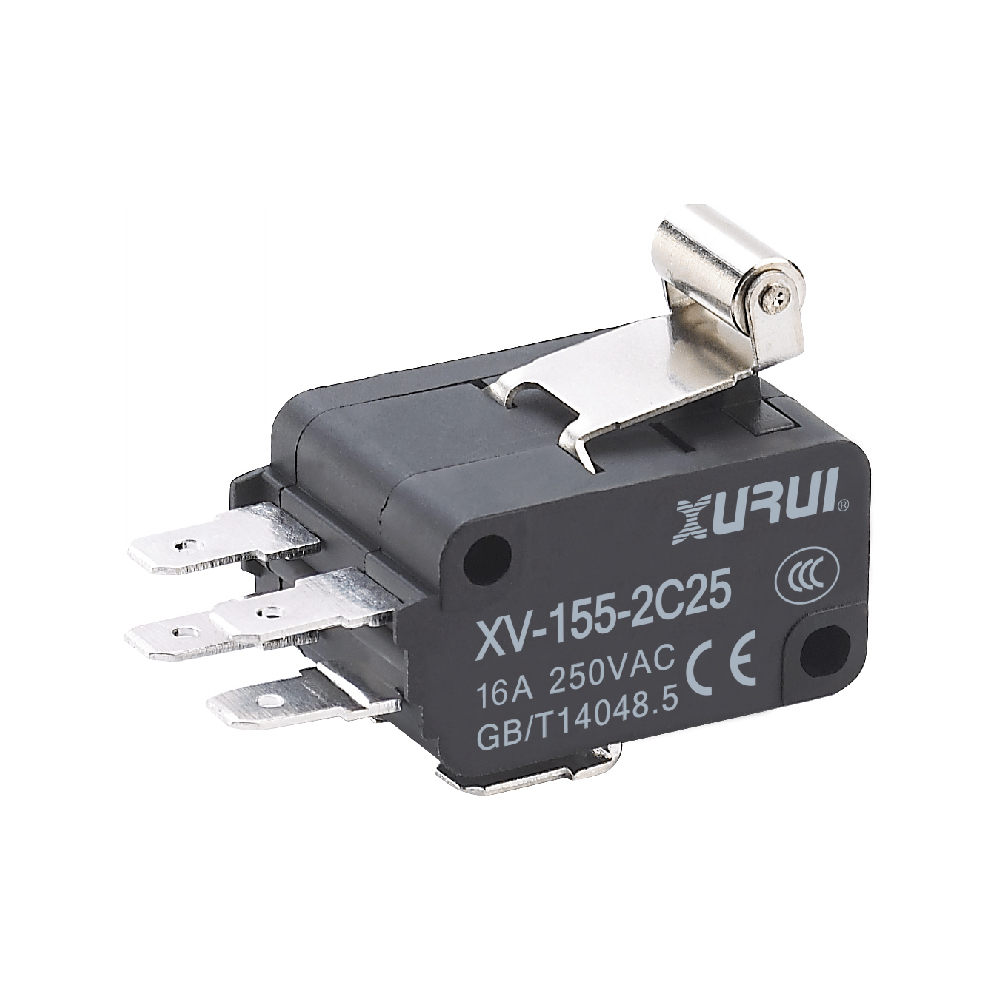

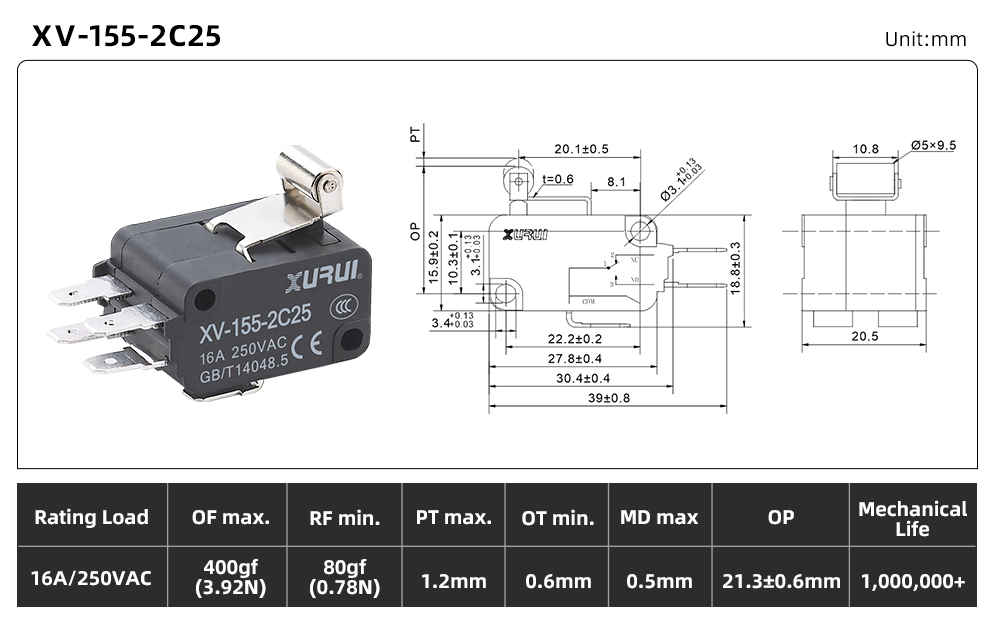

| XV-155-2C25 | Combined Short Roller Lever | 400 gf (3.92 N) | 80 gf (0.78 N) | 1.2 mm | 0.6 mm | 0.5 mm | 21.3 ± 0.6 mm |
| XV-156-1C25-3 | Hinge Roller Lever | 125 gf (1.23 N) | 14 gf (0.14 N) | 3.0 mm | 1.2 mm | 0.8 mm | 20.5 ± 1.2 mm |

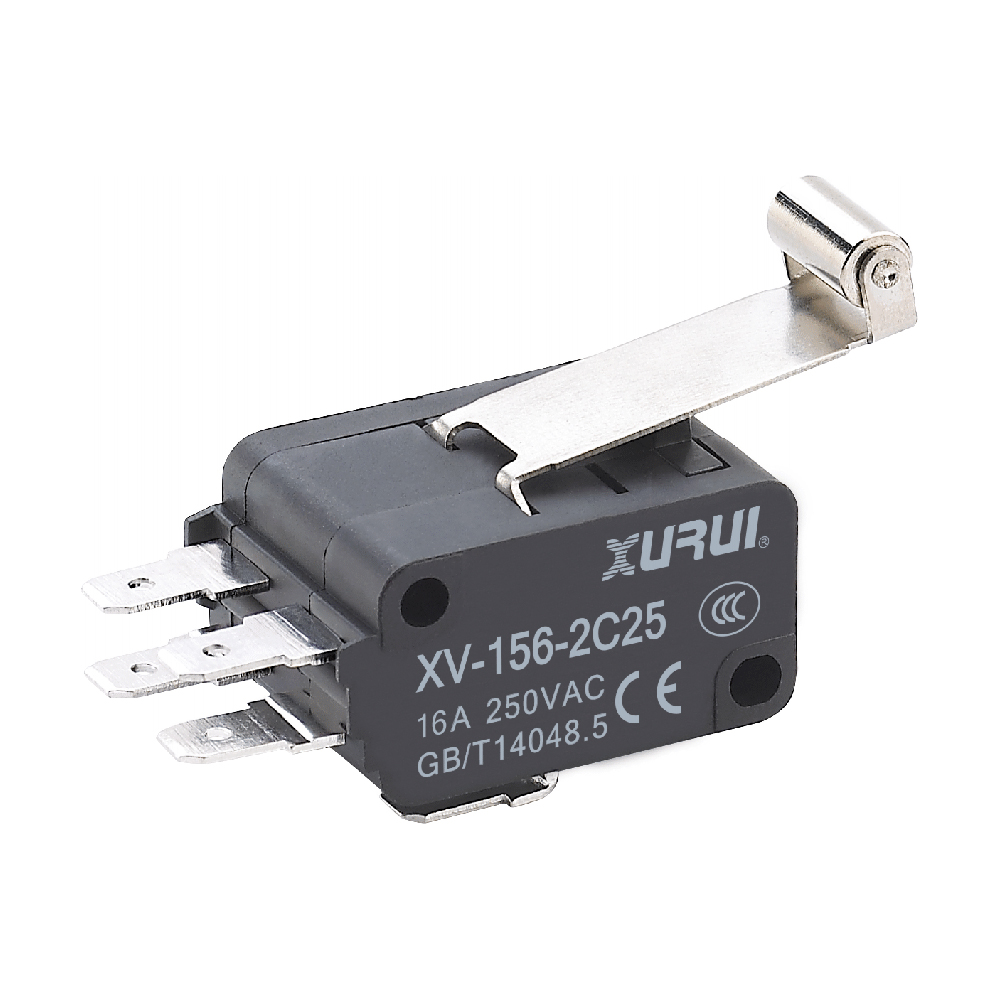

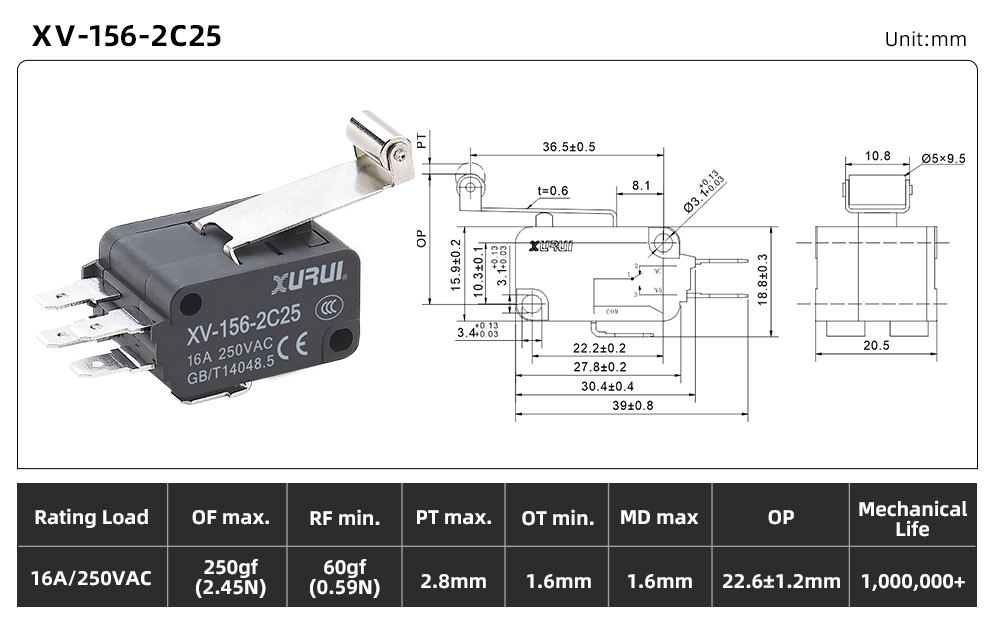

| XV-156-2C25 | Combined Hinge Roller Lever | 250 gf (2.45 N) | 60 gf (0.59 N) | 2.8 mm | 1.6 mm | 1.6 mm | 22.6 ± 1.2 mm |

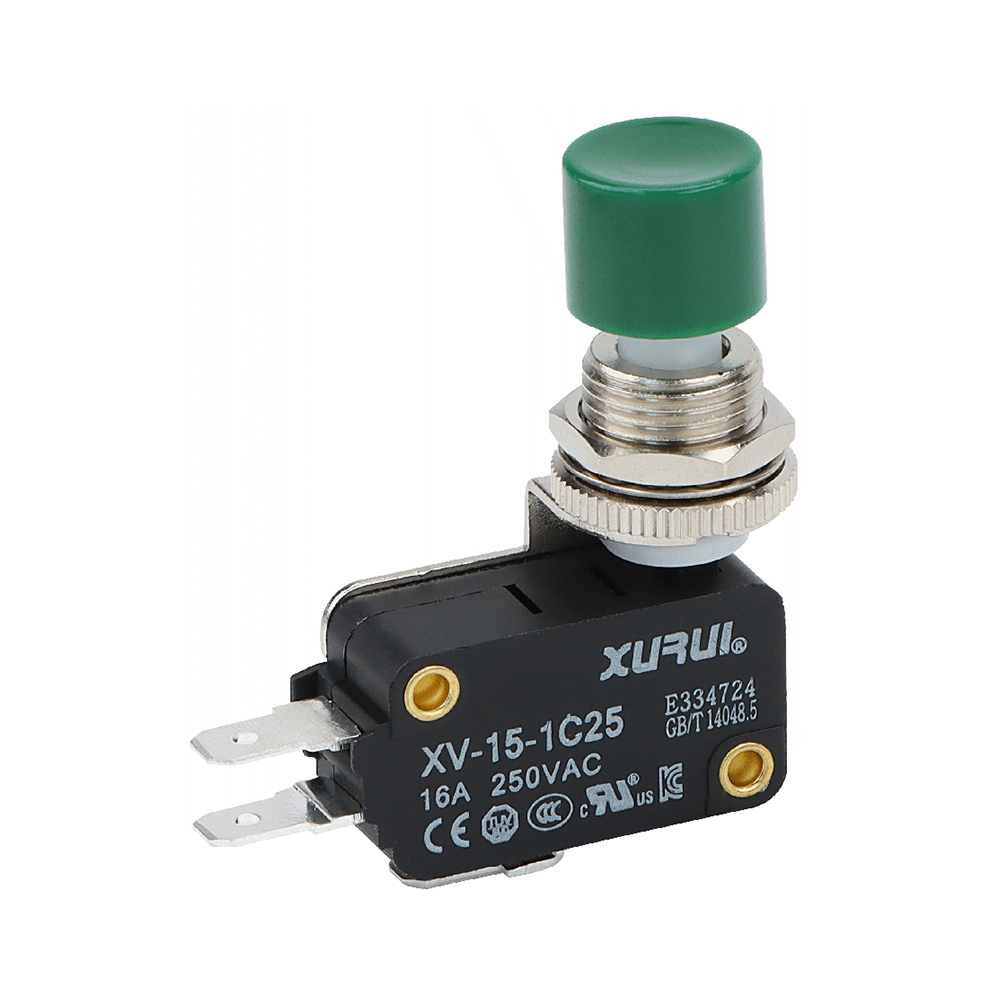

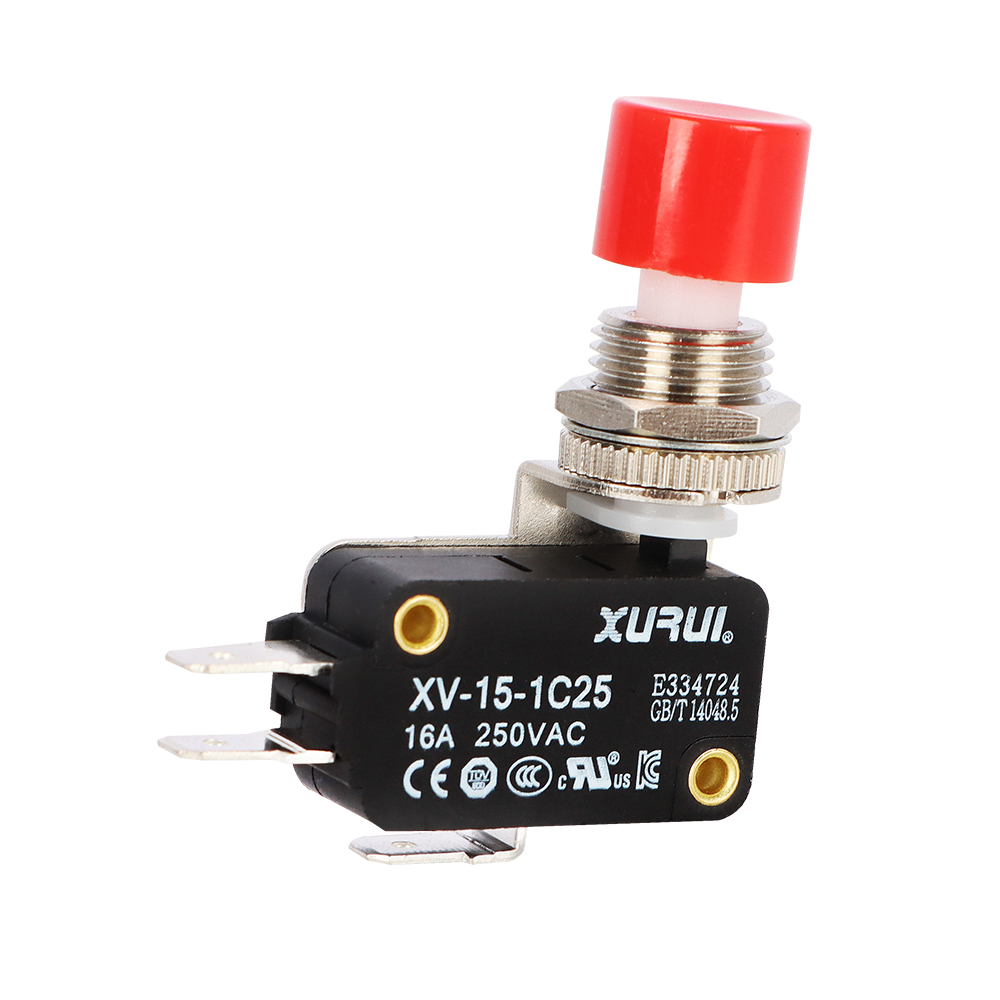

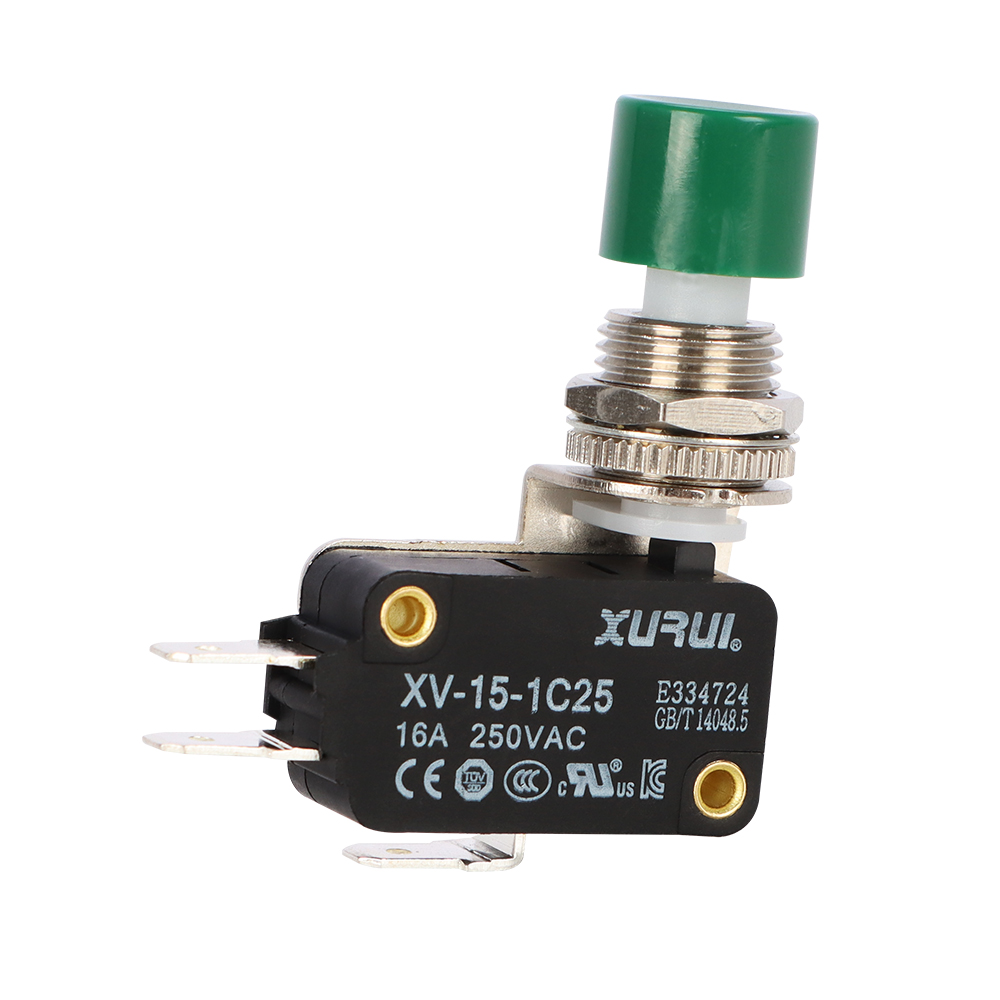

| DS438-2 | Panel Mount Push Button | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.5 mm | 21.3 ± 0.4 mm |

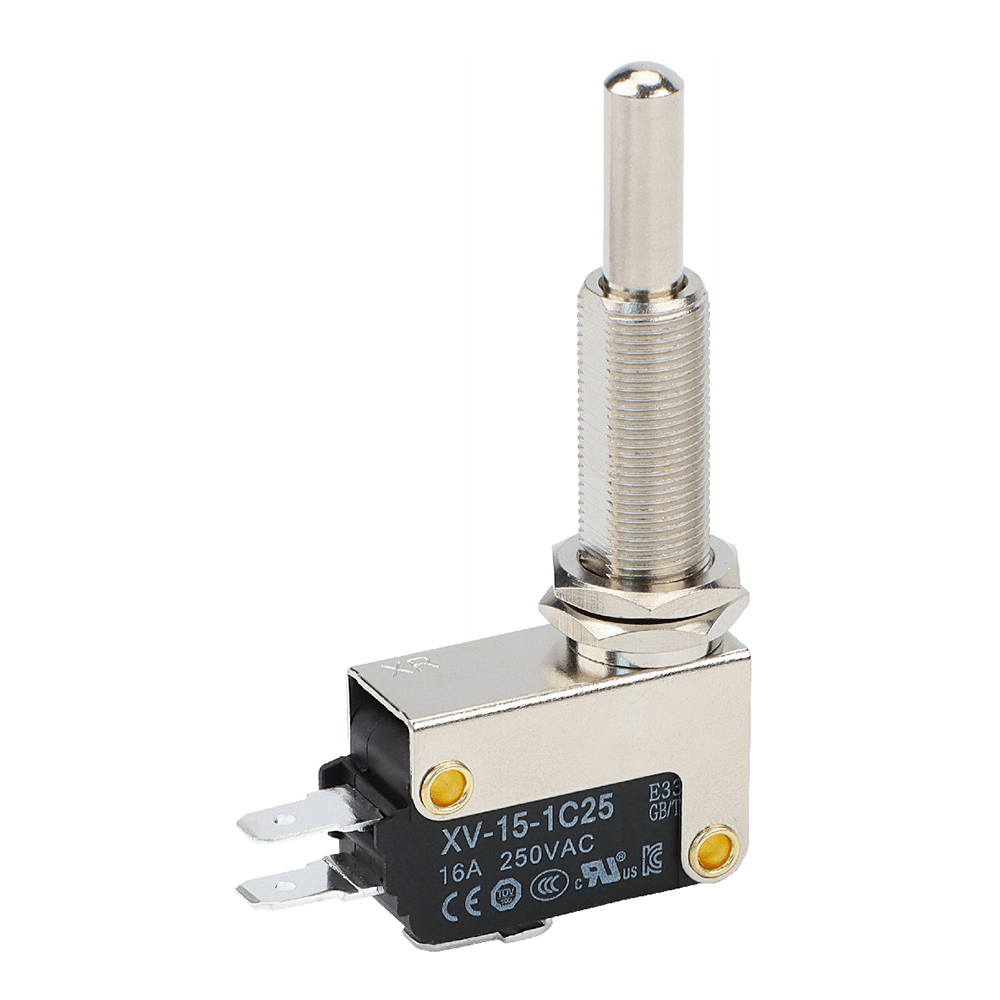

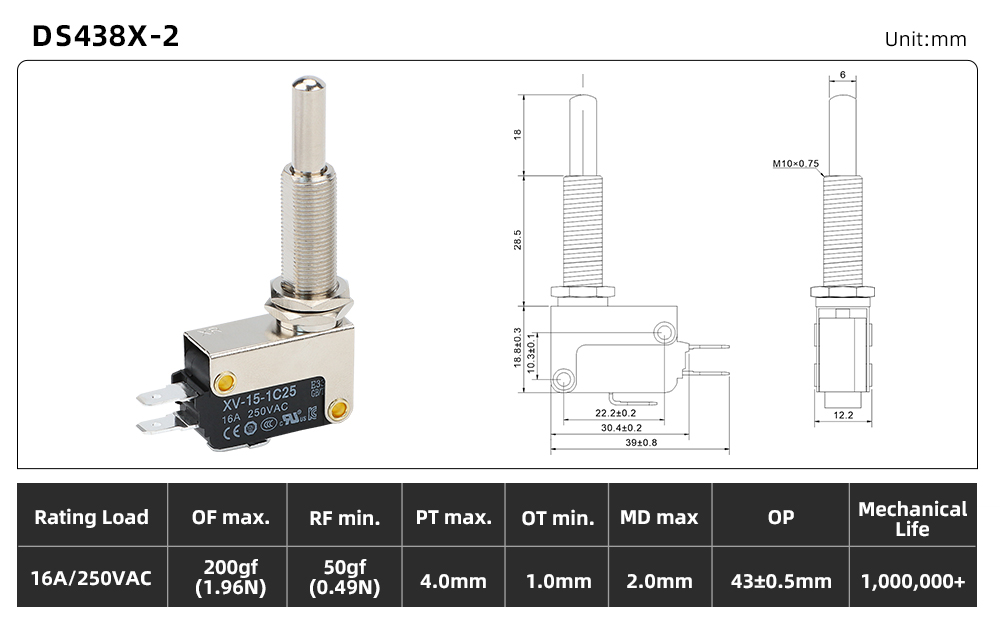

| DS438X-2 | Panel Mount Long Plunger | 200 gf (1.96 N) | 50 gf (0.49 N) | 4.0 mm | 1.0 mm | 2.0 mm | 43 ± 0.5 mm |

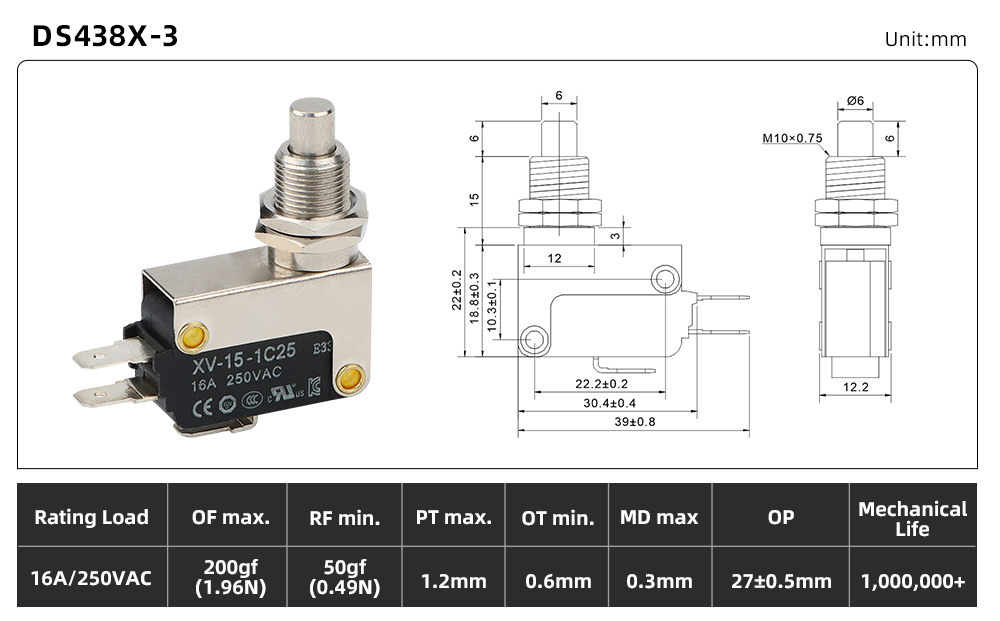

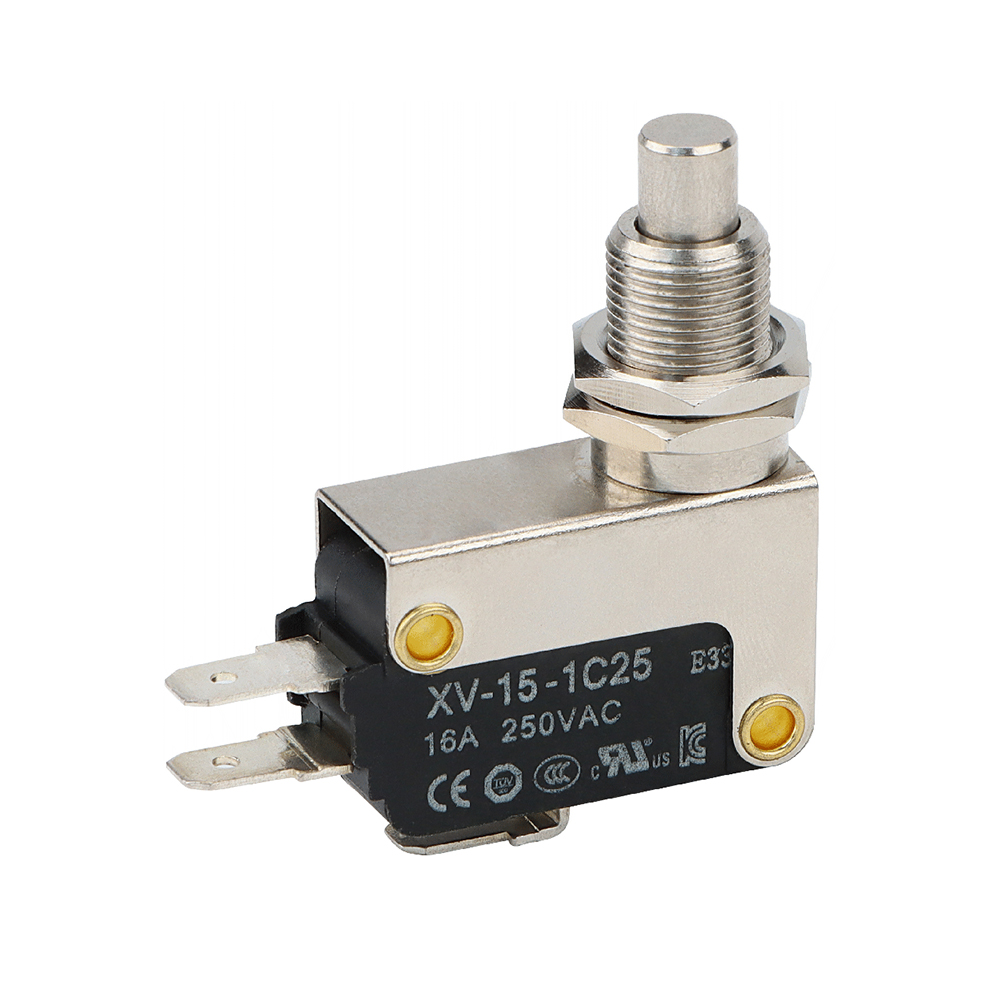

| DS438X-3 | Panel Mount Plunger | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 27 ± 0.5 mm |

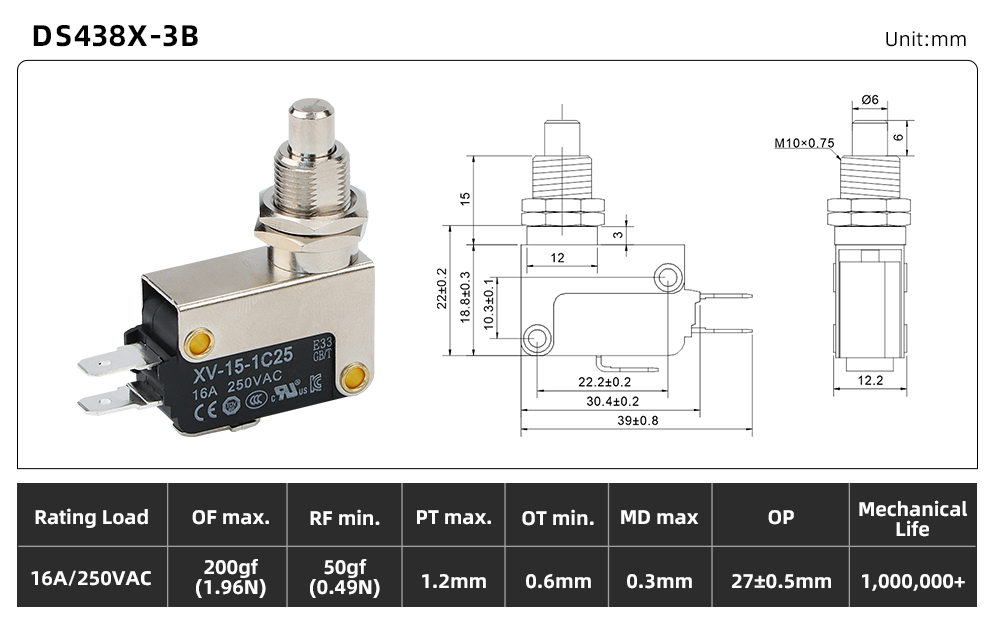

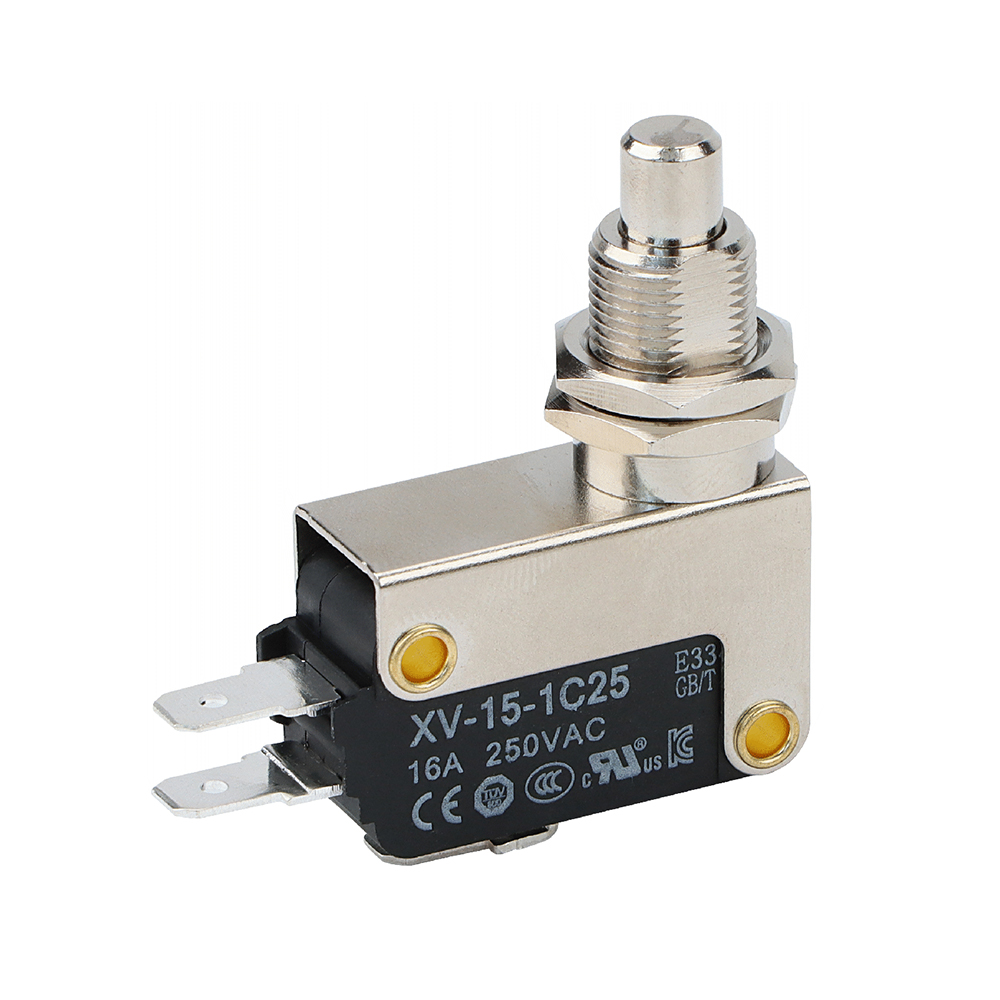

| DS438X-3B | Panel Mount Plunger | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 27 ± 0.5 mm |

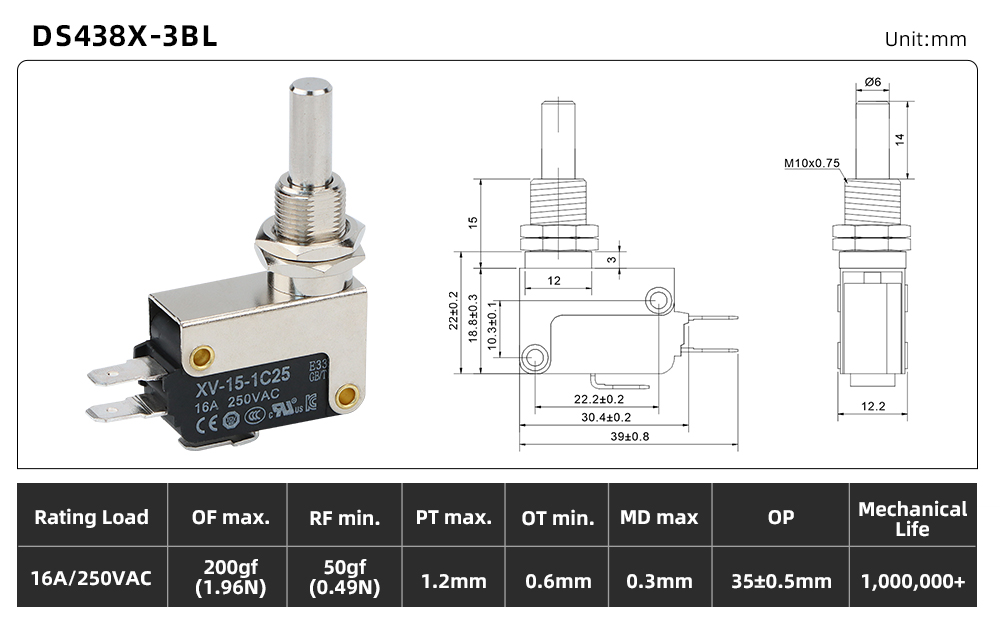

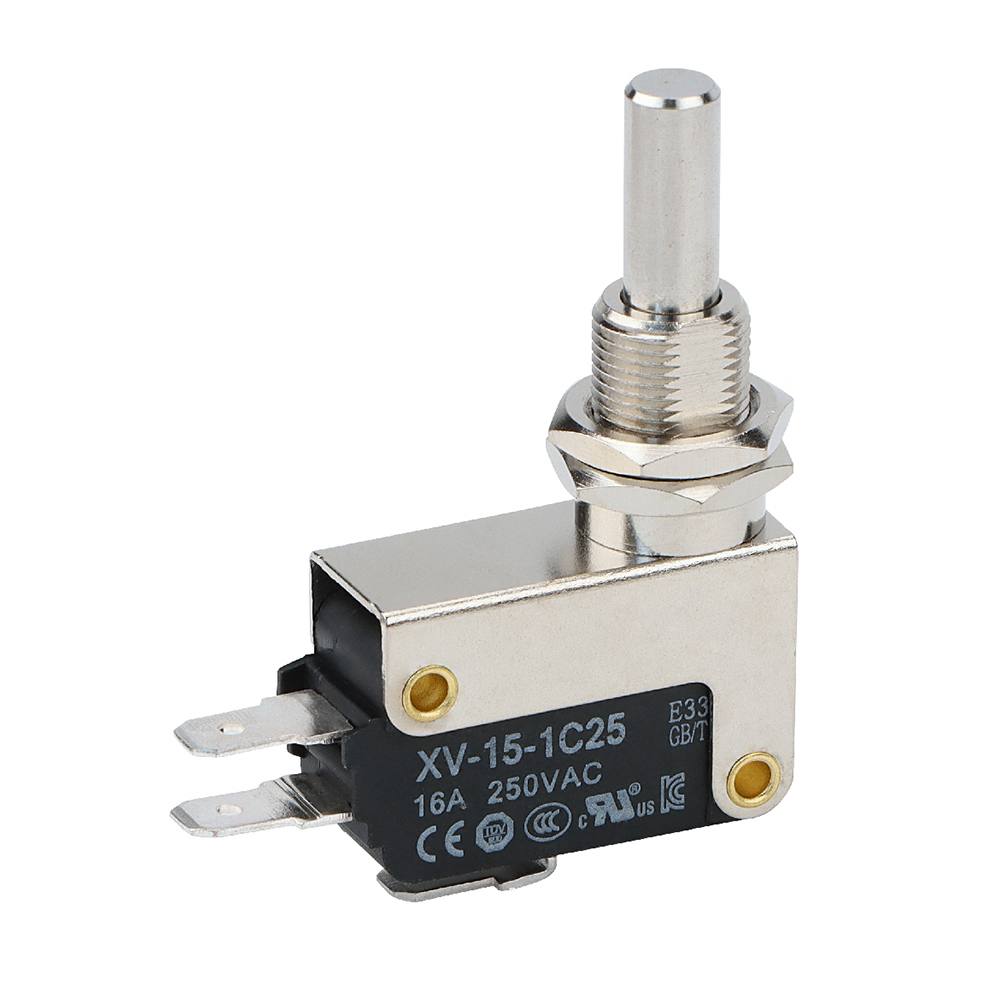

| DS438X-3BL | Panel Mount Long Plunger | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 35 ± 0.5 mm |

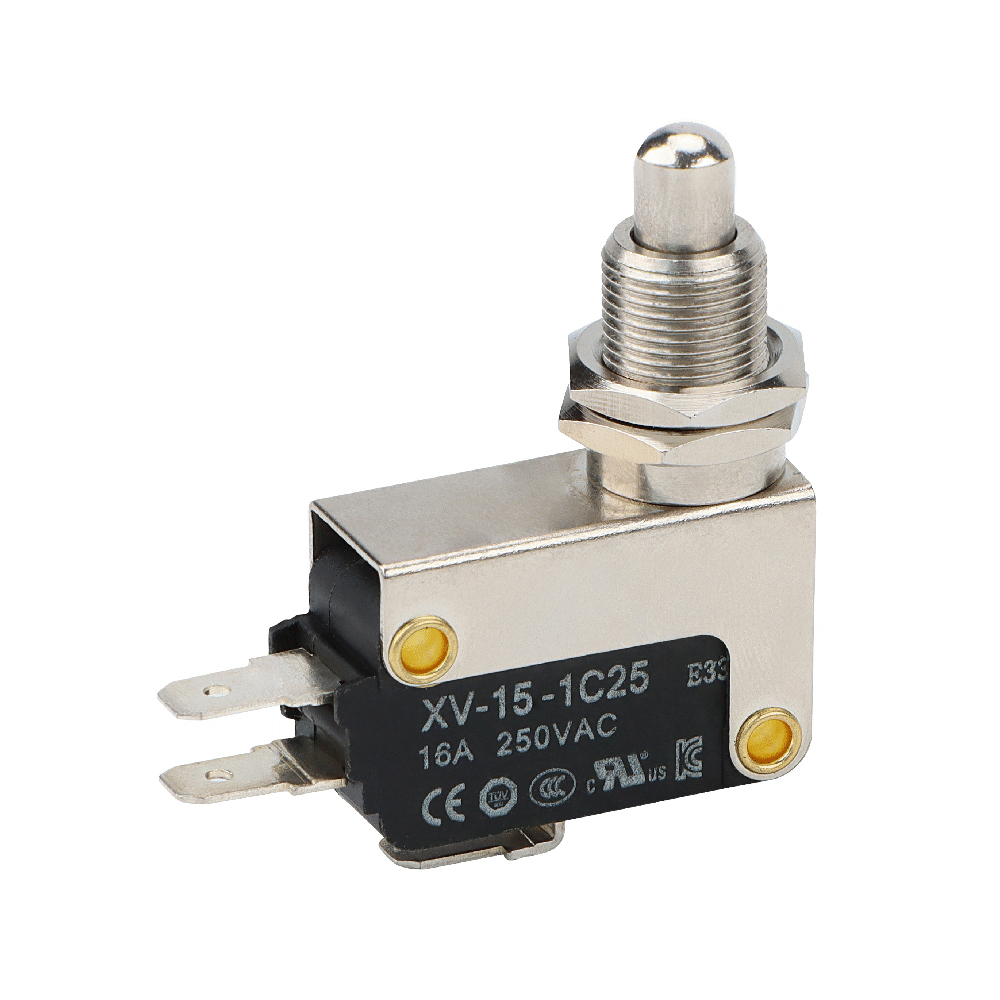

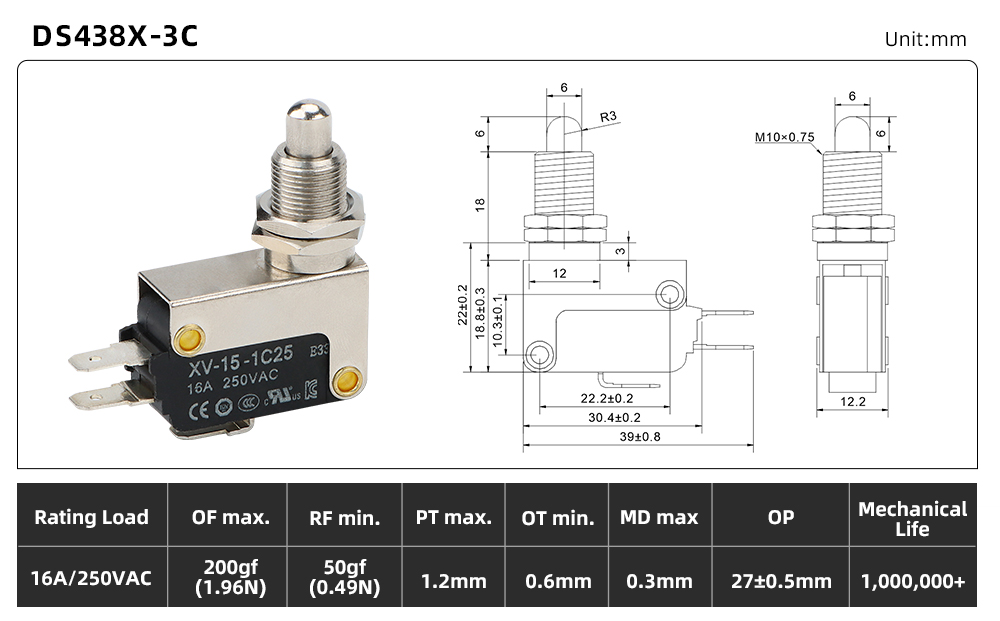

| DS438X-3C | Panel Mount Rounded Plunger | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 27 ± 0.5 mm |

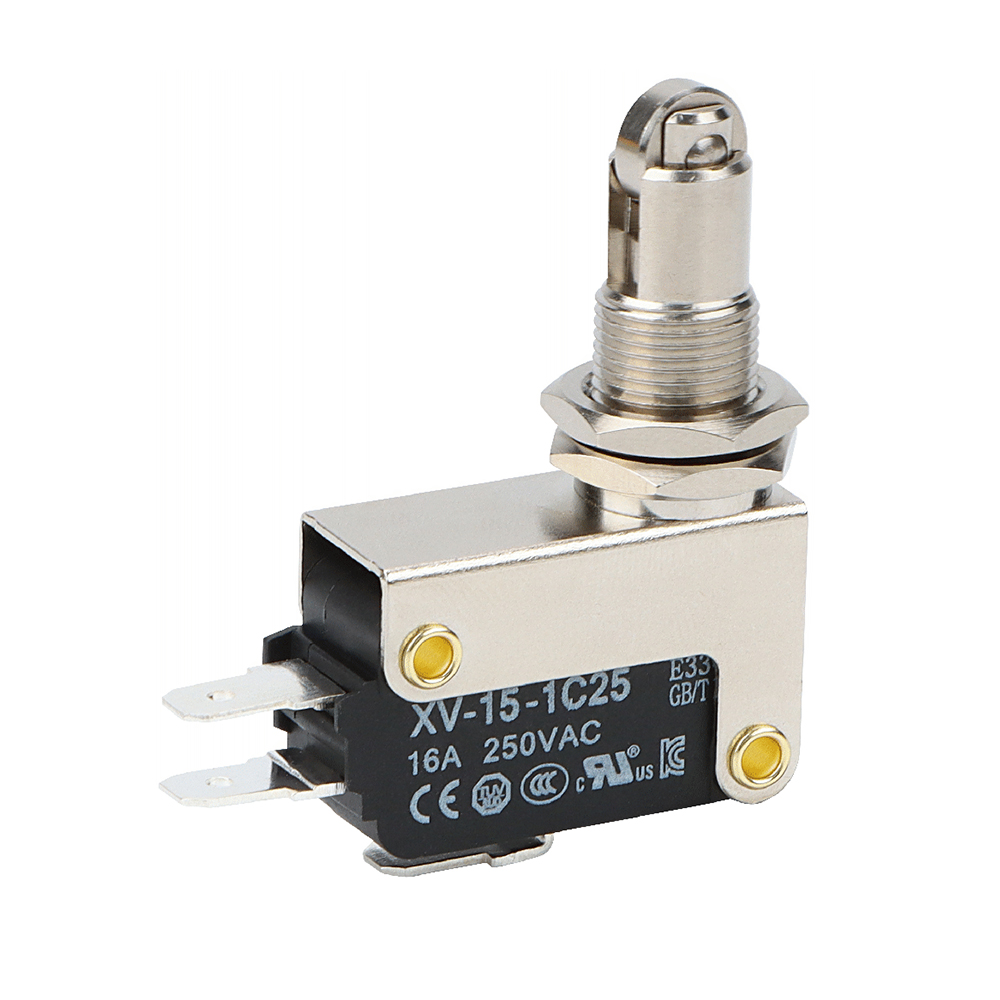

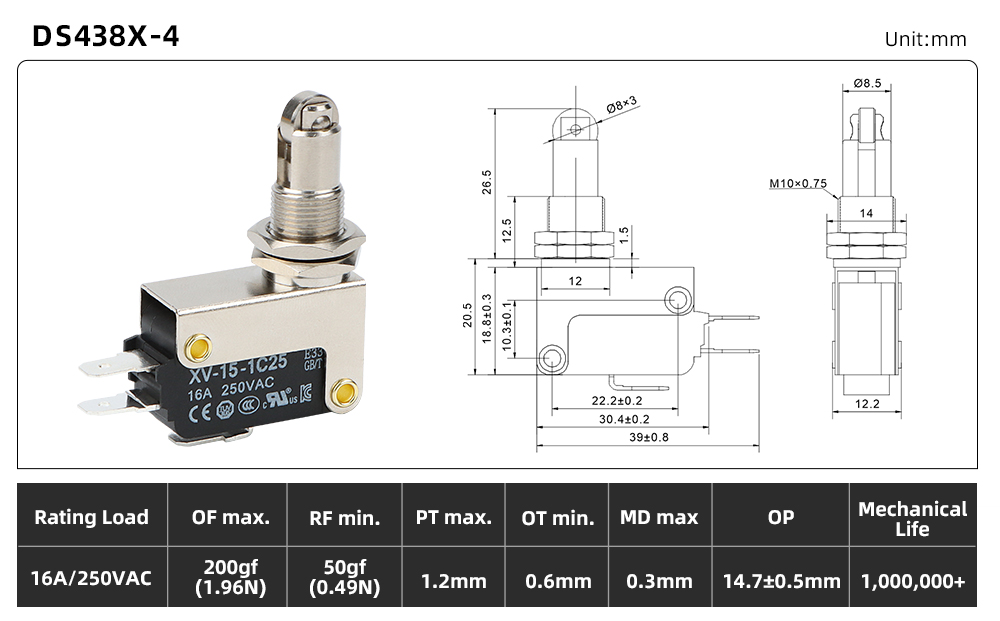

| DS438X-4 | Panel Mount Roller Plunger | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 14.7 ± 0.5 mm |

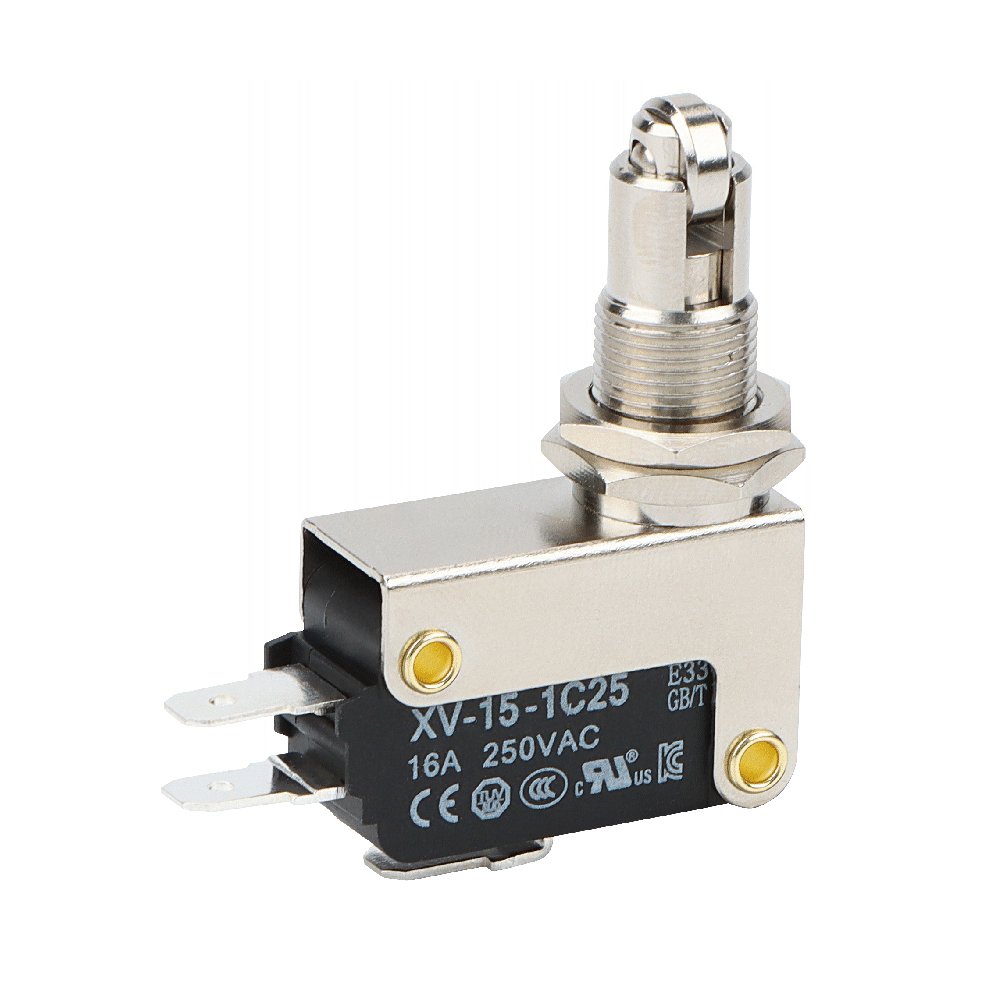

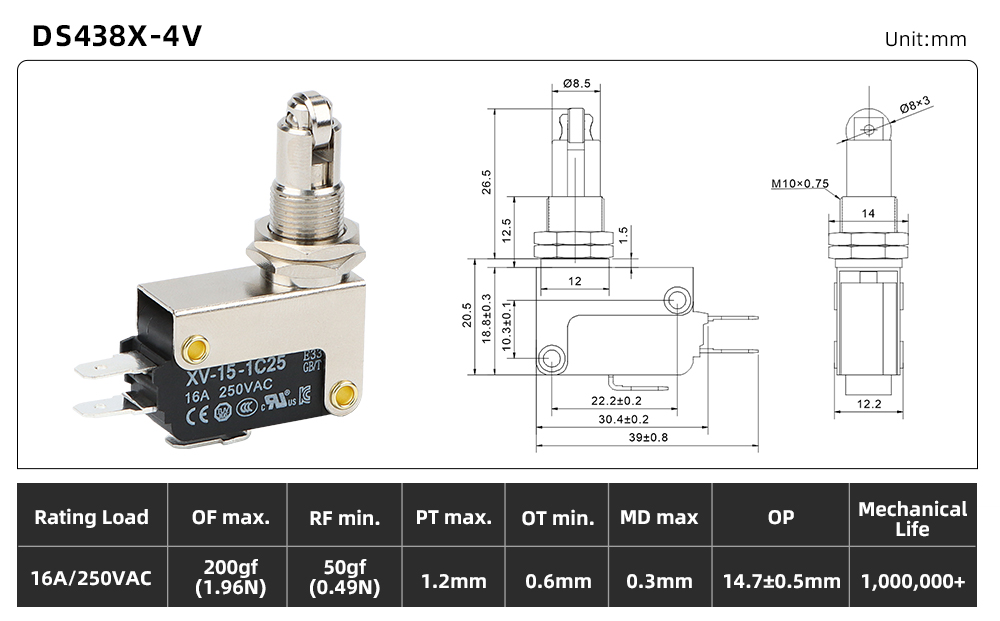

| DS438X-4V | Panel Mount Roller Plunger | 200 gf (1.96 N) | 50 gf (0.49 N) | 1.2 mm | 0.6 mm | 0.3 mm | 14.7 ± 0.5 mm |

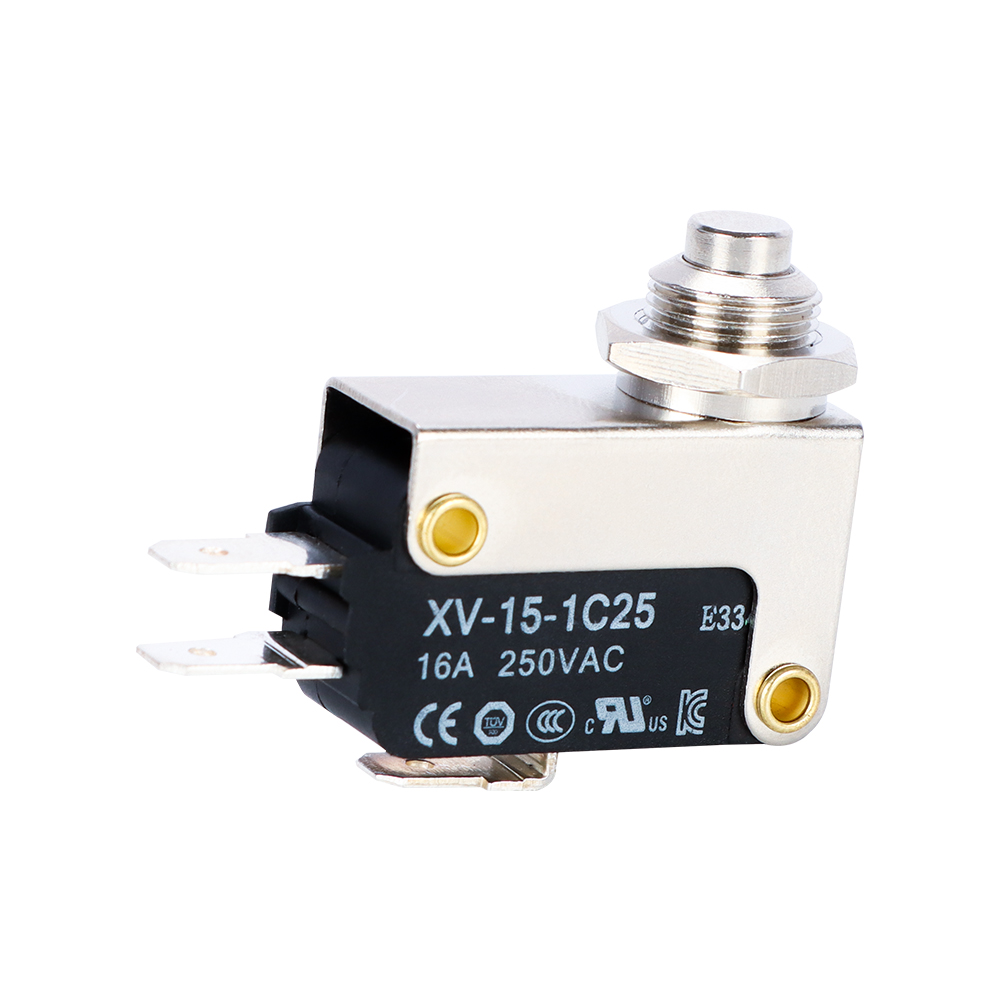

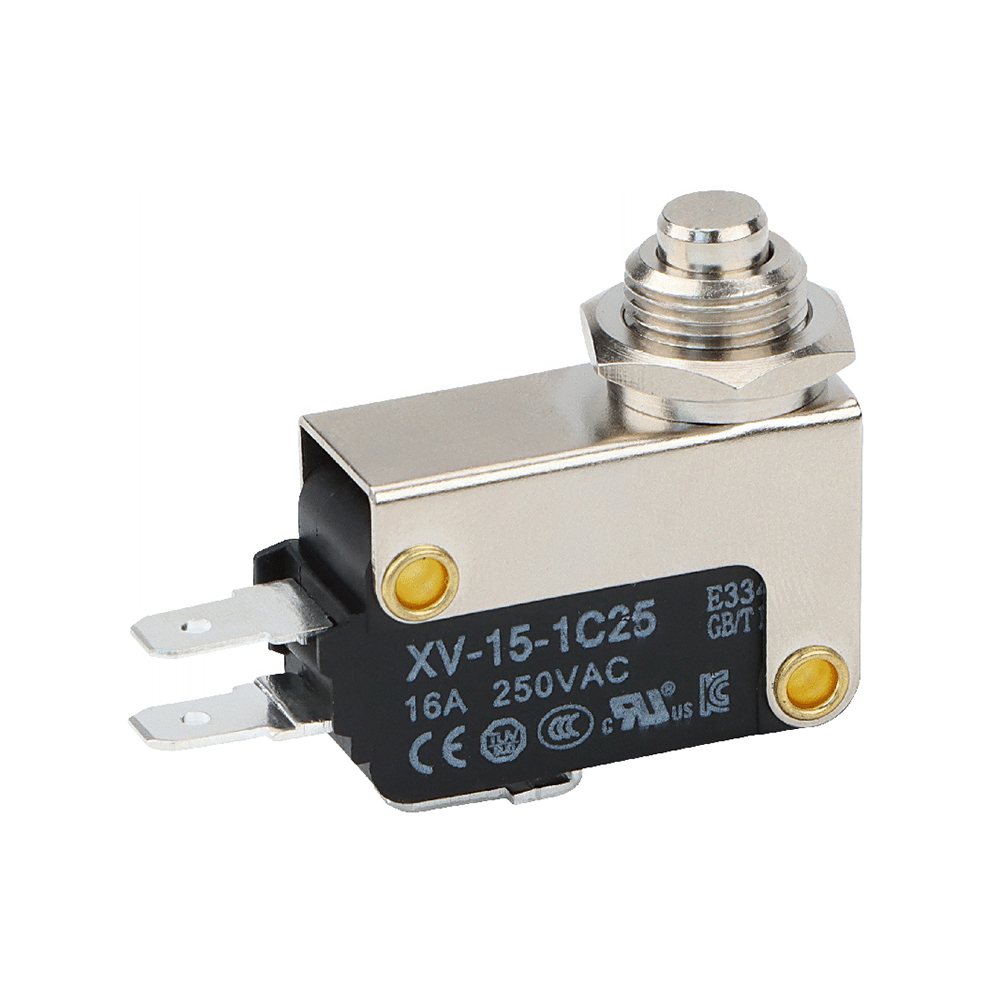

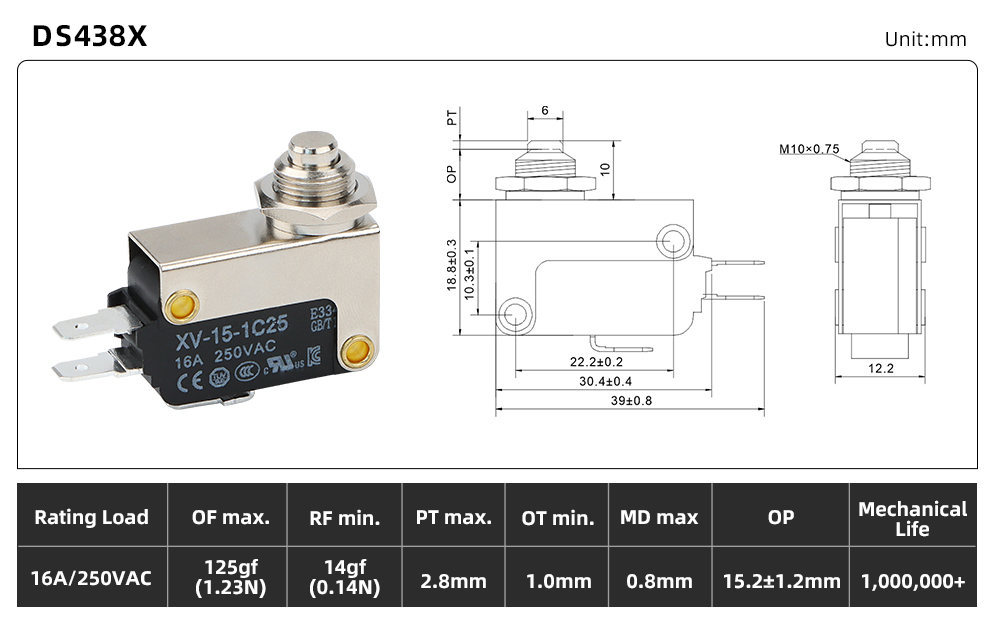

| DS438X | Panel Mount Plunger | 125 gf (1.23 N) | 14 gf (0.14 N) | 2.8 mm | 1.0 mm | 0.8 mm | 15.2 ± 1.2 mm |

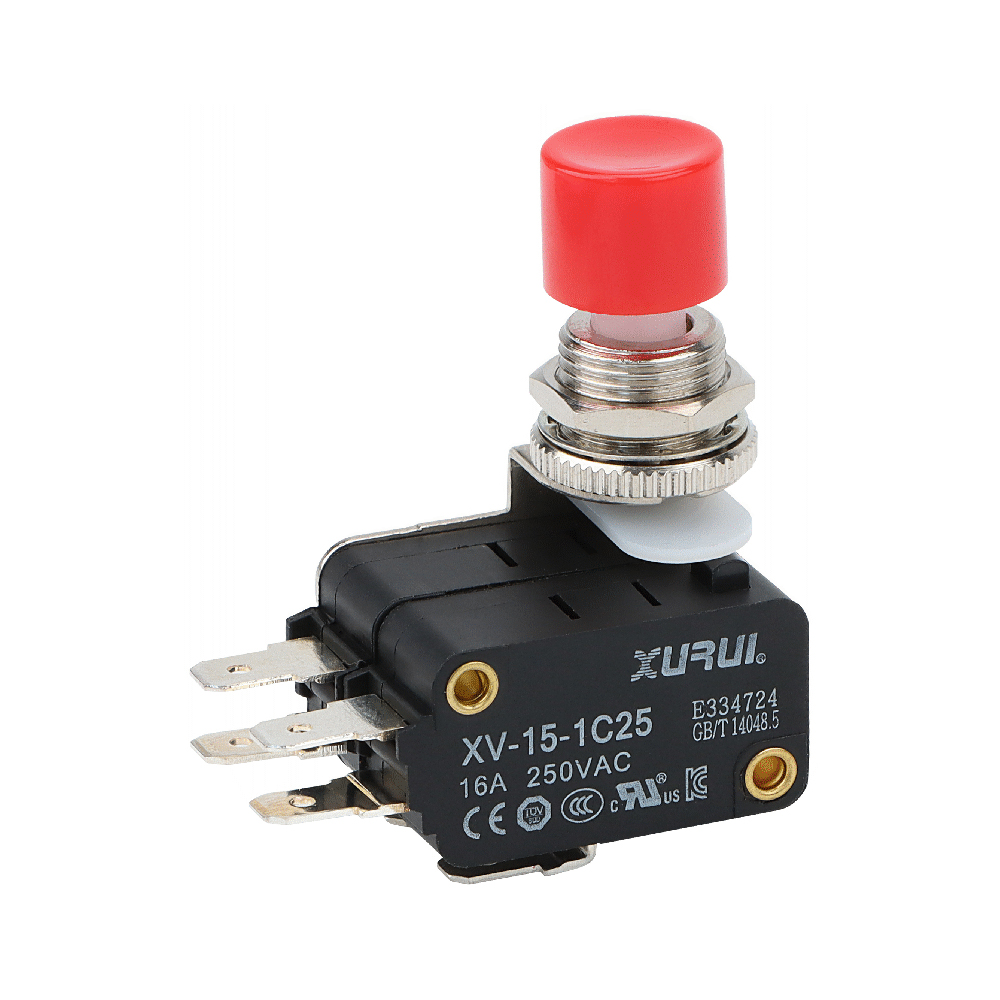

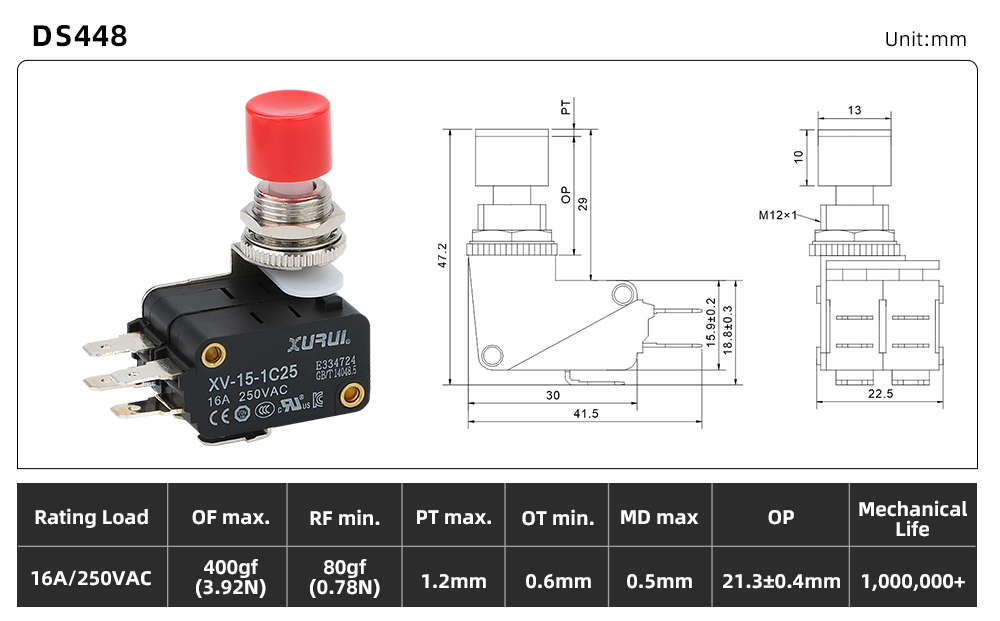

| DS448 | Panel Mount Push Button | 400 gf (3.92 N) | 80 gf (0.78 N) | 1.2 mm | 0.6 mm | 0.5 mm | 21.3 ± 0.4 mm |
Published XV-15 series data for technical shortlisting
| Decision field | Current information / required input | Status |
|---|---|---|
| Rated load | 16A at 250VAC class; confirm exact suffix | Published / series-level |
| Protection | IP40 public-series value | Published / series-level |
| Mechanical durability | ≥1,000,000 operations | Published / series-level |
| Electrical durability | ≥100,000 operations | Published / series-level |
| Ambient temperature | -25°C to +80°C | Published / series-level |
| Exact model suffix | Actuator, terminal, force and contact construction | Exact suffix review required |
| Load verification | AC/DC load, inrush and switching frequency | Exact suffix review required |
| Mechanical interface | Mounting, target motion, pretravel and overtravel | Exact suffix review required |
| Approval scope | Certificate must cover exact model and rating | Exact suffix review required |
Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XV-15 16A Series code
Select plunger, lever or roller geometry from target motion and overtravel.
Confirm AC/DC load type, inrush current, switching frequency and contact material.
Verify operating force, pretravel, overtravel and differential movement.
Match terminal format, insulation, protection and exact certificate scope.
Where this series can be evaluated
Appliance door and mechanism control
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Heating and cooking equipment
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Industrial operator mechanisms
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
OEM electrical equipment
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Verify the complete model before design release
Define the function
Describe the target motion or load, control logic and failure consequence.
Confirm the environment
Specify temperature, moisture, dust, vibration, enclosure and installation orientation.
Match the exact code
Confirm actuator, terminal, contact, input/output, housing and approval suffixes.
Approve a sample
Test fit, switching behavior and thermal or mechanical margin before volume release.
Downloads and evidence for XV-15 16A Series
XV-15 16A Micro Switch Catalog
Download the current XV-15 16A Micro Switch Catalog for model selection, technical specifications and ordering information.
Product page reference
Use the product page together with the latest controlled document for the exact ordered code.
Request exact certificate scope
Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.
XV-15 16A Series FAQ
What makes the 16A version different?
It is the higher-current variant in the XV-15 family. Confirm the exact voltage, load type and suffix before release.
Can I use it for inductive loads?
Do not use only the nominal current as the selection basis. Provide the load type and inrush characteristics for review.
Are drawings available?
Yes. Request the exact model drawing and terminal layout before tooling or panel release.
