XWS-6 Waterproof Micro Switch
IP67 sealed snap-action switching for wet, dusty and contaminated environments
The XWS-6 Series is a compact waterproof micro switch designed for equipment exposed to moisture, dust and contamination. The public product data lists IP67 protection, multiple actuator options and use in appliances, automation, automotive electronics and medical equipment.
Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.
Compare XWS-6 Waterproof models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

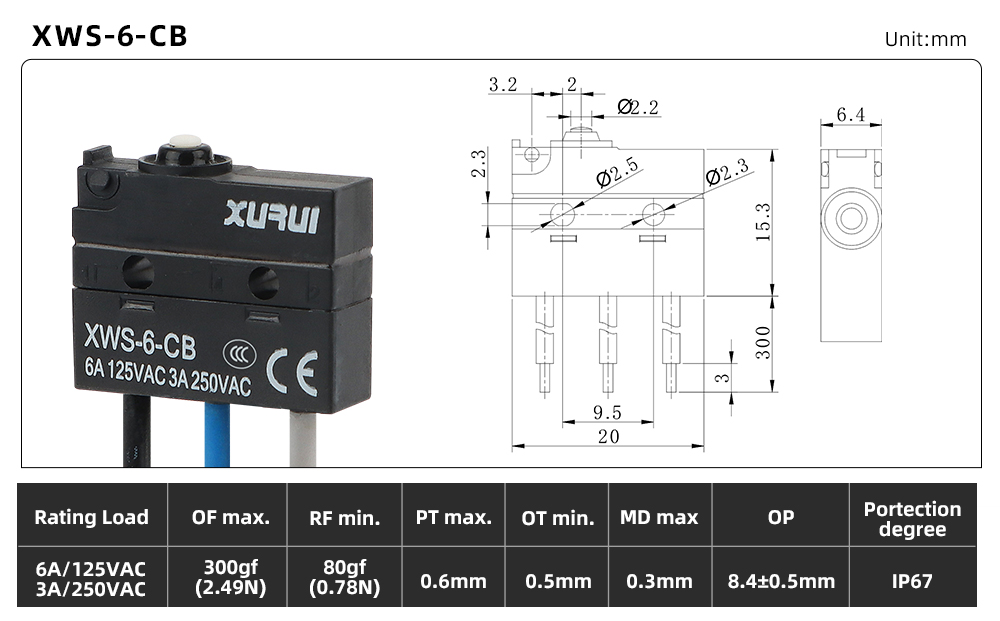

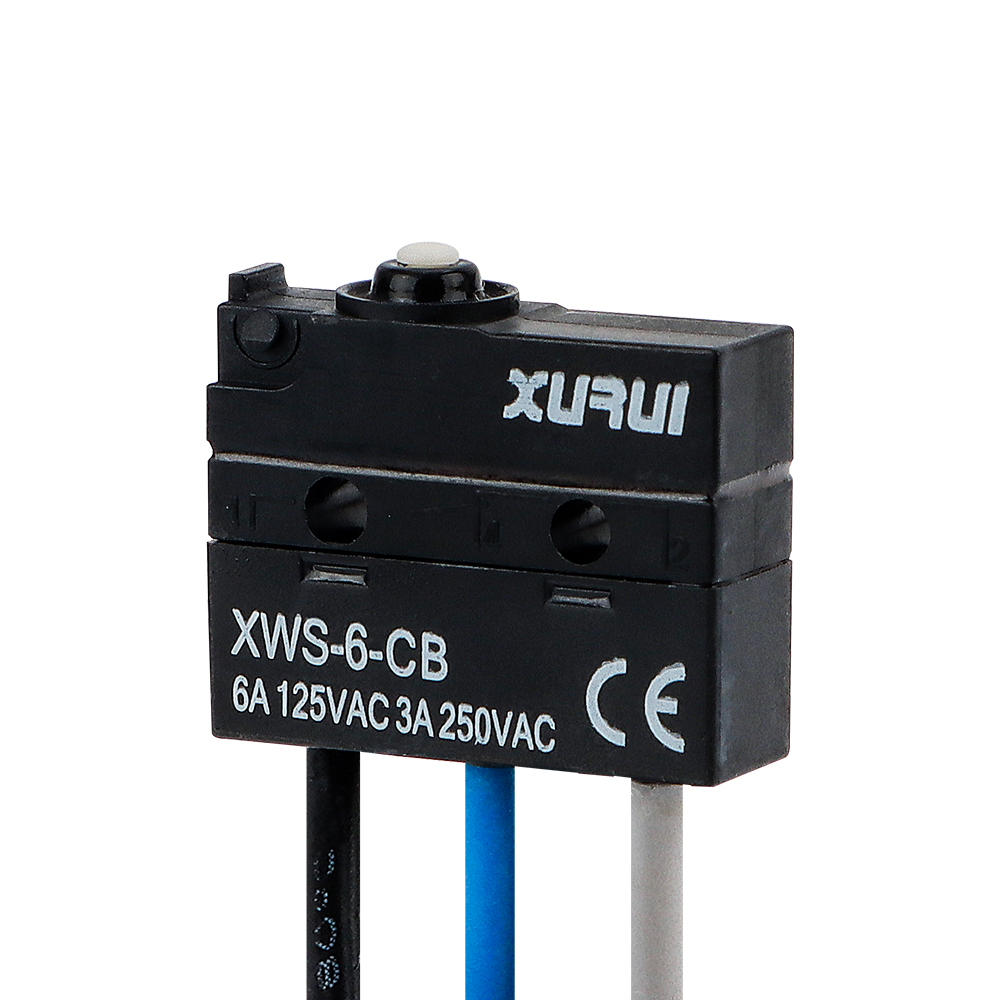

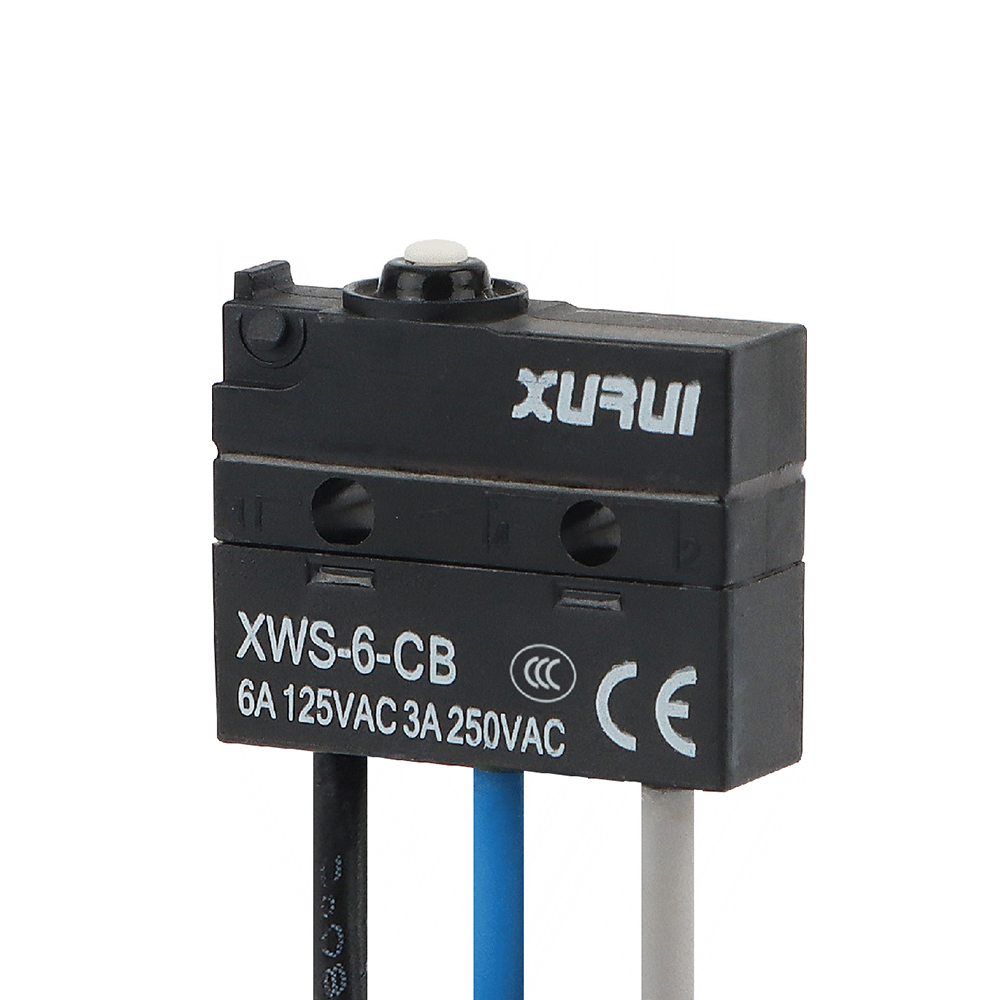

XWS-6-CB
Product image and selection drawing are available for comparison.

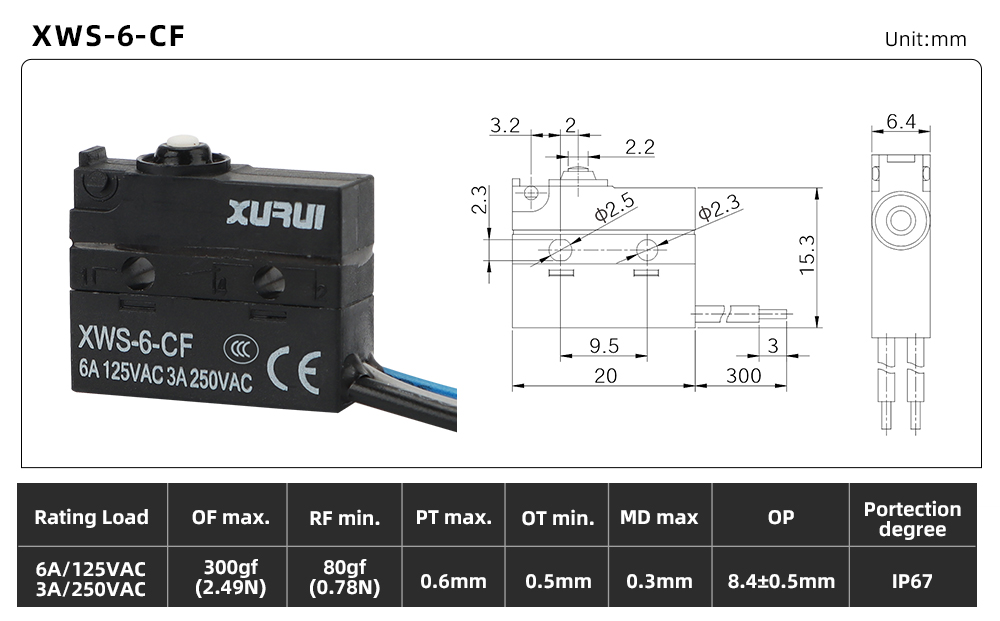

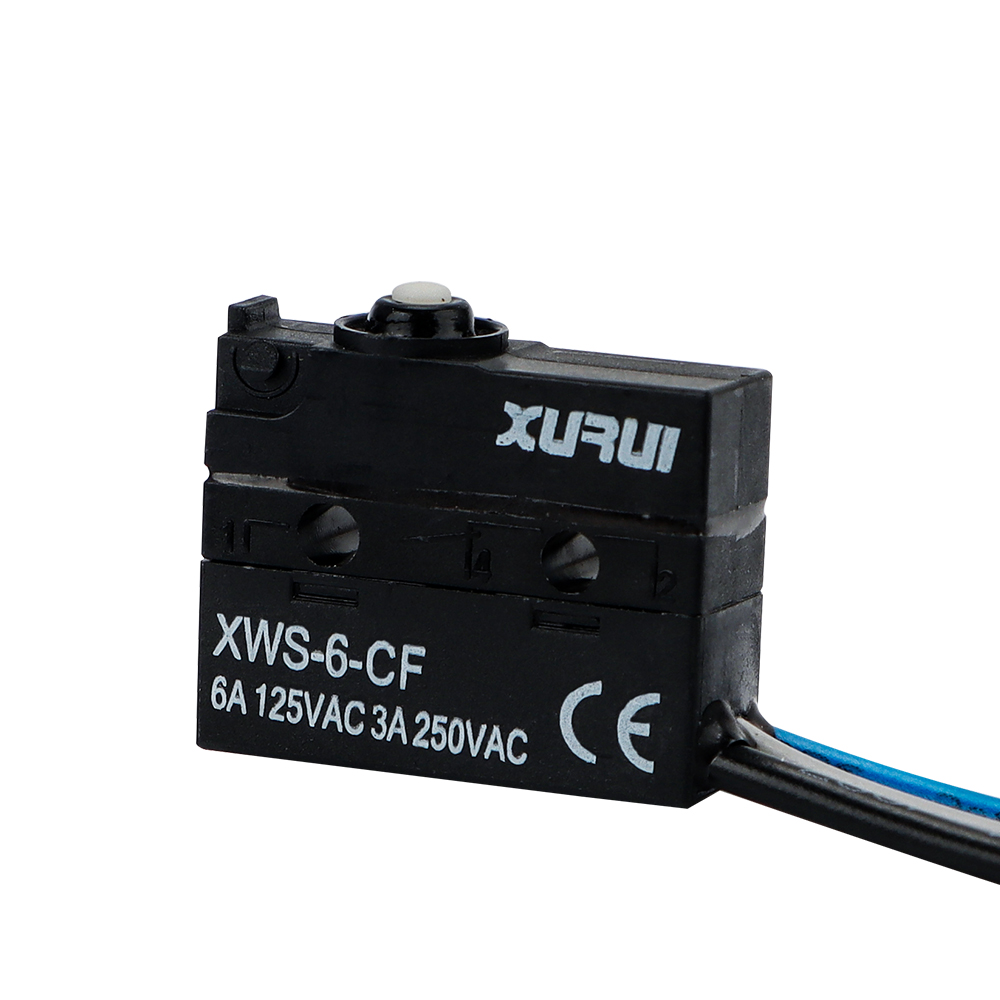

XWS-6-CF
Product image and selection drawing are available for comparison.

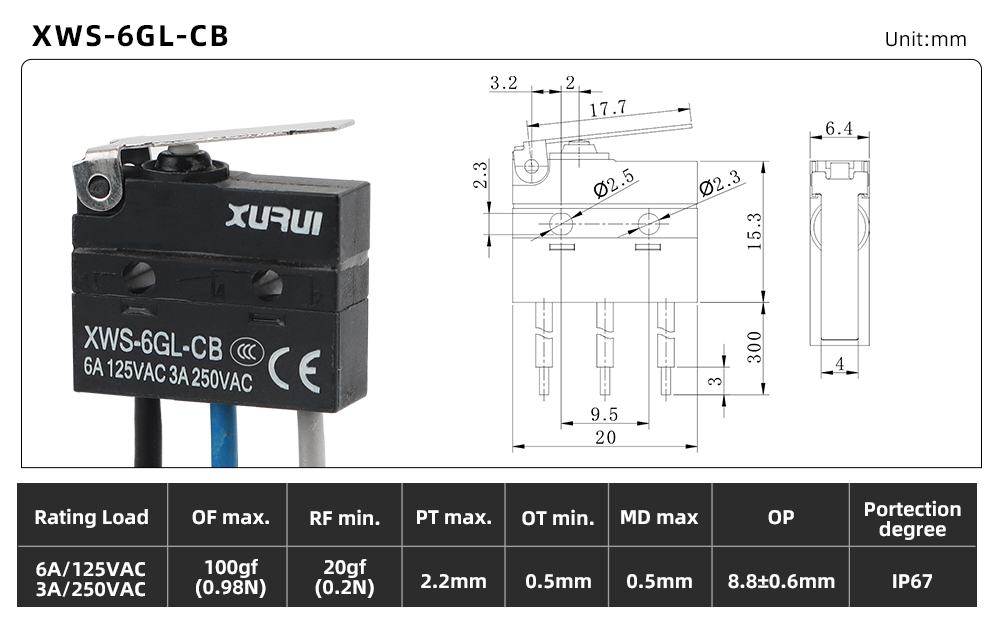

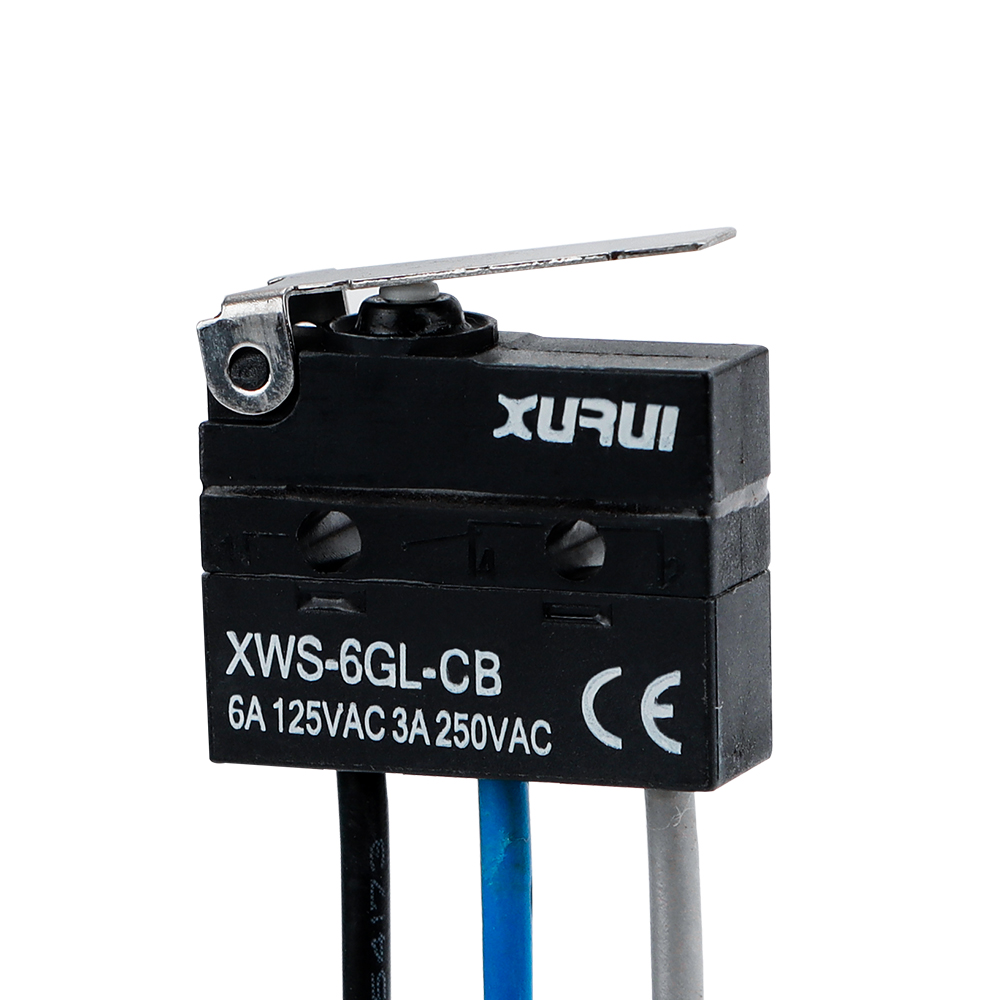

XWS-6GL-CB
Product image and selection drawing are available for comparison.

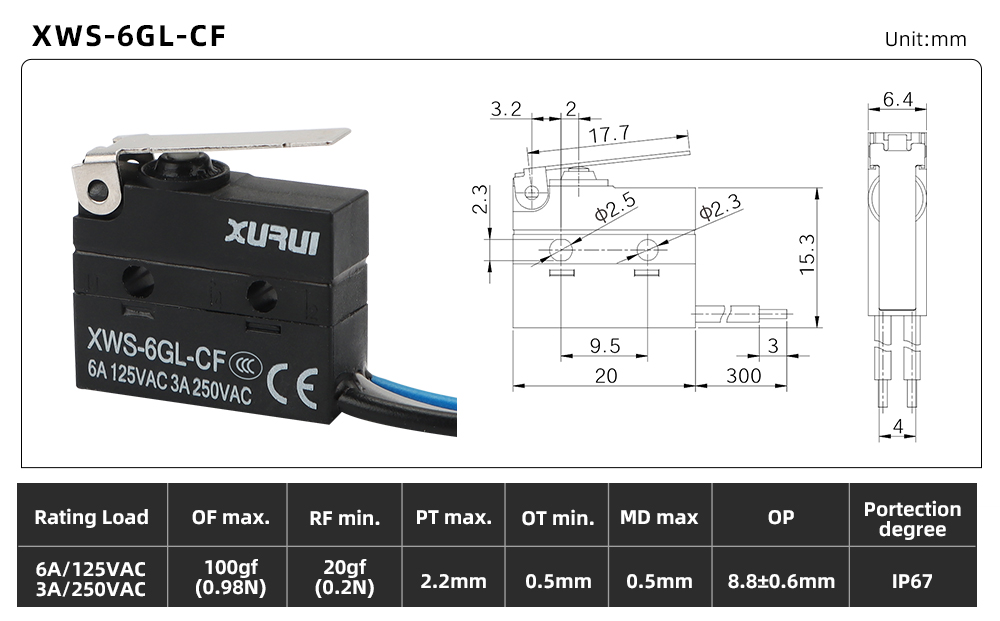

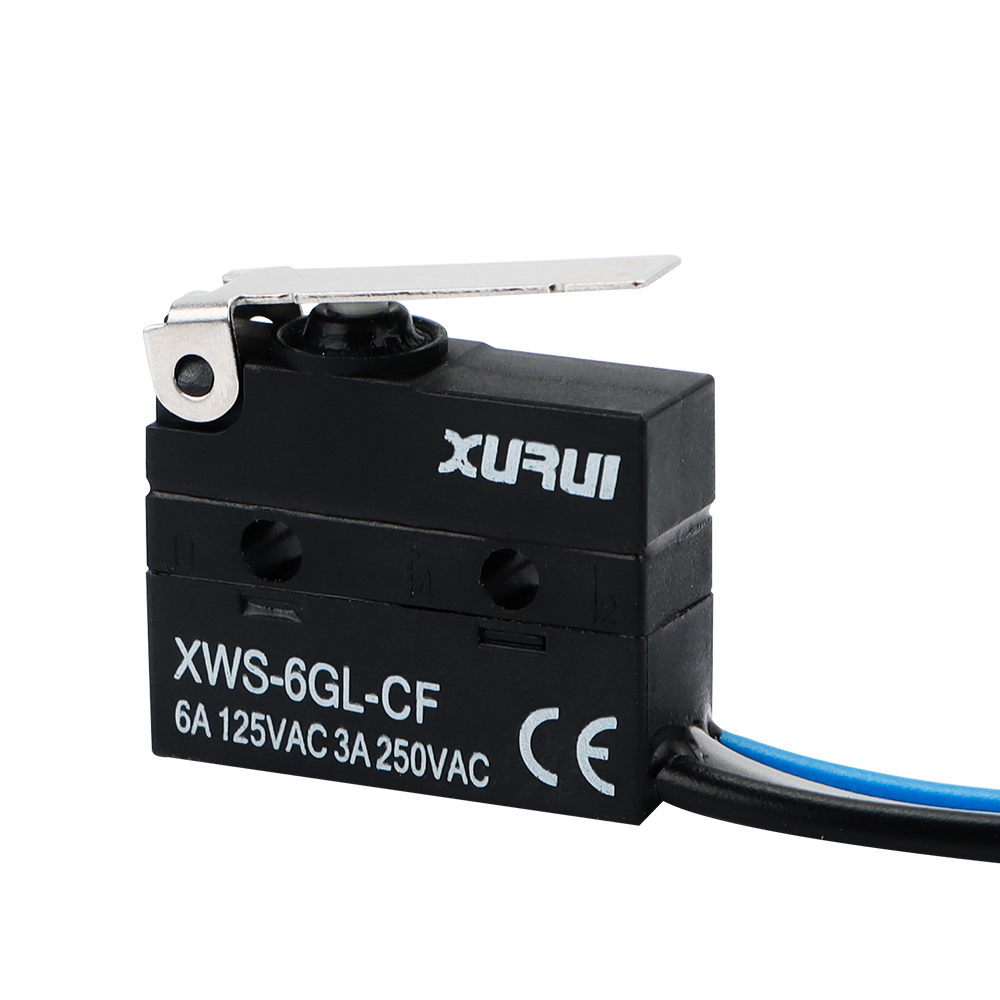

XWS-6GL-CF
Product image and selection drawing are available for comparison.

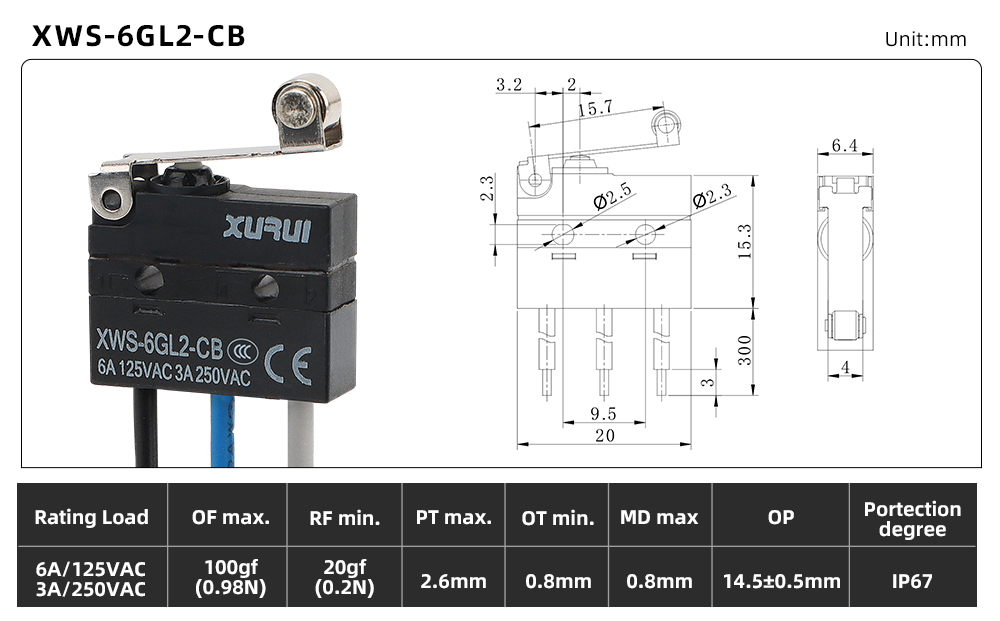

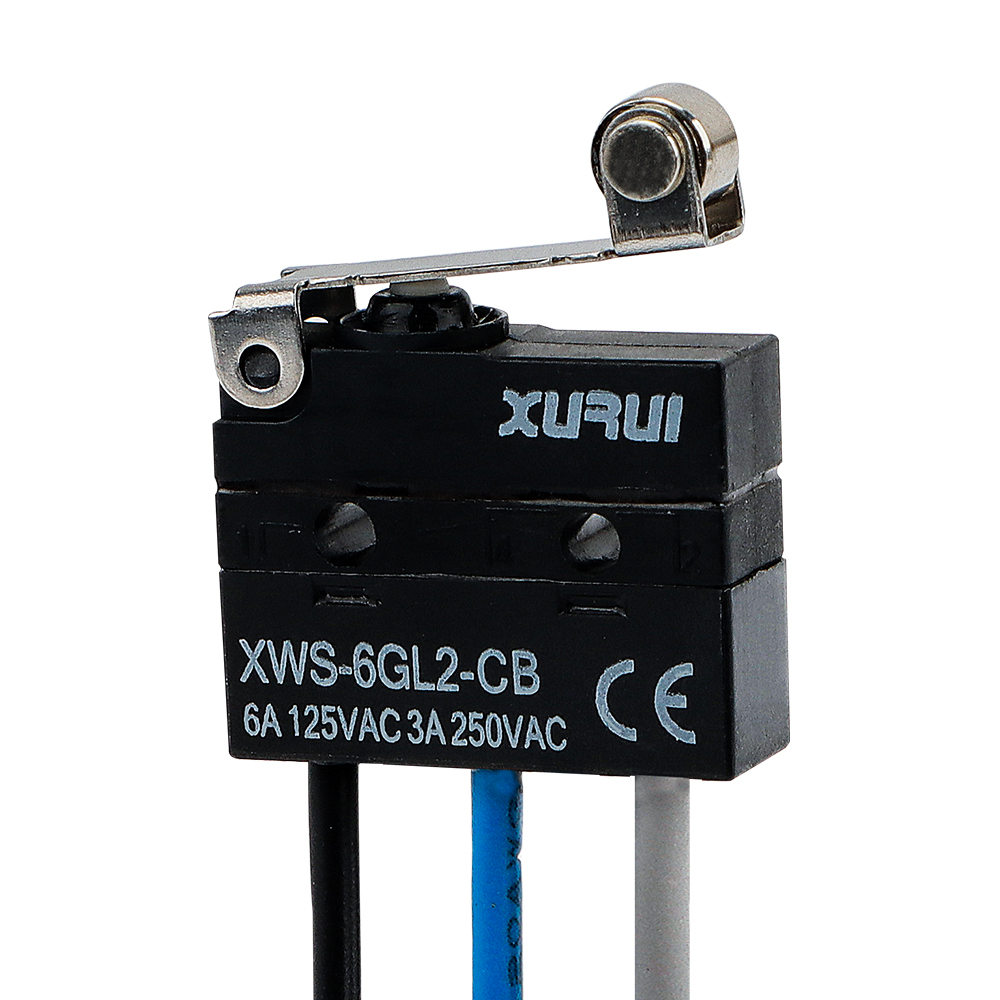

XWS-6GL2-CB
Product image and selection drawing are available for comparison.

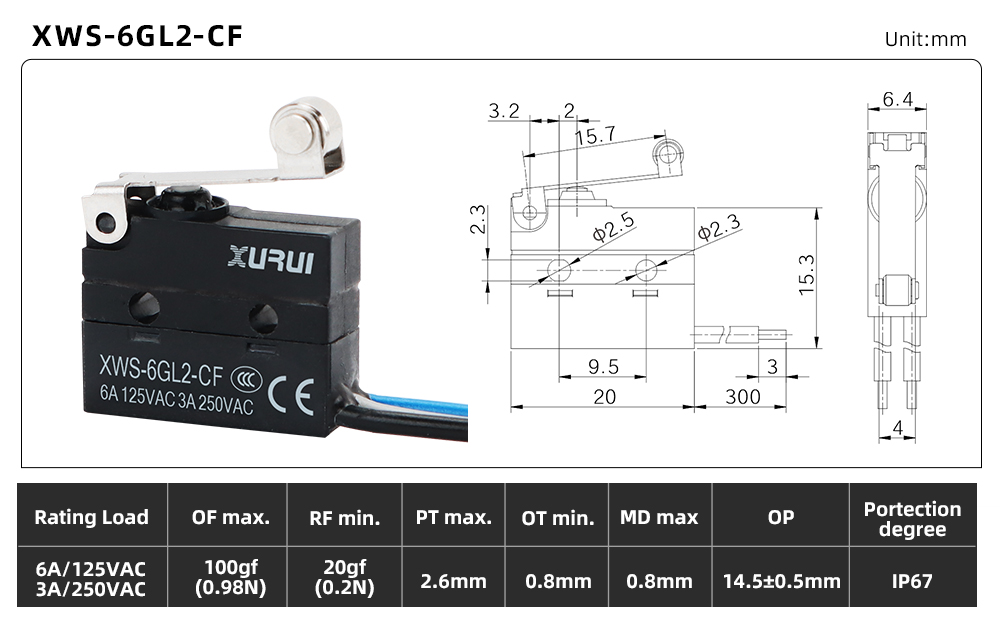

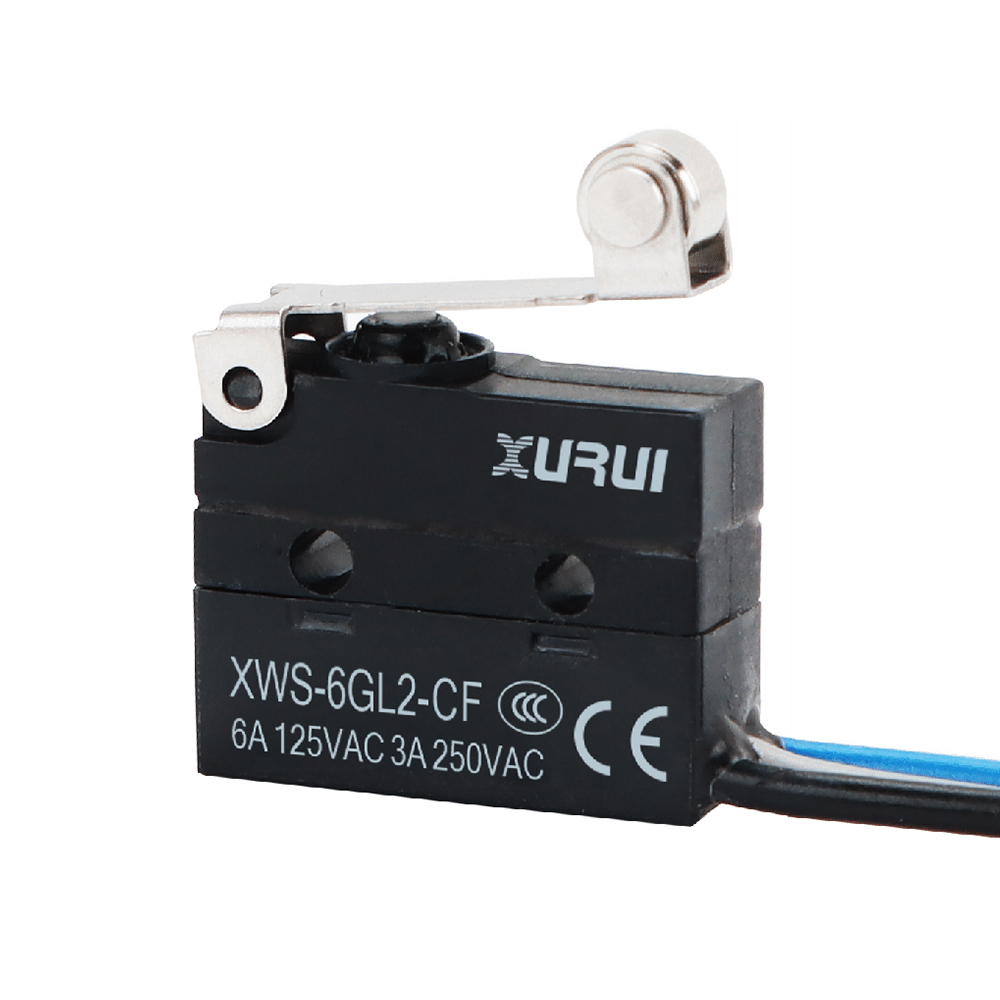

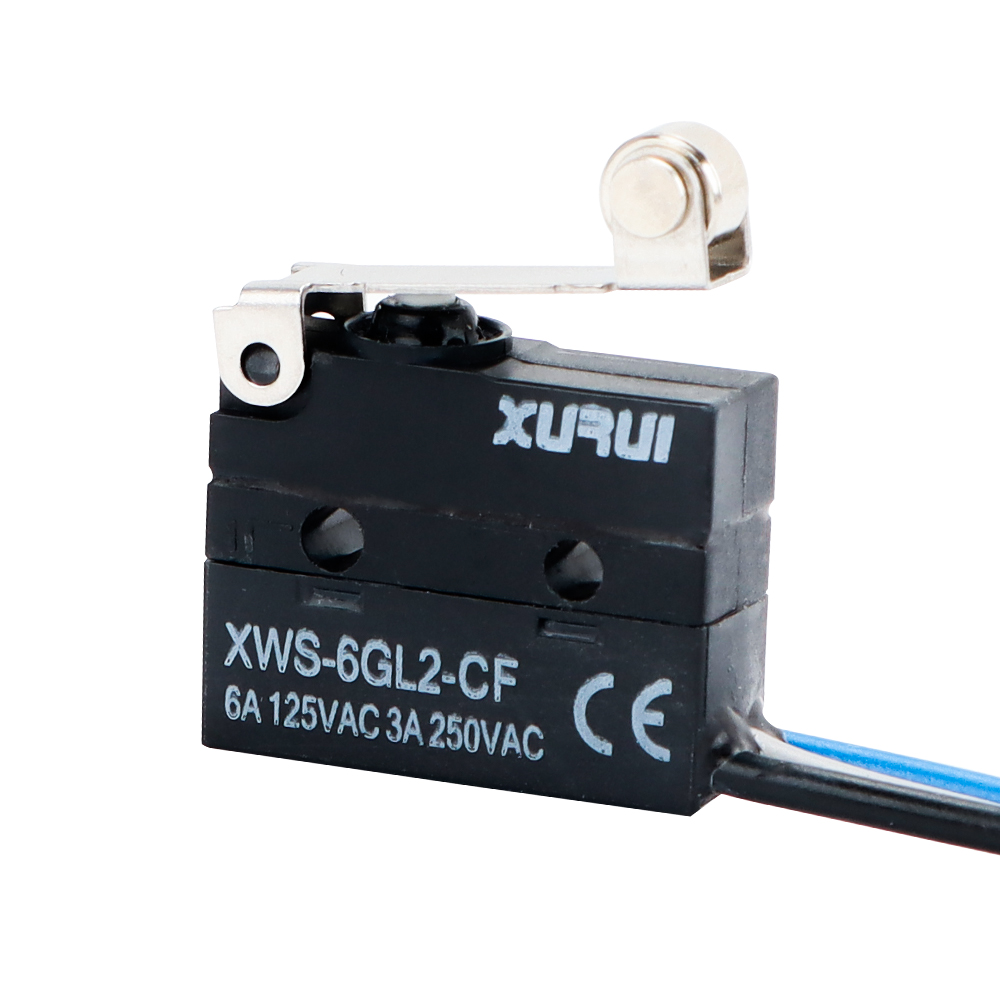

XWS-6GL2-CF
Product image and selection drawing are available for comparison.

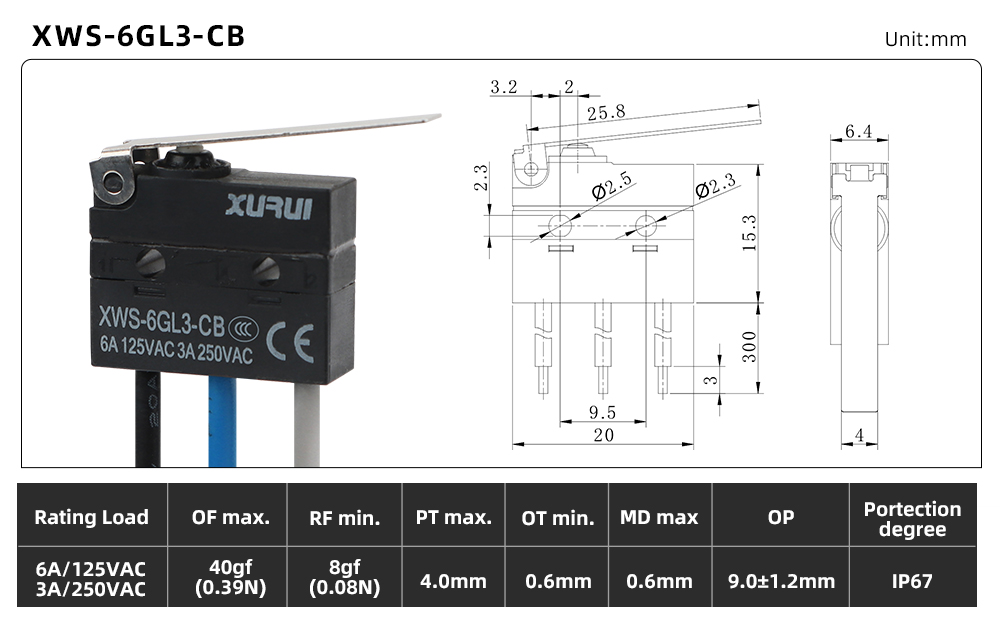

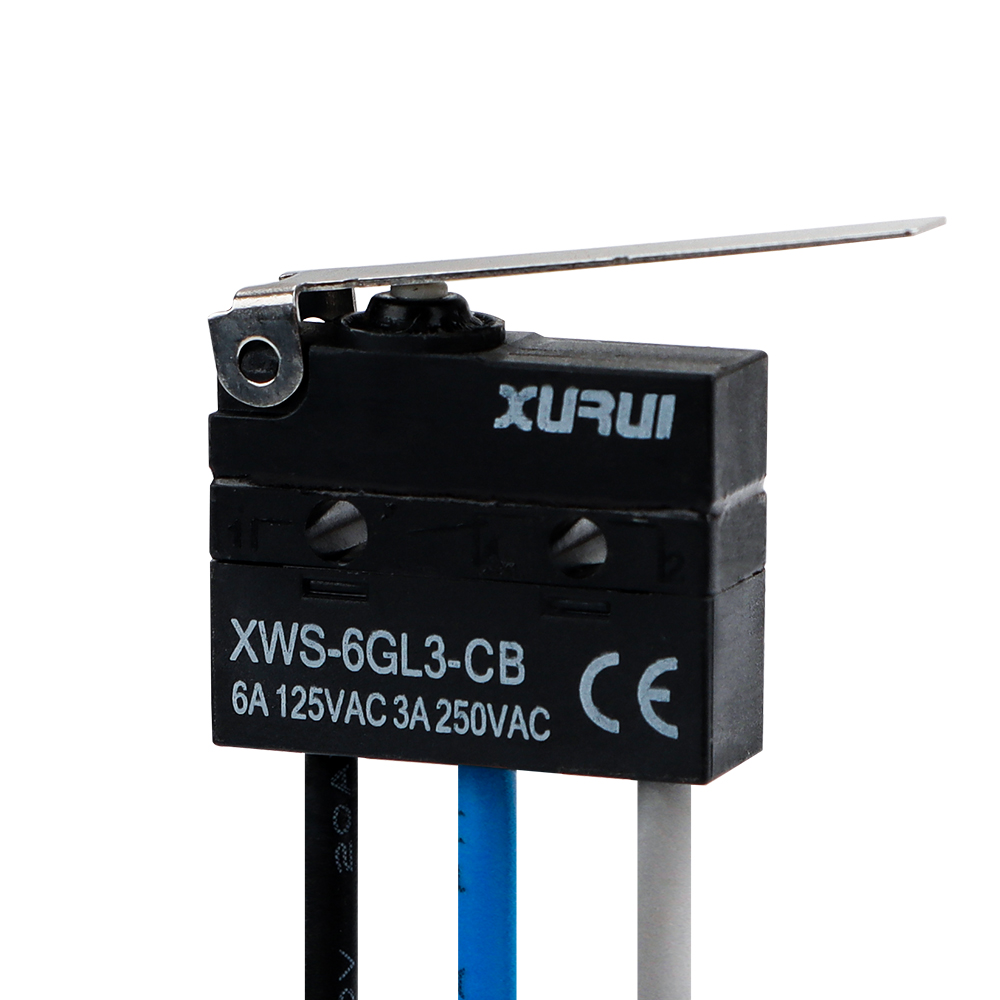

XWS-6GL3-CB
Product image and selection drawing are available for comparison.

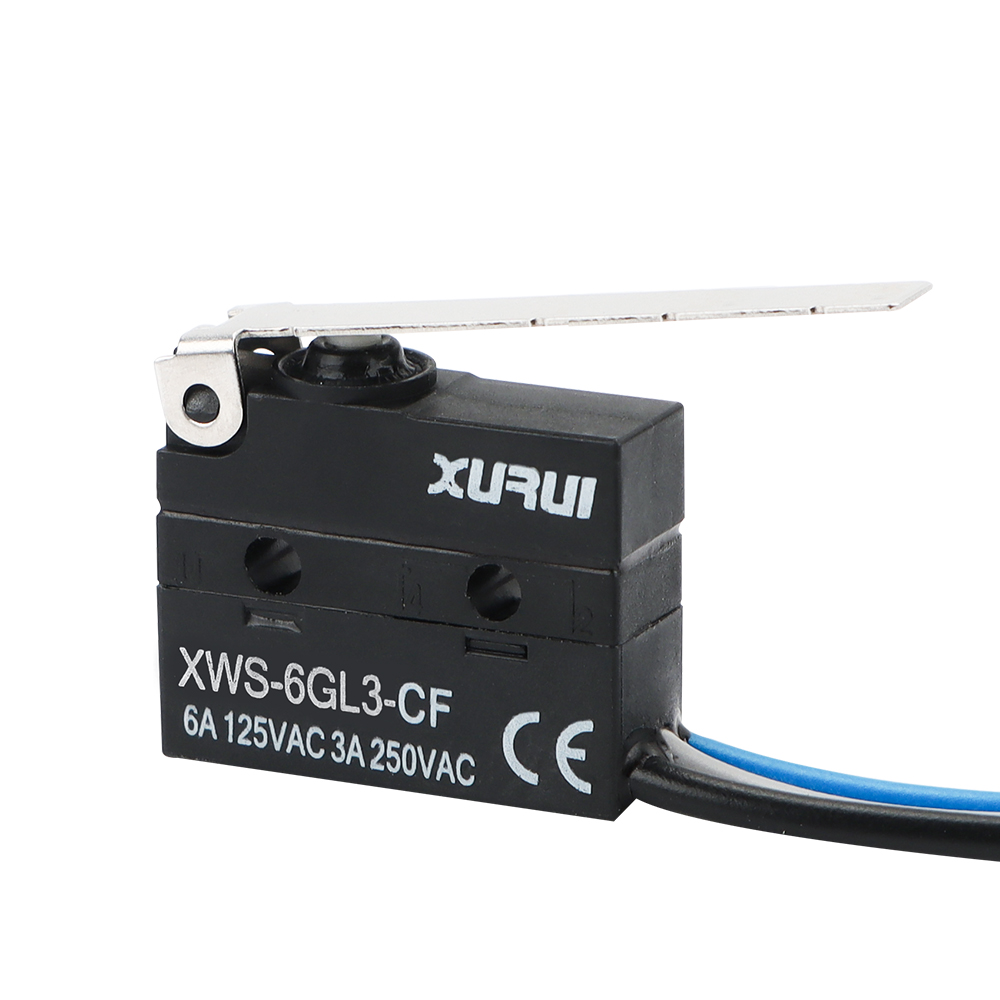

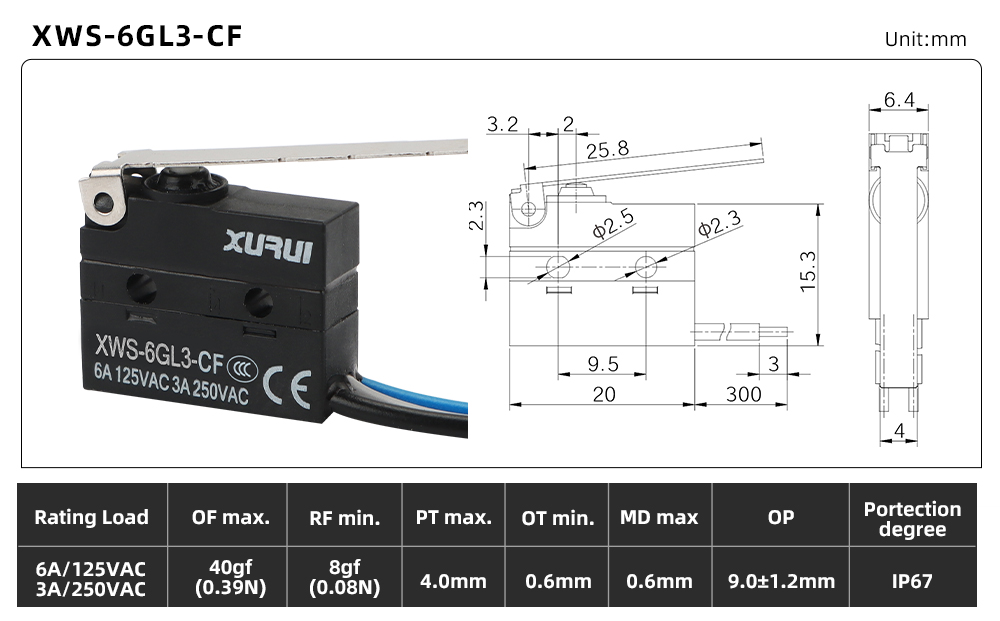

XWS-6GL3-CF
Product image and selection drawing are available for comparison.

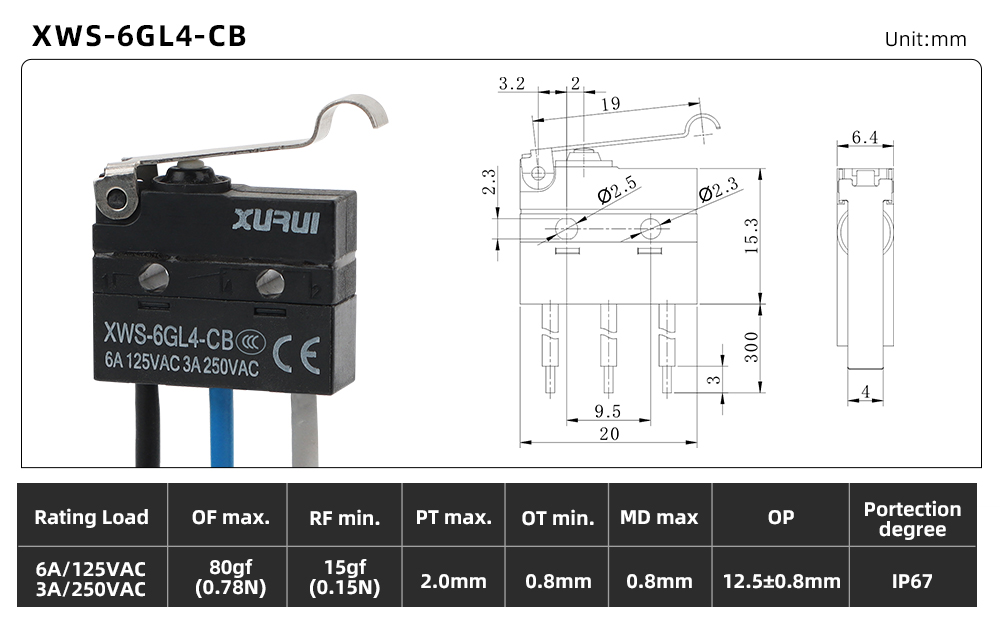

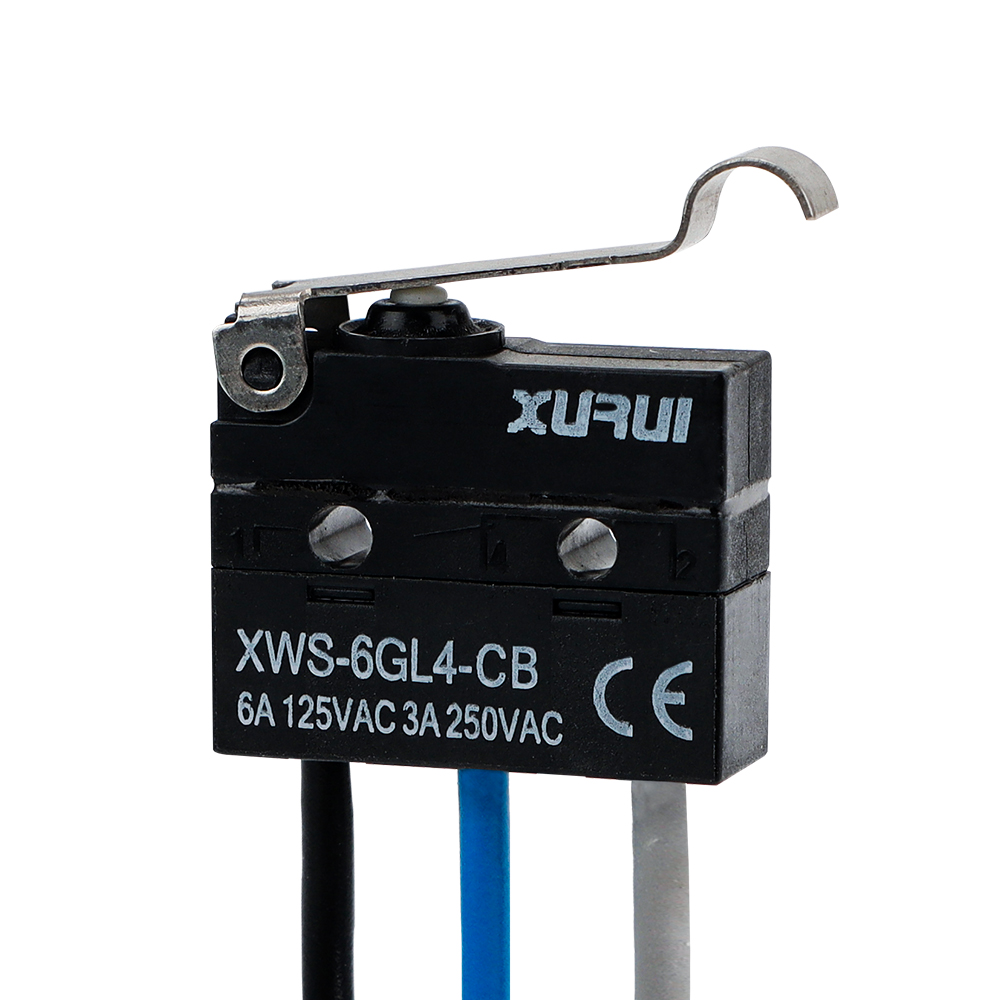

XWS-6GL4-CB
Product image and selection drawing are available for comparison.

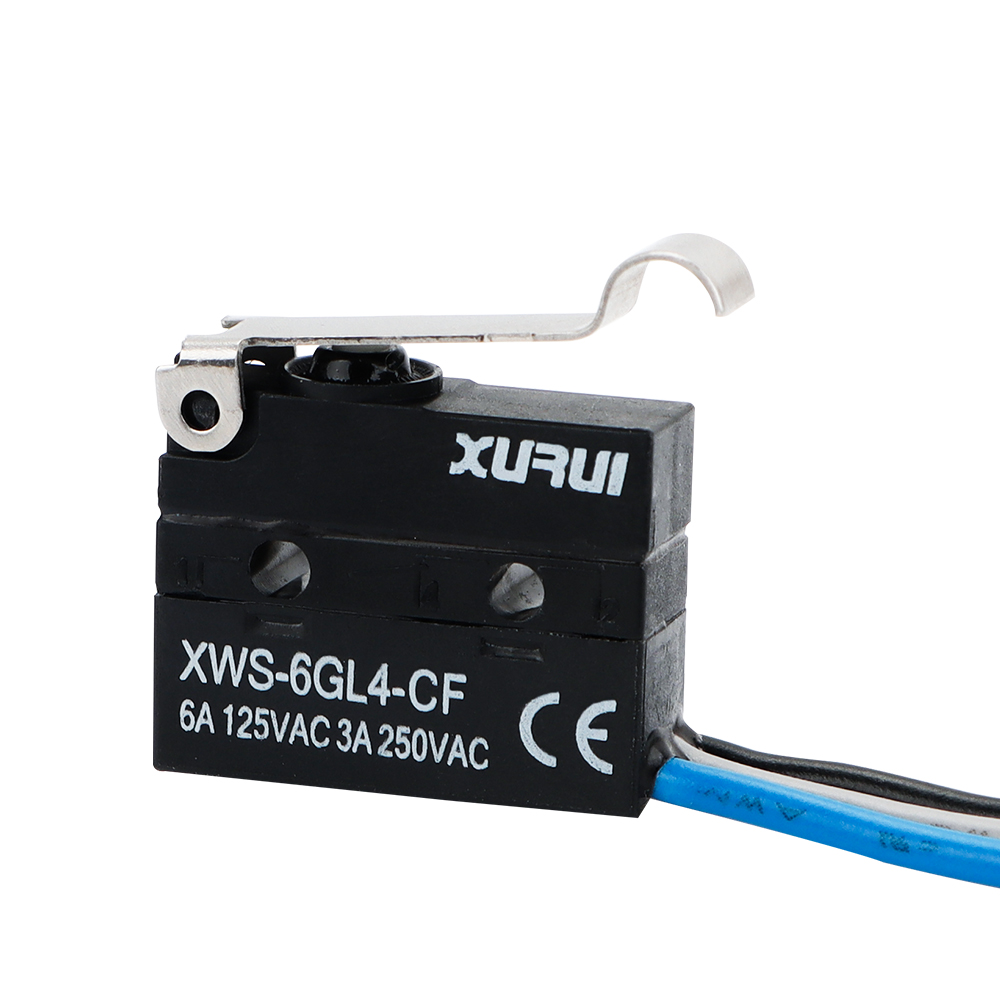

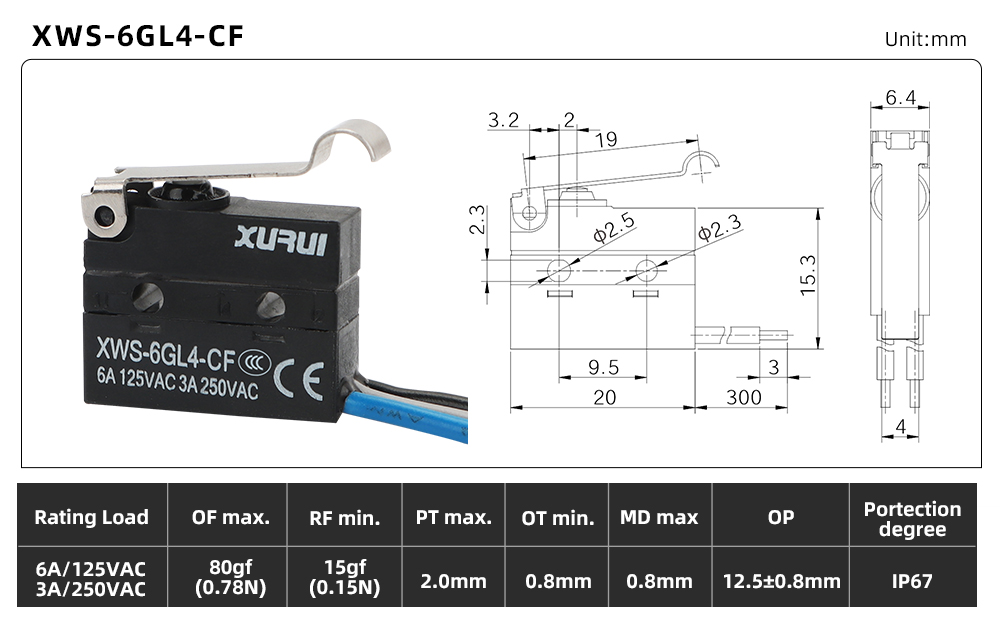

XWS-6GL4-CF
Product image and selection drawing are available for comparison.
Published XWS-6 Waterproof series data for technical shortlisting
| Decision field | Current information / required input | Status |
|---|---|---|
| Rated load | 6A at 125VAC; 3A at 250VAC | Published / series-level |
| Protection | IP67 | Published / series-level |
| Mechanical durability | ≥1,000,000 operations | Published / series-level |
| Insulation resistance | ≥100 MΩ | Published / series-level |
| Contact resistance | ≤100 mΩ | Published / series-level |
| Ambient temperature | -25°C to +80°C | Published / series-level |
| Exact model suffix | Actuator, terminal, force and contact construction | Exact suffix review required |
| Load verification | AC/DC load, inrush and switching frequency | Exact suffix review required |
| Mechanical interface | Mounting, target motion, pretravel and overtravel | Exact suffix review required |
| Approval scope | Certificate must cover exact model and rating | Exact suffix review required |
Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XWS-6 Series code
Select plunger, lever or roller geometry from target motion and overtravel.
Confirm AC/DC load type, inrush current, switching frequency and contact material.
Verify operating force, pretravel, overtravel and differential movement.
Match terminal format, insulation, protection and exact certificate scope.
Where this series can be evaluated
Dishwashers, washing machines and water heaters
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Outdoor access control and EV charging equipment
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Industrial automation and conveyor monitoring
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Automotive locks, windows and seat systems
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Verify the complete model before design release
Define the function
Describe the target motion or load, control logic and failure consequence.
Confirm the environment
Specify temperature, moisture, dust, vibration, enclosure and installation orientation.
Match the exact code
Confirm actuator, terminal, contact, input/output, housing and approval suffixes.
Approve a sample
Test fit, switching behavior and thermal or mechanical margin before volume release.
Downloads and evidence for XWS-6 Series
XWS-6 Waterproof Micro Switch Catalog
Download the current XWS-6 Waterproof Micro Switch Catalog for model selection, technical specifications and ordering information.
Complete Industrial Switch Catalog
Public PDF from the current XURUI website. The file can be large; use the RFQ form to request a model-specific package.
Product page reference
Use the product page together with the latest controlled document for the exact ordered code.
Request exact certificate scope
Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.
XWS-6 Series FAQ
Does IP67 apply to every configuration?
IP67 is listed for the series, but cable, actuator, terminal and installation details must be confirmed for the exact model.
What actuator formats are available?
The series is presented with button, lever and roller formats for different target movements.
Can I request a sealed sample?
Yes. Send the load, exposure condition, actuator movement and annual quantity so the correct model can be shortlisted.
