XURUI product series
XZ-15 Series

XZ-15 Series Micro Switch

Industrial snap-action micro switch for high-load equipment and appliance control

The XZ-15 Series is a general-purpose industrial micro switch platform with multiple actuator formats for equipment, appliances and automation. Public product information lists a 15A AC class, multiple lever and roller options, and broad international approval coverage; the exact ordered model must be verified against the current datasheet.

Rated load15A at 125/250VAC; 0.6A at 125VDC; 0.3A at 250VDC
ProtectionIP40
Mechanical durability≥1,000,000 operations
Electrical durability≥100,000 operations

Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.

Models & Selection

Compare XZ-15 models

Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

MODEL SPECIFICATIONS & SELECTION

XZ-15 Model Specifications Comparison

18 models

Swipe or scroll horizontally to compare all specifications.

XZ-15 Model Specifications Comparison
ModelActuator TypeOperating Force OFRelease Force RF Min.Pretravel PT Max.Overtravel OT Min.Differential Movement MD Max.Operating Position OP

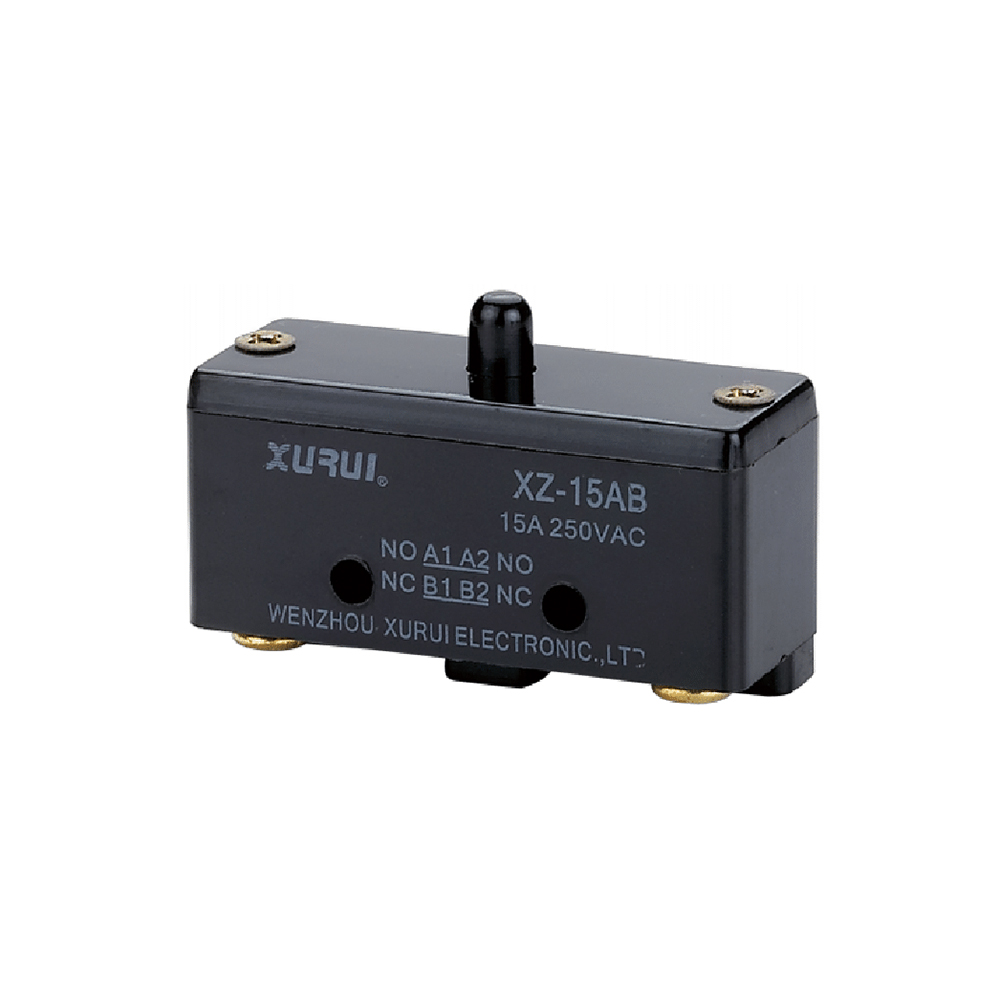

XZ-15AB1NO + 1NC Push Button1000 gf (9.8 N)100 gf (0.98 N)3.6 mm0.05 mm2 mm19.5 ± 0.8 mm

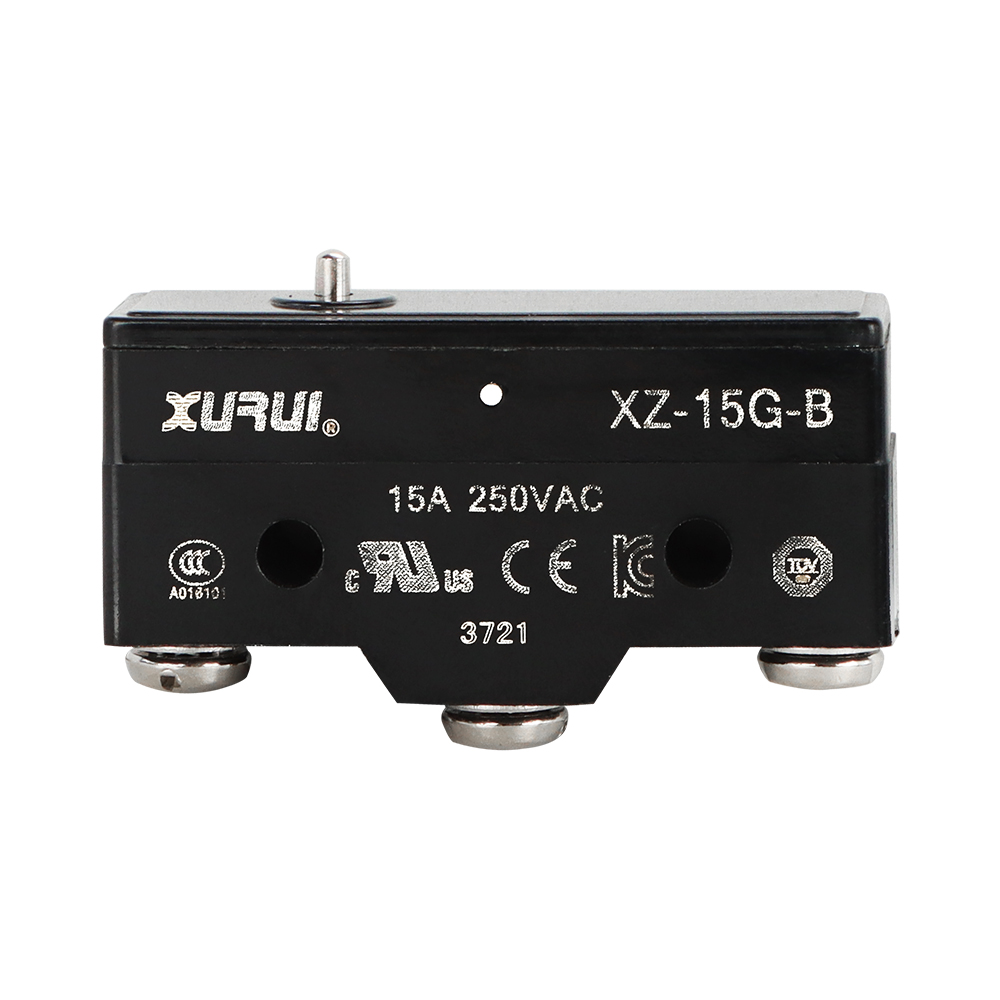

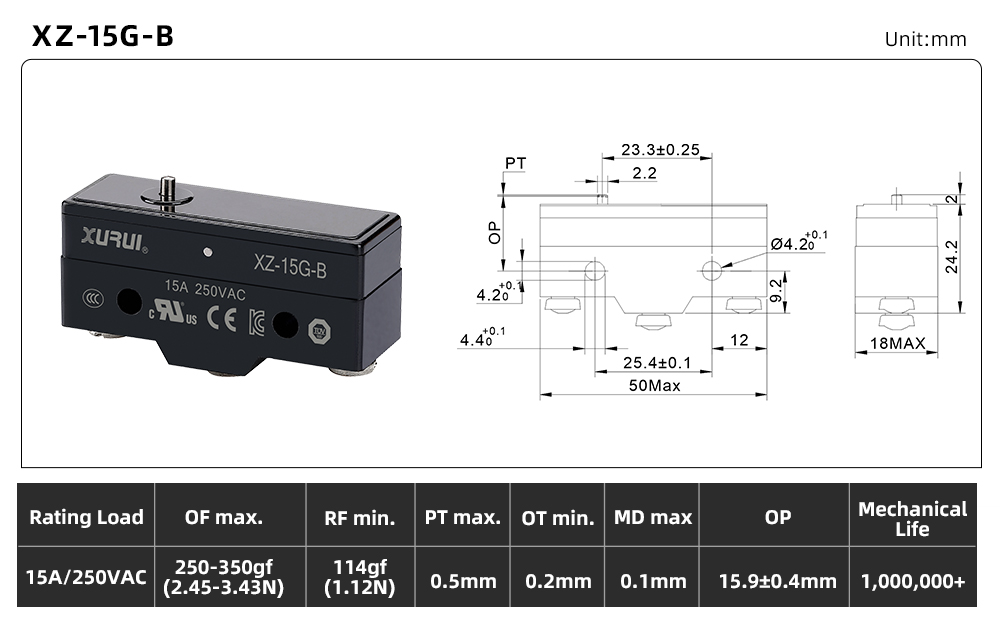

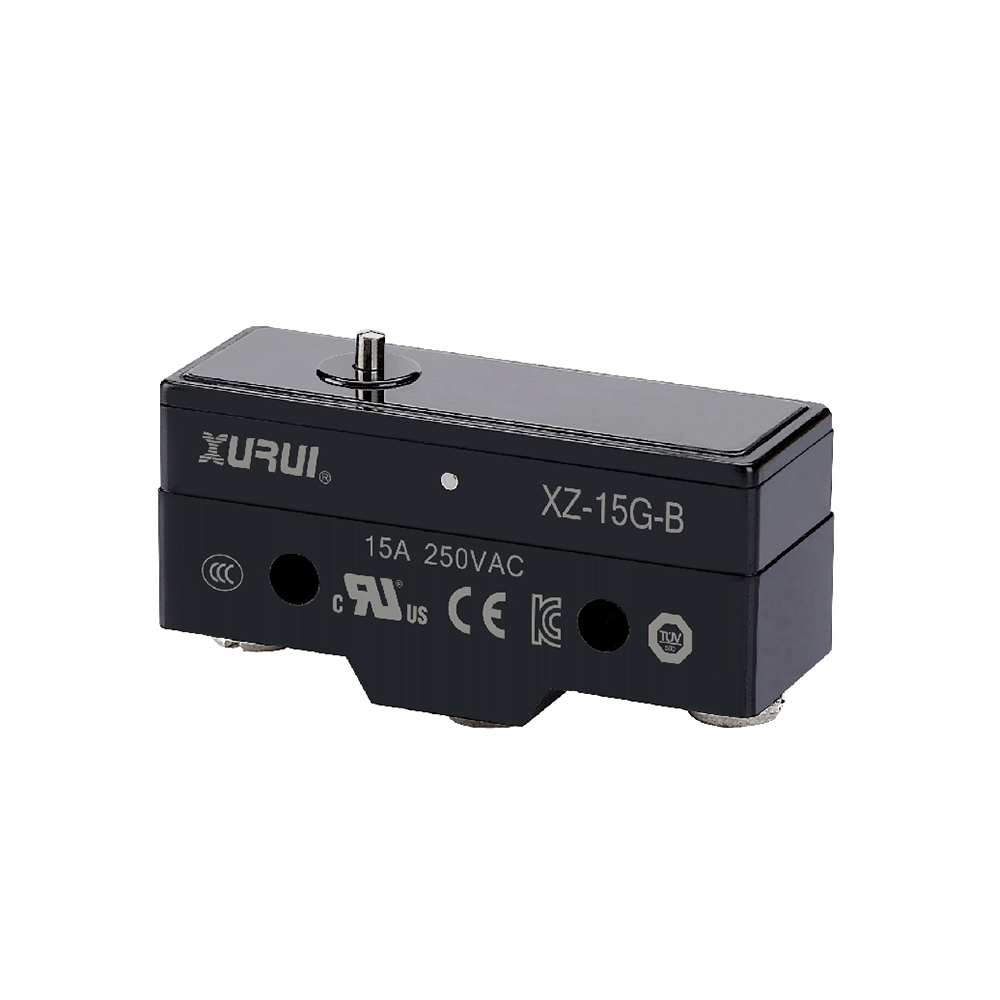

XZ-15G-BPin Plunger250–350 gf (2.45–3.43 N)114 gf (1.12 N)0.5 mm0.2 mm0.1 mm15.9 ± 0.4 mm

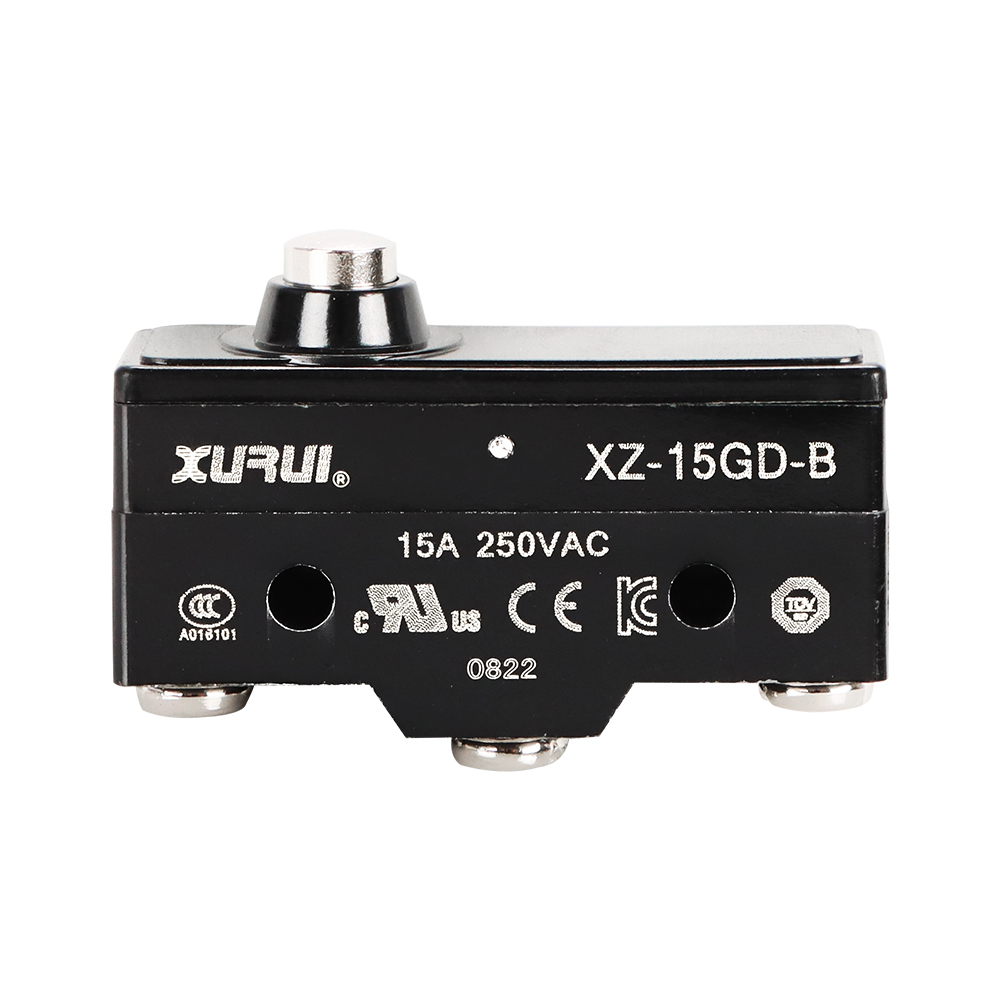

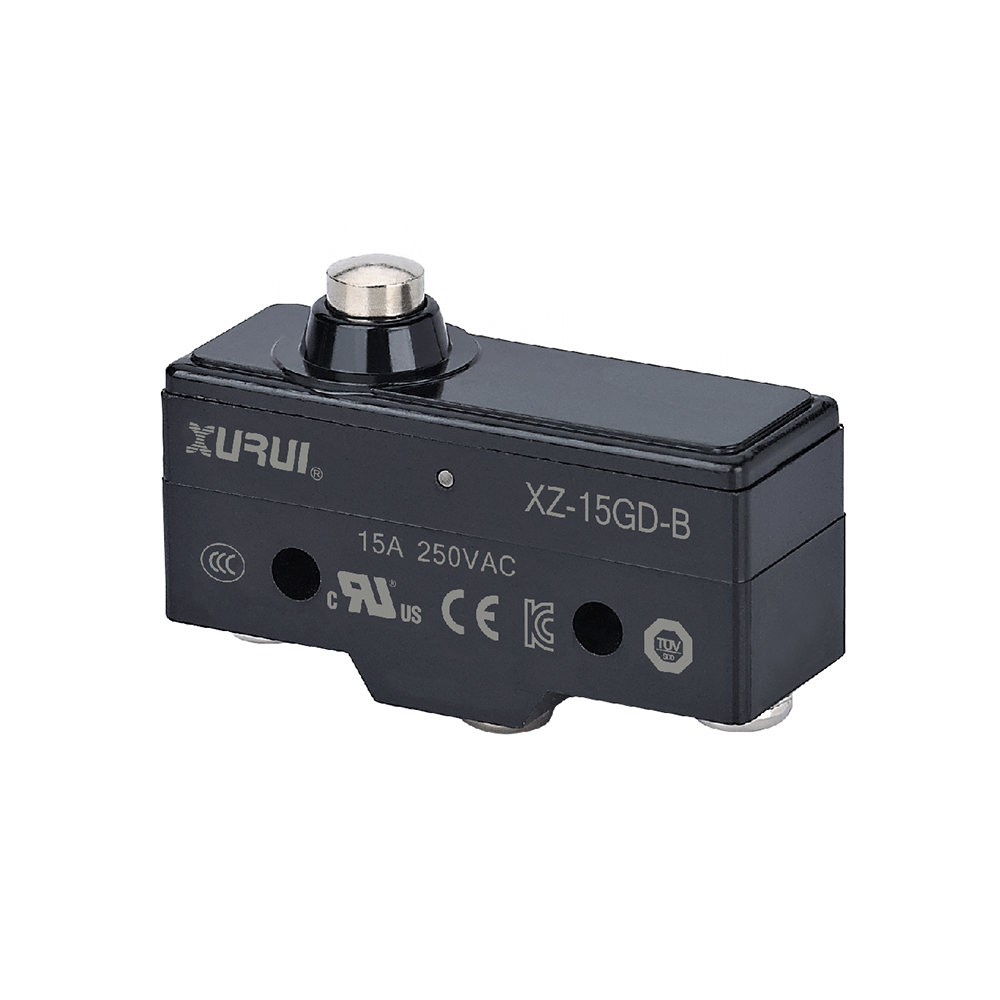

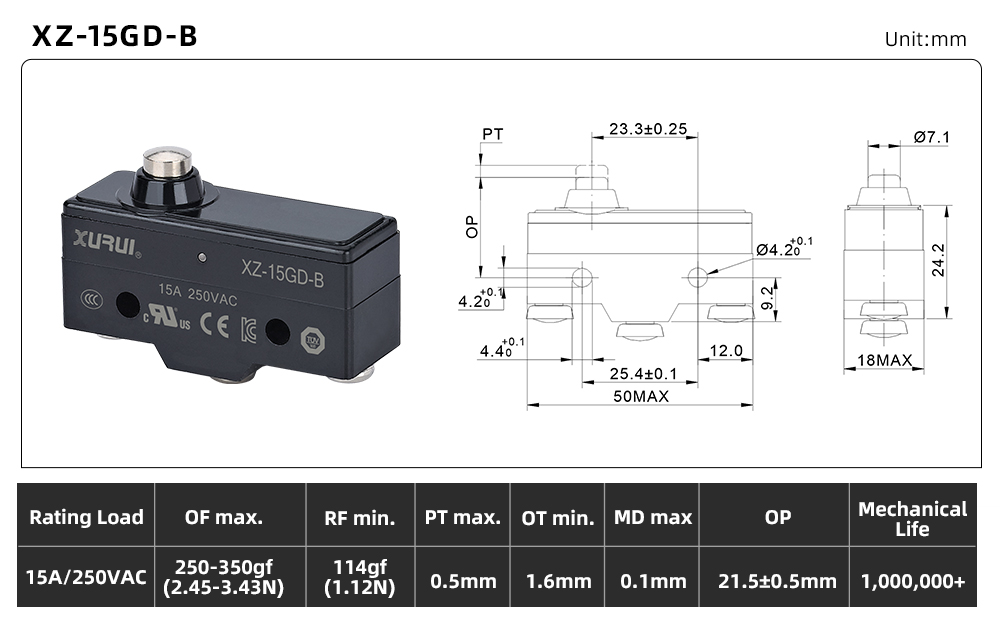

XZ-15GD-BShort Spring Plunger250–350 gf (2.45–3.43 N)114 gf (1.12 N)0.5 mm1.6 mm0.1 mm21.5 ± 0.5 mm

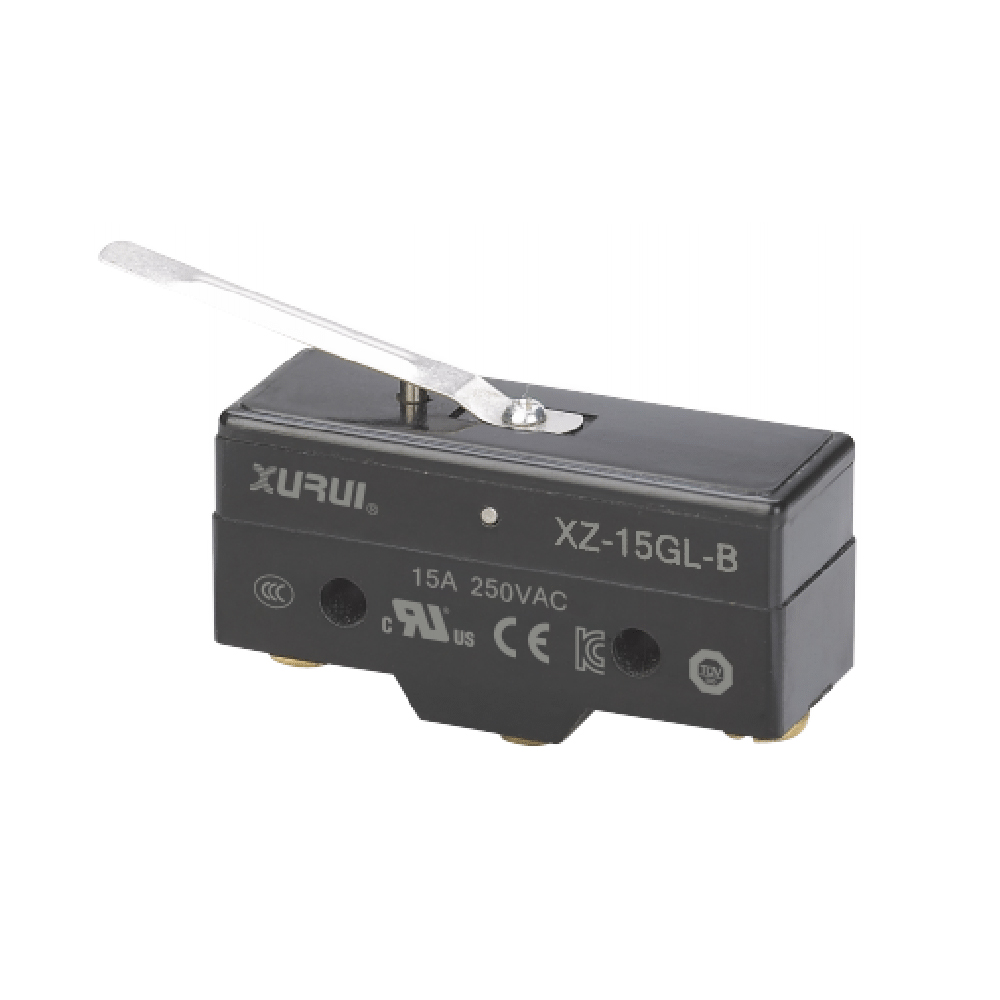

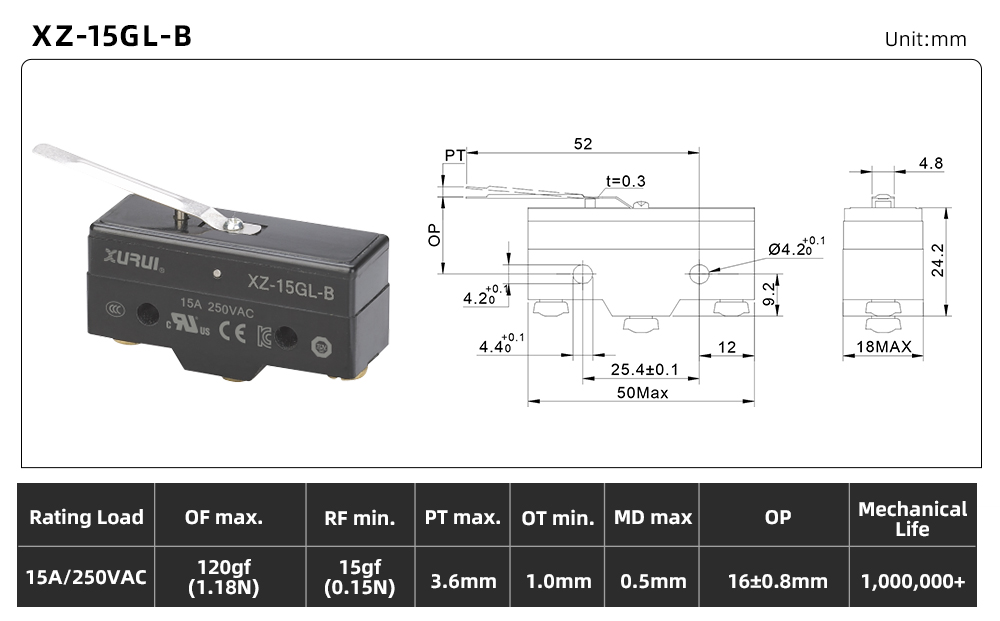

XZ-15GL-BReverse Hinge Lever120 gf (1.18 N)15 gf (0.15 N)3.6 mm1.0 mm0.5 mm16 ± 0.8 mm

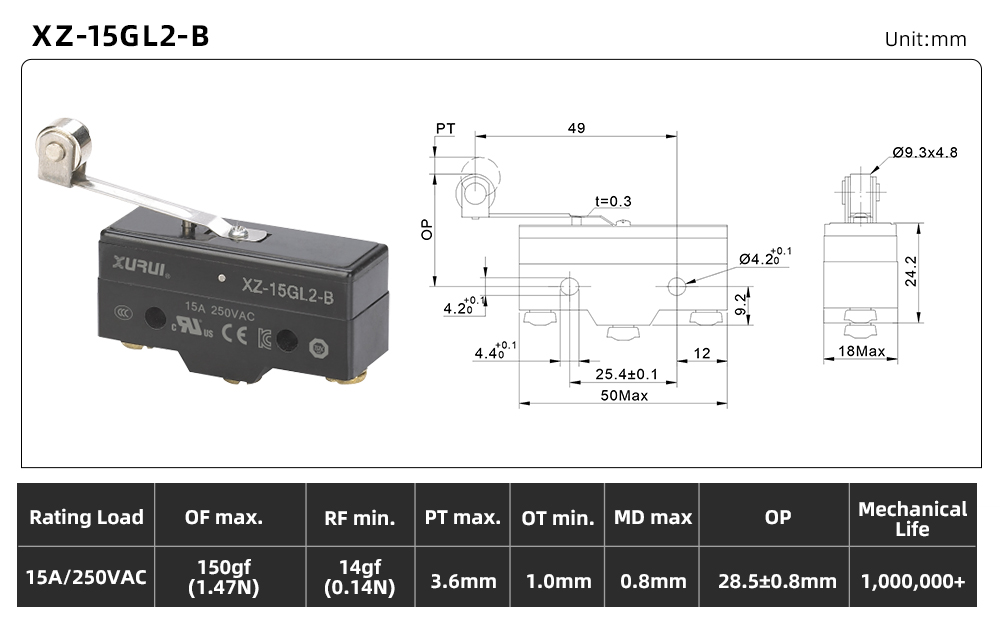

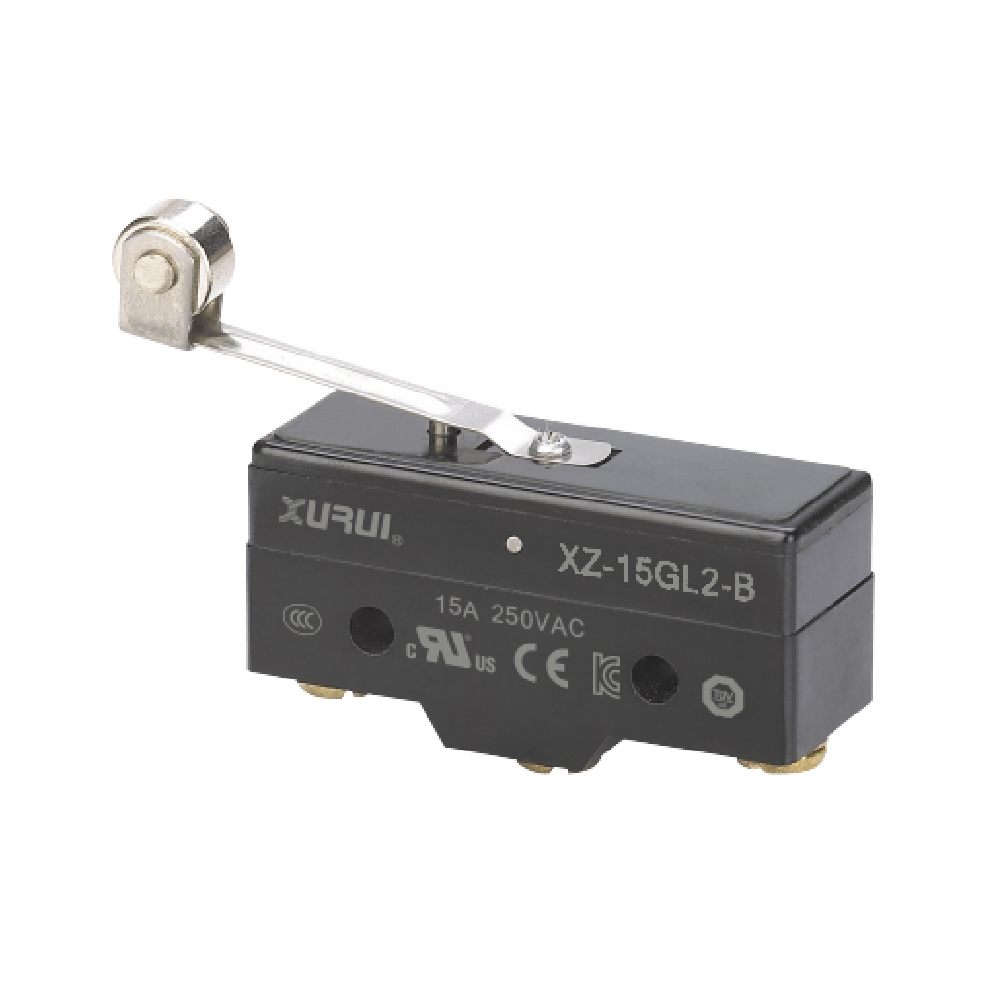

XZ-15GL2-BReverse Hinge Roller Lever150 gf (1.47 N)14 gf (0.14 N)3.6 mm1.0 mm0.8 mm28.5 ± 0.8 mm

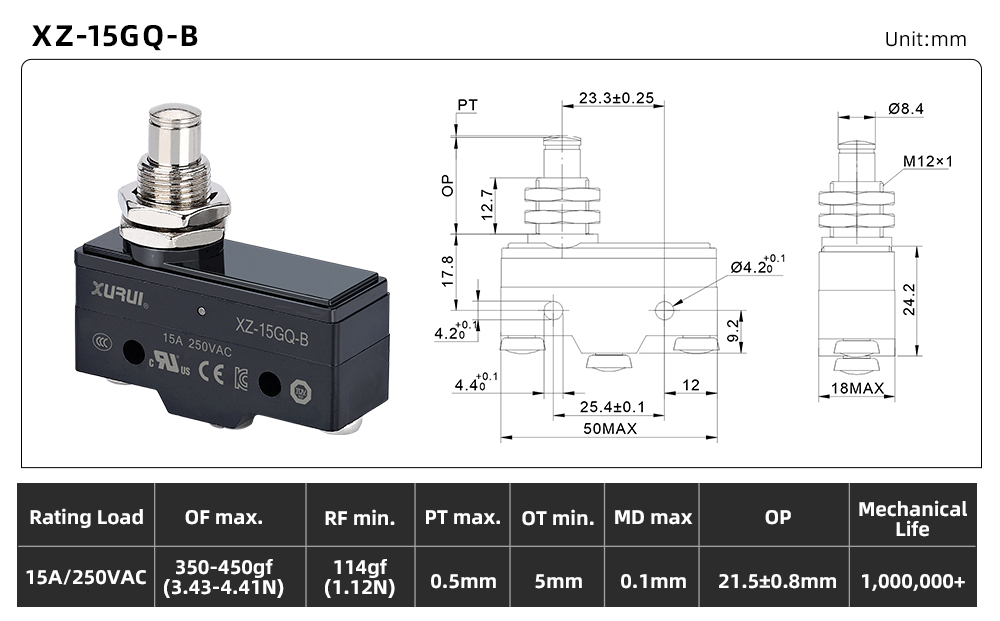

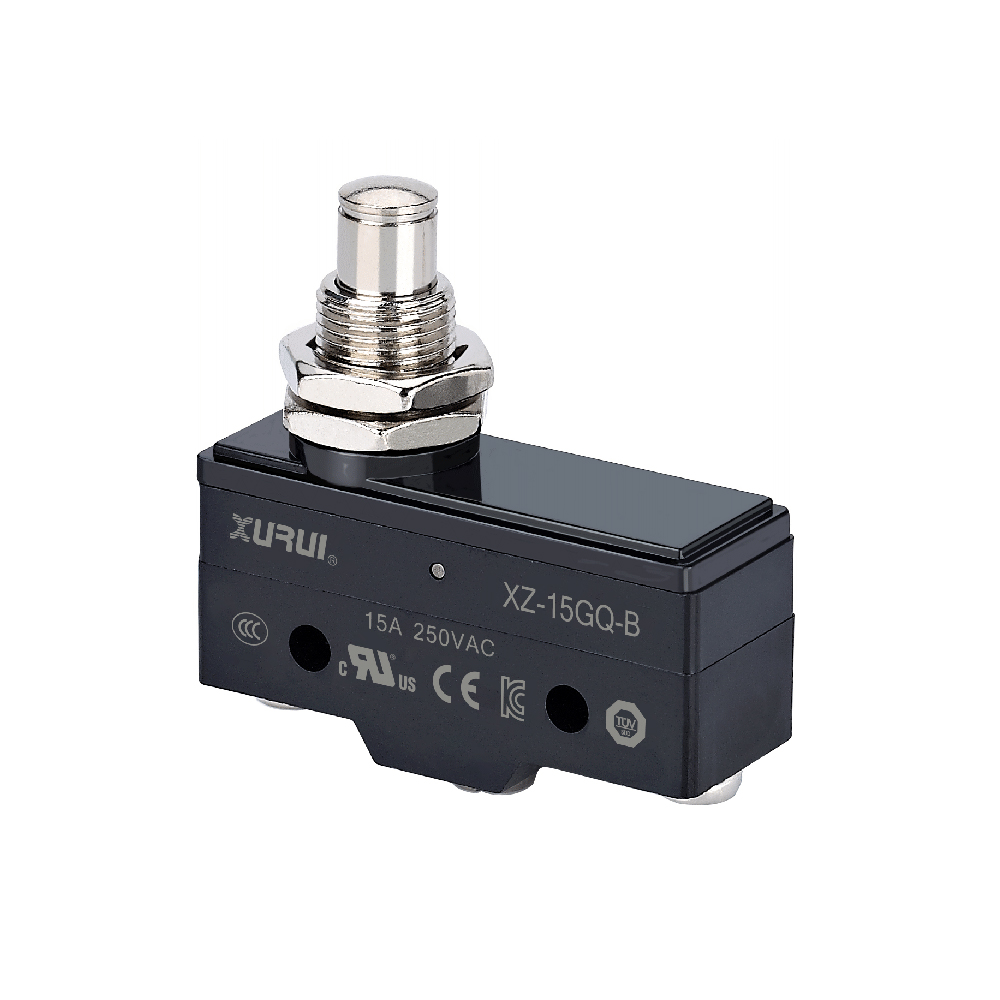

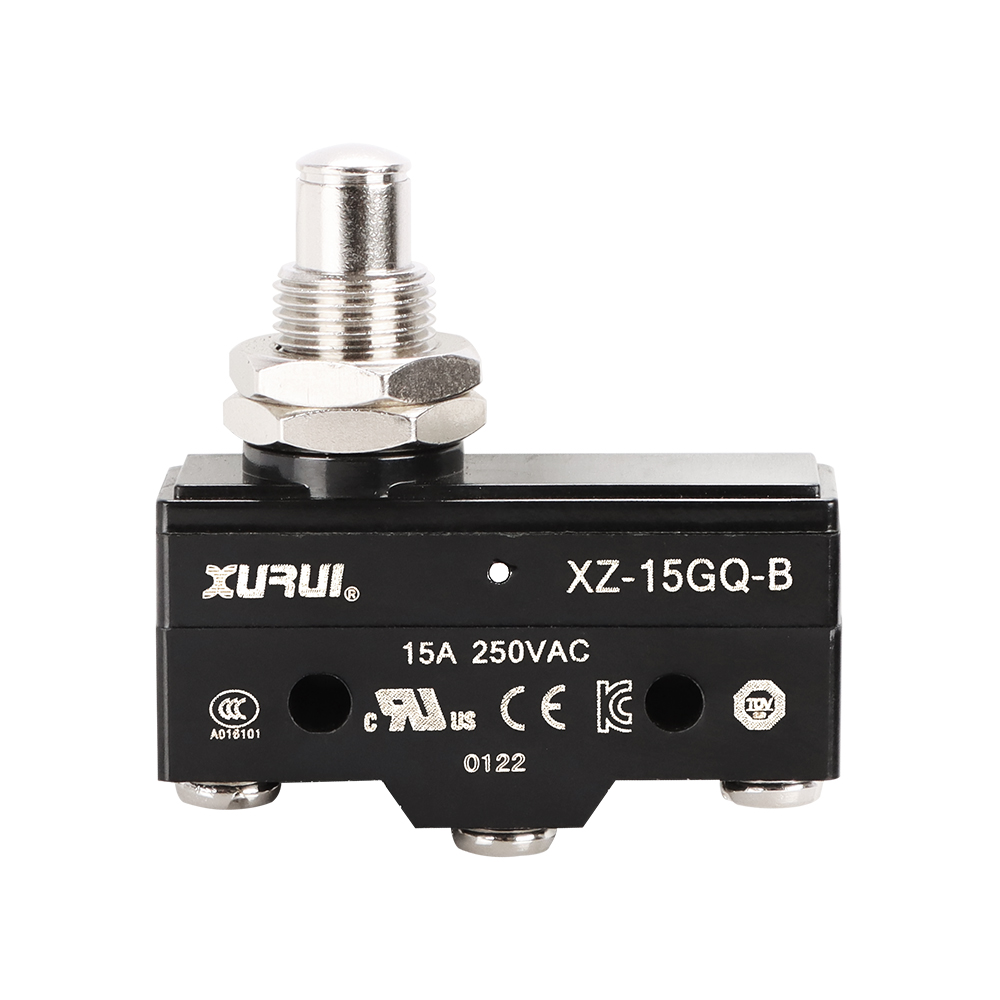

XZ-15GQ-BPanel Mount Plunger350–450 gf (3.43–4.41 N)114 gf (1.12 N)0.5 mm5 mm0.1 mm21.5 ± 0.8 mm

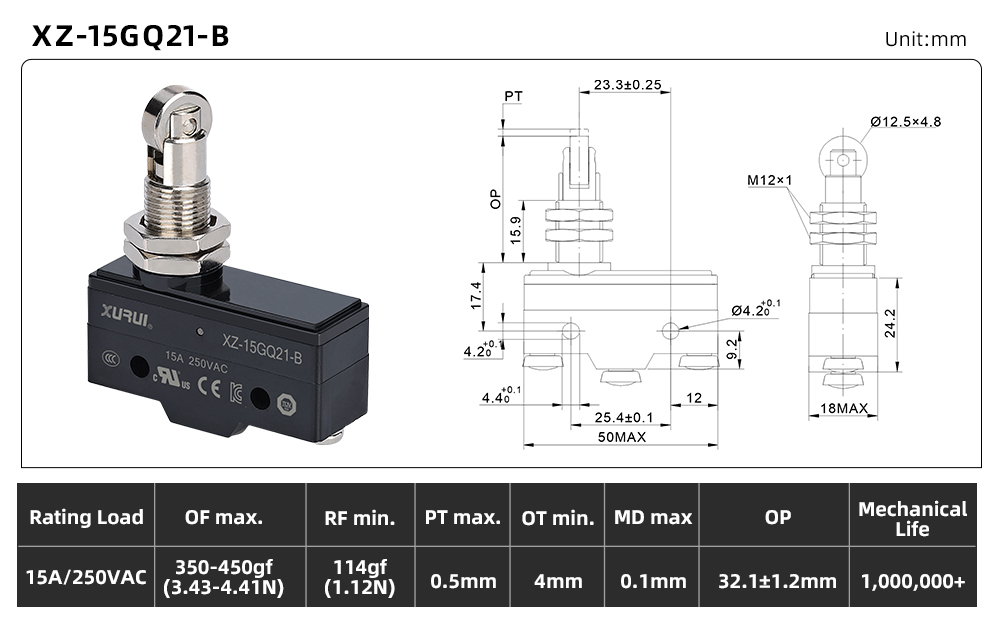

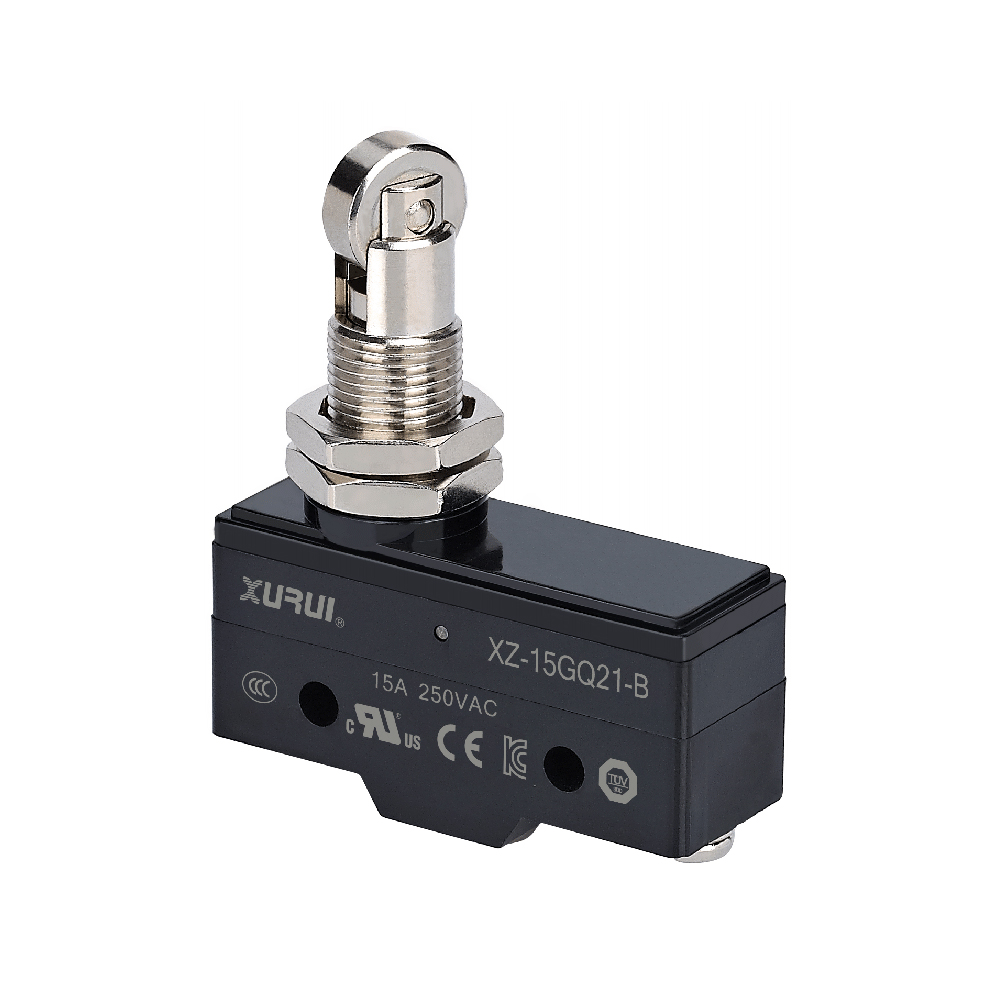

XZ-15GQ21-BPanel Mount Cross Roller Plunger350–450 gf (3.43–4.41 N)114 gf (1.12 N)0.5 mm4 mm0.1 mm32.1 ± 1.2 mm

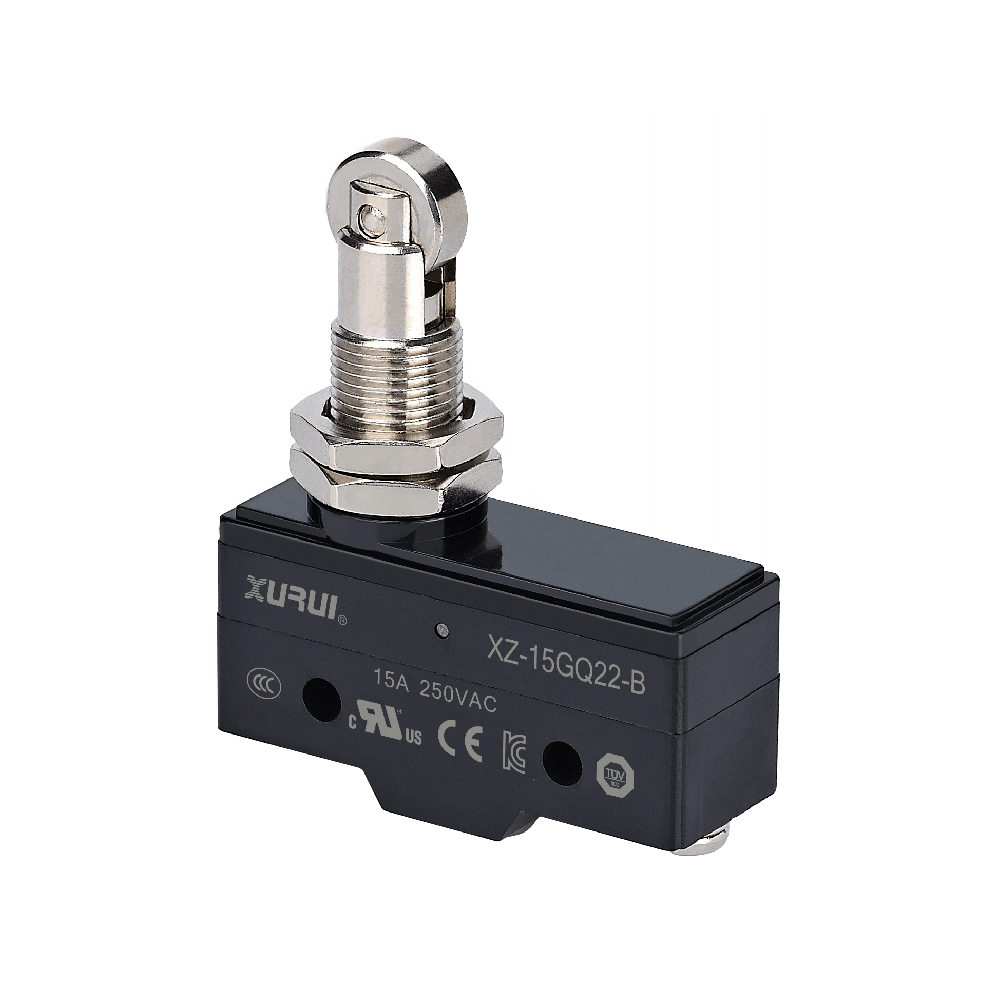

XZ-15GQ22-BPanel Mount Roller Plunger350–450 gf (3.43–4.41 N)114 gf (1.12 N)0.5 mm4 mm0.1 mm32.1 ± 1.2 mm

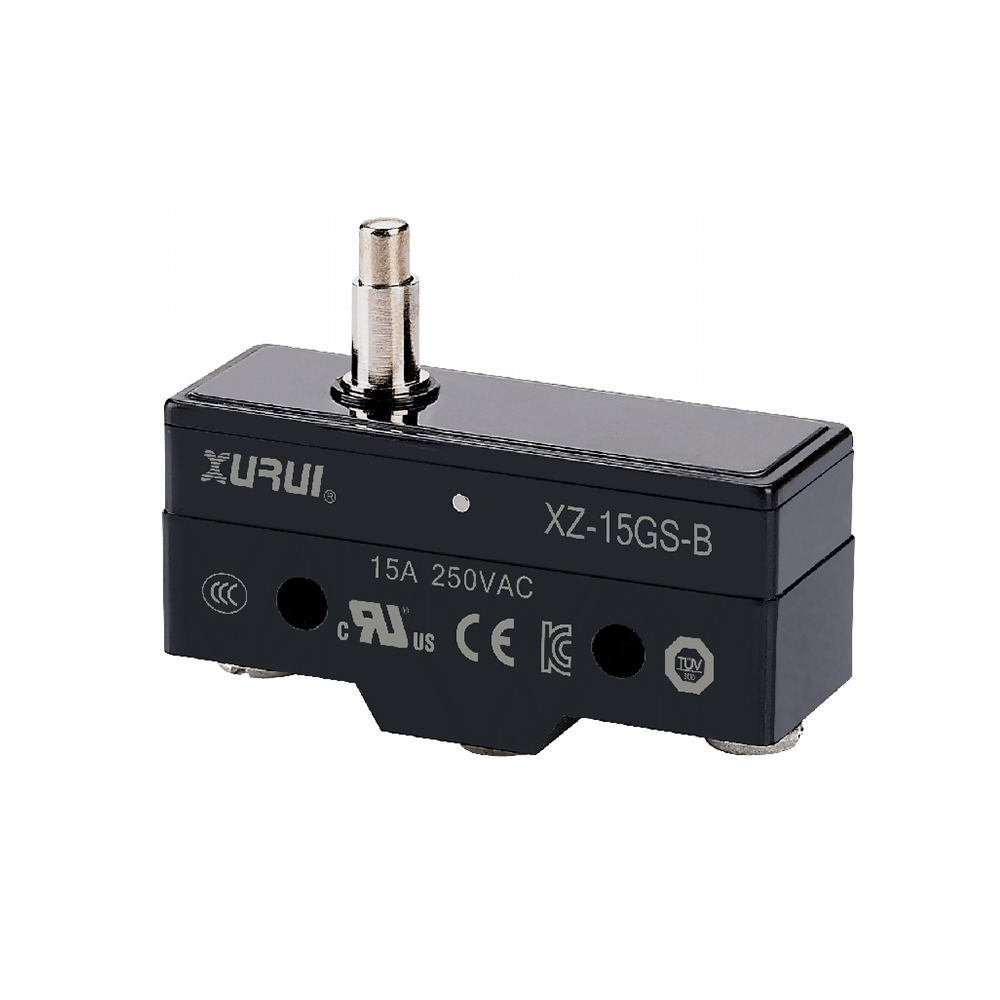

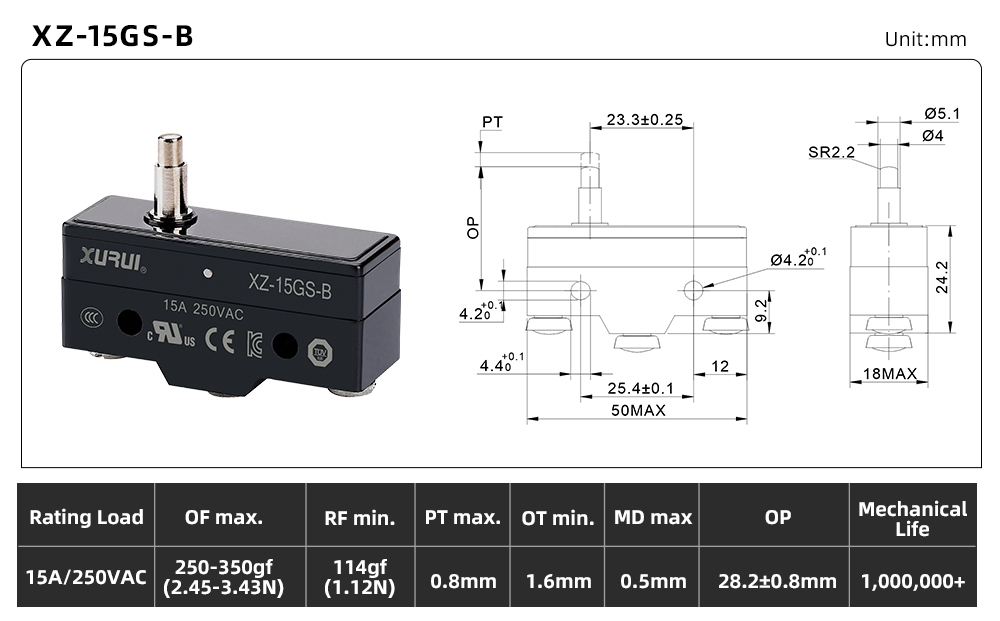

XZ-15GS-BSlim Spring Plunger350–450 gf (3.43–4.41 N)114 gf (1.12 N)0.8 mm1.6 mm0.5 mm28.2 ± 0.8 mm

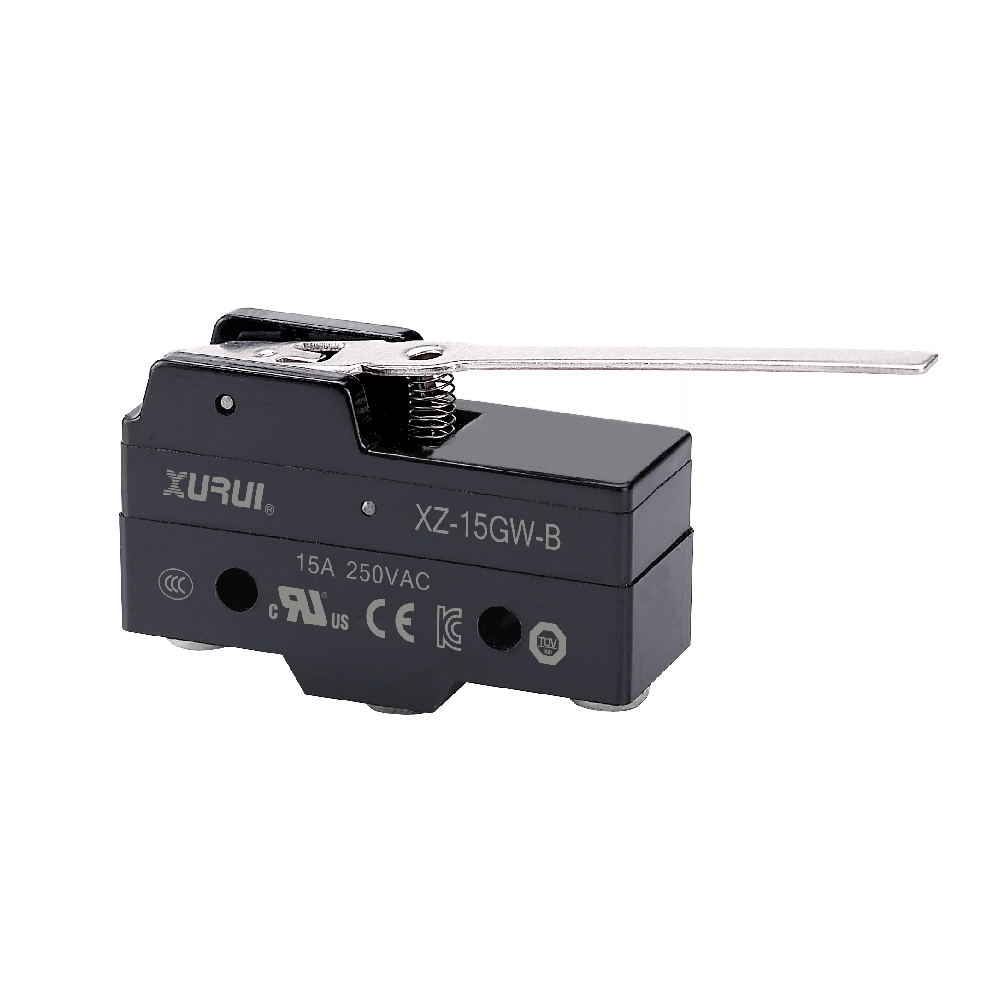

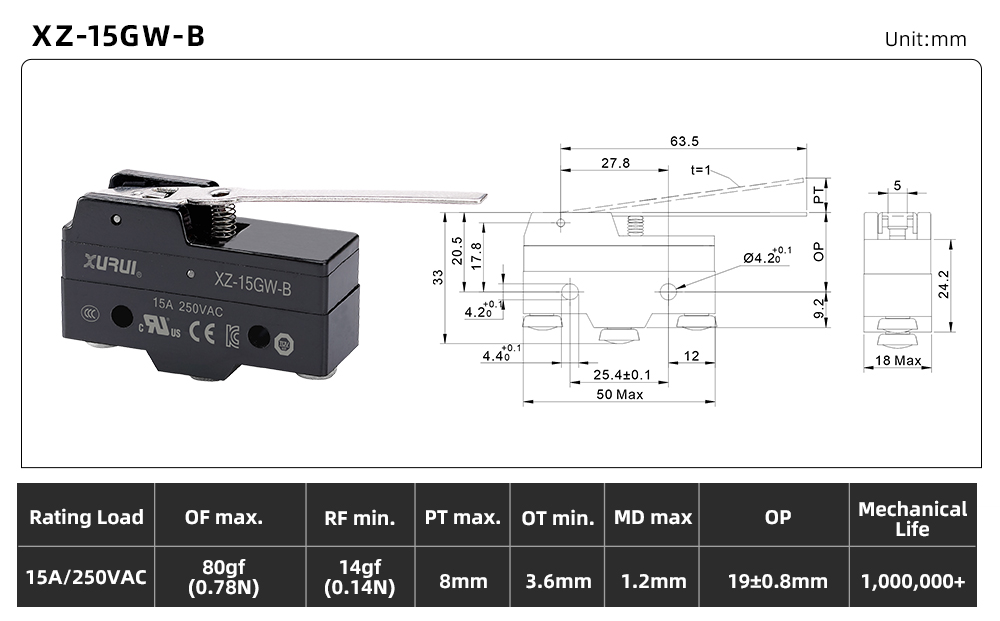

XZ-15GW-BHinge Lever80 gf (0.78 N)14 gf (0.14 N)8 mm3.6 mm1.2 mm19 ± 0.8 mm

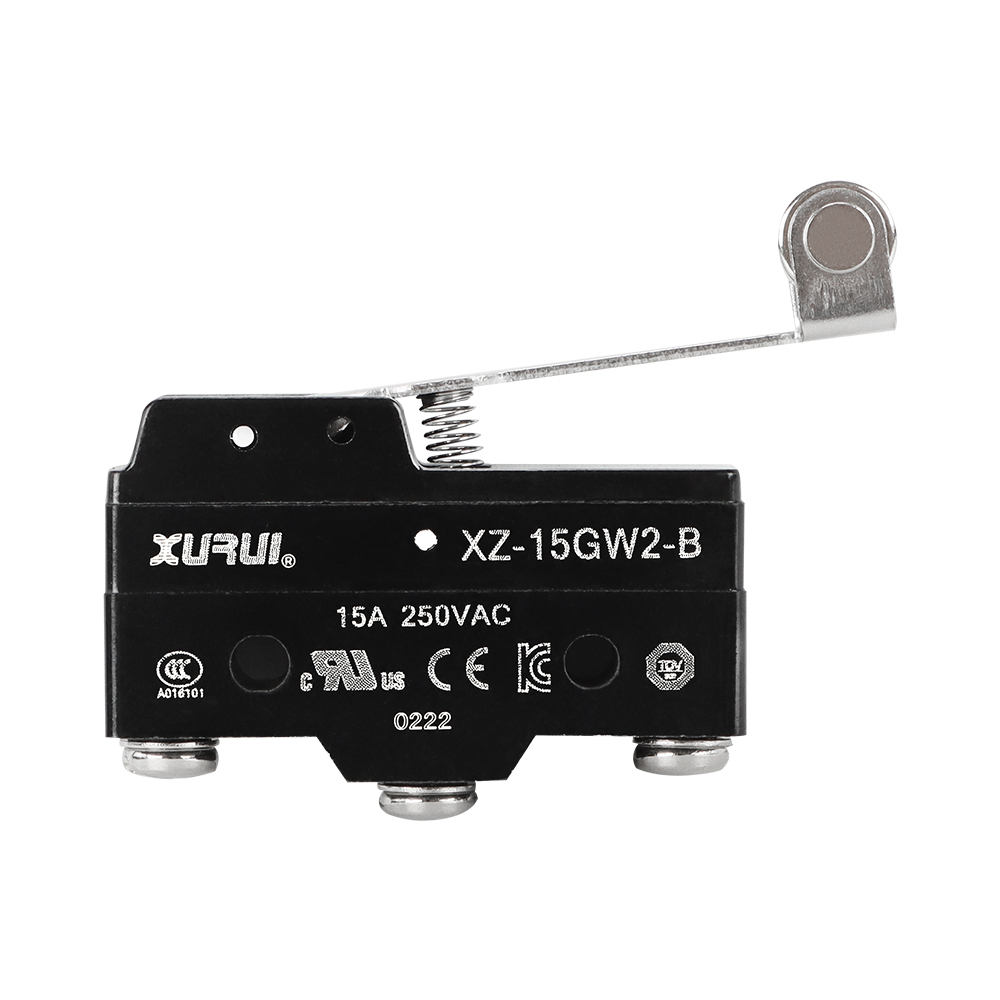

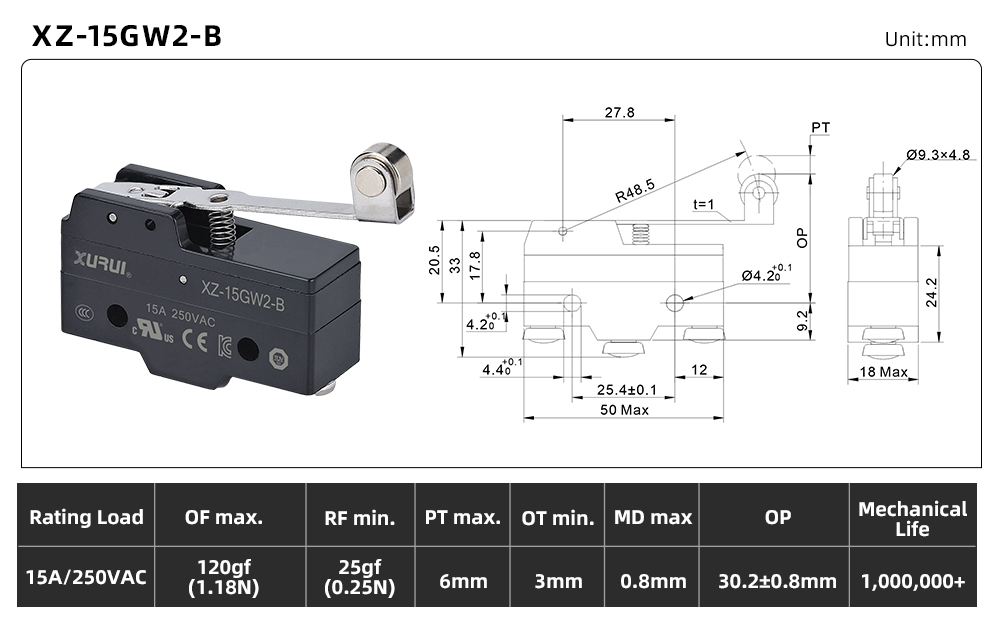

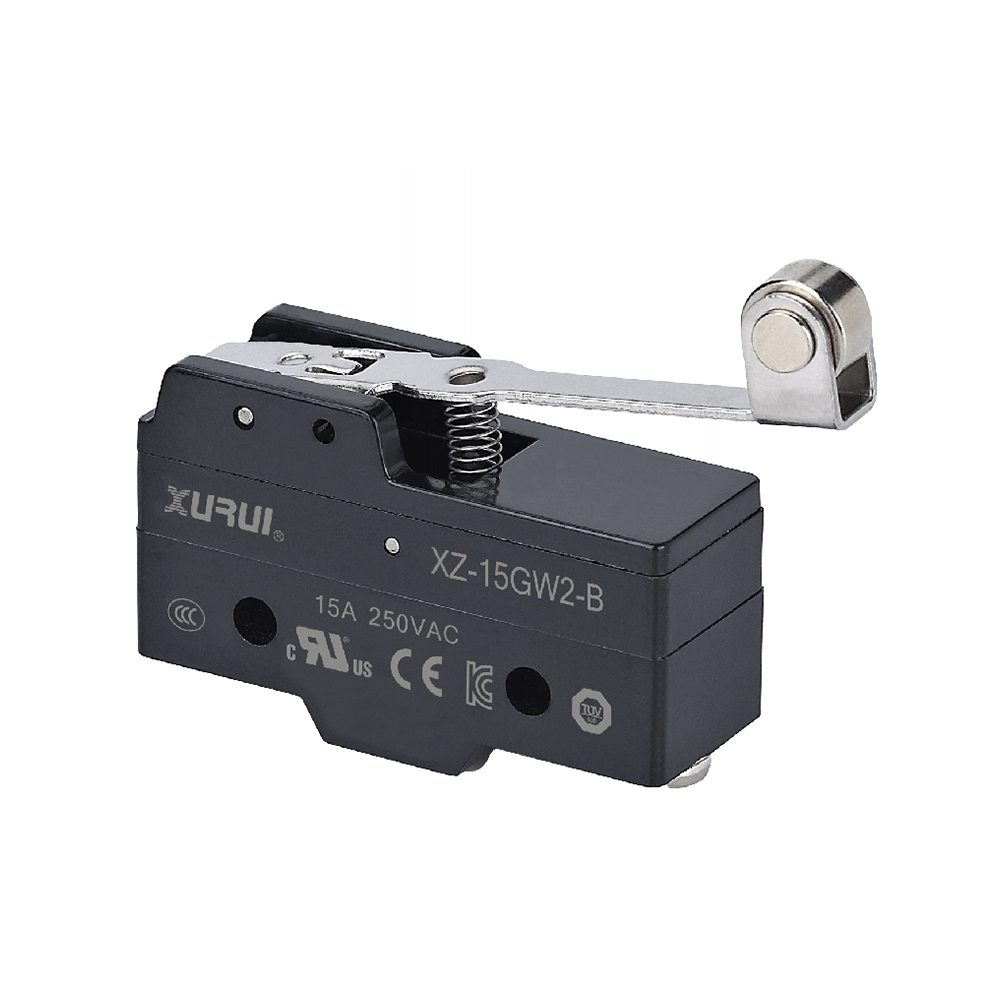

XZ-15GW2-BHinge Roller Lever120 gf (1.18 N)25 gf (0.25 N)6 mm3 mm0.8 mm30.2 ± 0.8 mm

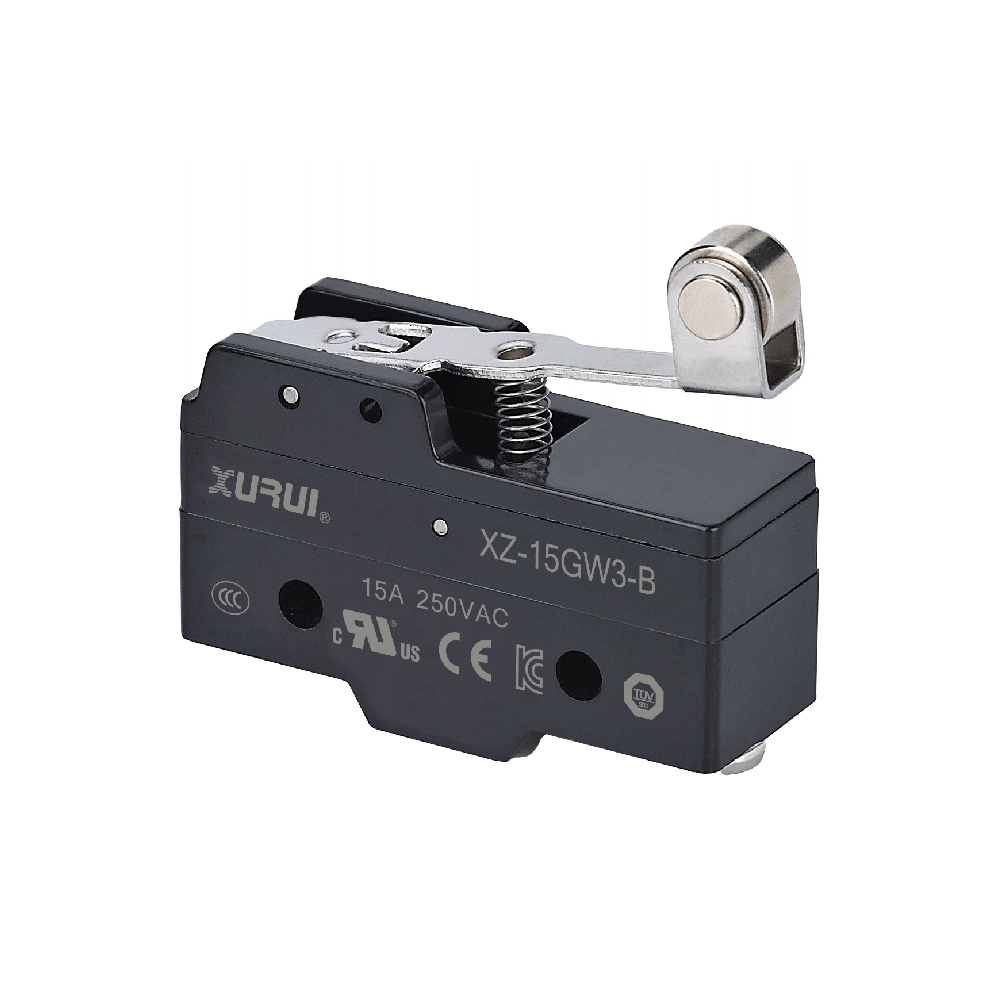

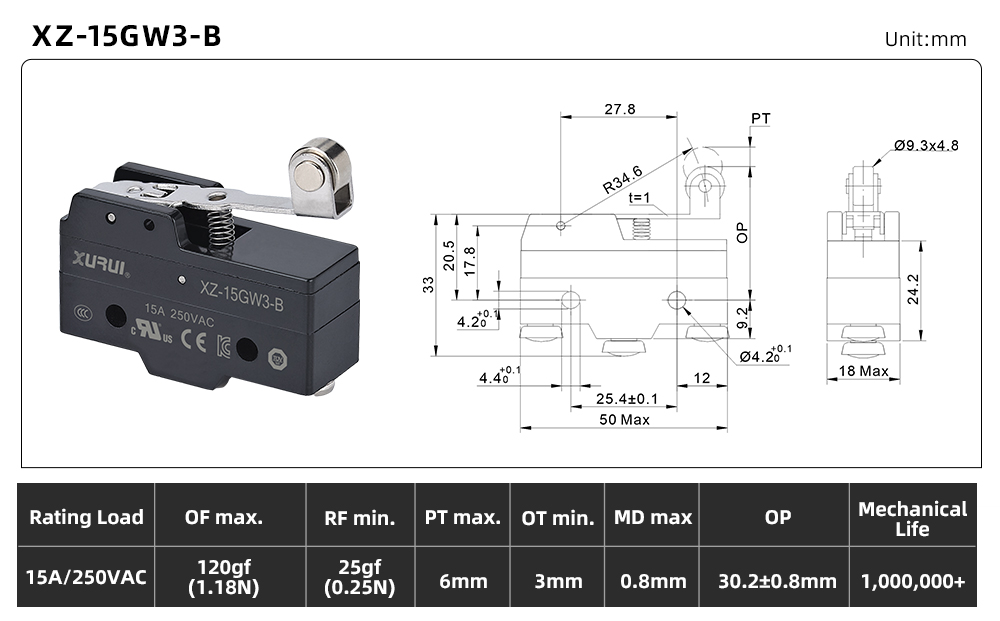

XZ-15GW3-BHinge Roller Lever120 gf (1.18 N)25 gf (0.25 N)4 mm3 mm0.6 mm30.2 ± 0.8 mm

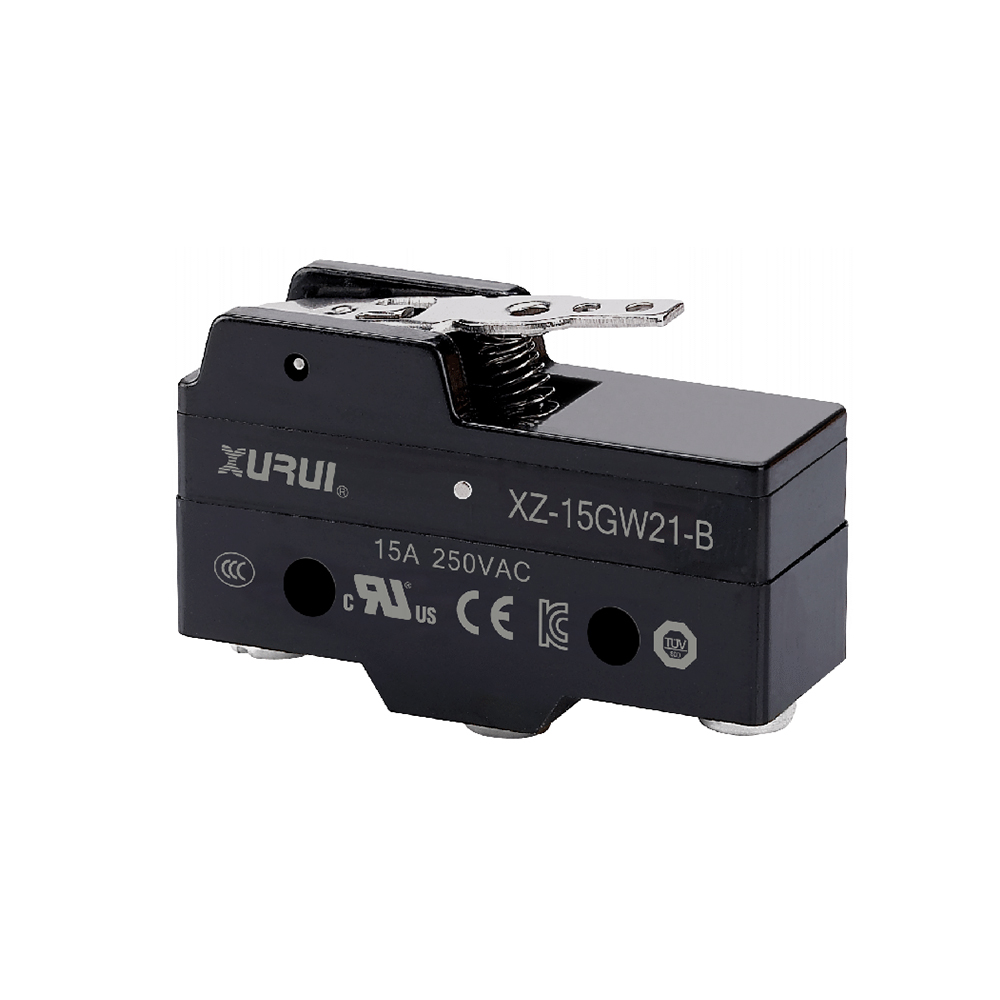

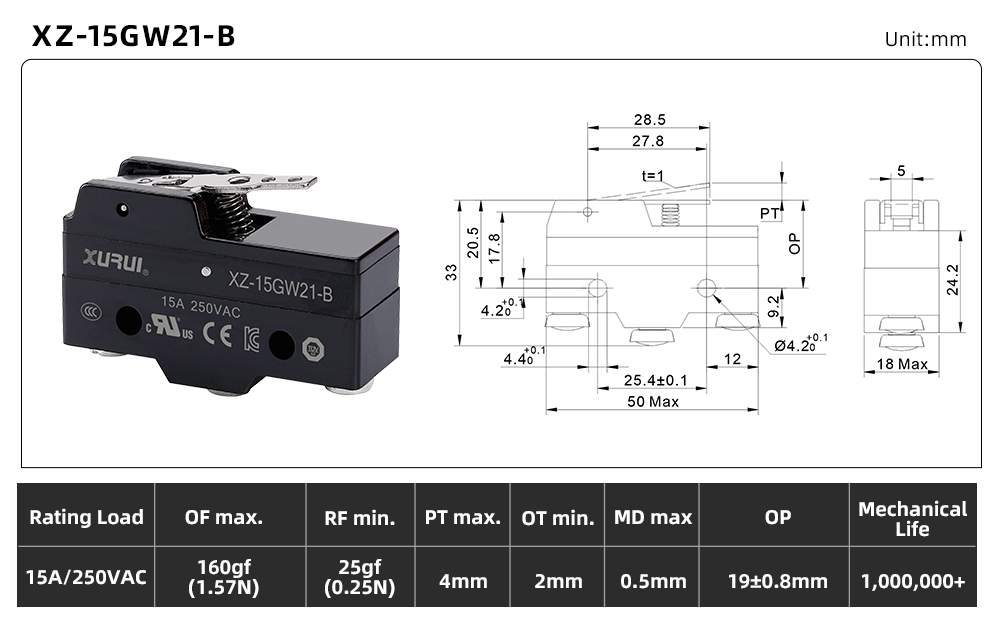

XZ-15GW21-BShort Hinge Lever160 gf (1.57 N)25 gf (0.25 N)4 mm2 mm0.5 mm19 ± 0.8 mm

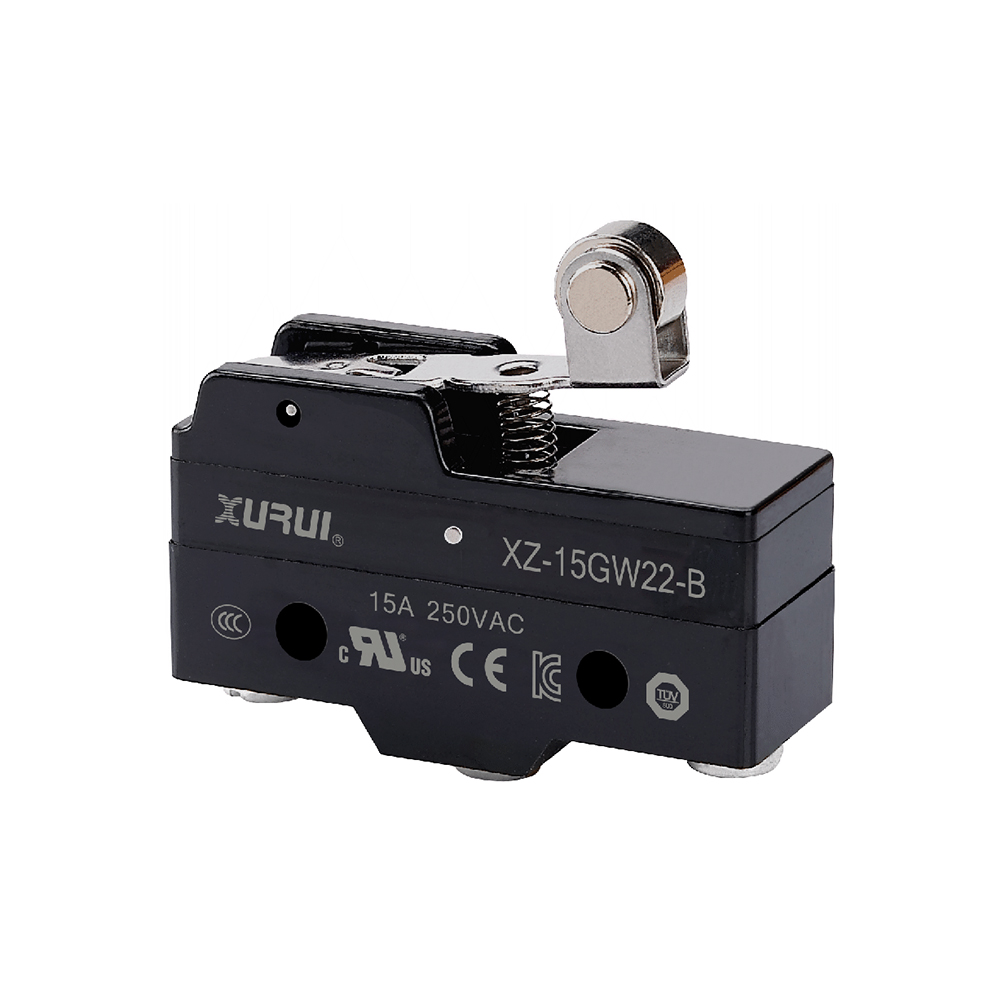

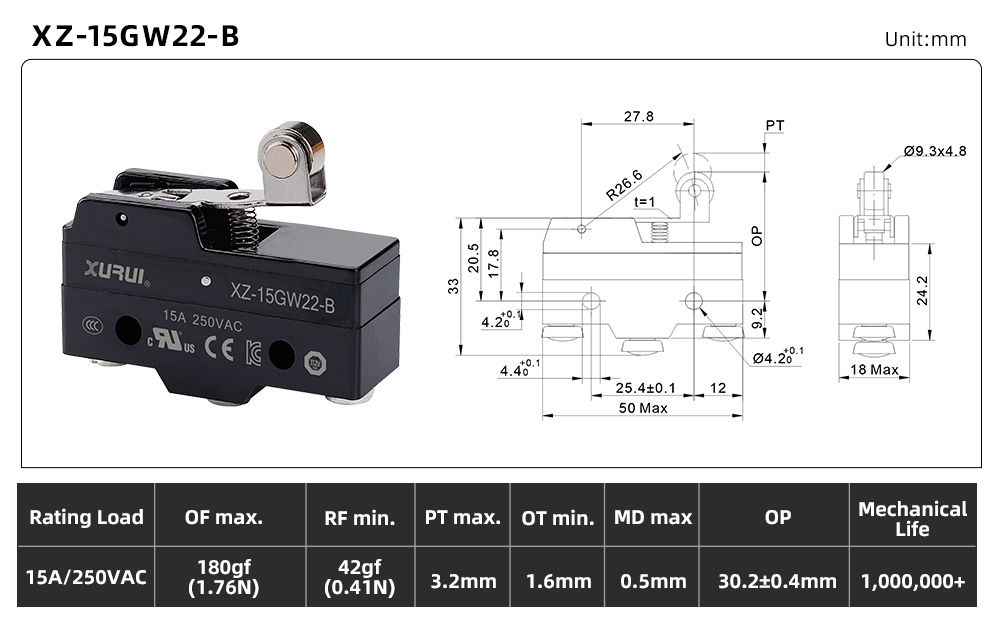

XZ-15GW22-BShort Hinge Roller Lever180 gf (1.76 N)42 gf (0.41 N)3.2 mm1.6 mm0.5 mm30.2 ± 0.4 mm

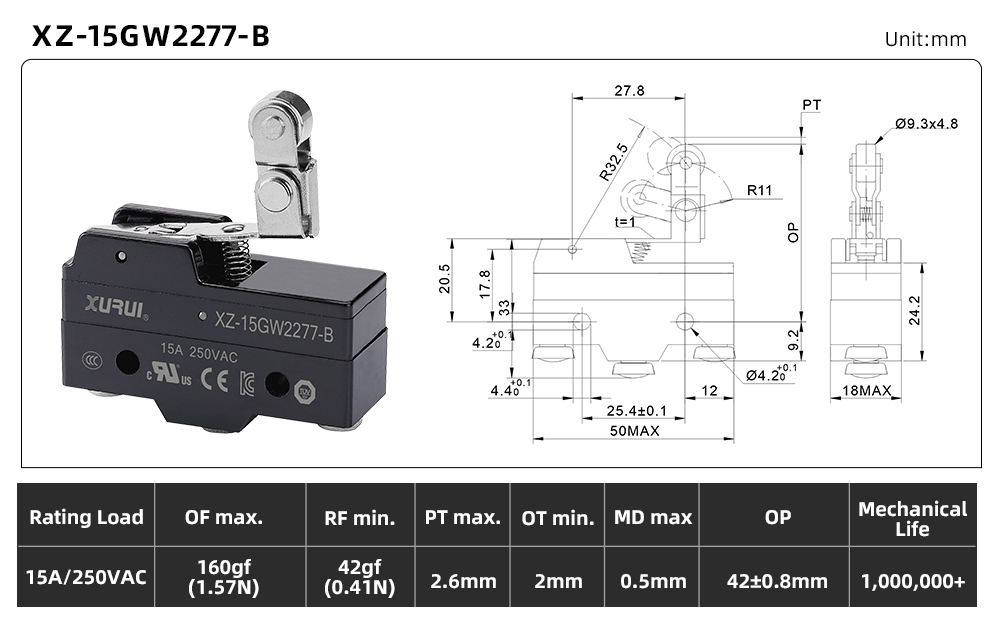

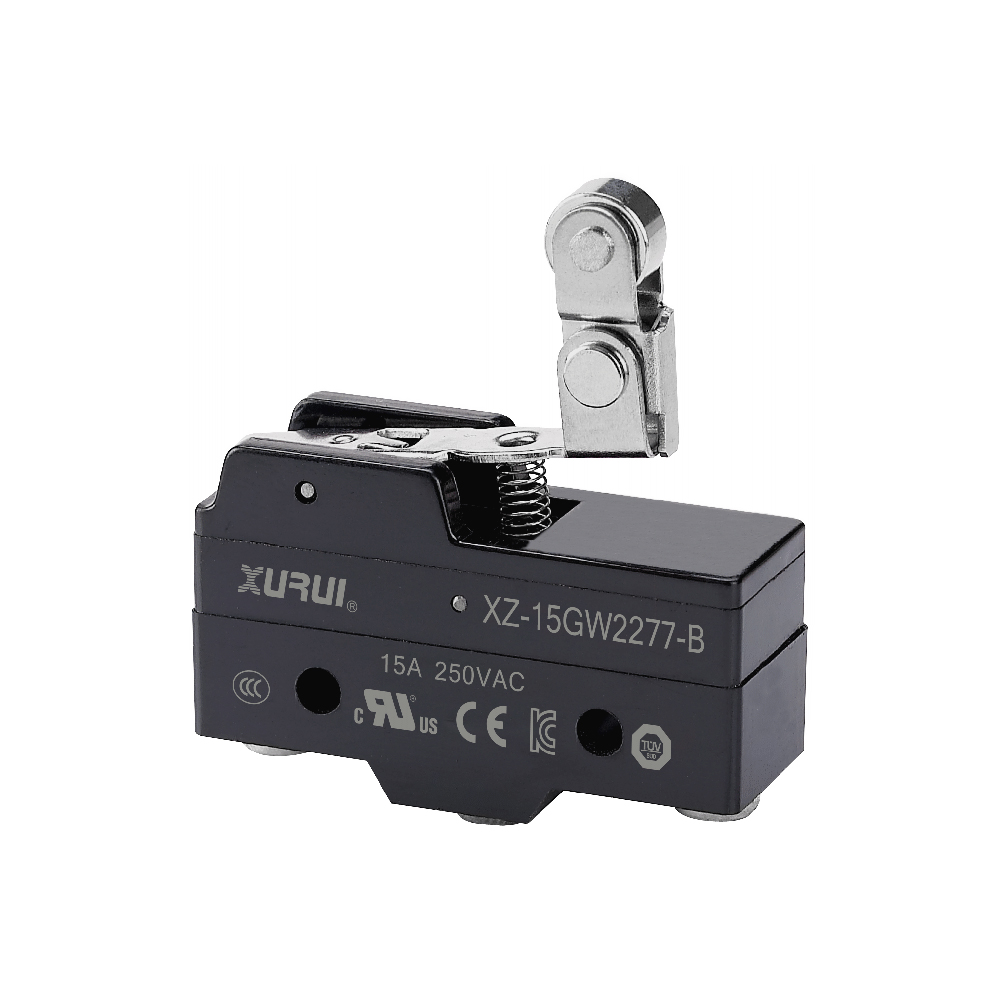

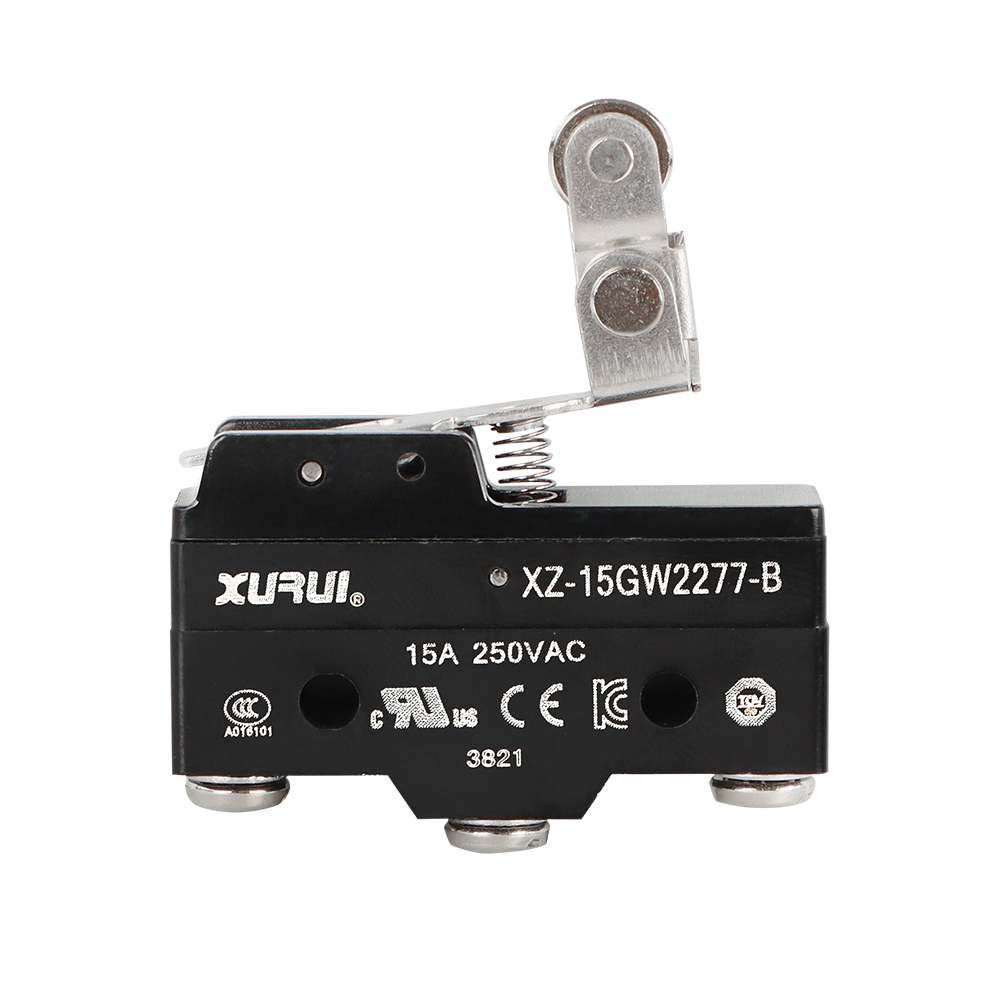

XZ-15GW2277-BOne-Way Hinge Roller Lever160 gf (1.57 N)42 gf (0.41 N)2.6 mm2 mm0.5 mm42 ± 0.8 mm

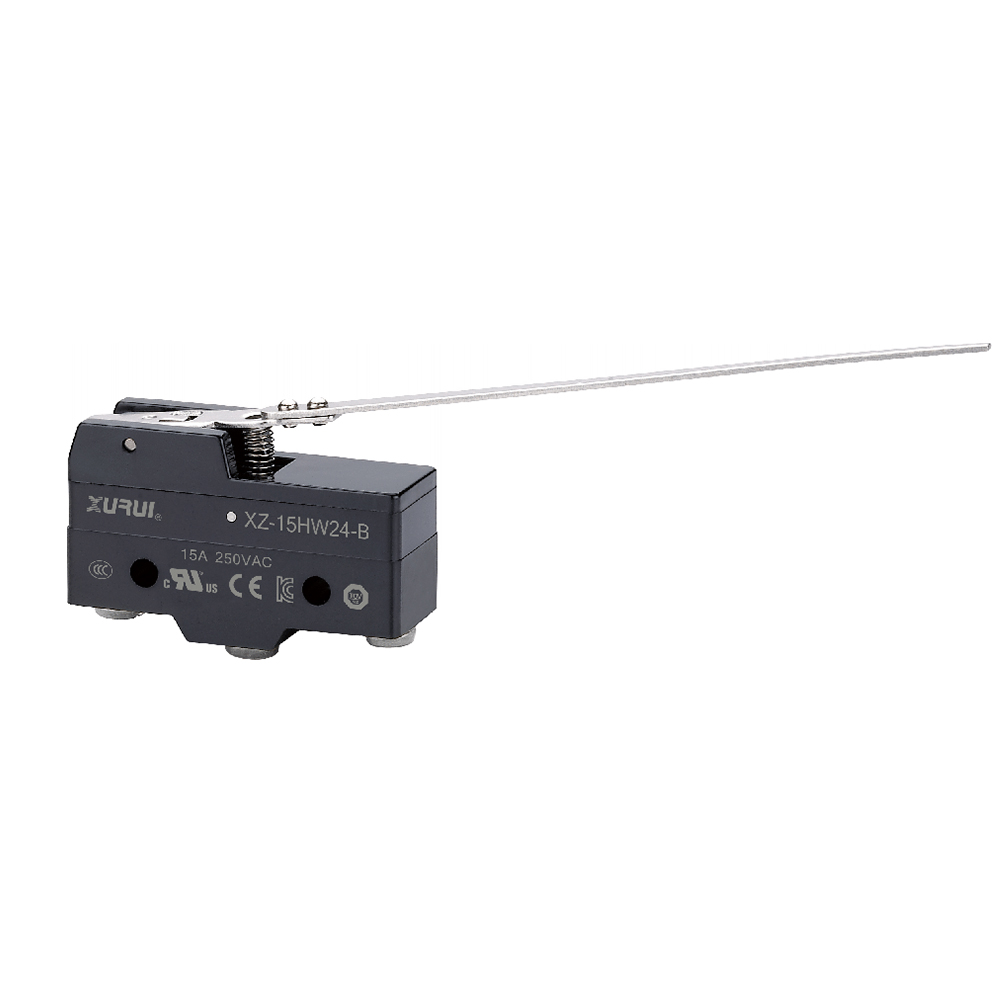

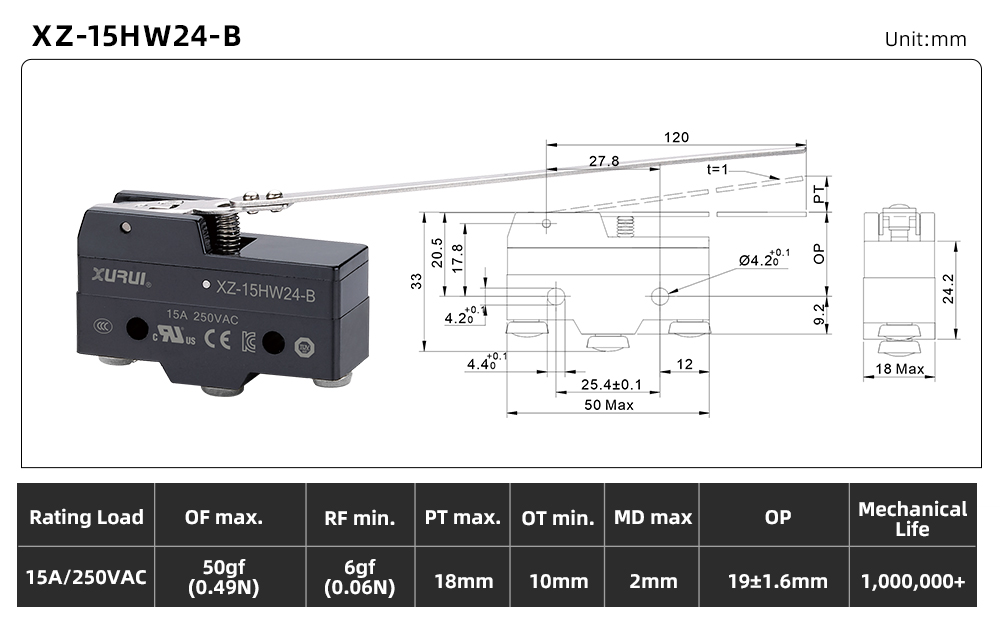

XZ-15HW24-BLong Wire Hinge Lever50 gf (0.49 N)6 gf (0.06 N)18 mm10 mm2 mm19 ± 1.6 mm
XZ-15HW52-BWire Hinge Lever50 gf (0.49 N)6 gf (0.06 N)10 mm5 mm2 mm19 ± 1.2 mm

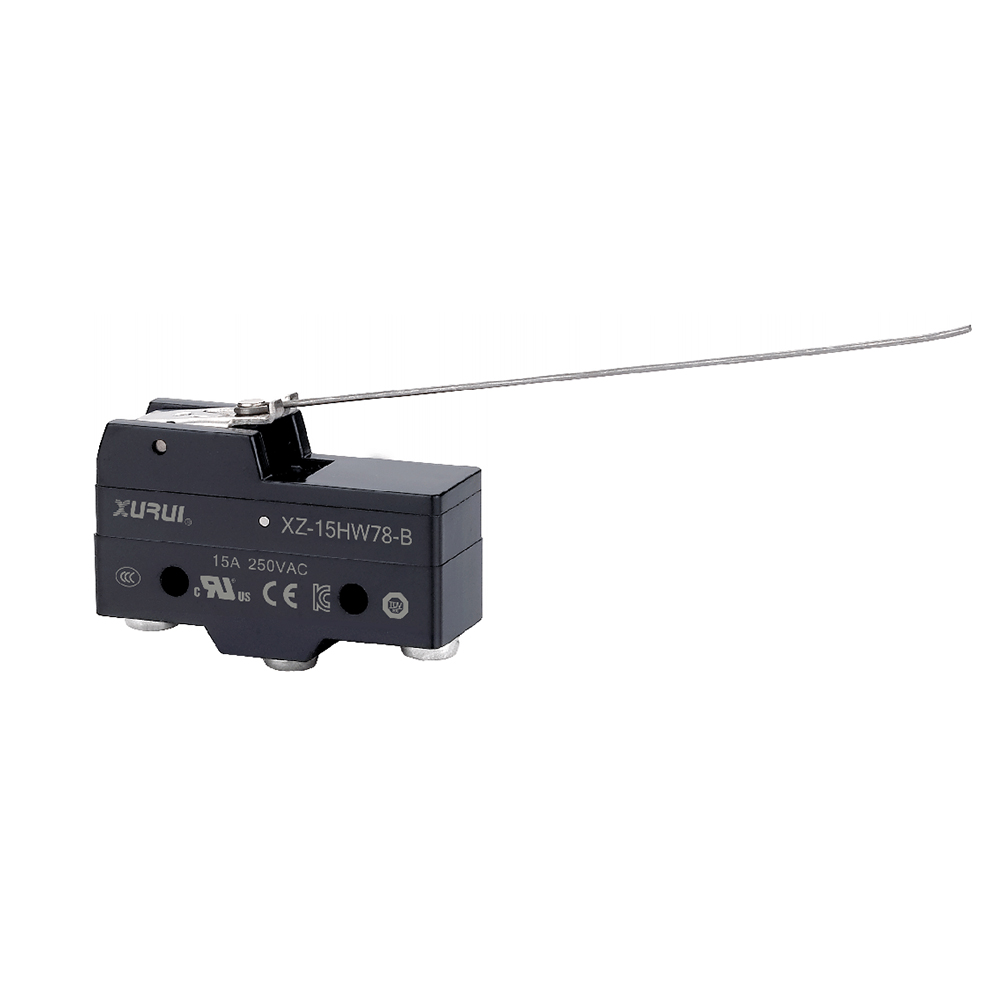

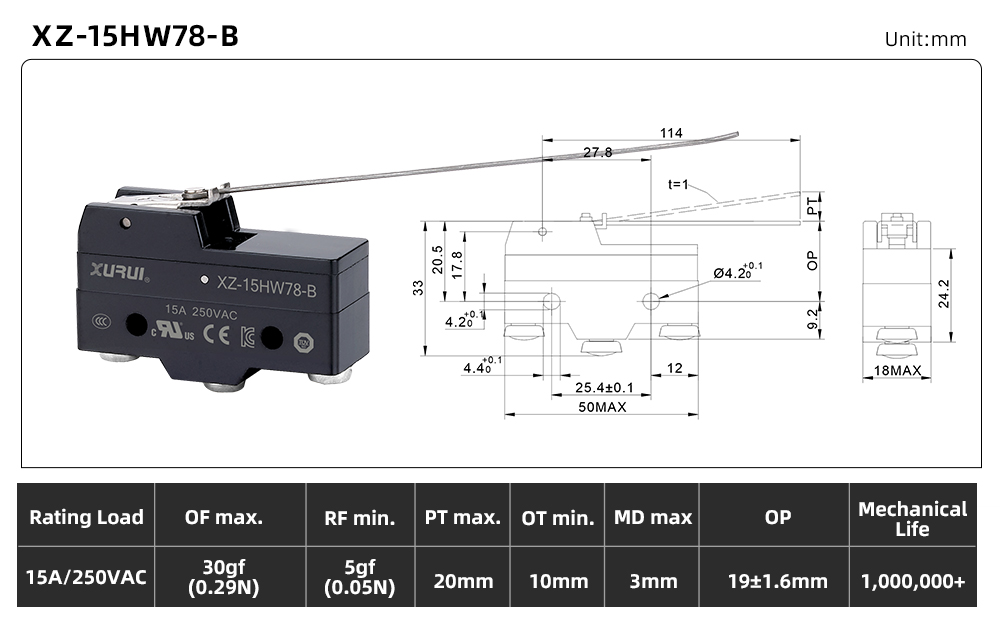

XZ-15HW78-BLong Wire Hinge Lever30 gf (0.29 N)5 gf (0.05 N)20 mm10 mm3 mm19 ± 1.6 mm
Published technical data & verification status

Published XZ-15 series data for technical shortlisting

Decision fieldCurrent information / required inputStatus
Rated load15A at 125/250VAC; 0.6A at 125VDC; 0.3A at 250VDCPublished / series-level
ProtectionIP40Published / series-level
Mechanical durability≥1,000,000 operationsPublished / series-level
Electrical durability≥100,000 operationsPublished / series-level
Operating speed1 mm/s to 1 m/sPublished / series-level
Ambient temperature-25°C to +80°CPublished / series-level
Exact model suffixActuator, terminal, force and contact constructionExact suffix review required
Load verificationAC/DC load, inrush and switching frequencyExact suffix review required
Mechanical interfaceMounting, target motion, pretravel and overtravelExact suffix review required
Approval scopeCertificate must cover exact model and ratingExact suffix review required

Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.

Configuration checklist

Information needed to identify the complete XZ-15 Series code

01Actuator geometry

Select plunger, lever or roller geometry from target motion and overtravel.

02Electrical load

Confirm AC/DC load type, inrush current, switching frequency and contact material.

03Force and travel

Verify operating force, pretravel, overtravel and differential movement.

04Terminals and approval

Match terminal format, insulation, protection and exact certificate scope.

Application fit

Where this series can be evaluated

01

Industrial machinery and conveyor detection

Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.

02

Home appliances and heating equipment

Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.

03

Automation position and limit control

Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.

04

Automotive and power equipment

Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.

Selection workflow

Verify the complete model before design release

01

Define the function

Describe the target motion or load, control logic and failure consequence.

02

Confirm the environment

Specify temperature, moisture, dust, vibration, enclosure and installation orientation.

03

Match the exact code

Confirm actuator, terminal, contact, input/output, housing and approval suffixes.

04

Approve a sample

Test fit, switching behavior and thermal or mechanical margin before volume release.

Controlled documents

Downloads and evidence for XZ-15 Series

CATALOG

XZ-15 Micro Switch Catalog

Download the current XZ-15 Micro Switch Catalog for model selection, technical specifications and ordering information.

REFERENCE

Product page reference

Use the product page together with the latest controlled document for the exact ordered code.

EVIDENCE

Request exact certificate scope

Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.

Frequently asked questions

XZ-15 Series FAQ

What actuator types are available?

The public series presentation shows button, lever and roller actuator formats. Confirm the exact suffix and operating-force requirement.

The old product page displays CE, TÜV, UL, KC, CCC and RoHS marks. Certification must be checked for the exact ordered model.

Compare mounting dimensions, actuator geometry, contact logic, load, force, travel and approvals before approving a replacement.
