XZ5 Series Limit Switch
General-purpose travel switch family for industrial machinery and equipment
The XZ5 Series is a general-purpose travel and limit switch family. Public company certification materials reference CCC for selected XZ5 products; exact construction and rating vary by model.
Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.
Compare XZ5 models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

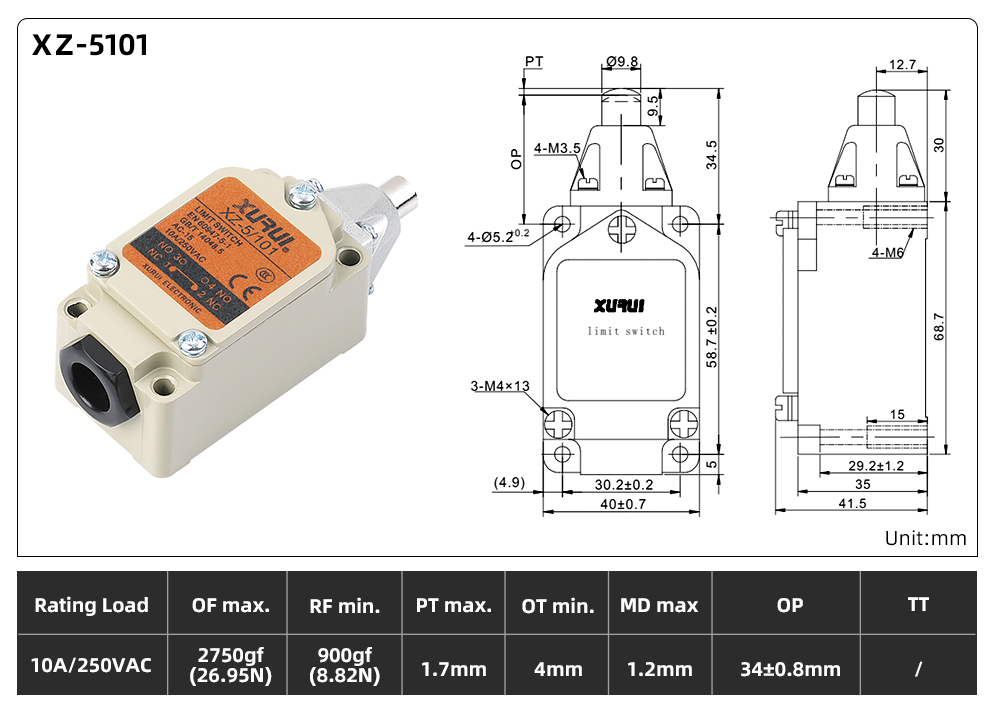

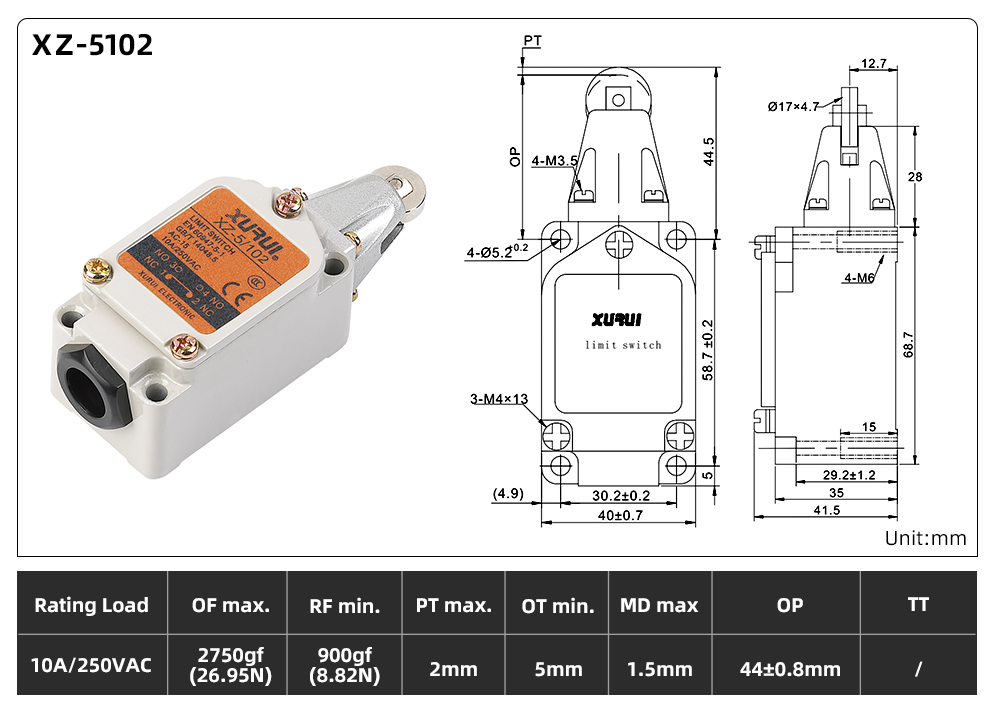

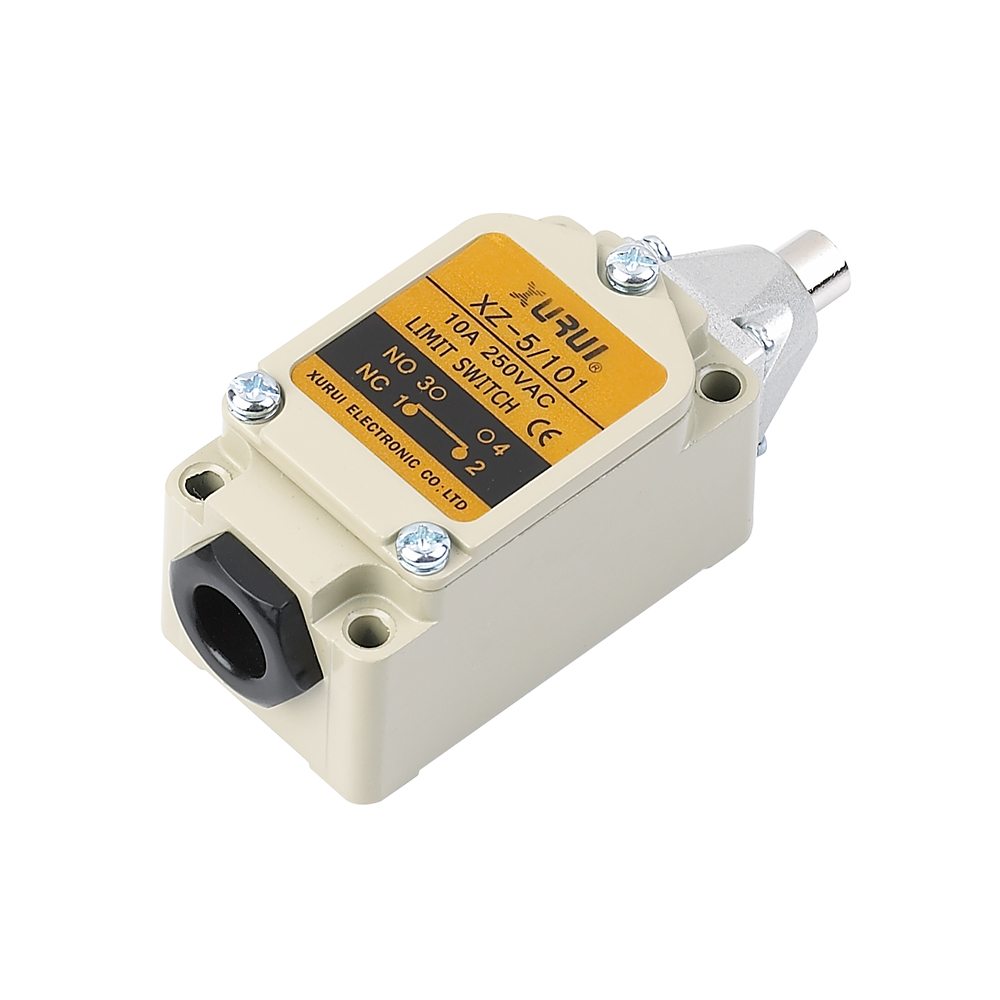

XZ-5101

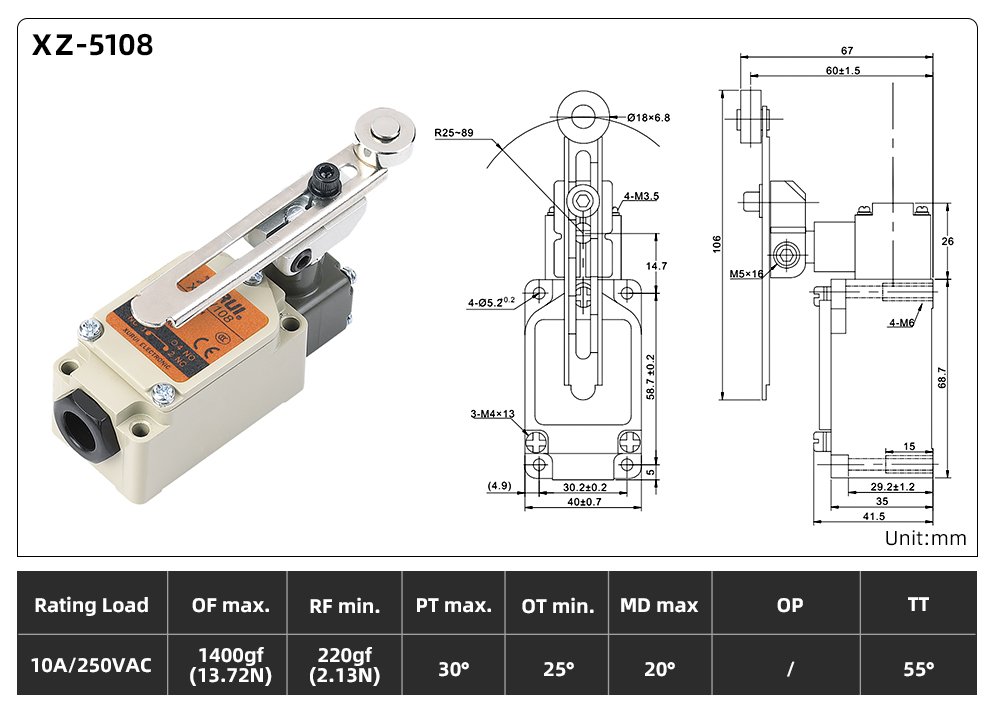

Product image and selection drawing are available for comparison.

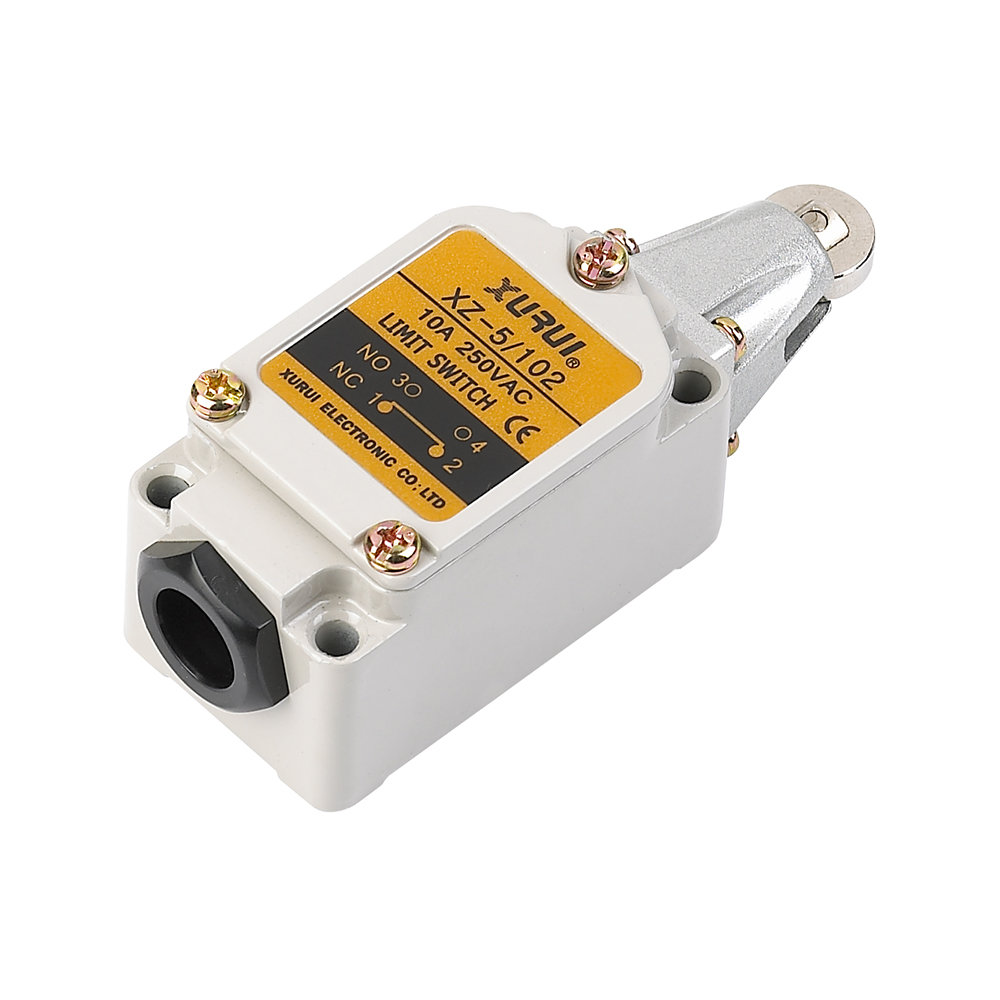

XZ-5102
Product image and selection drawing are available for comparison.

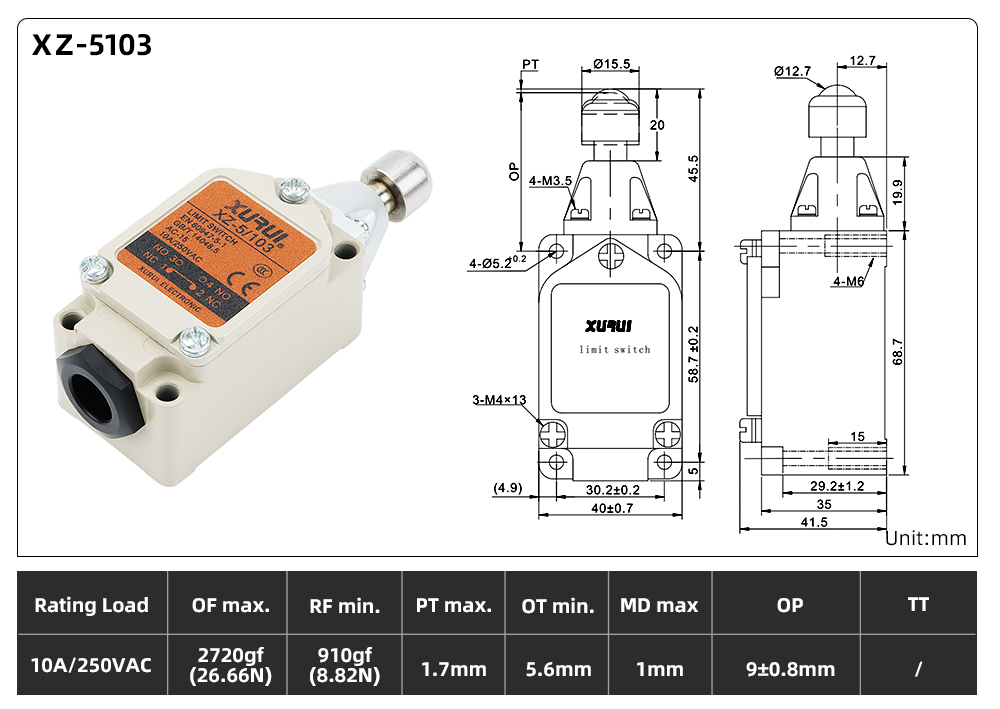

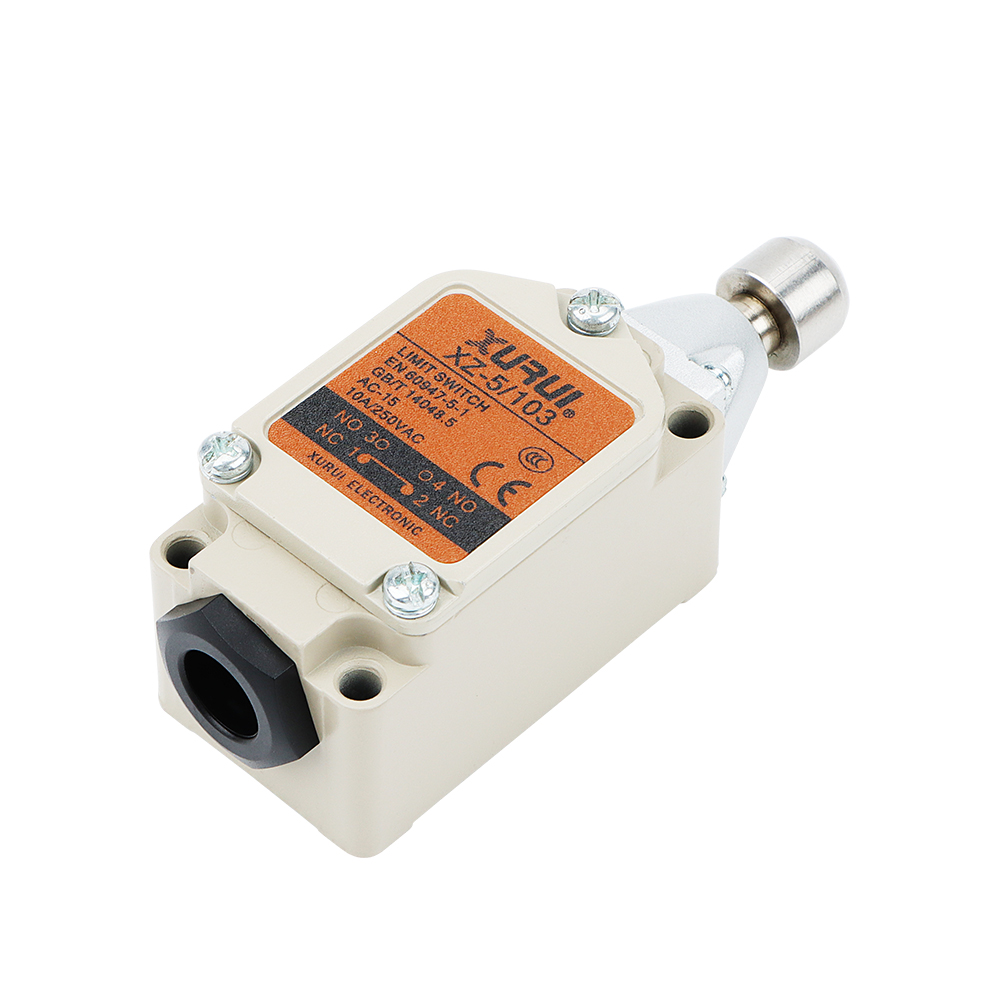

XZ-5103
Product image and selection drawing are available for comparison.

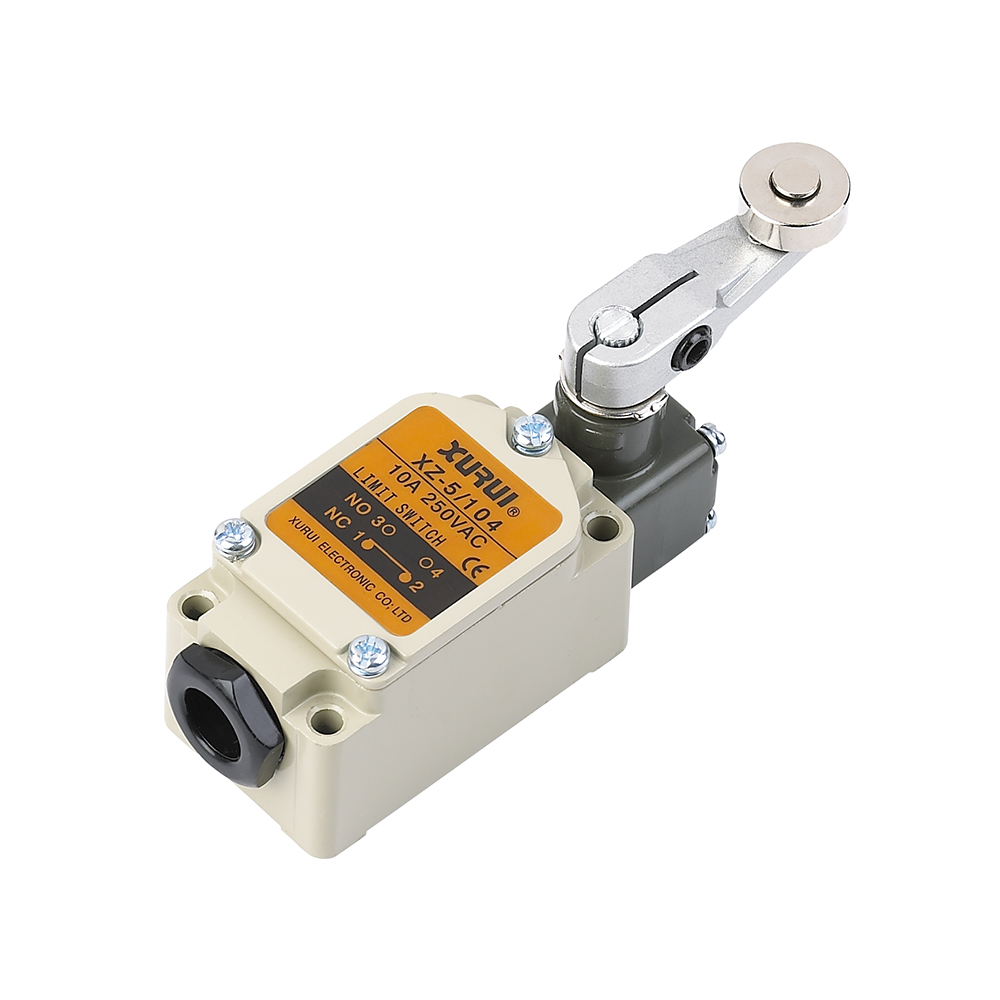

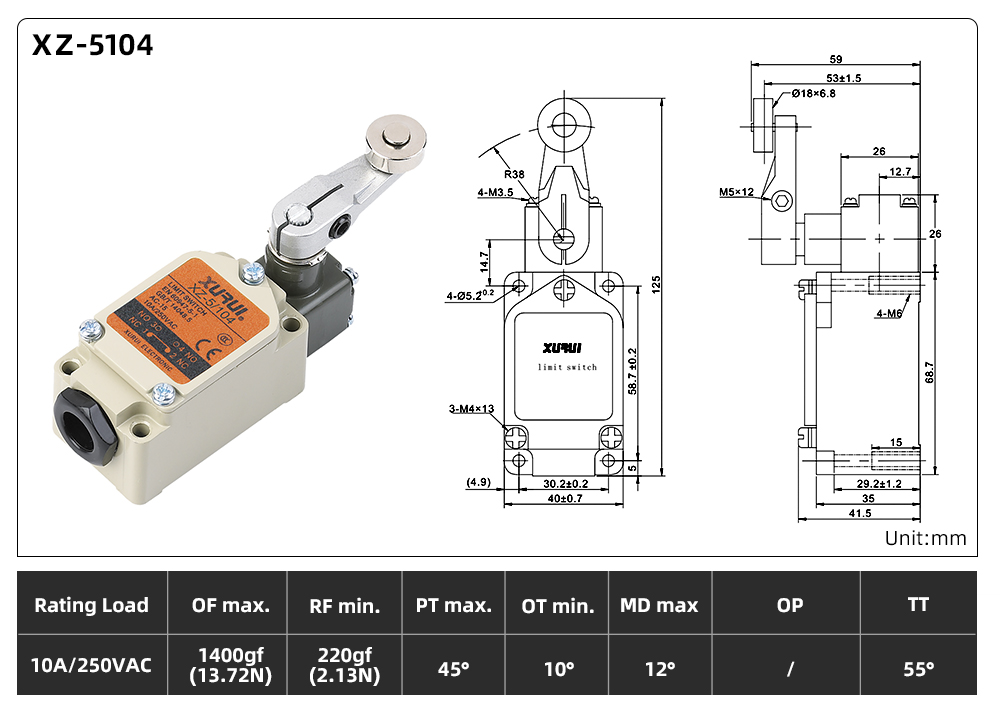

XZ-5104
Product image and selection drawing are available for comparison.

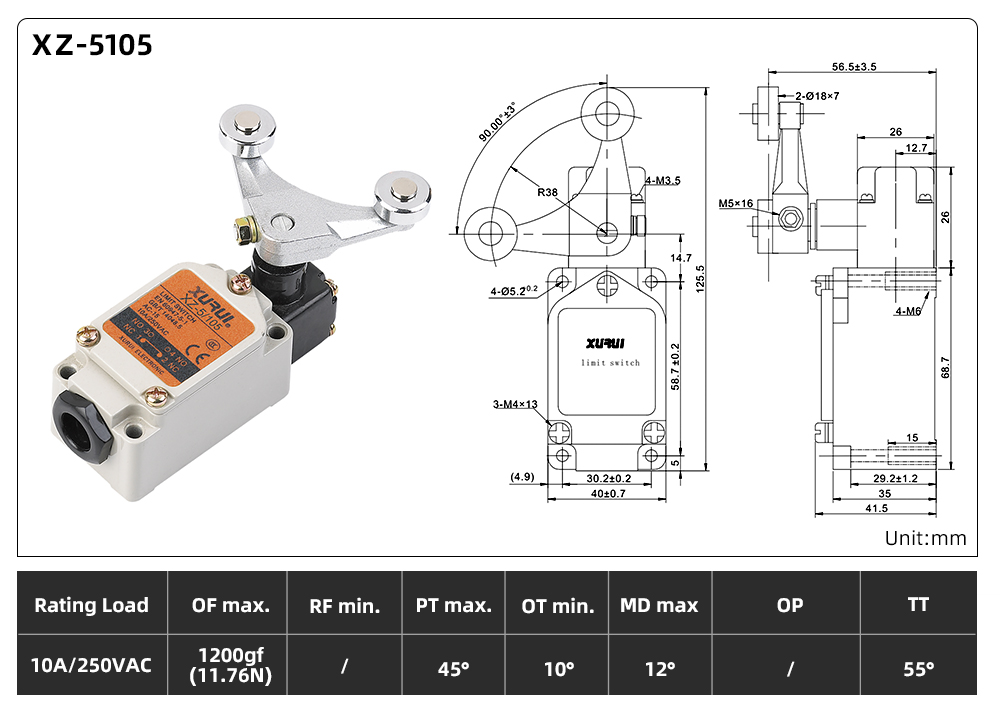

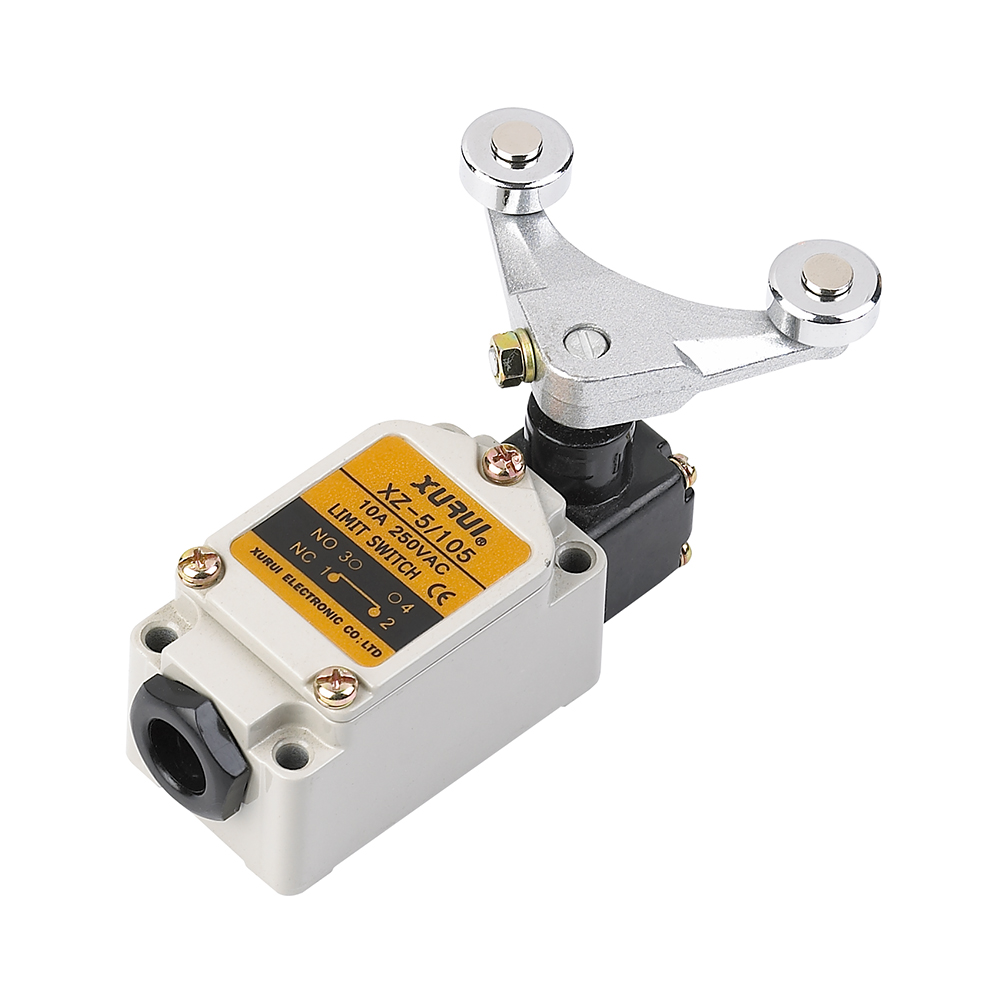

XZ-5105
Product image and selection drawing are available for comparison.

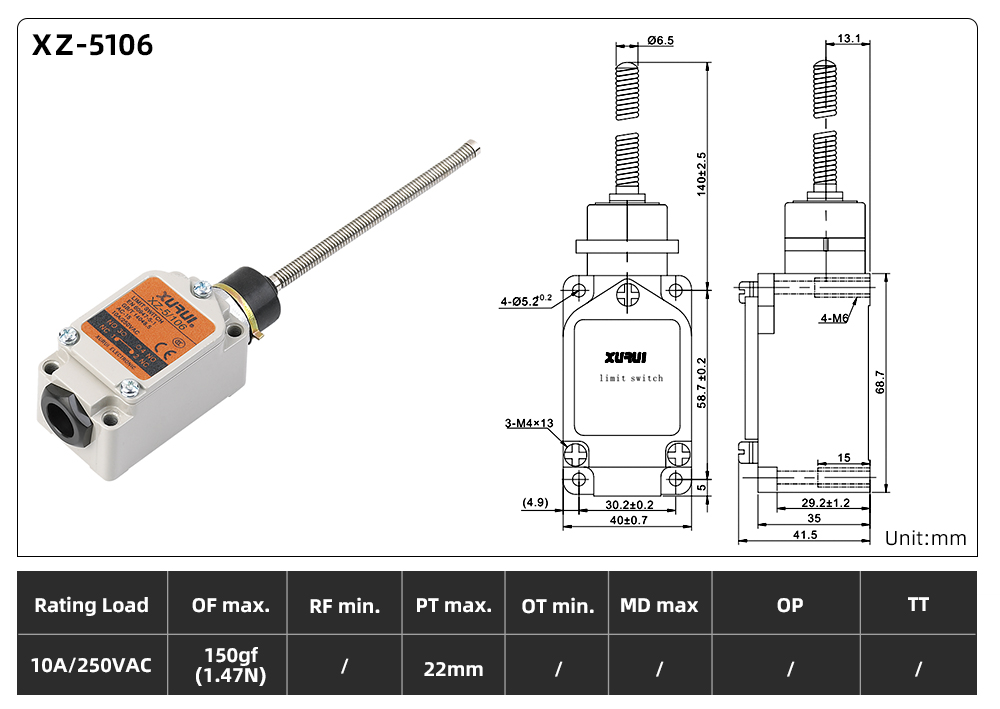

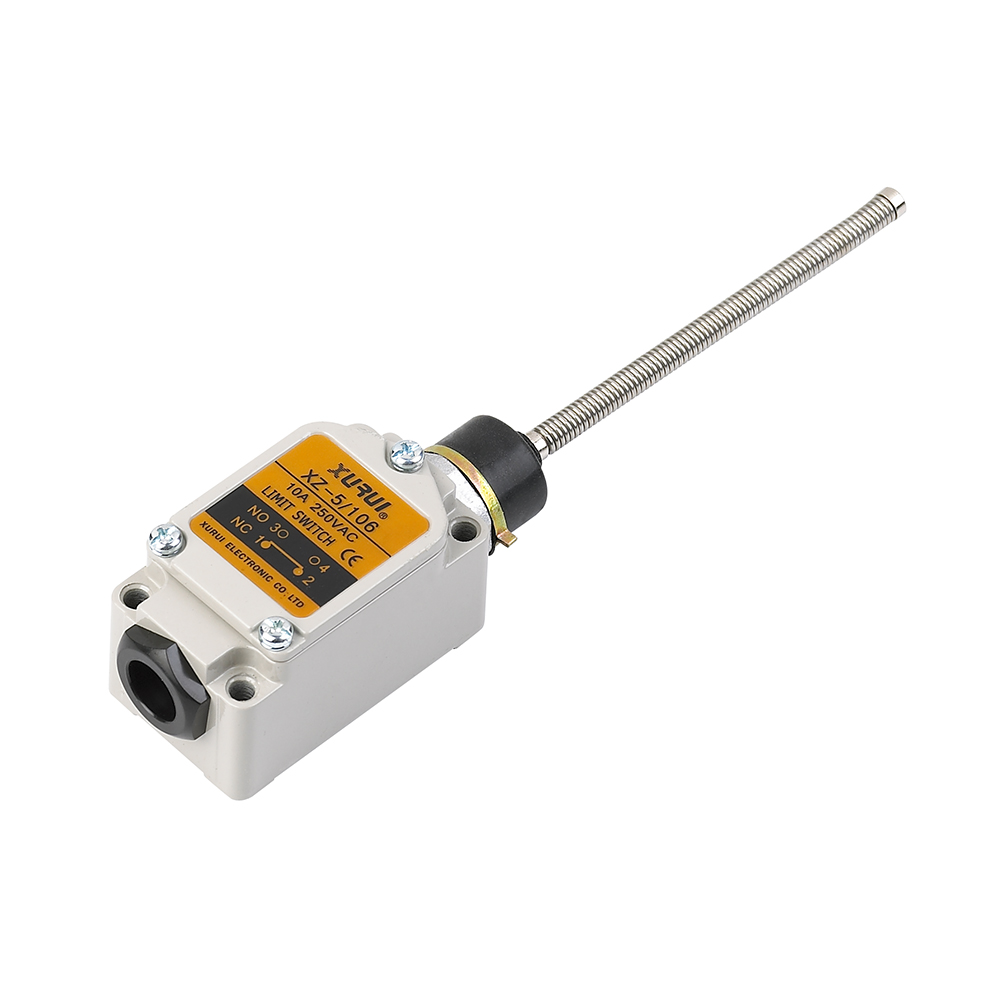

XZ-5106
Product image and selection drawing are available for comparison.

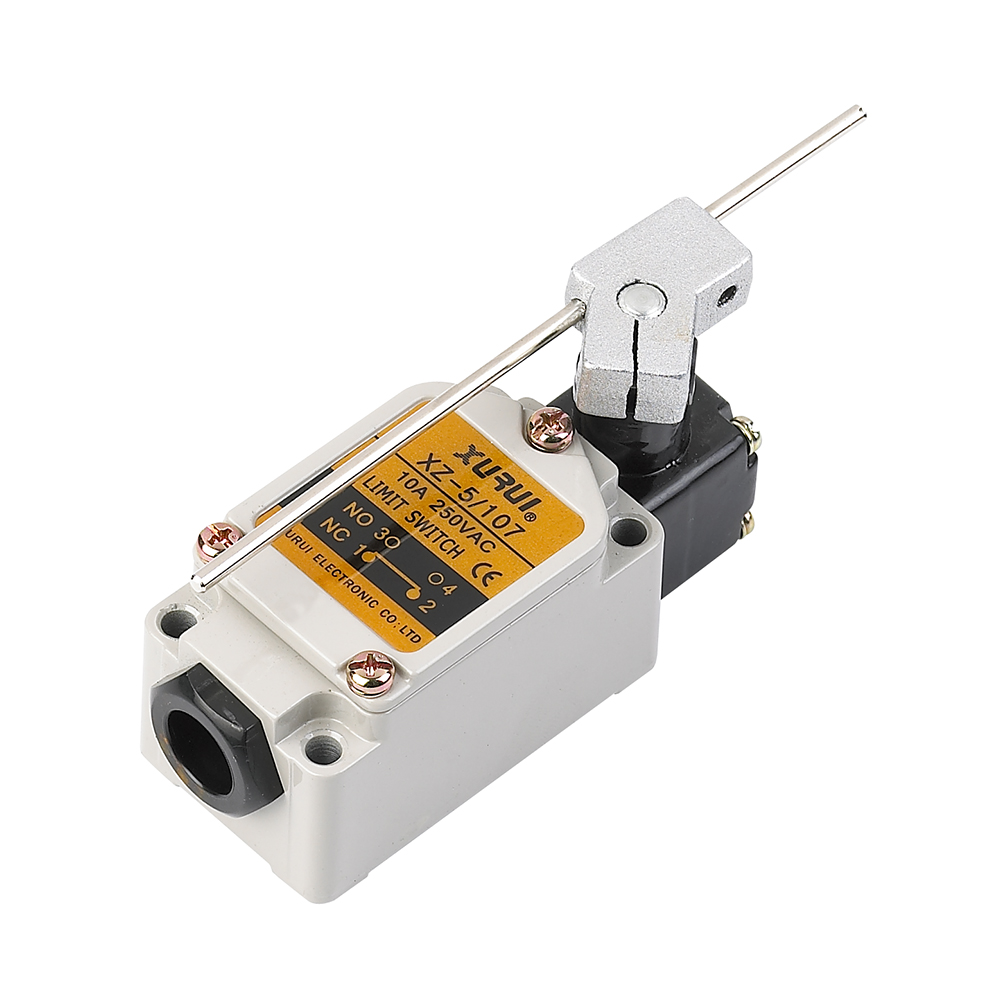

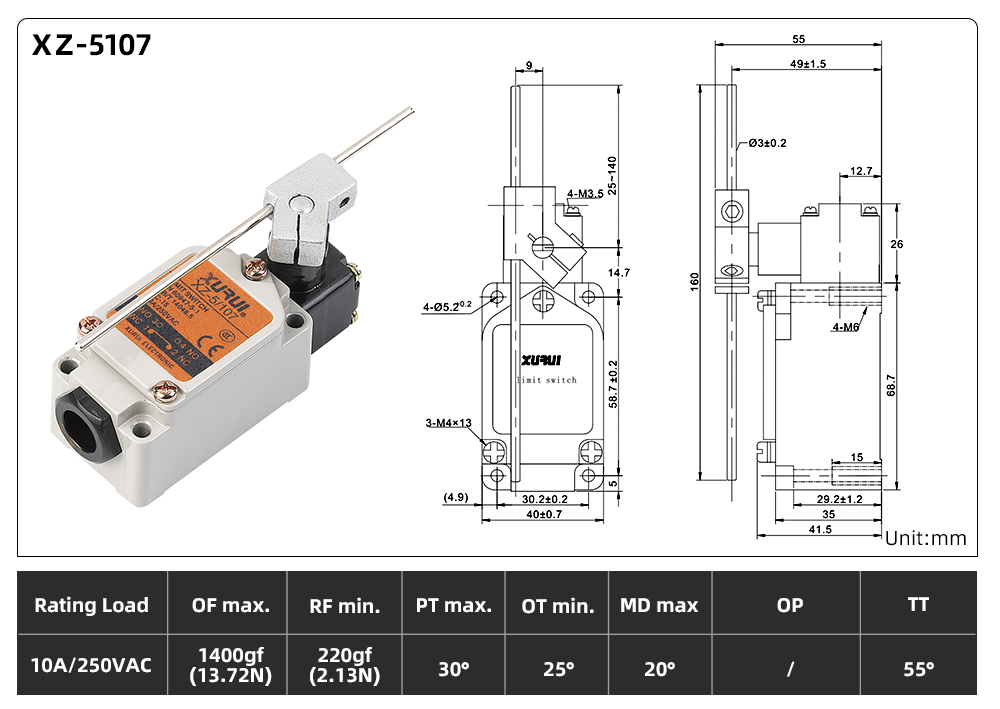

XZ-5107
Product image and selection drawing are available for comparison.

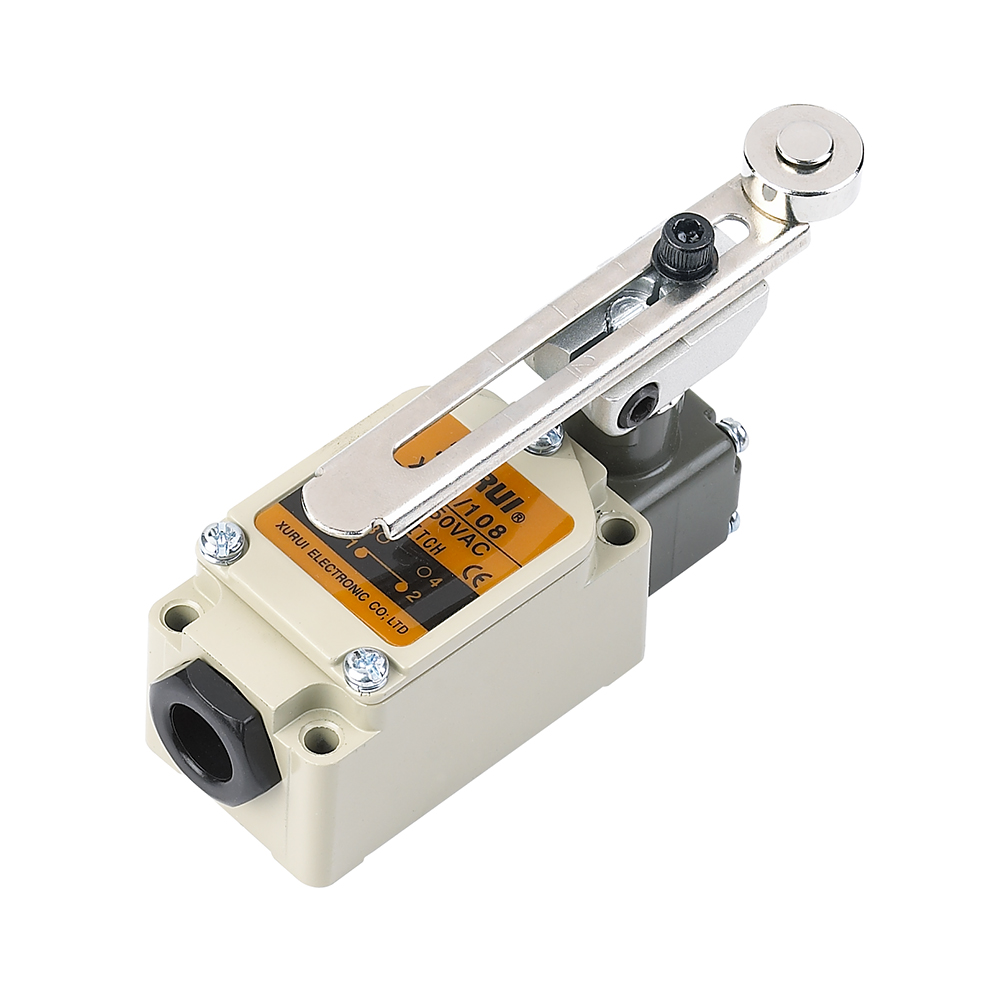

XZ-5108
Product image and selection drawing are available for comparison.

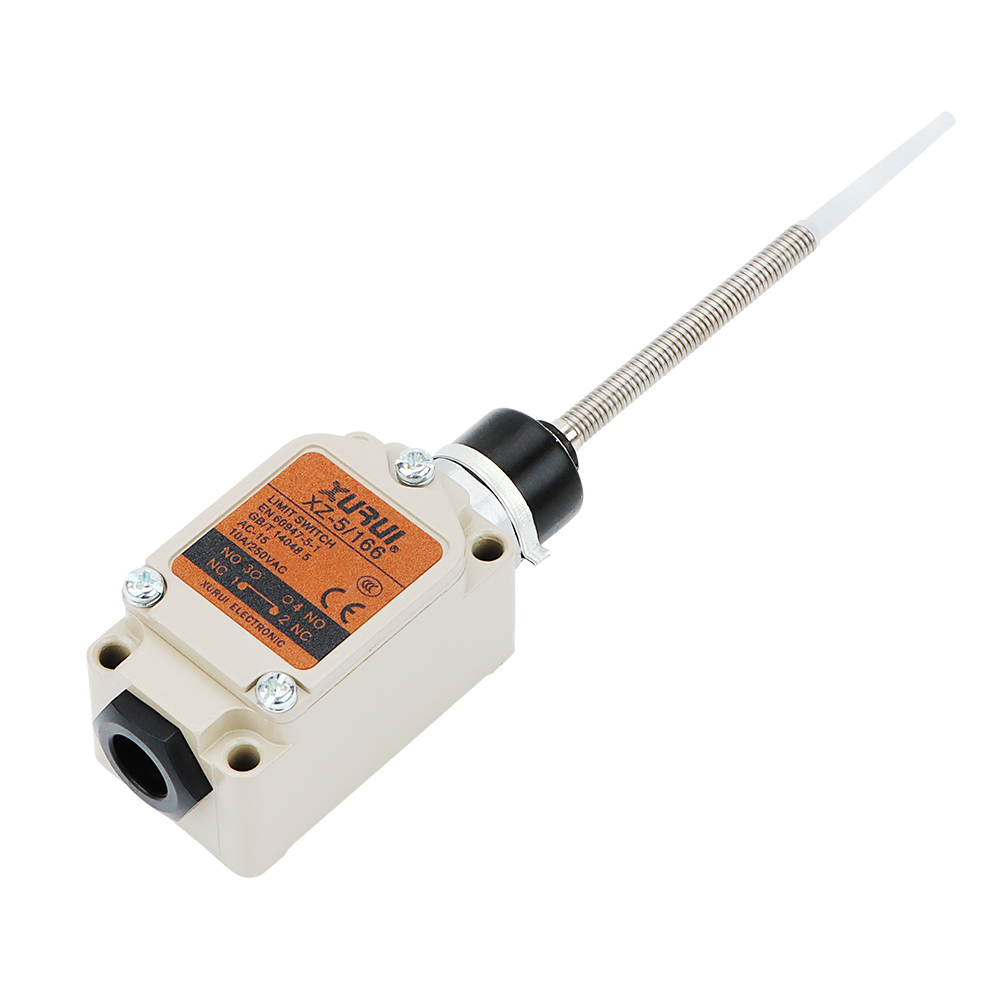

XZ-5166
Product image and selection drawing are available for comparison.

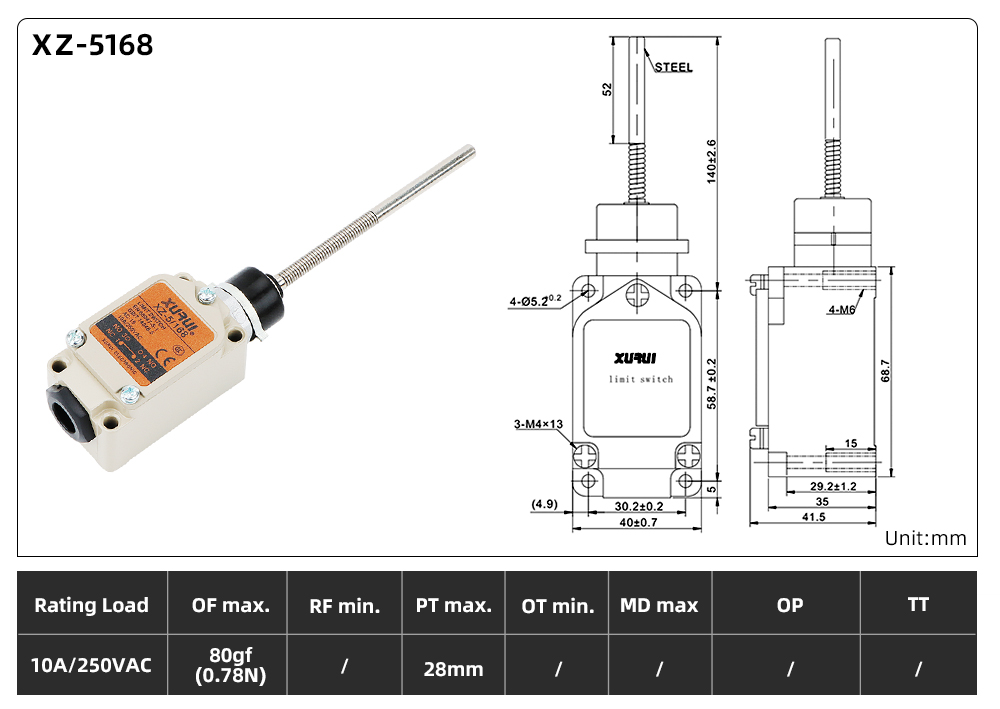

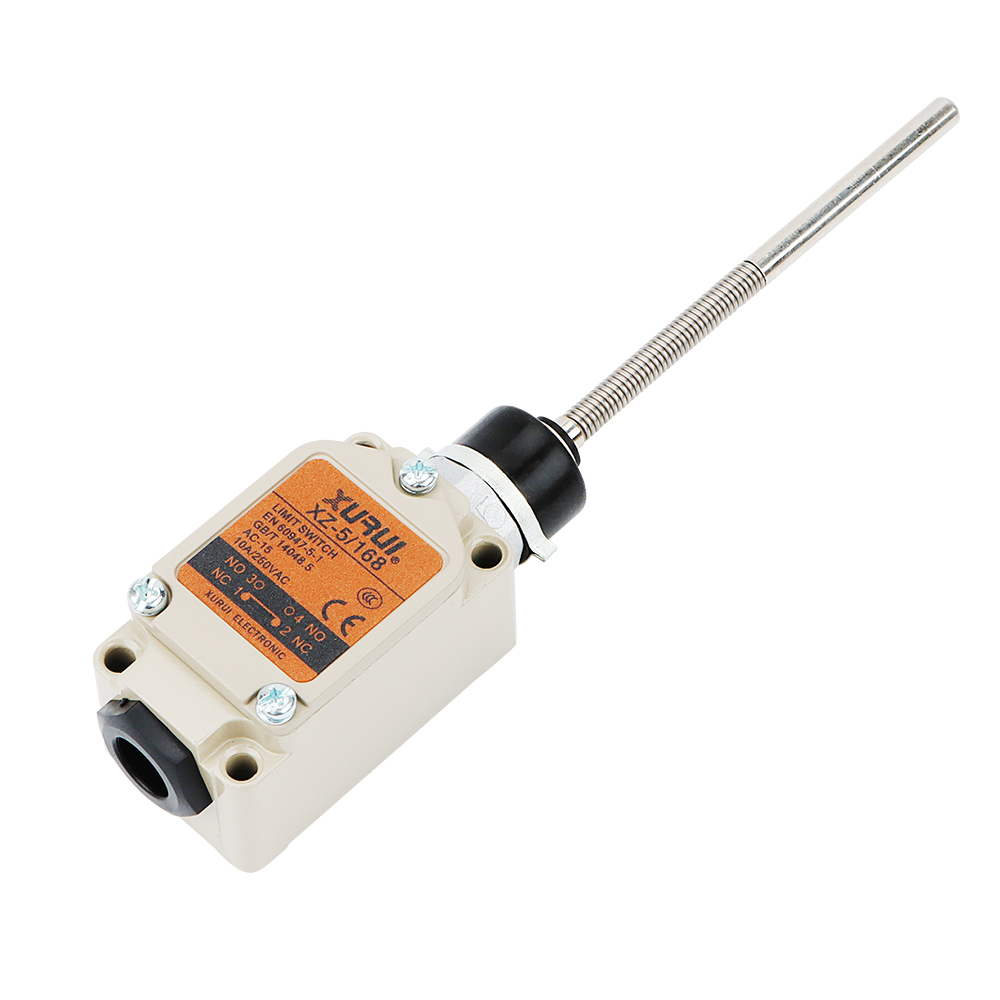

XZ-5168
Product image and selection drawing are available for comparison.

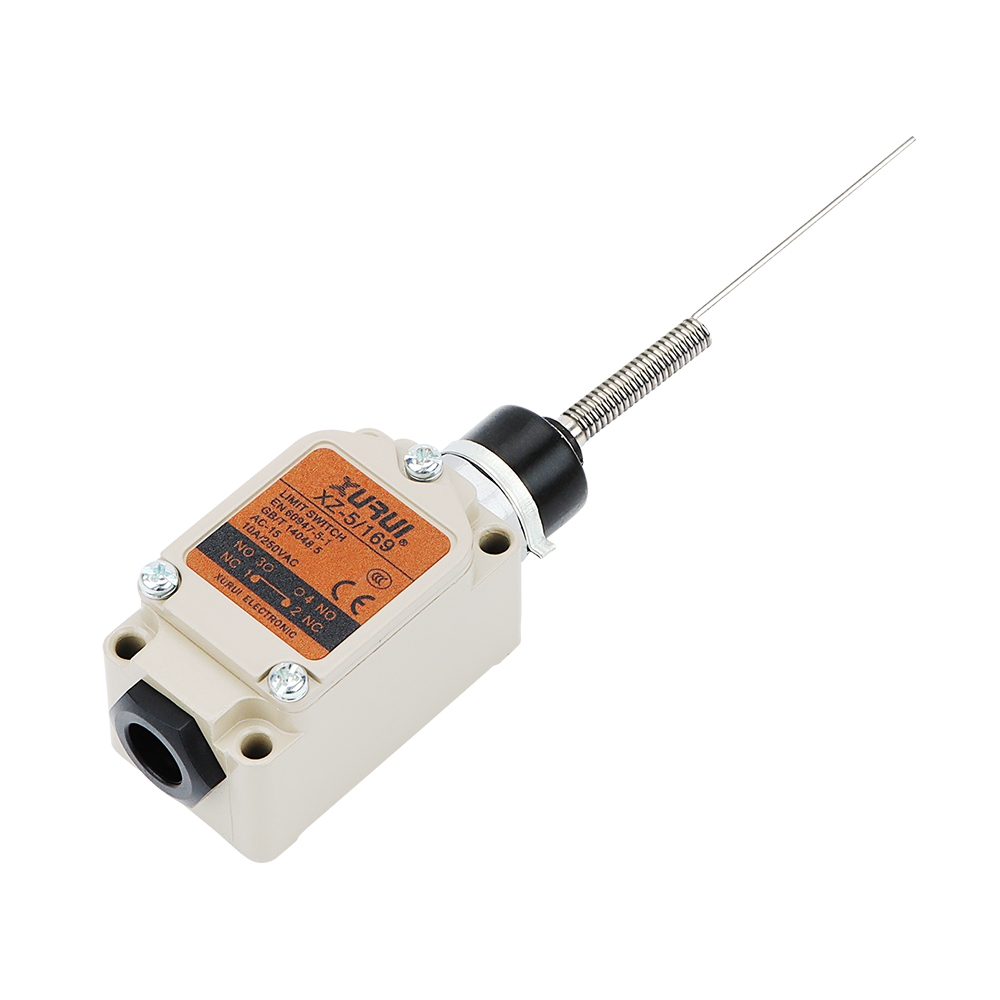

XZ-5169
Product image and selection drawing are available for comparison.
Published XZ5 series data for technical shortlisting
| Decision field | Current information / required input | Status |
|---|---|---|
| Rated load | 10A at 250VAC public-series value | Published / series-level |
| Operating speed | 1 mm/s to 1 m/s | Published / series-level |
| Protection | IP66 public-series value | Published / series-level |
| Mechanical durability | ≥1,000,000 operations | Published / series-level |
| Electrical durability | ≥100,000 operations | Published / series-level |
| Ambient temperature | -10°C to +80°C | Published / series-level |
| Exact operating head | Plunger, roller, lever, rod and head orientation | Exact suffix review required |
| Movement data | Direction, speed, pretravel and overtravel | Exact suffix review required |
| Installation interface | Mounting holes, housing, entry and cable | Exact suffix review required |
| Approval scope | Certificate must cover exact model and rating | Exact suffix review required |
Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XZ5 Series code
Match the plunger, roller, lever or rod to motion direction and target speed.
Confirm pretravel, overtravel and return mechanics; do not use the switch as a hard stop.
Verify housing, sealing, cable entry, mounting holes and installation orientation.
Confirm contact logic, load, switching frequency and model-specific certification.
Where this series can be evaluated
Equipment travel limits
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Conveyors and lifting equipment
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Industrial door mechanisms
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
General machinery
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Verify the complete model before design release
Define the function
Describe the target motion or load, control logic and failure consequence.
Confirm the environment
Specify temperature, moisture, dust, vibration, enclosure and installation orientation.
Match the exact code
Confirm actuator, terminal, contact, input/output, housing and approval suffixes.
Approve a sample
Test fit, switching behavior and thermal or mechanical margin before volume release.
Downloads and evidence for XZ5 Series
XZ-5 Limit Switch Catalog
Download the current XZ-5 Limit Switch Catalog for model selection, technical specifications and ordering information.
Product page reference
Use the product page together with the latest controlled document for the exact ordered code.
Request exact certificate scope
Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.
XZ5 Series FAQ
What information is needed to choose XZ5?
Provide mounting space, target movement, load, environment and preferred actuator.
Can it be used as a mechanical stop?
No. The switch actuator should not become the machine travel stop.
Are replacement reviews available?
Yes. Send the existing model and drawing for dimensional and electrical comparison.
