XZ9 Series Limit Switch
Compact industrial position control with multiple actuator-head configurations
The XZ9 Series is designed for compact industrial position and travel detection. Multiple actuator heads allow the platform to be matched to linear, rolling or lever-driven target movement.
Final ratings, dimensions and approvals must be confirmed against the exact model code and current controlled documents.
Compare XZ9 models
Compare available model names, product images and selection drawings. Confirm the ordered suffix against the current controlled documents.

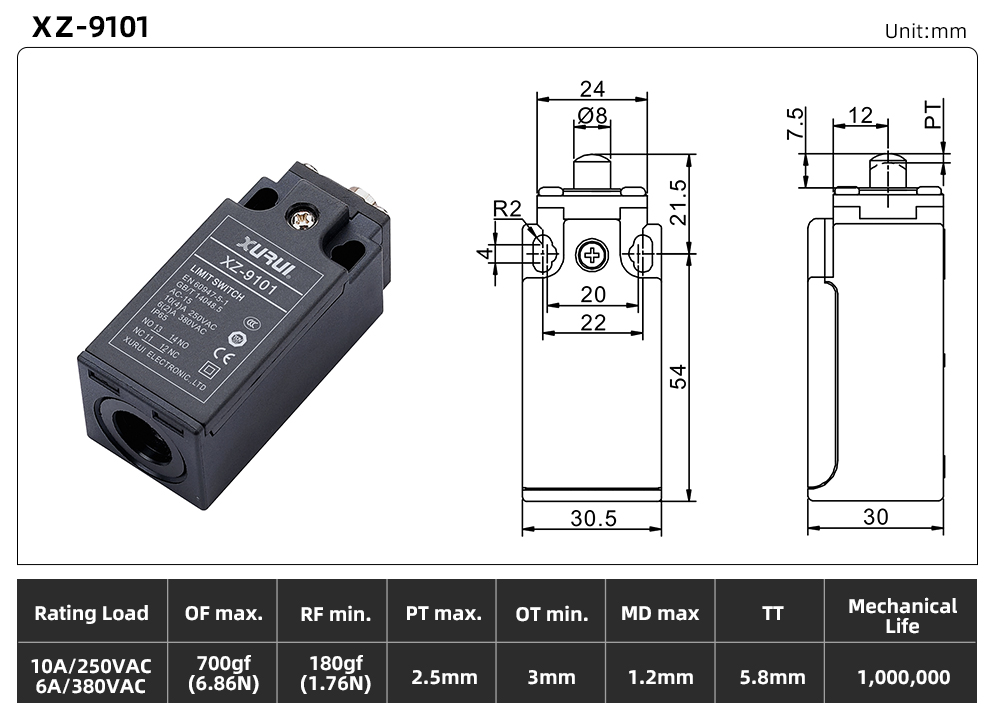

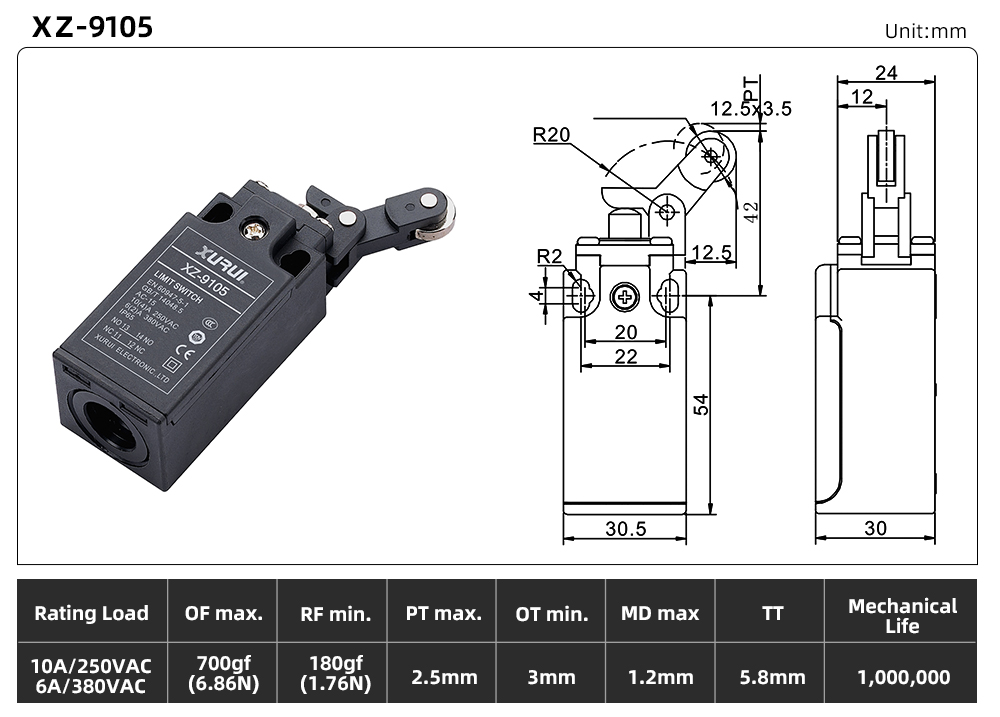

XZ-9101

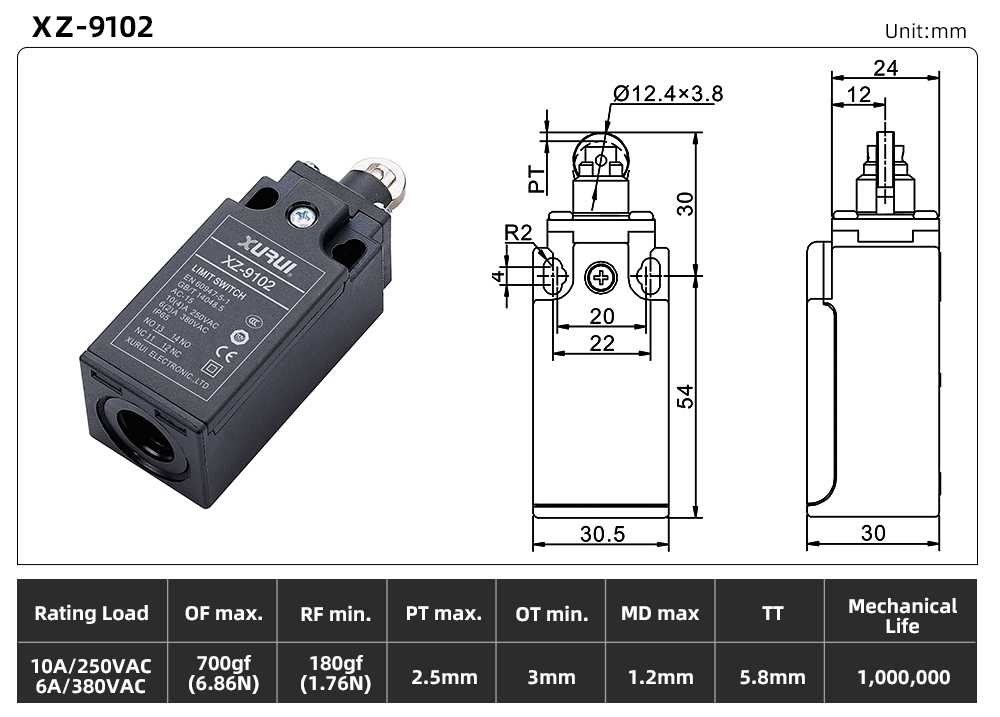

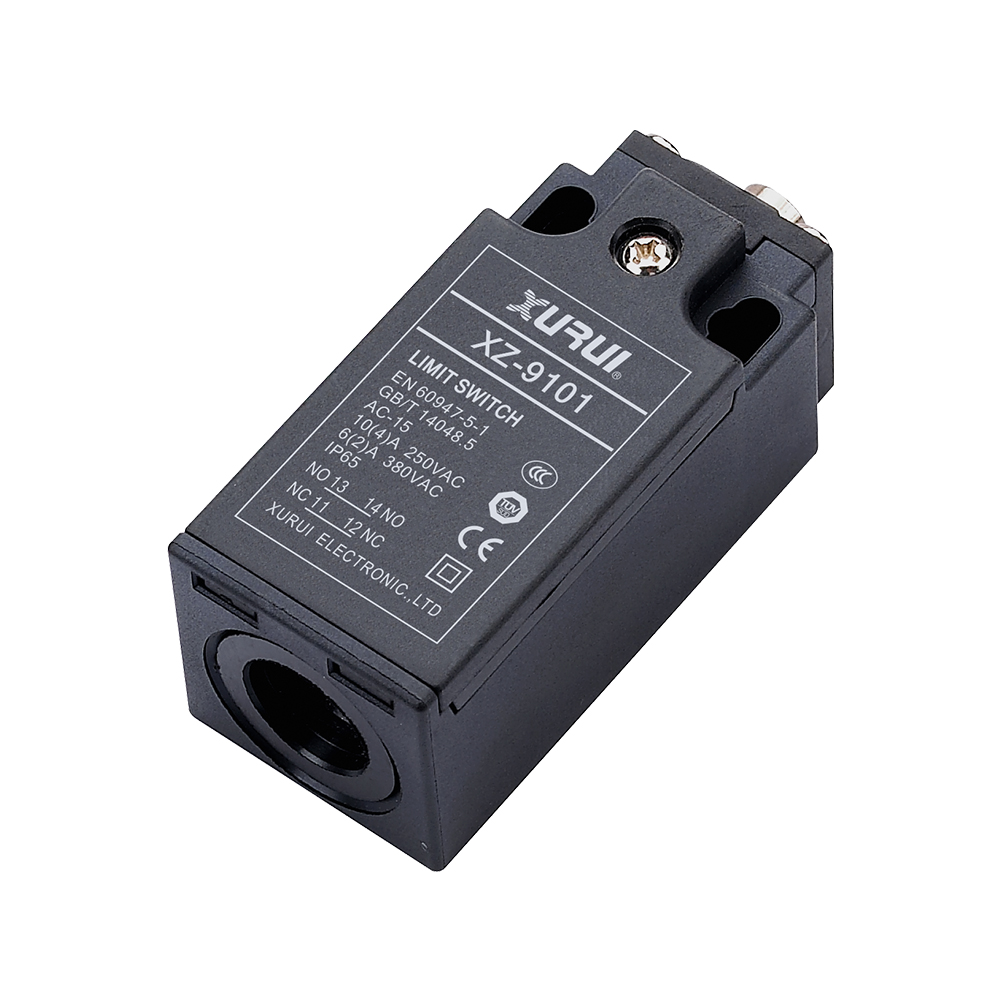

Product image and selection drawing are available for comparison.

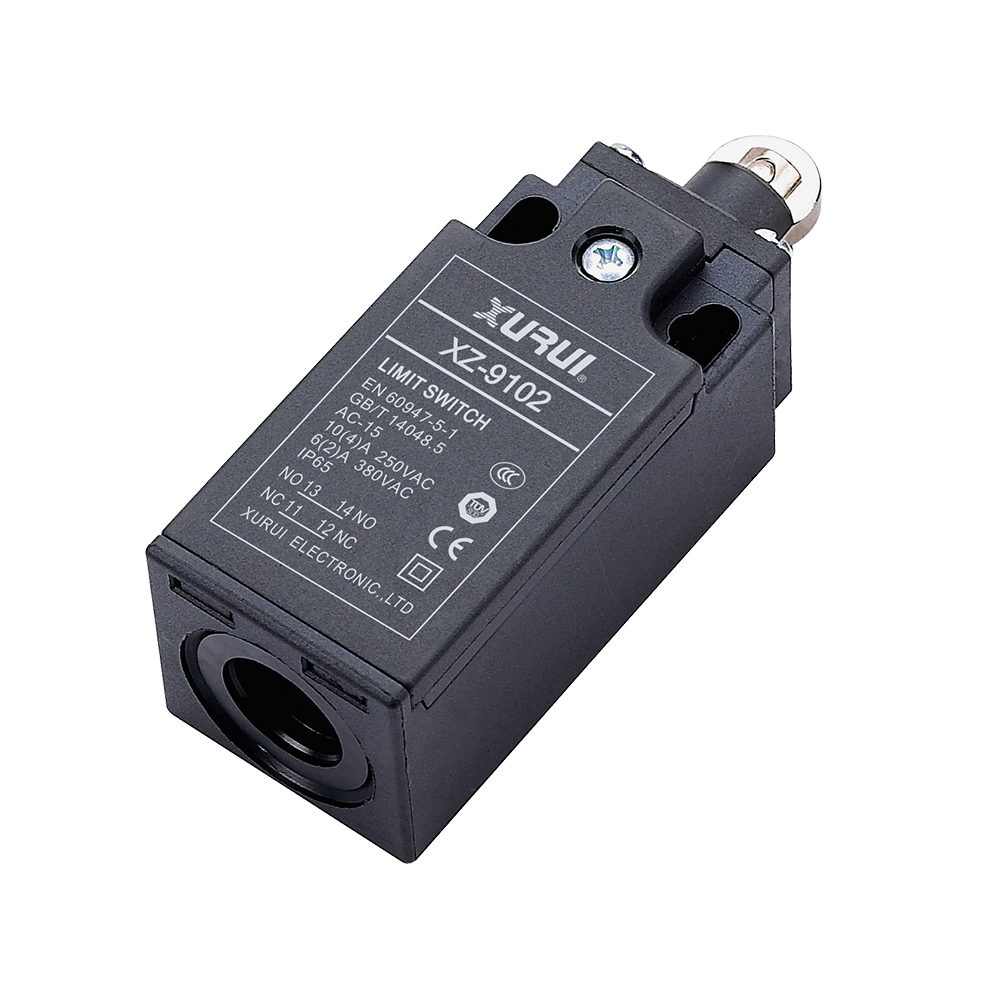

XZ-9102
Product image and selection drawing are available for comparison.

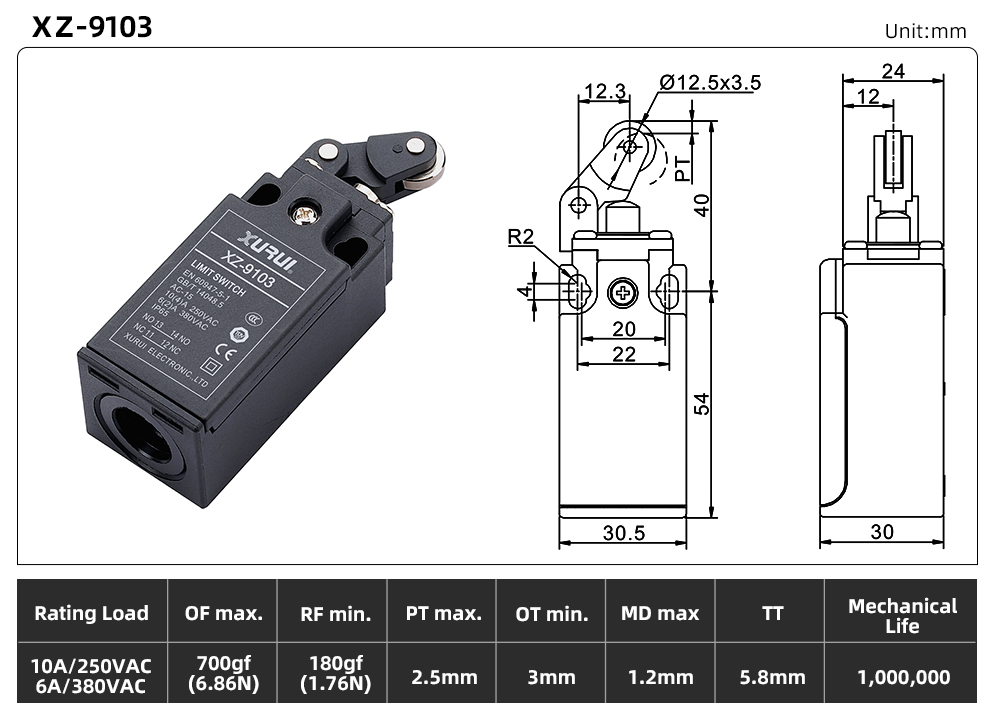

XZ-9103

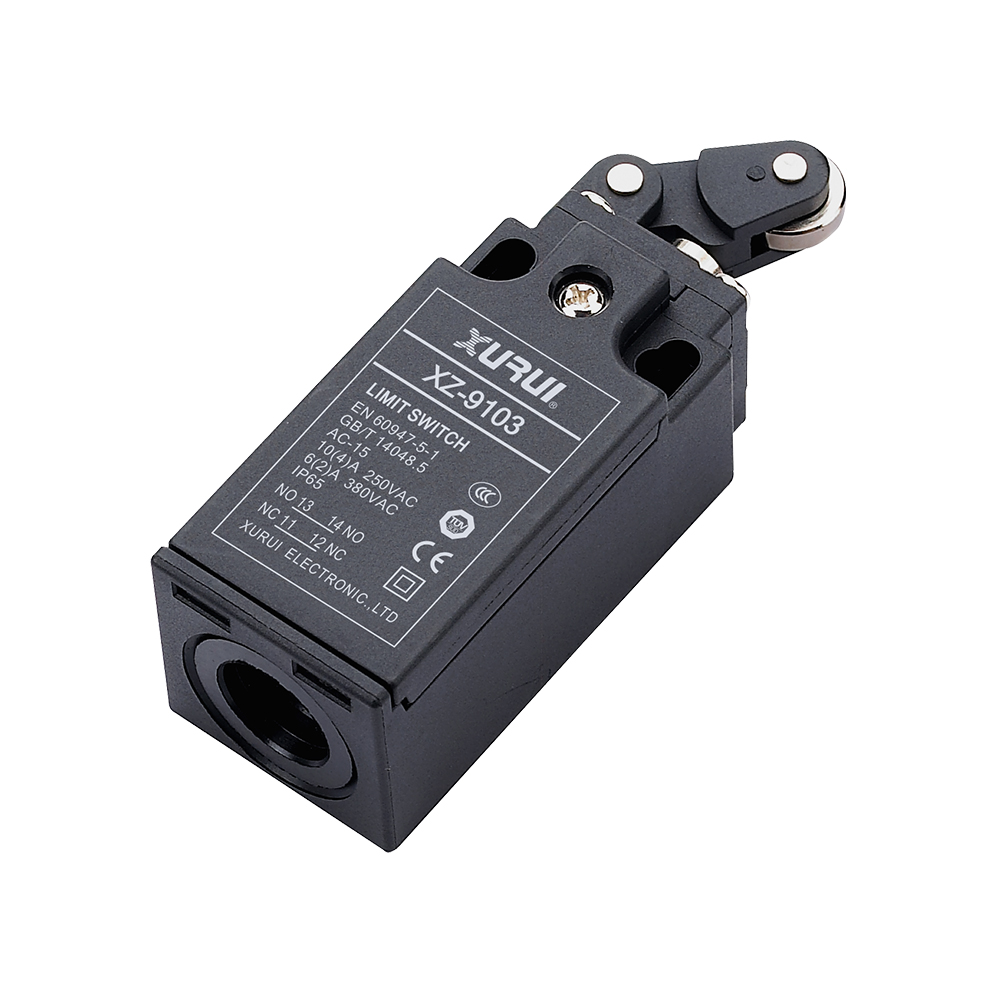

Product image and selection drawing are available for comparison.

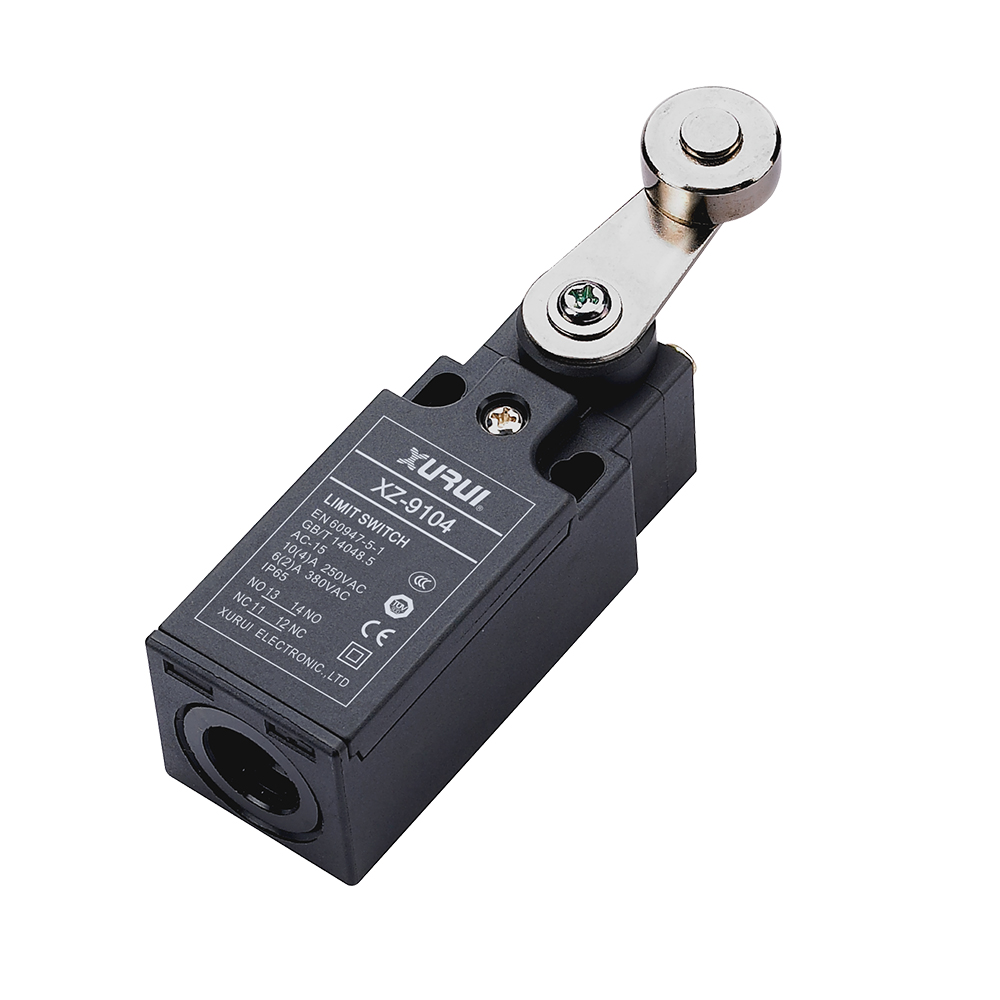

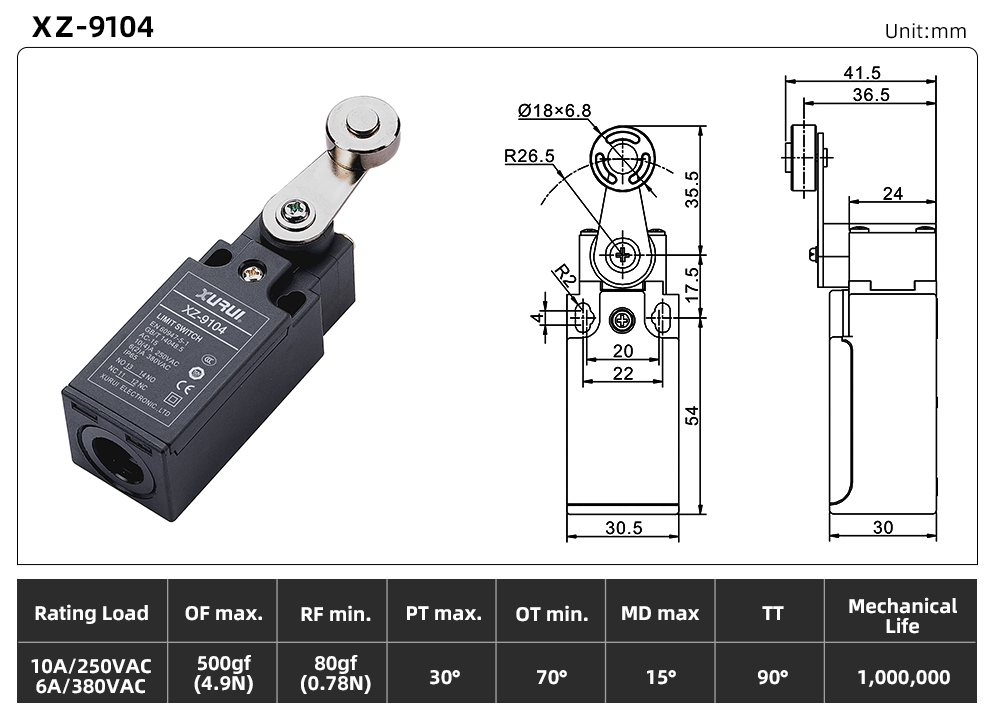

XZ-9104
Product image and selection drawing are available for comparison.
XZ-9105

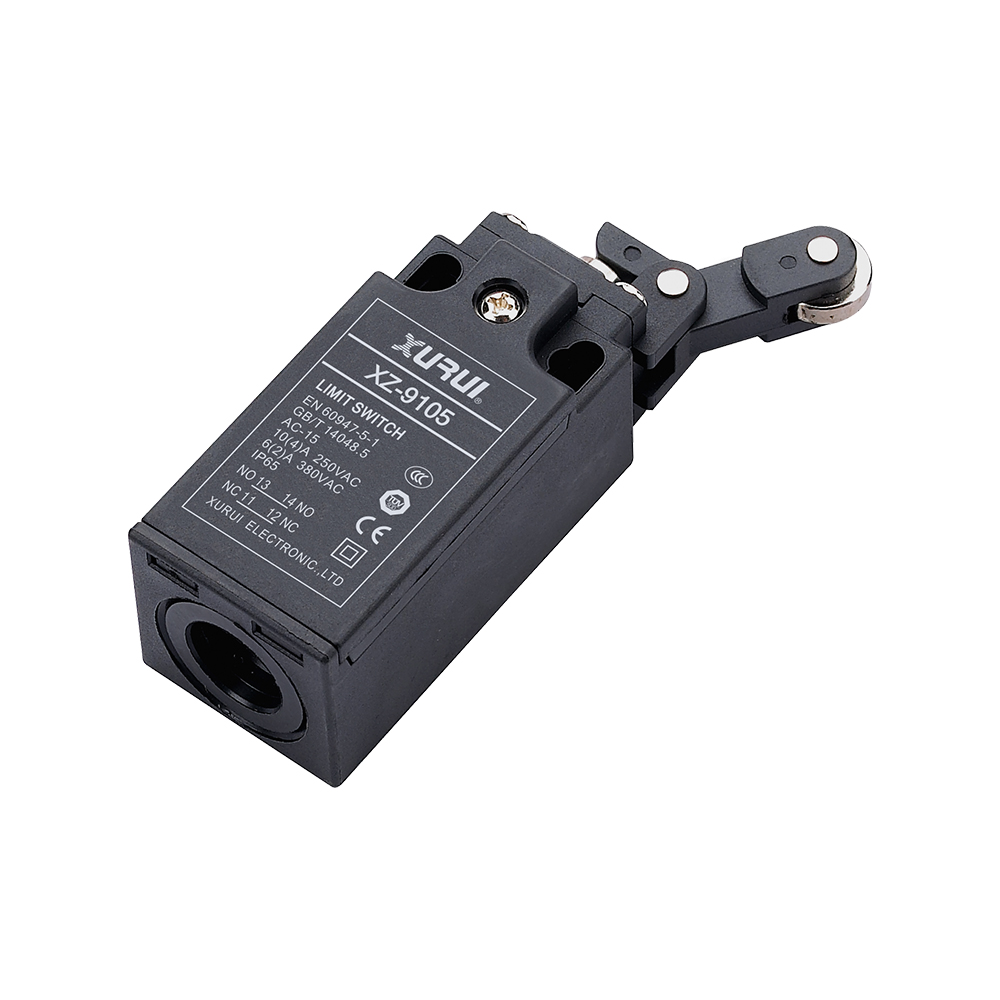

Product image and selection drawing are available for comparison.
XZ-9107

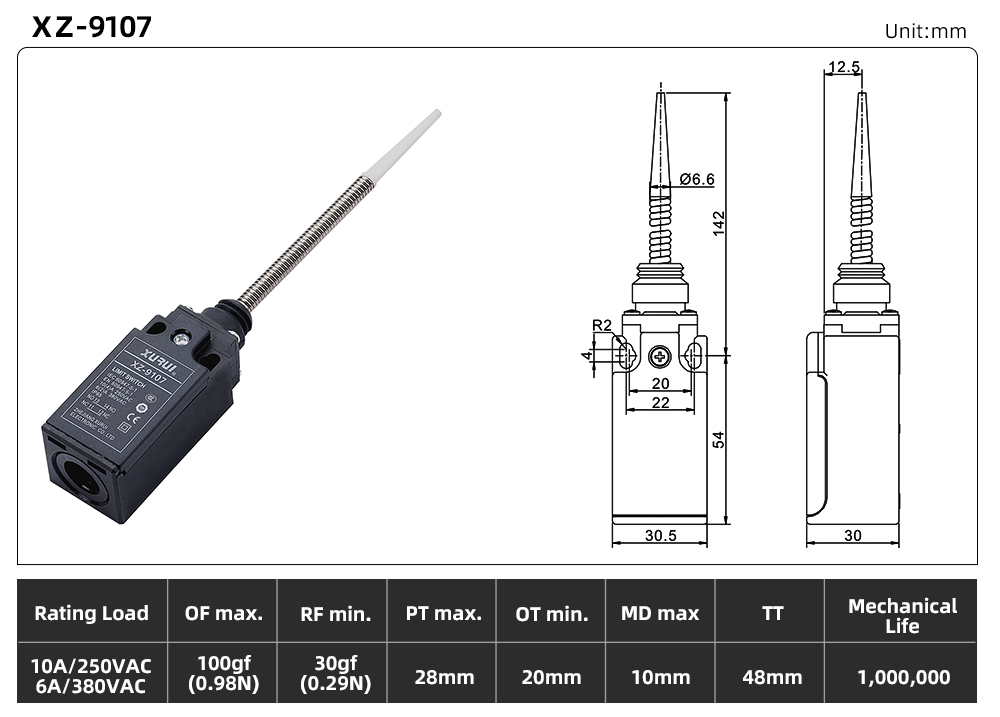

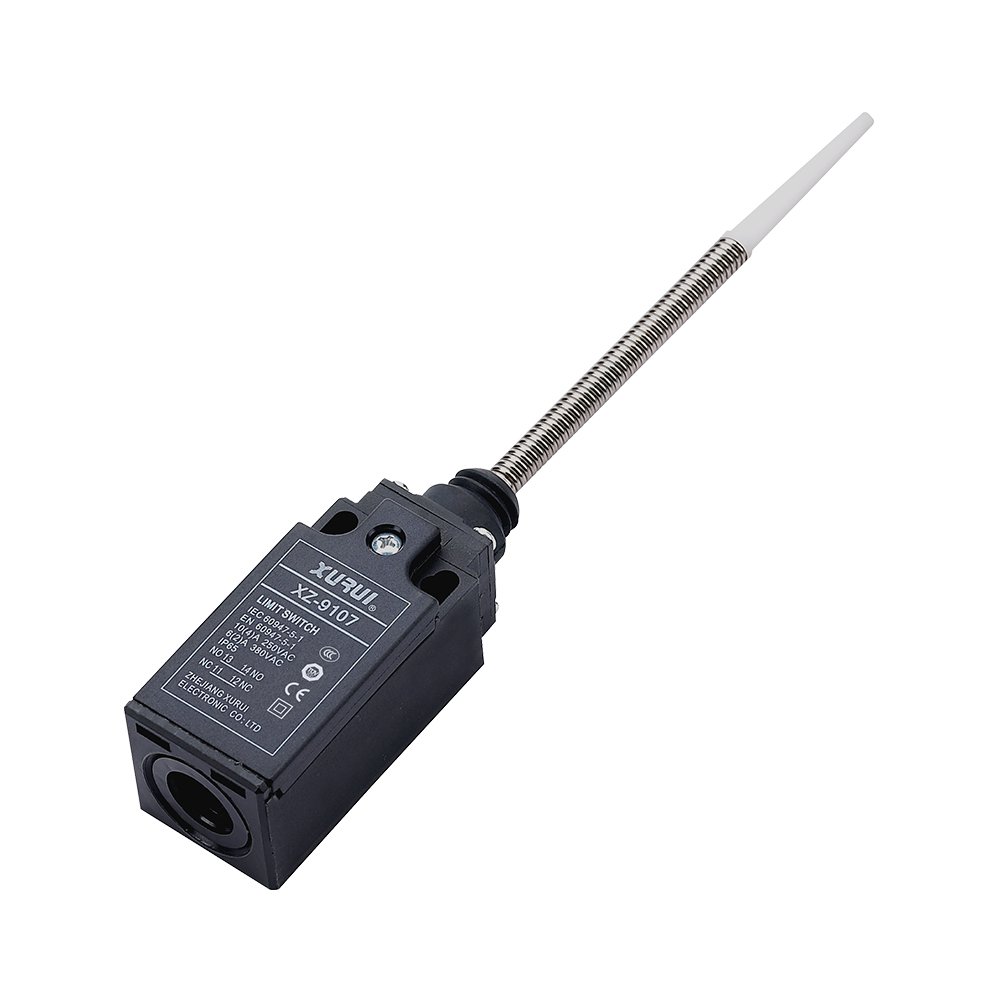

Product image and selection drawing are available for comparison.

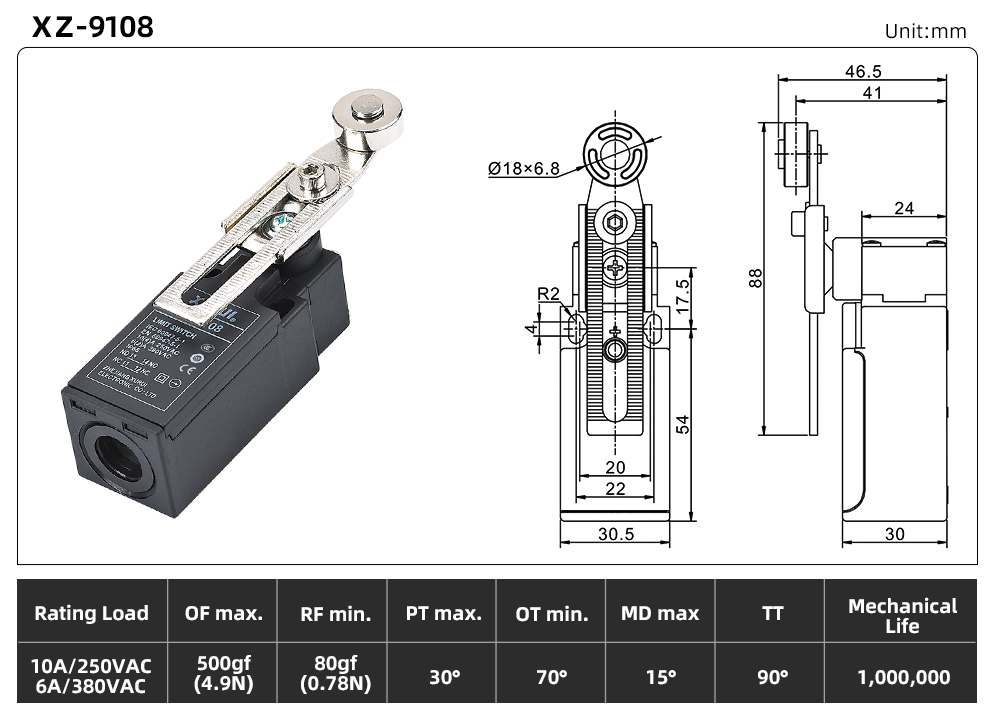

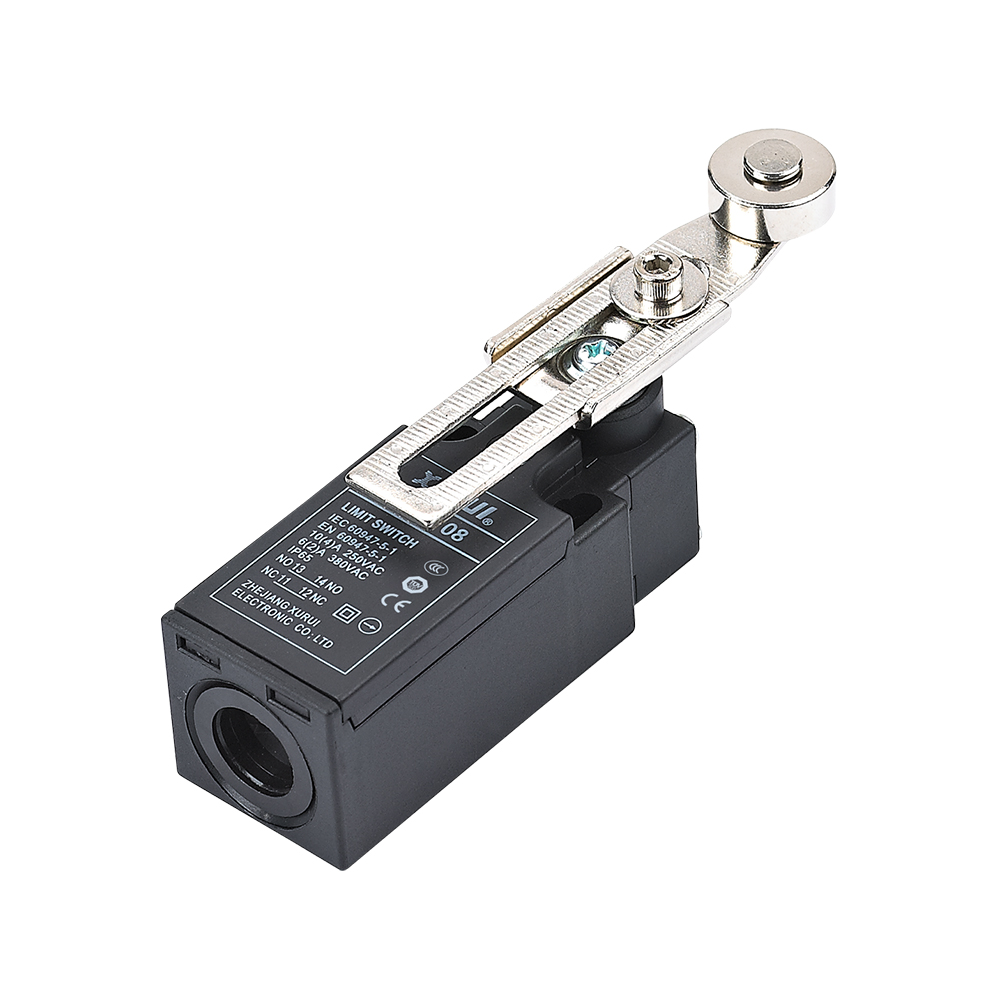

XZ-9108
Product image and selection drawing are available for comparison.

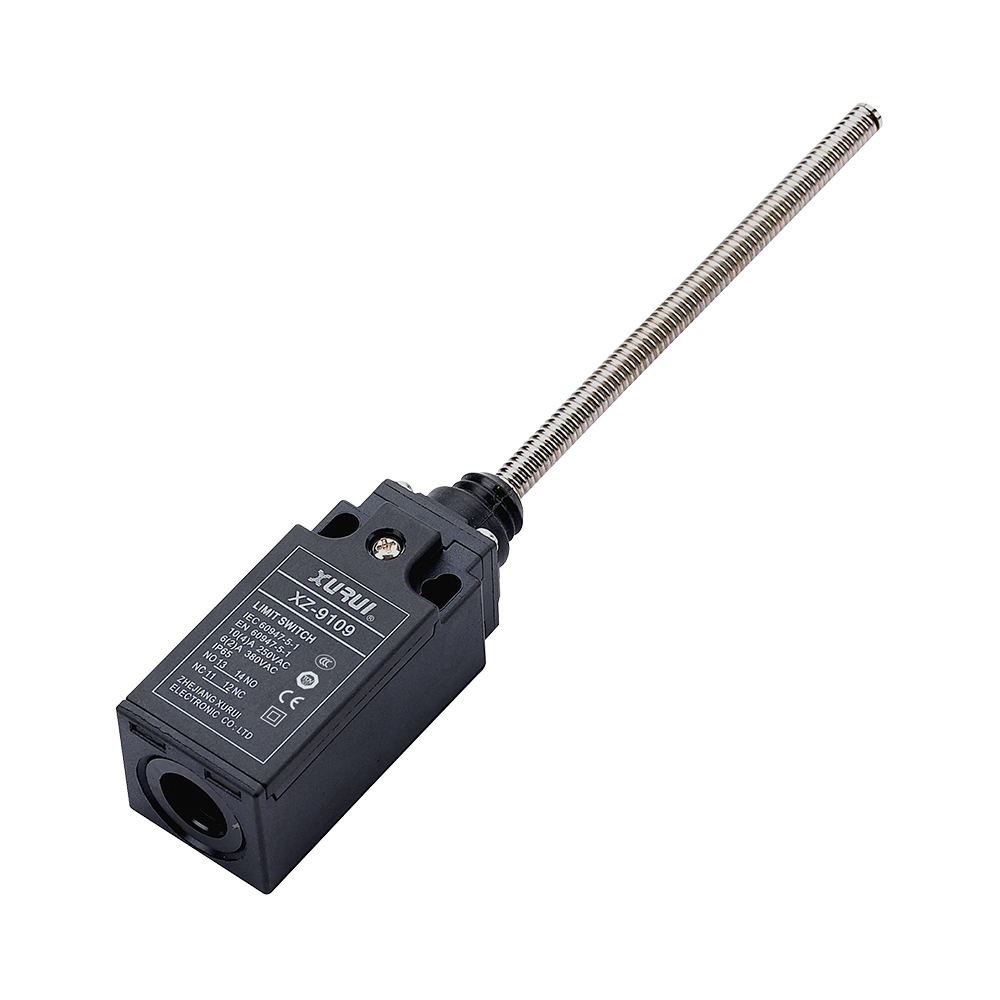

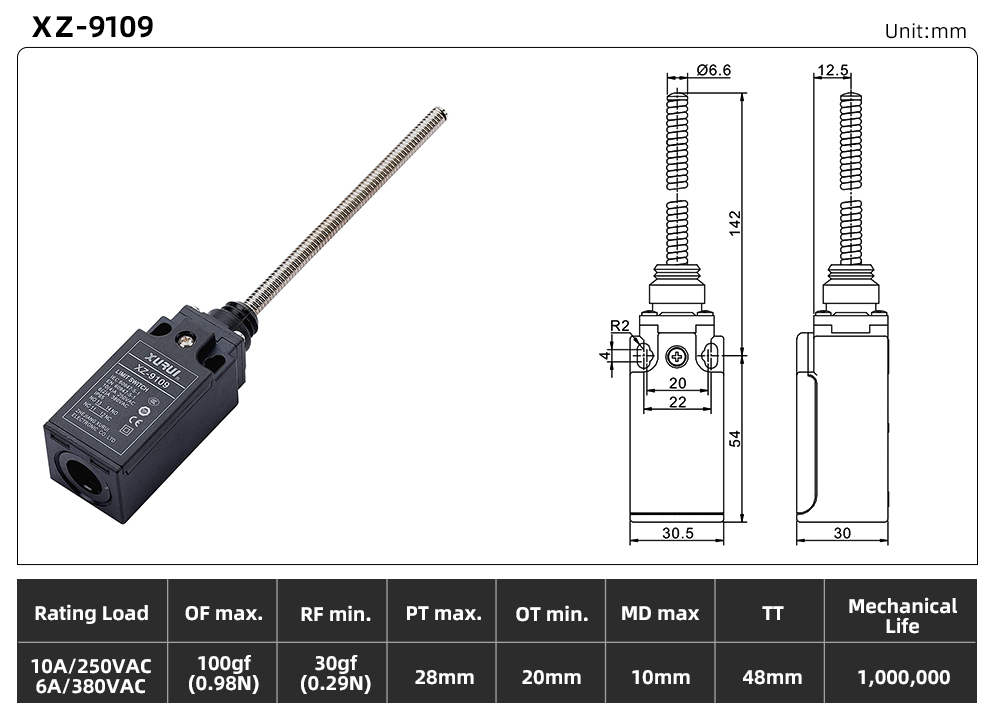

XZ-9109
Product image and selection drawing are available for comparison.

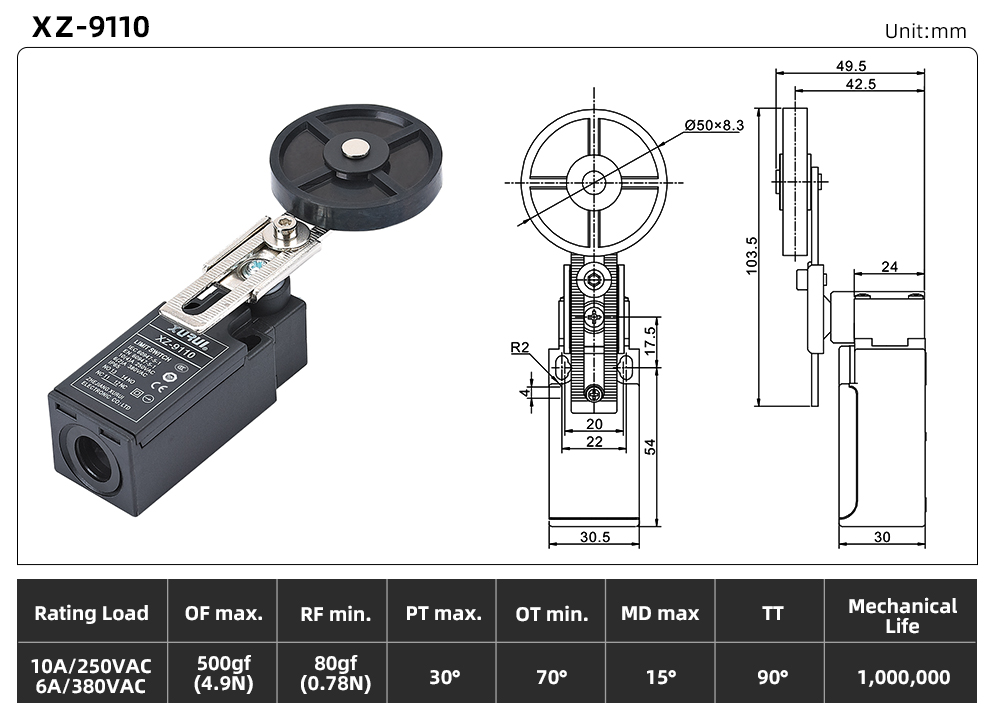

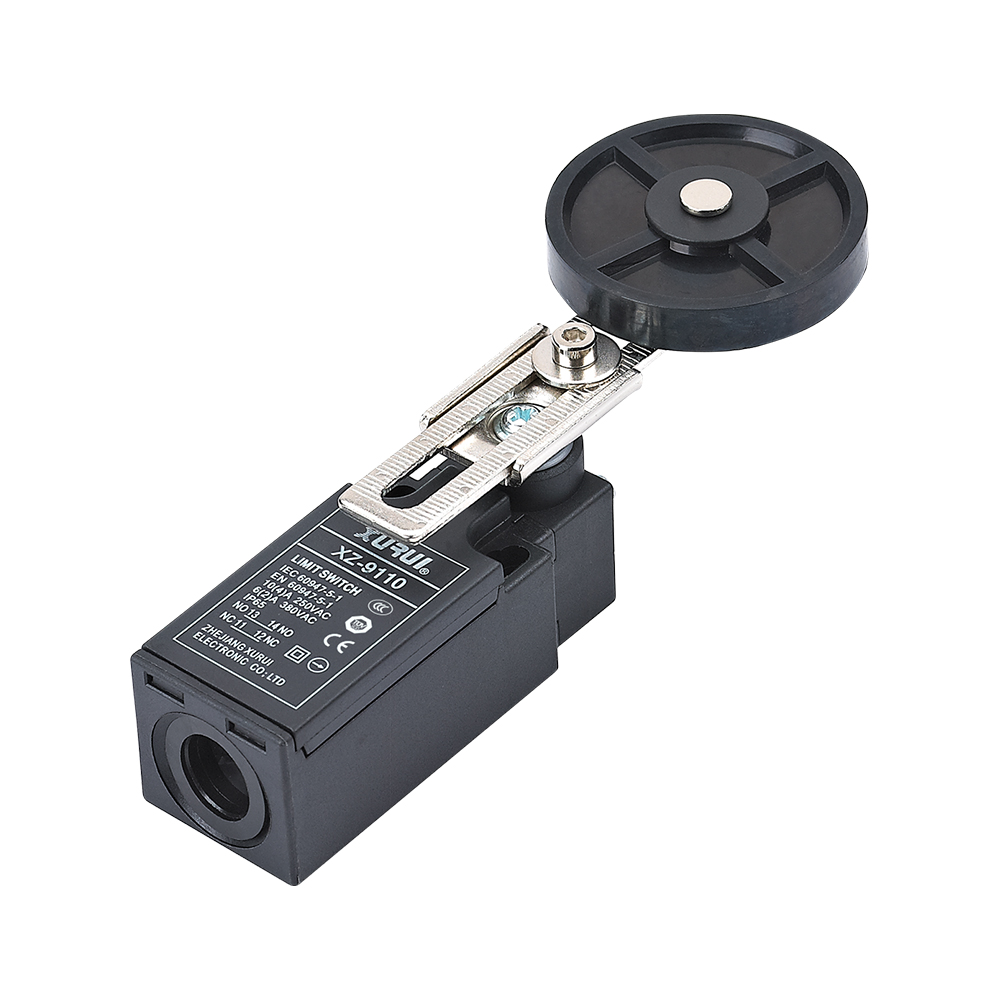

XZ-9110
Product image and selection drawing are available for comparison.
XZ-9110A

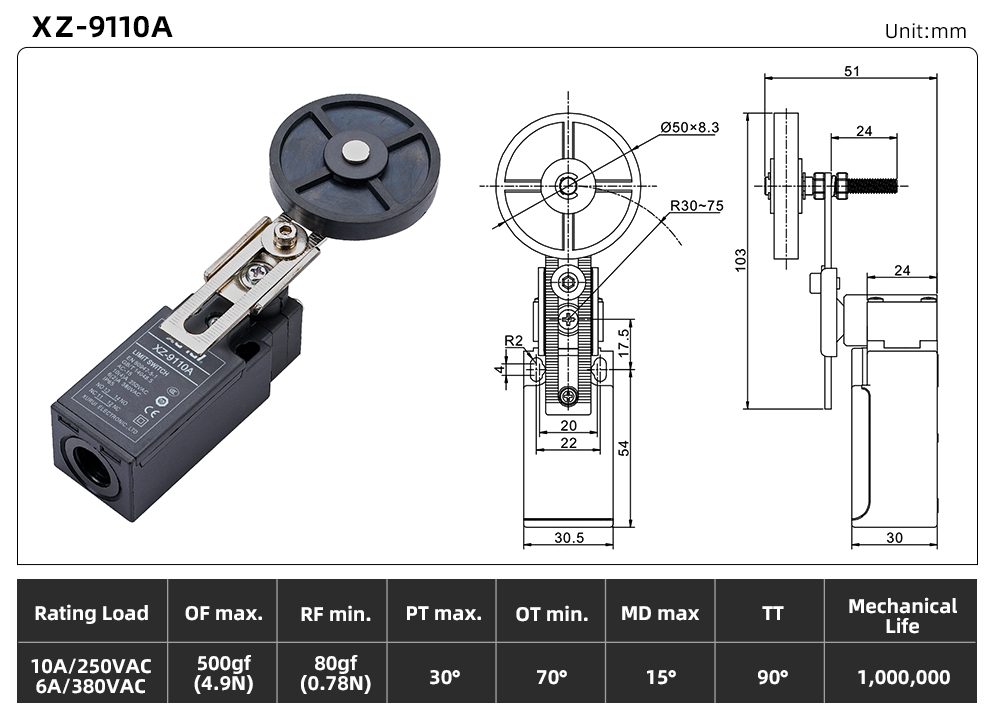

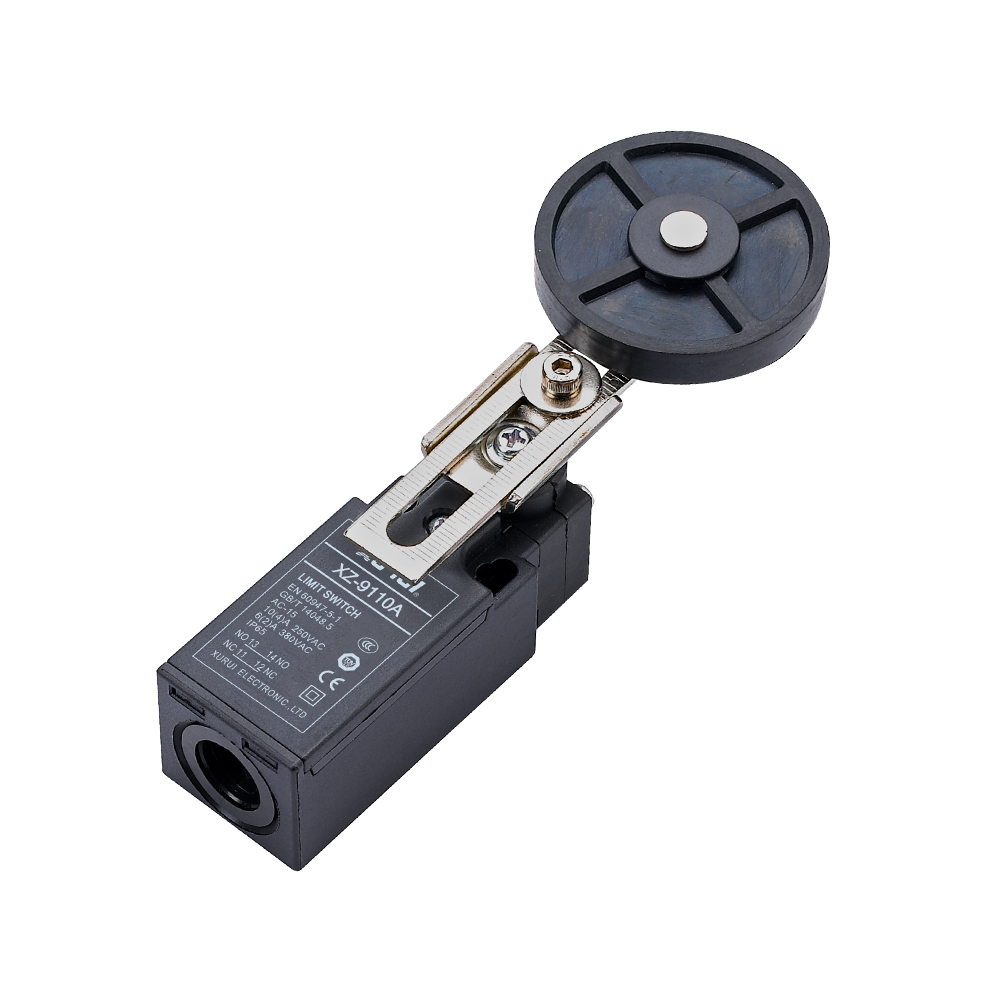

Product image and selection drawing are available for comparison.
Published XZ9 series data for technical shortlisting
| Decision field | Current information / required input | Status |
|---|---|---|
| Rated-current class | Up to 5A depending on exact model | Published / series-level |
| Contact form | 1NO + 1NC options | Published / series-level |
| Protection | IP-rated configurations available | Published / series-level |
| Actuator | Plunger, roller and lever options | Published / series-level |
| Exact operating head | Plunger, roller, lever, rod and head orientation | Exact suffix review required |
| Movement data | Direction, speed, pretravel and overtravel | Exact suffix review required |
| Installation interface | Mounting holes, housing, entry and cable | Exact suffix review required |
| Approval scope | Certificate must cover exact model and rating | Exact suffix review required |
Engineering control: Website information supports discovery and RFQ preparation. The latest model-specific XURUI datasheet, drawing, approval record and approved sample take precedence for design release and purchasing.
Information needed to identify the complete XZ9 Series code
Match the plunger, roller, lever or rod to motion direction and target speed.
Confirm pretravel, overtravel and return mechanics; do not use the switch as a hard stop.
Verify housing, sealing, cable entry, mounting holes and installation orientation.
Confirm contact logic, load, switching frequency and model-specific certification.
Where this series can be evaluated
Conveyor end-position detection
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Machine-tool travel control
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Packaging and assembly equipment
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
General OEM machinery
Confirm the exact electrical, mechanical, environmental and certification requirements before final model approval.
Verify the complete model before design release
Define the function
Describe the target motion or load, control logic and failure consequence.
Confirm the environment
Specify temperature, moisture, dust, vibration, enclosure and installation orientation.
Match the exact code
Confirm actuator, terminal, contact, input/output, housing and approval suffixes.
Approve a sample
Test fit, switching behavior and thermal or mechanical margin before volume release.
Downloads and evidence for XZ9 Series
XZ-9 Limit Switch Catalog
Download the current XZ-9 Limit Switch Catalog for model selection, technical specifications and ordering information.
Product page reference
Use the product page together with the latest controlled document for the exact ordered code.
Request exact certificate scope
Ask for the certificate or declaration that covers the ordered model, electrical rating and target market.
XZ9 Series FAQ
Is XZ9 available with different heads?
Yes. The family includes top plunger, roller plunger and lever-style formats.
Is a protected option available?
Protected configurations are presented for the family. Confirm exact housing, cable and IP rating.
Can I request a dimensional drawing?
Yes. Include the complete model code and actuator requirement.
