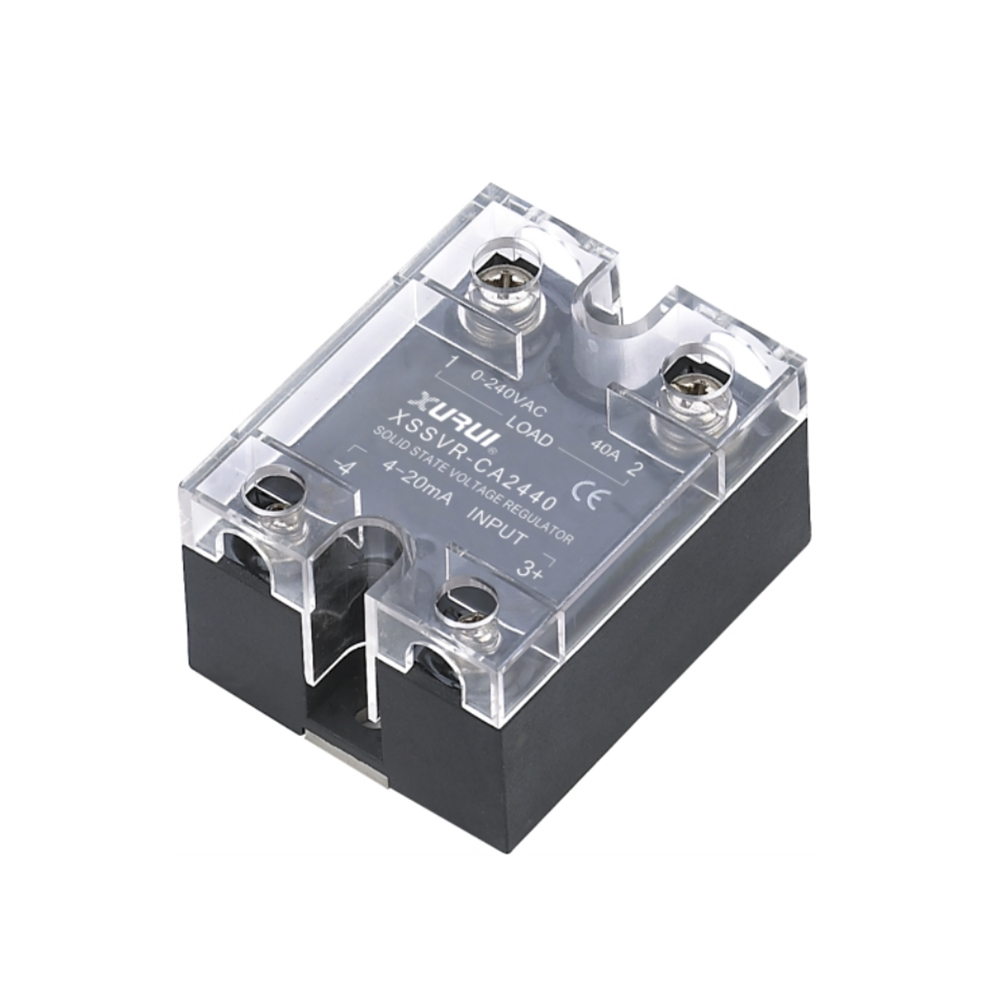

In power semiconductor devices like solid state relays (SSRs), dv/dt (rate of change of voltage) and di/dt (rate of change of current) are critical parameters for performance and reliability. Exceeding the rated limits of these values can lead to issues such as self-triggering or thermal stress, potentially damaging the device.
Understanding and managing these values is essential for ensuring SSRs operate safely and efficiently in various applications. This article explains the significance of dv/dt and di/dt, and why they should be considered when selecting an SSR.
dv/dt and di/dt
dv/dt – Rate of Change of Voltage
The term dv/dt refers to the rate at which the voltage across a device changes over time. In simpler terms, it measures how quickly the voltage increases or decreases. The faster the voltage changes, the higher the dv/dt value. This parameter is important because if the voltage changes too quickly, it can cause unwanted triggering or even damage to sensitive components in your system.
In the context of SSRs, if the dv/dt exceeds the device’s rated limit, it can cause the relay to switch on or off unexpectedly. This is known as self-triggering, where the SSR may turn on even when it is supposed to be off, potentially causing operational disruptions or even equipment damage. Managing dv/dt is essential to prevent these premature transitions and ensure the system operates as intended.
di/dt – Rate of Change of Current
Similarly, di/dt refers to the rate at which current increases or decreases over time. A high di/dt value means that the current is rising very quickly, which can also cause issues for electronic components. When current rises too rapidly during the turn-on phase of a relay, the system may experience thermal stress. This stress can lead to overheating, which, if unchecked, may cause permanent damage to the SSR or other components.
For SSRs, it’s crucial to choose a relay that can manage high di/dt values, especially in applications involving inductive loads, where current surges are common. If not properly managed, high di/dt can lead to thermal runaway, a condition where increasing heat causes further damage, eventually resulting in SSR failure. Proper selection and management of di/dt values help mitigate these risks.
Related Reading: Do Solid-State Relays Work with DC?
Application to Solid State Relays (SSRs) and Load Types
Influence of Load Type
The behavior of dv/dt and di/dt can vary depending on the type of load being controlled by the SSR. Understanding the load type is critical when selecting the appropriate relay.
- Resistive loads: In these applications, the current and voltage are typically in phase, and the dv/dt and di/dt values are less extreme. This makes it easier for the SSR to manage these parameters, and typical SSRs can handle such loads without issue.
- Inductive loads: These loads create a phase difference between current and voltage. When switching off, the voltage can rise rapidly, leading to high dv/dt. This could cause the SSR to trigger unexpectedly, resulting in system instability. SSRs handling inductive loads must be rated to handle these high dv/dt spikes to avoid misfiring or failure.
- Capacitive loads: When dealing with capacitive loads, such as power supplies or batteries, the current can spike during turn-on, creating high di/dt values. This puts stress on the SSR, requiring specific designs that can handle these rapid current changes without damaging the device.
Related Reading: 15 Solid State Relay Troubleshooting Tips to Solve Real Problems
SSR Ratings: dv/dt and di/dt
Each SSR is rated for both dv/dt and di/dt, and it’s important to choose a relay that matches the specifications of your load type.
- dv/dt rating of an SSR: This rating indicates the maximum permissible rate at which voltage can rise across the relay’s output terminals. If this value is exceeded, it could cause the SSR to turn on unexpectedly, known as self-triggering. It’s crucial to choose an SSR with a dv/dt rating that aligns with your load characteristics to avoid these unintended switching events.
- di/dt rating of an SSR: This rating defines the maximum rate at which current can rise during the relay’s turn-on phase. If this limit is exceeded, the SSR may experience thermal stress, leading to permanent damage. The di/dt value should be selected based on the nature of your load, especially in systems with inductive loads where current surges are more common.
Managing dv/dt and di/dt in Practice
Effectively managing dv/dt and di/dt is essential for ensuring the longevity of SSRs and preventing premature failure. Here are some strategies for controlling these parameters in practical applications:
- Snubber Networks: An RC snubber network is commonly used to suppress rapid voltage rises and reduce dv/dt. Snubber networks are especially useful when dealing with inductive loads, which tend to generate large voltage spikes during switching. These networks help to protect the SSR by absorbing the high voltages and limiting dv/dt. Some SSRs come with integrated snubberless technology, which eliminates the need for external snubber networks by design, making them more cost-effective in some cases.
- Selecting the Right SSR Type: Depending on the load type, you may need to choose between zero-cross SSRs (ideal for resistive or moderate inductive loads) and random/instant SSRs (better suited for highly inductive or capacitive loads). Zero-cross SSRs minimize the effects of dv/dt by switching when the AC voltage crosses zero, reducing current flow interruptions. On the other hand, random SSRs offer flexibility for complex loads, such as those with high di/dt or dv/dt requirements.
- Capacitive Loads: For capacitive loads, adding series inductance or selecting SSRs with internal designs that limit di/dt can help smooth current spikes during turn-on. SSRs designed for capacitive loads are often optimized to prevent rapid current rises and reduce the risk of thermal runaway due to excessive di/dt.
Ensure your devices meet dv/dt and di/dt specifications. Partner with a leading solid state relay manufacturer offering high-performance solutions, integrated snubber technology, and advanced designs. Request a free quote today to find the ideal solution for your needs.
Locating dv/dt and di/dt Values in Datasheets
When selecting an SSR, it’s crucial to check the datasheet for the dv/dt and di/dt ratings. These values are typically specified in the product documentation, often as non-repetitive values (the maximum values that can be safely reached in a single switching event). Exceeding these limits can cause permanent damage to the device and disrupt your system.
A dv/dt rating of 500 V/μs means that the voltage can increase by 500 volts every microsecond, while a di/dt rating of 50 A/μs means that the current can rise by 50 amps every microsecond. It’s important to choose a relay with ratings that align with your application’s needs.
Tip: Always check for both non-repetitive and repetitive ratings in the datasheet to ensure the SSR can handle the demands of your load over time. Non-repetitive values are typically specified for brief spikes, while repetitive values account for continuous operation, often at a lower level.
Conclusion
Understanding dv/dt and di/dt is essential to ensuring the stable, safe, and long-term operation of solid-state relays. These parameters directly influence switching behavior, thermal performance, and overall device reliability, especially in applications involving inductive or capacitive loads. By selecting SSRs with appropriate dv/dt and di/dt ratings, implementing proper protective measures such as snubber networks, and aligning relay specifications with actual load conditions, engineers can significantly reduce the risk of self-triggering, thermal stress, or premature device failure. Ultimately, careful evaluation of these values leads to more robust system design and improved performance across a wide range of industrial applications.
